BPP900465050 GX Touch 50 Wall Mount
Instruction Manual

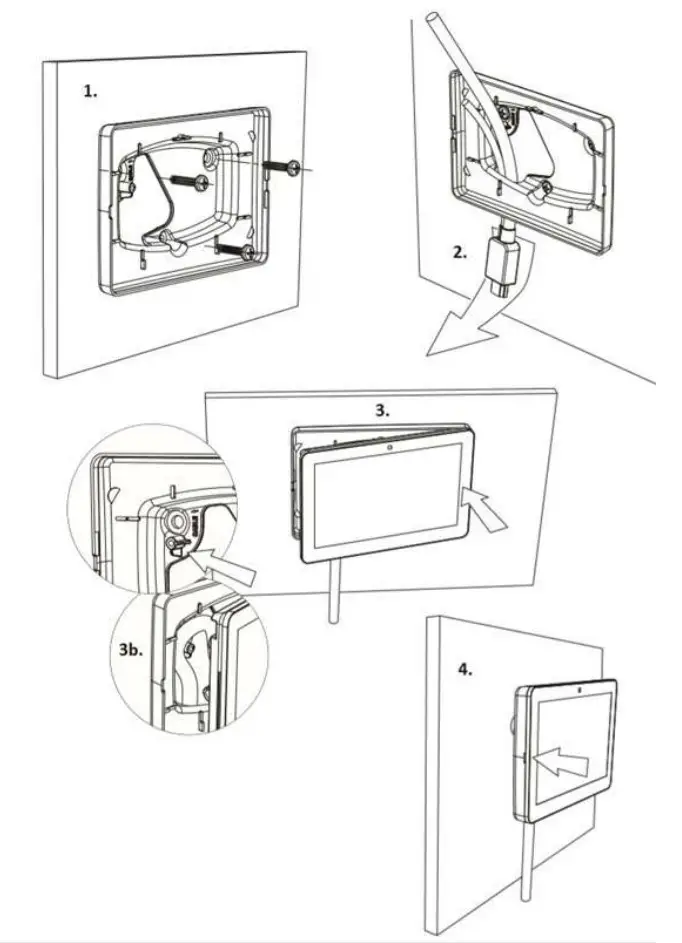

Installation Instructions for GX Touch 50 Wall Mount (BPP900465050)

1. Assemble Wall Mount to the wall using 3 screws
2. Pull the display cable through the opening
3. Insert display on right side in Wall Mount
   Optional: fold cable around pin for additional pull relief
4. Press display left side into place
