GAZCO 135R eStudio LED Electric Fire Range with Thermostatic Remote Control Instructions
PAIRING THE REMOTE CONTROL TO THE APPLIANCE
Signal Code
The below operations should be carried out before coding when changing to a new remote or the unit cannot be controlled by the remote:

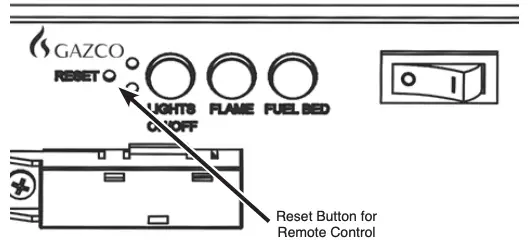

The reset button is located on the control panel located on the right-hand side.
Press the reset button for 3 seconds (a pen point may be needed) until 3 short beeps sound from the unit, release the button.
Within 10 seconds, press the
button on remote. The coding is finished when 1 long beep sounds from the unit.
Resetting of the remote control is necessary if the appliance operates wrongly due to external interference signal and the remote control is not in use.
Open the back cover of the Remote.
Press the Reset button for 3 seconds and reset the coding
ACCESSING THE FUEL BED

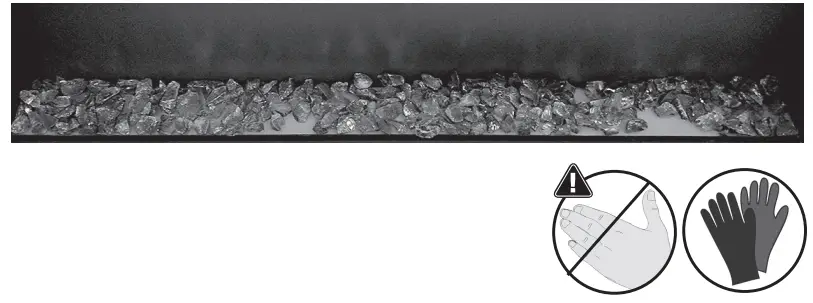

GLASS EMBERS
Spread the Glass Embers evenly over the fuel bed.
Note: The Ember Logs (See Log Layout) will rest directly on the fuel bed).

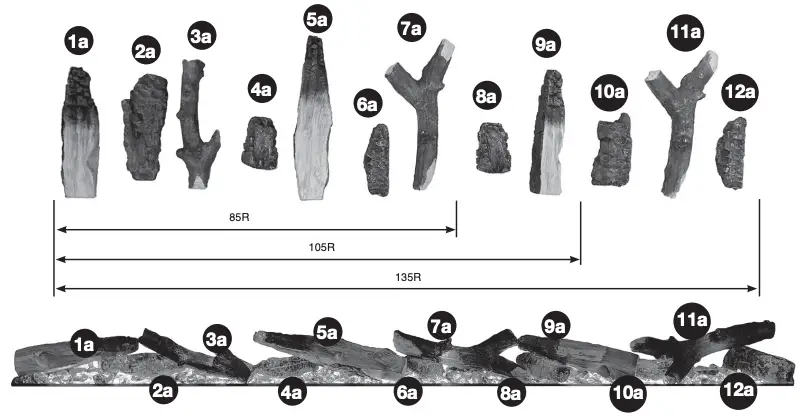

LOG SET – LOG LAYOUT

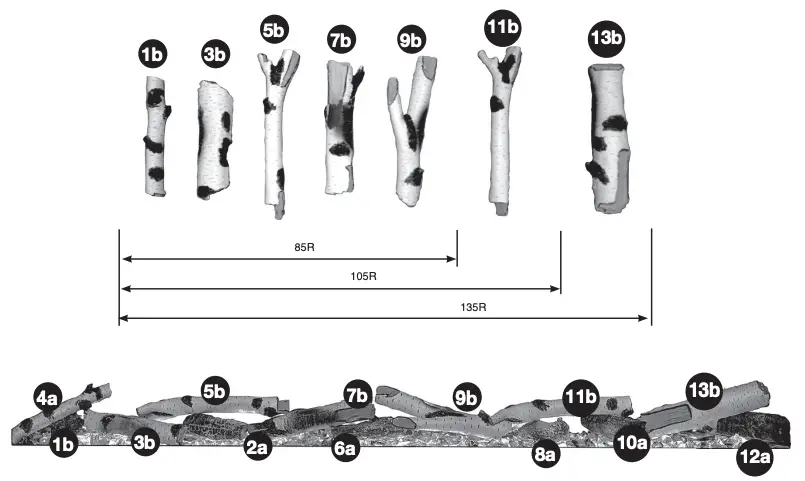

OPTIONAL SILVER BIRCH SET – LOG LAYOUT

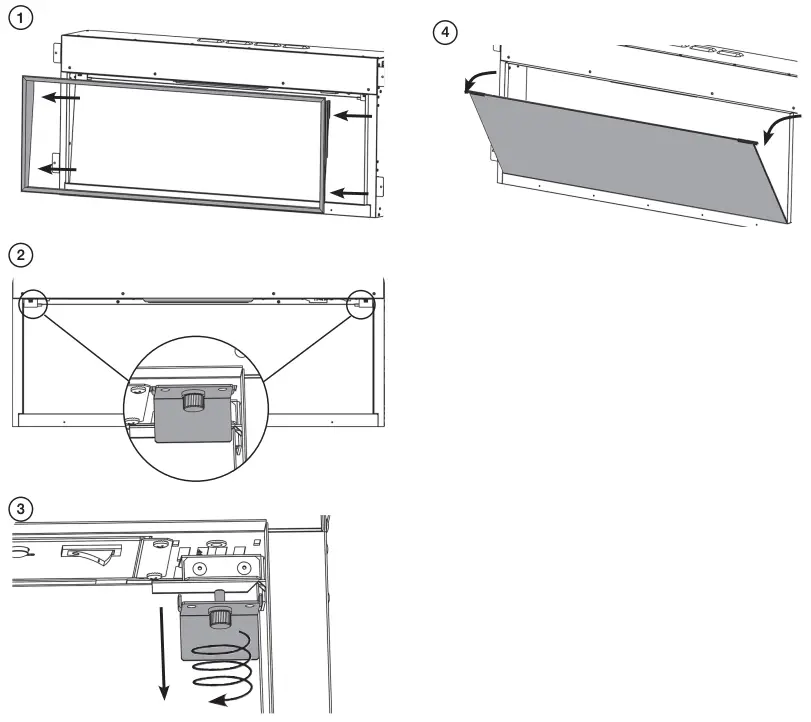

ACCESSING THE FUEL BED

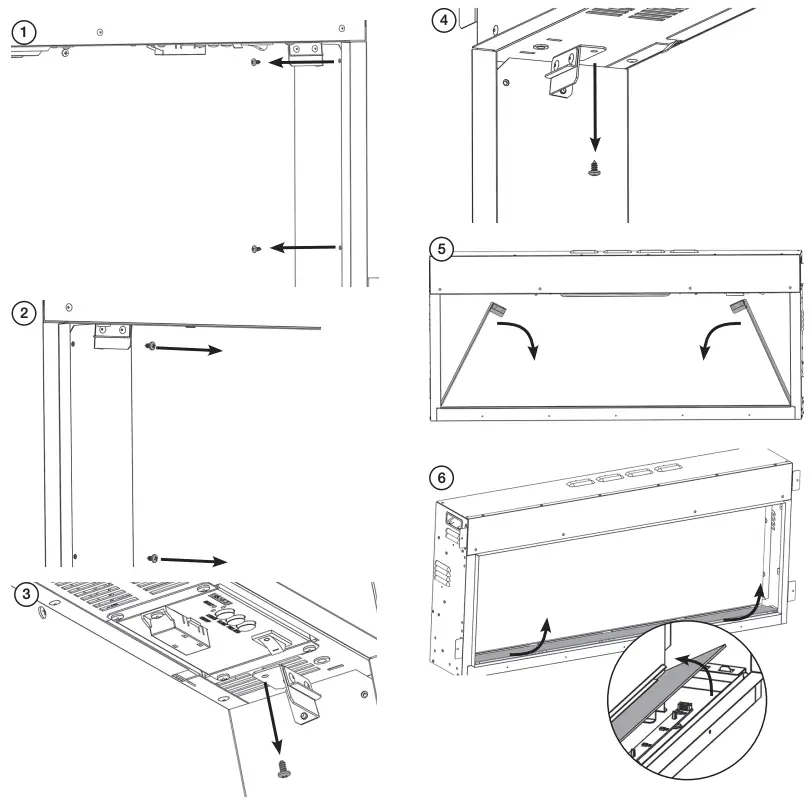

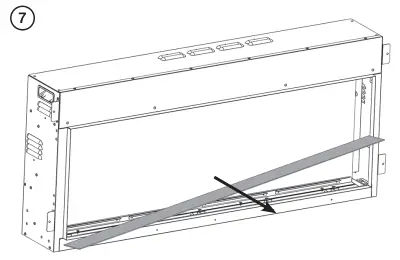

REMOVING THE FUEL BED

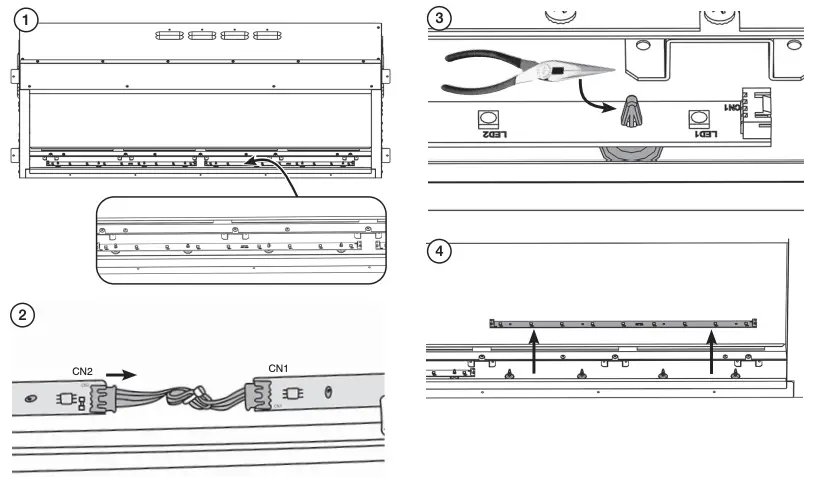

REPLACING THE FUEL BED LEDS

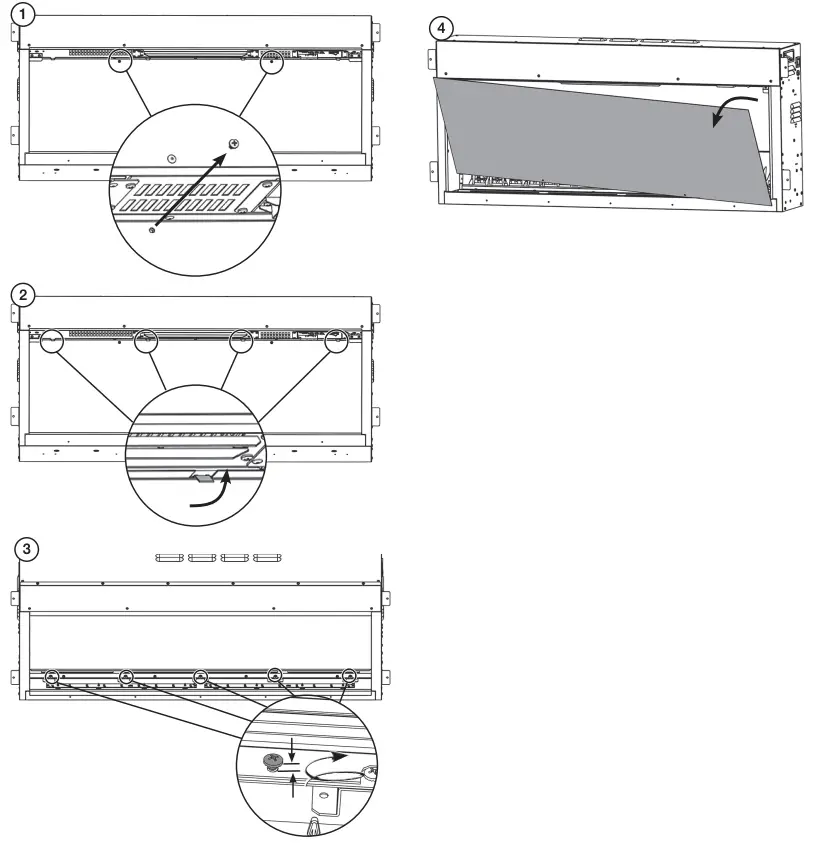

REMOVING THE INNER SCREEN

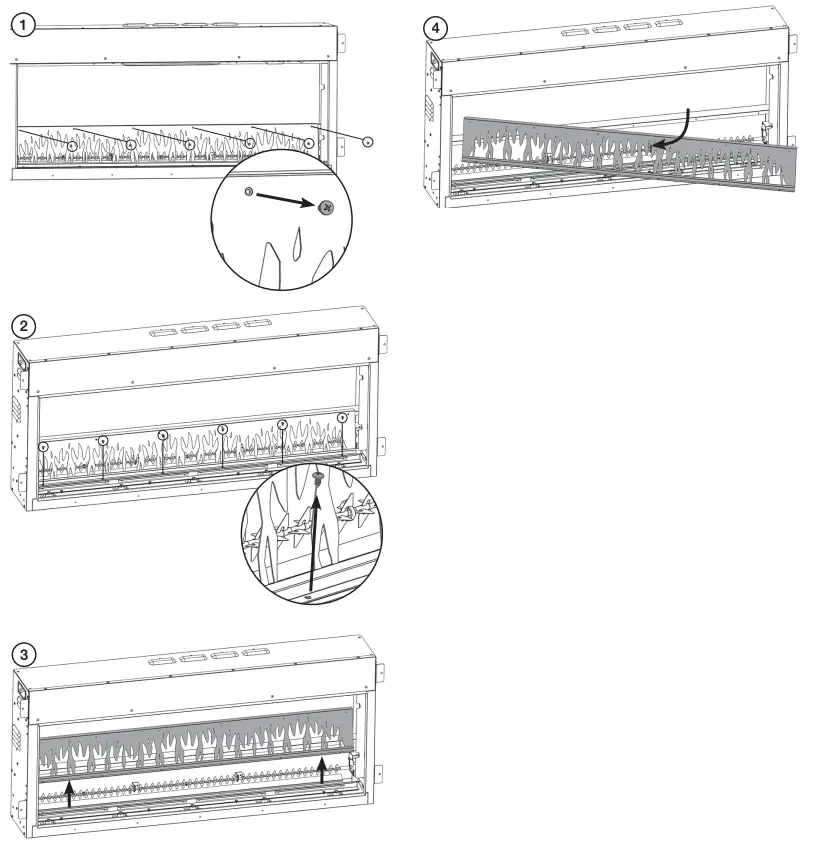

REMOVING THE FLAME EFFECT

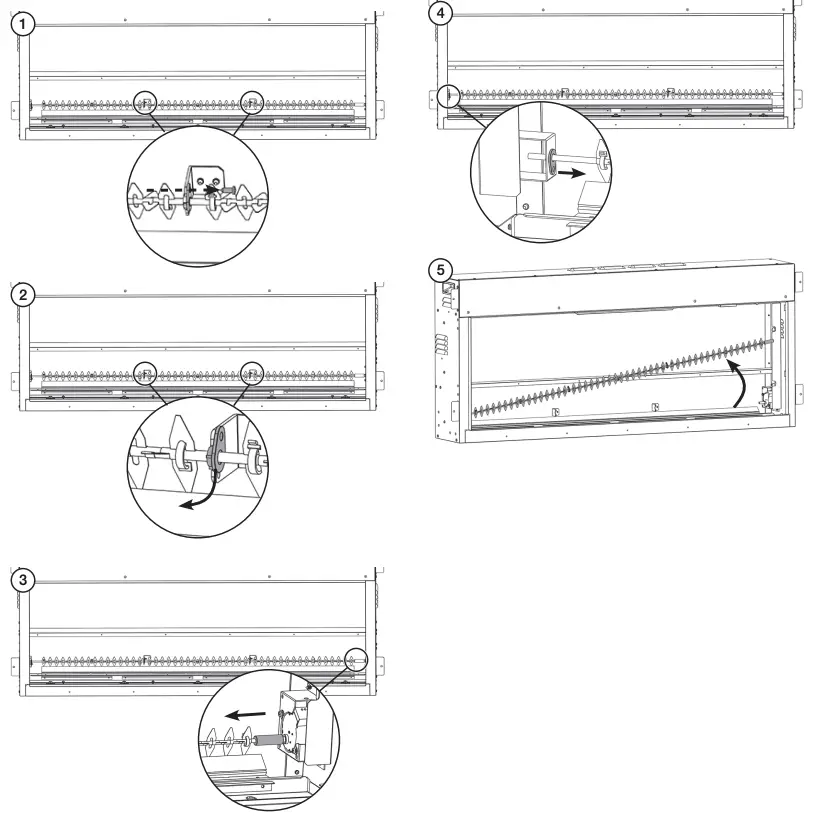

REMOVING THE EFFECT SPINDLE

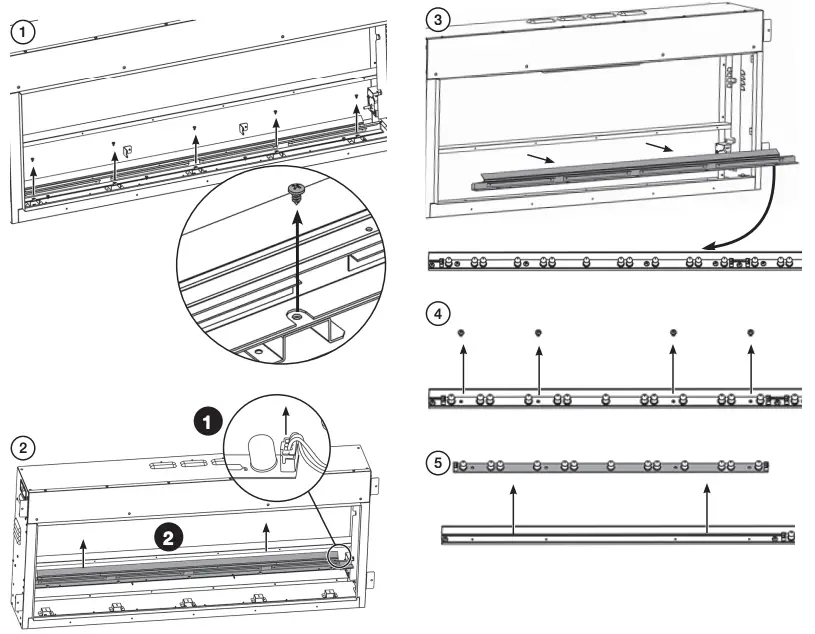

REPLACING THE FLAME EFFECT LEDS

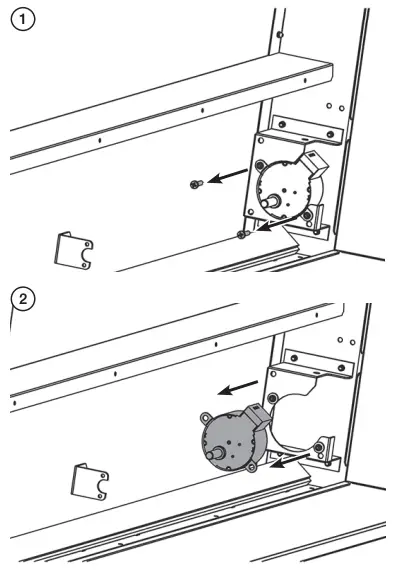

REMOVING THE FLAME EFFECT MOTOR

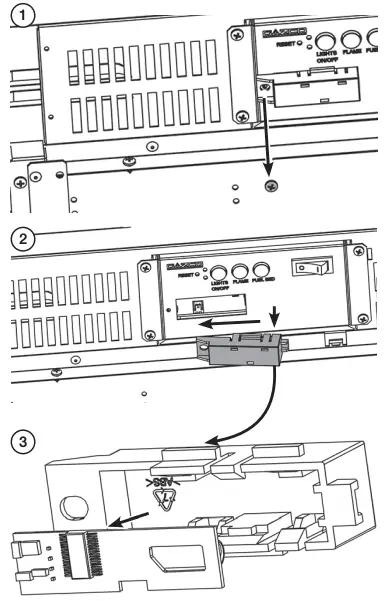

REMOVING THE RECEIVER
REPLACING THE HEATER

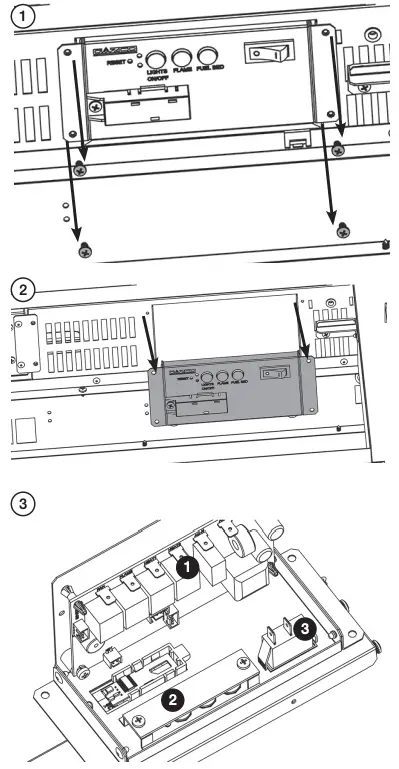

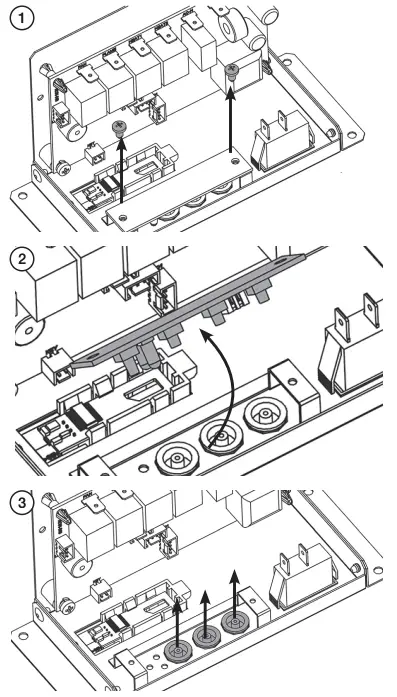

REPLACING THE CONTROL UNIT

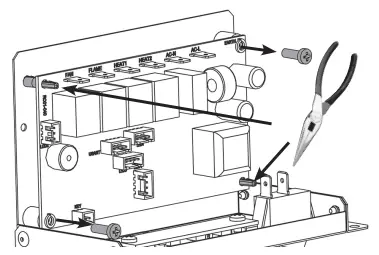

PCB

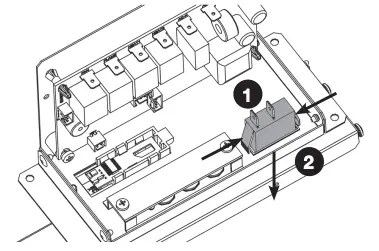

POWER SWITCH

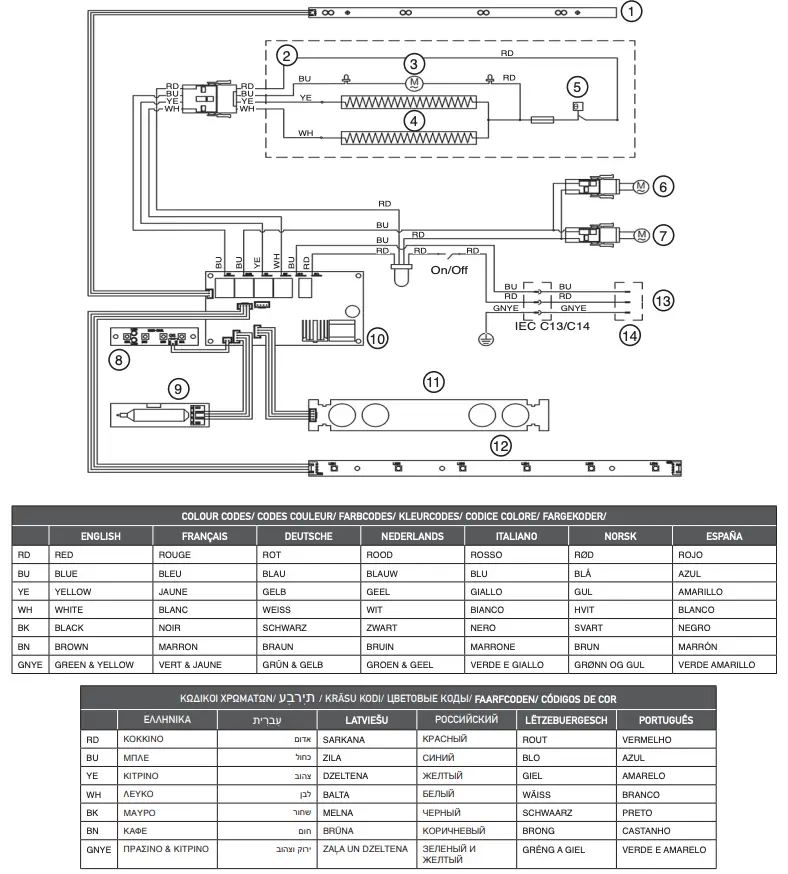

WIRING DIAGRAM

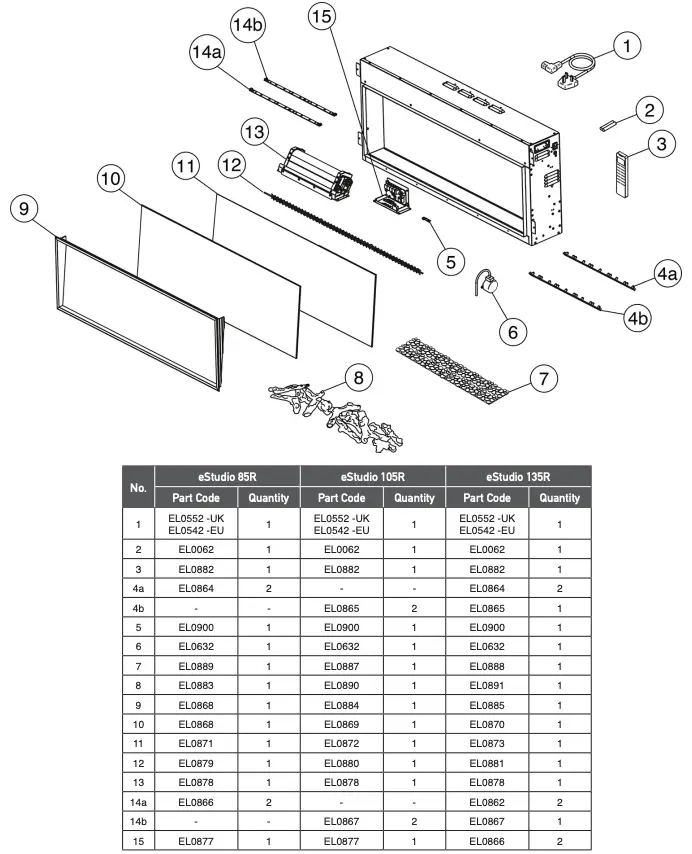

SPARE PARTS LIST
