DRILLING Dione Wall Mount User Manual
DRILLING RECOMMENDATIONS
Do not install Devialet Dione on a wall that is not indicated on this page.
- Walls made of solid material or concrete blocks:
2x Dowels 5/16″ x 2-1/4″
Drilling depth (minimum): 2-3/8″ - Plasterboards:
2x Dowels 3/8″ x2″
- Walls made of solid wood:

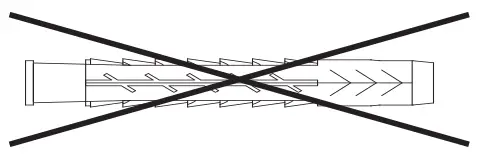

Do not use dowels
Drilling depth (minimum): 2″
- 2x Screws 3/16″ x 2″
Screw head diameter < 15/32″
Screw head thickness < 15/64″ - 2x Screws 3/16″ x2″
Screw head diameter < 15/32″
Screw head thickness < 15/64″ - 2x Screws 3/16″ x2″
Screw head diameter < 15/32″
Screw head thickness < 15/64″
SAFETY INSTRUCTIONS
To avoid the risk of falling, fire and electric shock, please make sure to read the following instructions carefully.
- Any unauthorized modification could compromise your safety and normal operation of the unit.
- If you have any problems, please consult an expert.
- For your safety, make sure an isolating device (switch or circuit breaker) is installed and easily accessible.
- In the event of a lightning storm, turn off the power.
- Make sure that your electrical installation complies with all applicable electrical standards in your country.
- Make sure the wall on which DEVIALET DIONE will be installed is fat, smooth and vertical.
- Make sure that the wall on which the sound bar will be installed is undamaged, and that it is capable of supporting 20 kg per mounting point.
- For each type of bracket, use the screw+dowel combination shown in this guide.
- When drilling the wall, make sure the drill bit is the correct diameter and suitable for the bracket.
- Be sure to properly fx the screws the to the wall for optimal support.
