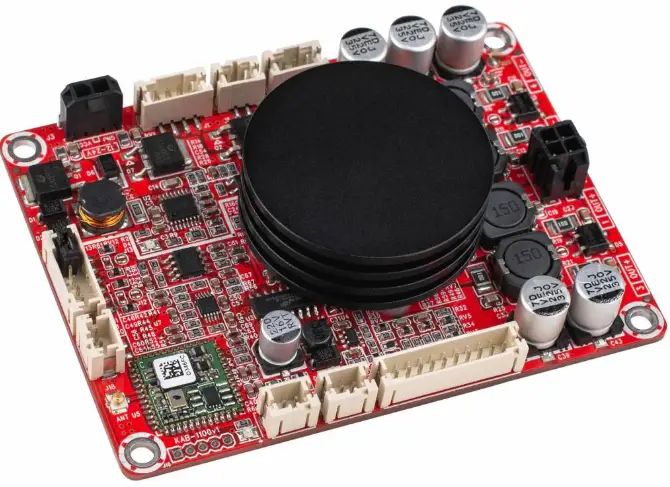

DAYTON AUDIO KAB-100Mv2 1x100W Class D Audio Amplifier Board with aptX HD Bluetooth 5.0

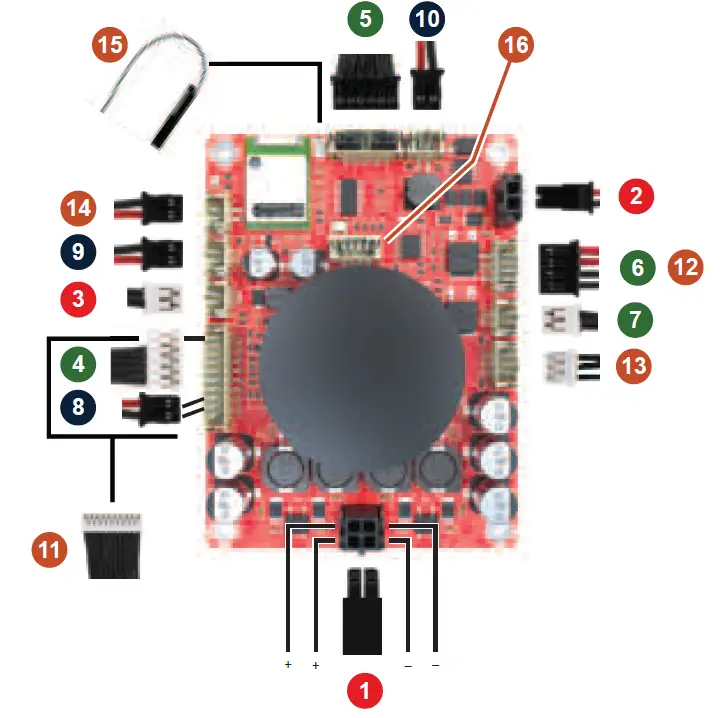

DEVICE DESCRIPTIONS
- Speaker Cable
- Power Cable
- Bluetooth Pairing Control Cable
- Aux-In Cable
- Volume Control with Cable
- Battery Cable
- On/Off Power Cable
- Power LED
- Bluetooth LED
- Charging LED
- Interface Expansion Board
- Li-ion Battery Charging Board KAB-BE
- Future Expansion
- Line Out Mono
- Optional External Bluetooth Antenna Port
- Programming Port for Optional KPX Board
Speaker Output Connector
J2 MOLEX-4PIN-3MM
Pin Definition
- OUT+
- OUT–
- OUT+
- OUT–
