2 x 150W Class D Bluetooth 5.0
Amplifier Board with Tone and
Volume Controls
Quick Start Wiring Guide
Model: KAB-2150

KAB-2150 2 x 150W Class D Bluetooth 5.0 Amplifier Board with Tone and Volume Controls

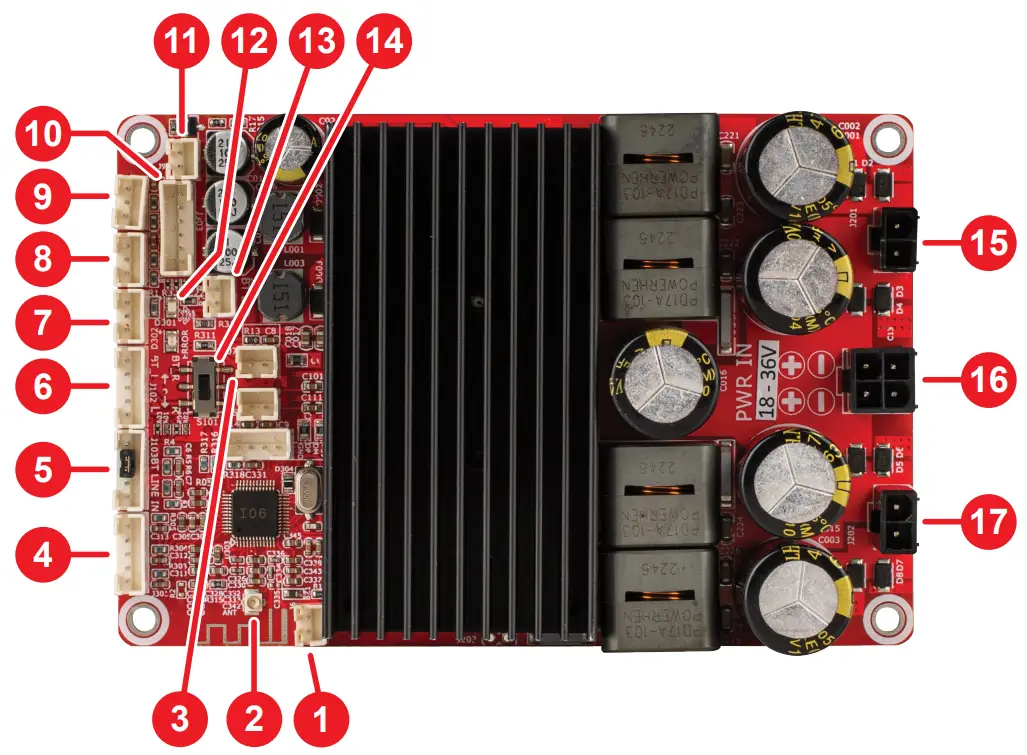

1. External Power LED Indicator Socket
2. External Antenna Option
3. Bluetooth Reset Switch
4. Analog Audio Output (does not function in Bluetooth Bypass Mode)
5. Line Input for Bluetooth Mode (remove black jumper if adding aux port, jumper required if port is empty)
6. Line Input for Bluetooth Bypass Mode
7. Port for Volume Control
8. Port for Bass Control
9. Port for Treble Control
10. I2S Digital Audio Output
11. Power Switch Port
12. On Board Bluetooth LED (Blue)
13. External Bluetooth LED Port
14. Line Input Switch (Up Position for
    Bluetooth Mode, Down Position for
    Bluetooth Bypass)
15. Left Speaker Output
16. 18-36 VDC Input
17. Right Speaker Output
