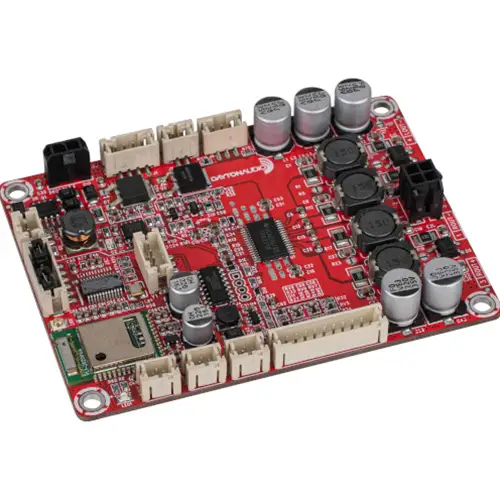

DAYTON AUDIO KAB-230v4 2x30W Class D Audio Amplifier Board with aptX HD Bluetooth 5.0 User Guide

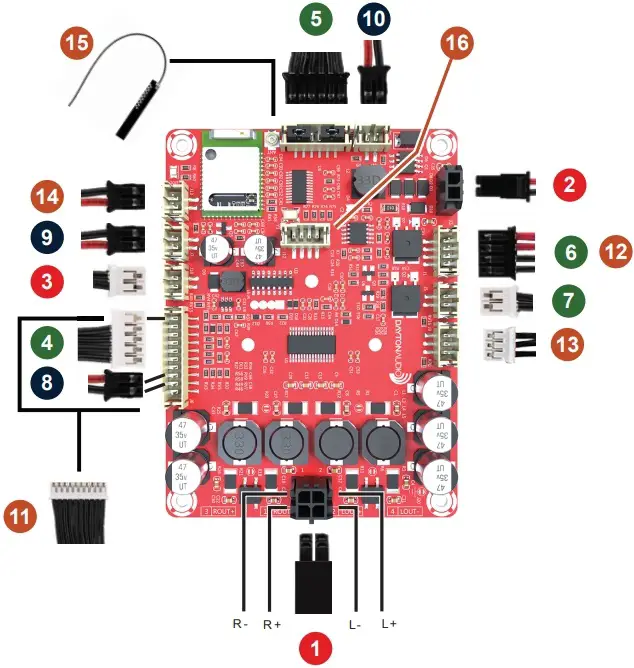

Product Overview

          INCLUDED

1. Speaker Cable
2. Power Cable
3. Bluetooth Pairing Control Cable


   FUNCTIONAL CABLE PACKAGE

4. Aux-In Cable
5. Volume Control with Cable
6. Battery Cable
7. On/Off Power Cable


   LED PACKAGE

8. Power LED
9. Bluetooth LED
10. Charging LED


    ADDITIONAL

11. Interface Expansion Board
12. Li-ion Battery Charging Board KAB-BE
13. Future Expansion
14. Line Out Mono
15. Optional External Bluetooth Antenna Port
16. Programming Port for Optional KPX Board

Speaker Output Connector

• J2 MOLEX-4PIN-3MM


  Pin	Definition
  1	R OUT
  2	L OUT+
  3	R OUT+
  4	L OUT
