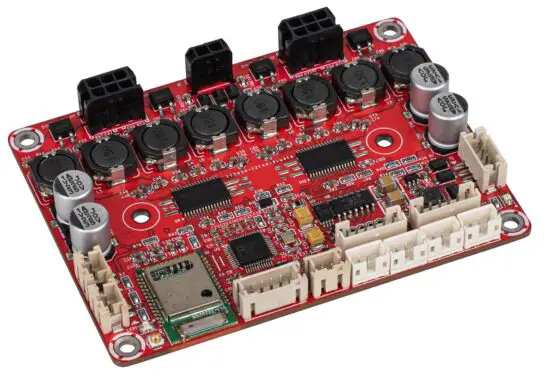

Dayton Audio KABD-430 Bluetooth Amp Board with DSP User Guide

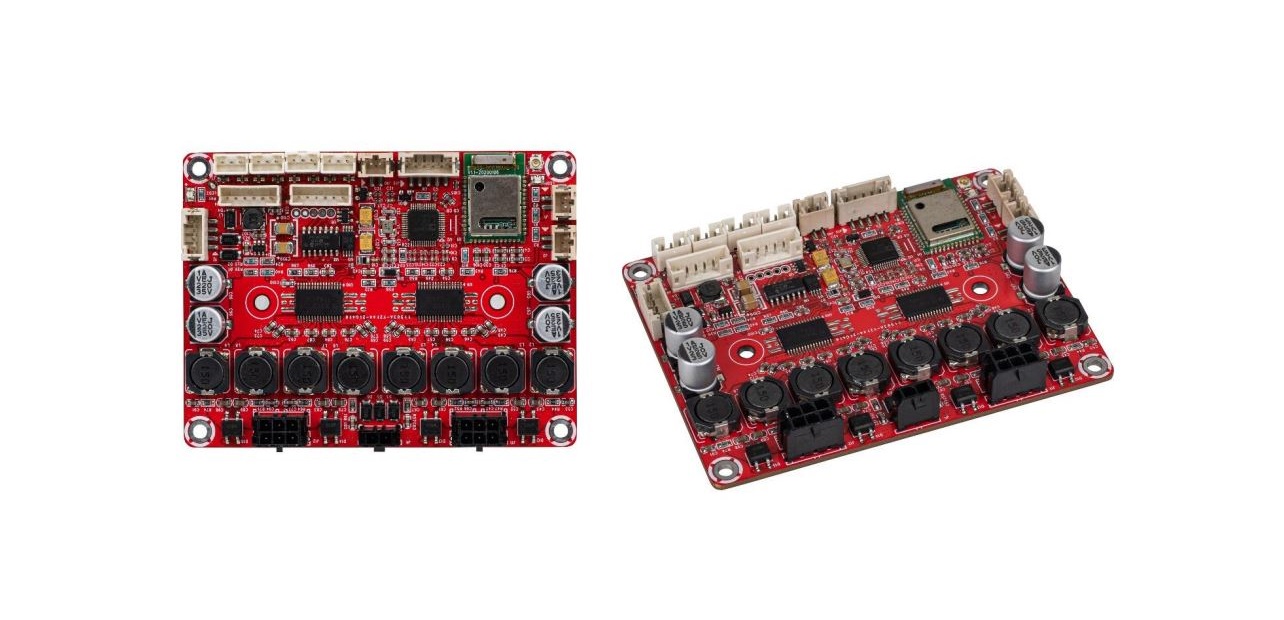

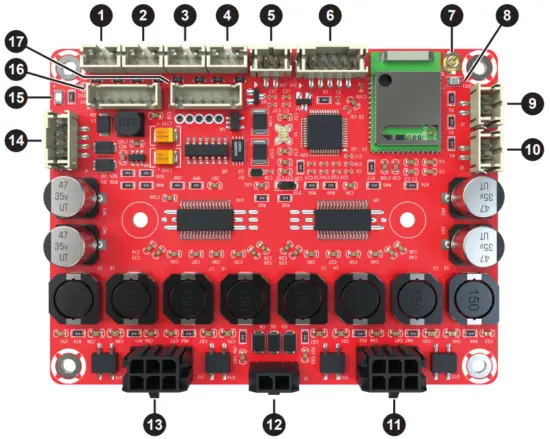

Product Overview
- Pot 4
- Pot 3
- Pot 2
- Pot 1
- Standby Switch Connector
- Line Input Connector
- External Bluetooth Antenna Option
- Bluetooth Status LED
- External Bluetooth Status LED Connector
- Bluetooth Pairing Switch Connector
- Speaker Output Connector J11
- 10 to 26 VDC Power Connector (Typ. 24 VDC)
- Speaker Output Connector J12
- LBB Series Battery Board Connector (12 or 21 VDC)
- Signal Detection Status LED
- Programming Connector for ICP1 or KPX
- I2S Audio Signal Output (Digital Only)
The KABD-430 supports PBTL (bridging) on each speaker port, allowing for 4.0, 2.1, or 2.0 modes.
Connecting the MODE pin to GND on either J11 or J12 will enable STEREO mode on that connector, or leave MODE and GND disconnected to enable MONO mode on that connector.
MONO
| MONO | ||||||
| MODE DISCONNECTED FROM GND | Pin | Function | Pin | Function | Pin | Function |
| 1 | GND | 3 | MONO+ | 5 | MONO- | |
| 2 | MODE | 4 | MONO+ | 6 | MONO- | |
CONNECT MODE TO GND

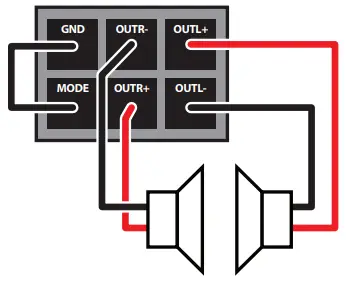

STEREO
| STEREO | ||||||
| MODE CONNECTED FROM GND | Pin | Function | Pin | Function | Pin | Function |
| 1 | GND | 3 | OUTR- | 5 | OUTL+ | |
| 2 | MODE | 4 | OUTR+ | 6 | OUTL- | |
DISCONNECT MODE FROM GND
