2x5OW Class D Audio Amplifier
Board with 5.0 Bluetooth
Quick Start Wiring Guide
Model: KAB-250v4
INCLUDED
- Speaker Cable
- Power Coble
- Bluetooth Pairing Control Cable
FUNCTIONAL CABLE PACKAGE
- Aux-In Cable
- Volume Control with Cable
- Battery Cable
- On/Off Power Cable
LED PACKAGE
- Power LED
- Bluetooth LED
- Charging LED
ADDITIONAL
- Interface Expansion Board
- Li-ion Battery Charging Board KAB-BE
- Future Expansion
- Line Out Mono
- External Bluetooth Antenna
- Future Programmer

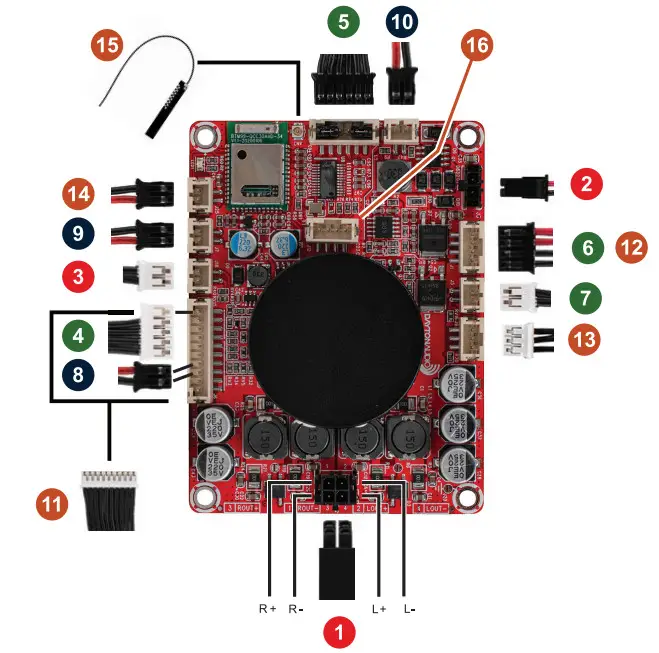

Speaker Output Connector: J2 Molex-4PIN-3MM
| Pin | Definition |
| 1 | R OUT- |
| 2 | L OUT+ |
| 3 | R OUT+ |
| 4 | L OUT- |
