PARTS EXPRESS 320-642 Bluetooth 5.0 FM Media Player 2 x 25W Max Amplifier Board

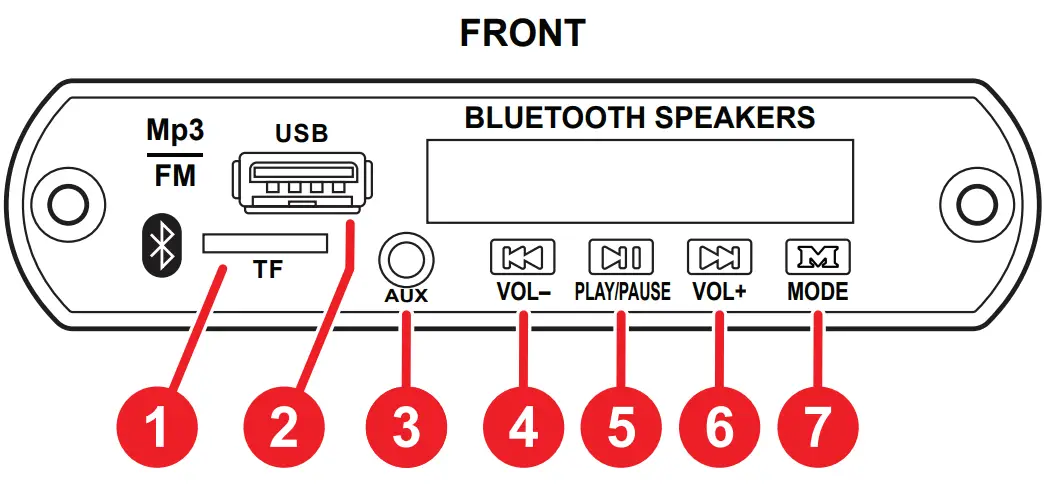

FRONT CALLOUTS

1. TF/Micro SD card slot up to 32 GB
2. USB Flash Drive Port
3. Aux-In 3.5mm Stereo Port
4. Short press previous track or FM station/Long press volume down
5. Short Press Play/Pause; Long Press in USB/TF Mode Changes Folders
6. Short press next track or FM station/Long press volume up
7. Short press input mode; Long press records voice when in USB/TF mode

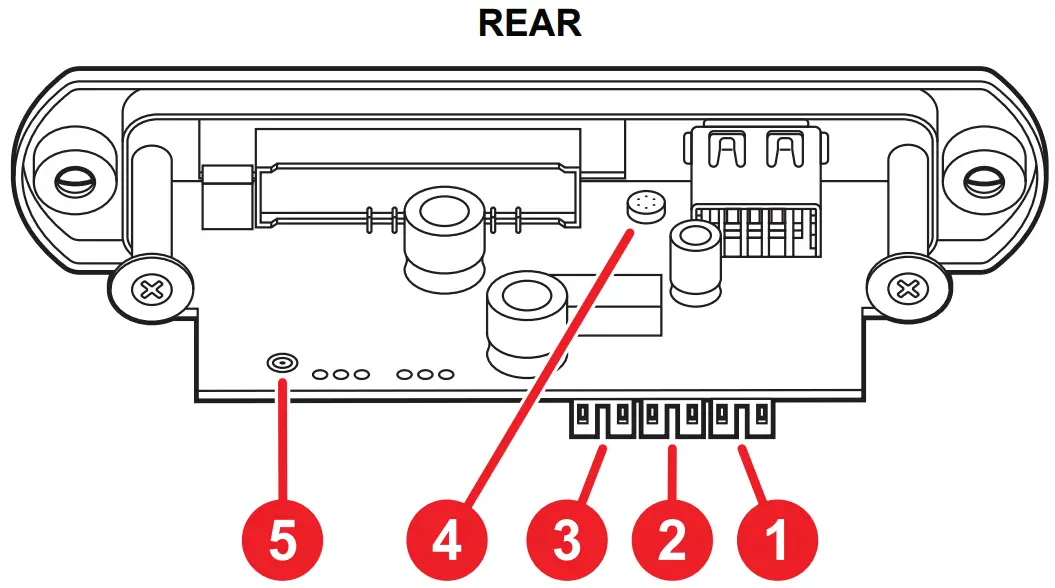

REAR CALLOUTS

1. 12 to 18V DC Power Input
2.  Right Speaker
3. Left speaker
4. Microphone for Smartphone Calls
5. FM Antenna Hookup

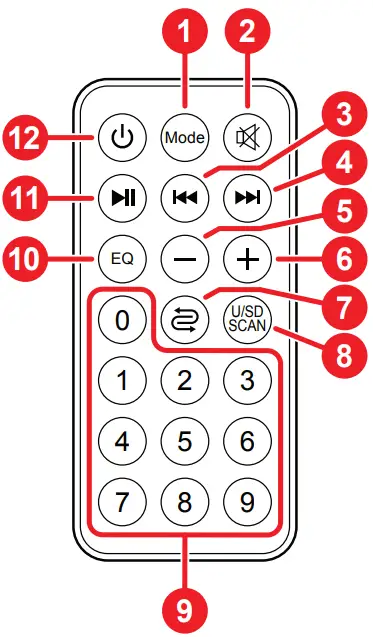

REMOTE CONTROL CALLOUTS

1. Short press input mode; Long press records voice when in USB/TF mode
2. Mute
3. Previous track or FM memory station
4. Next track or FM memory station
5. Volume down
6. Volume up
7. Repeat functions
8. Auto scan and saves found FM stations only
9. Direct entry for FM radio stations
10. 6 EQ options
11. Short Press Play/Pause; Long Press in USB/TF Mode Changes Folders
12. Power
