MGV520B
USER’S MANUAL
QUICK INSTALLATION GUIDE BLUETOOTH (AUDIO STREAMING)1240 WATTS
MARINE DIGITAL MEDIA AM/FM RECEIVER

Thank you for purchasing this

MGV520B BLUETOOTH MARINE DIGITAL MEDIA AM/FM RECEIVER

Please read through the User’s Manual carefully to learn the proper operation of your receiver. Save User’s Manual for future reference.

INFORMATION TO THE USER

The Bluetooth word mark and logos are registered trademarks owned 4y Bluetooth SIG, Inc and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

IMPORTANT SAFETY PRECAUTIONS

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:

Do not turn up the volume so high that you can’t hear what’s around you.
Use caution or temporarily discontinue use In potentially hazardous situations
Do not operate mobile video equipment while driving
motorized vehicle – safe driving and safety consideration of others should always be your highest priority
Sot your volume control at a low setting, then slowly increase the sound until you can hear it comfortably without distortion, or ear discomfort.
In the event you should notice smoke, strange noises or odor from this product, or any other abnormal signs, Immediately turn off the power and consult your dealer or the nearest authorized BOSS AUDIO Service Center Using this product in this condition may result In permanent damage to the system

BEFORE YOU START

Always consult with a professional installer
Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without professional training and experience In electronic equipment and motorized vehicle accessories may bo dangerous and could expose you to the risk of electric shock, injury, or other hazards
Refer any repairs to a qualified BOSS AUDIO SYSTEMS Service Center
The MOVS20B should be wired directly to a vehicle’s battery
When wiring directly to the vehicle’s battery, be sure to disconnect the battery negative terminal wire before starting any wiring procedures, if extending the main power primary wire, It Is suggested that an optional fuse and fuse holder (not included) with a minimum rating of 15 Amperes be In-line with the positive battery terminal
The ground cable length should be as short as possible, If extending from your battery, be sure to use a proper gauge rating for the length of the run. use only high-quality copper primary type wire
The MGV5208 has an I PX6 weather-resistant design, it should not be submerged in or underwater under any circumstances
Do not use abrasive cleaning materials on the lens or bezel
Use only the Installation parts provided with the MG V5208

To avoid potential shorts In the electrical system. be sure to disconnect the (-) battery cable before installation. Use this unit with a 12-Volt battery and negative grounding only. Failure to do so may result In a fire or malfunction.

When replacing the fun, be sun to only use a avoid short. circuiting, cover any disconnected Ions with an Insulating tap. It Is Important to insulate any unused wires, which if left uncovered may c.-se a shod circuit When connecting other devices to this product, refer to the manual for the product to be connected. The black cable is ground, make sure to connect the ground wire first.
Ensure that the ground cable is properly connected to metal parts of the vehicle’s body frame or directly to the battery If your vehicle does not have a grounded chassis frame. The ground cable of this unit’s power amp and a second powered system must be connected to the frame separately with different screws If the screw for the ground wire loosens or falls out, it could result In fire or malfunction.

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause interference, and
this device must accept any interference, including interference that may cause undesired operation of this device.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter The Bluetooth antenna cannot be removed (or replaced) by the user. This equipment complies with FCC/ IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RE) Exposure rules. This equipment has very tow levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE) But it is desirable that it should be installed and operated keeping the radiator at Oast 20 cm or more away from the person’s body (ex ‘using extremities: hands, wrists. feet and ankles). Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that Interference wit: not occur in a particular installation. II this equipment does cause harmful interference to radio or television reception. which can be determined by turning the equipment off and on. the user is encouraged to try to correct the interference by one or more of the following measures:
Relocate or reorient the receiving antenna Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help
” WARNING”

ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY At RESULT IN HAZARDOUS RADIATION EXPOSURE.

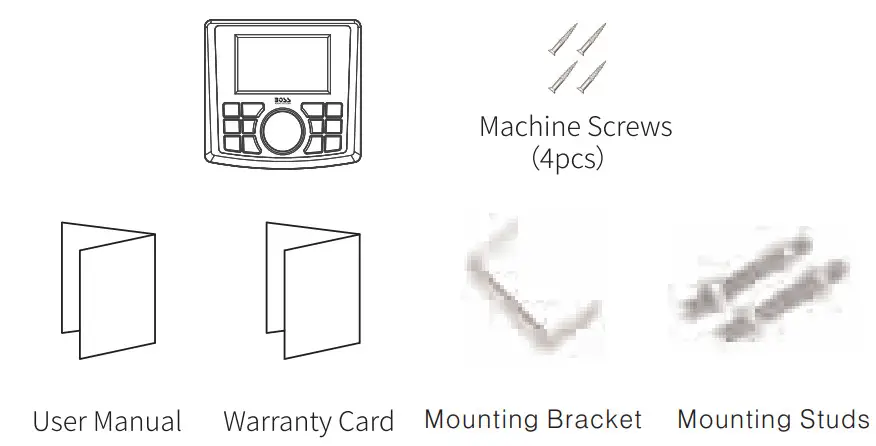

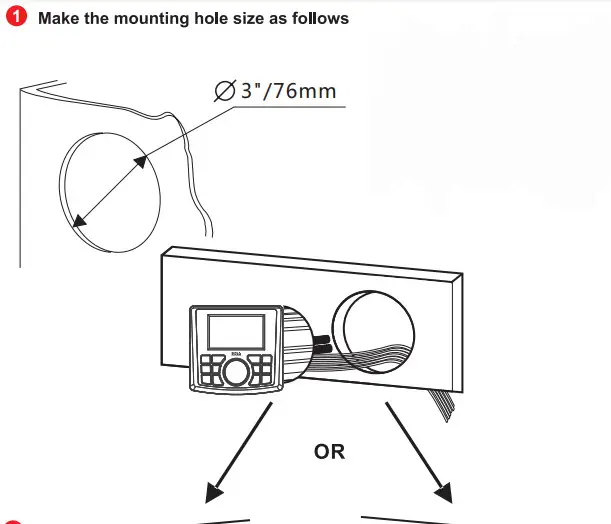

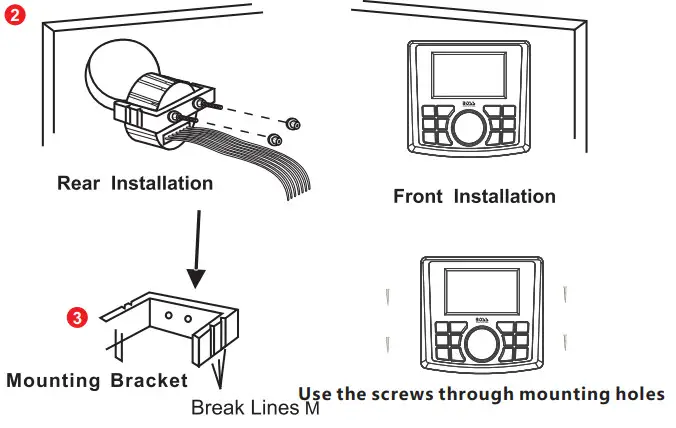

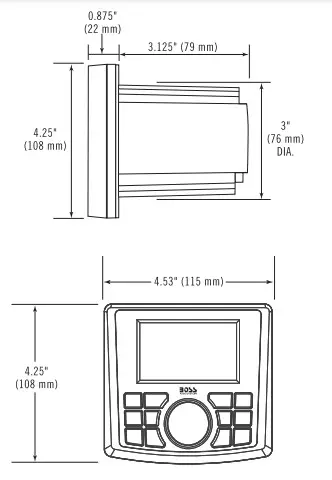

SUGGESTED MOUNTING METHODS

TOOLS NEEDED
-Measuring Tape/ Ruler
-Wrench and/or plies
-Hole Saw
-Crimp Tool

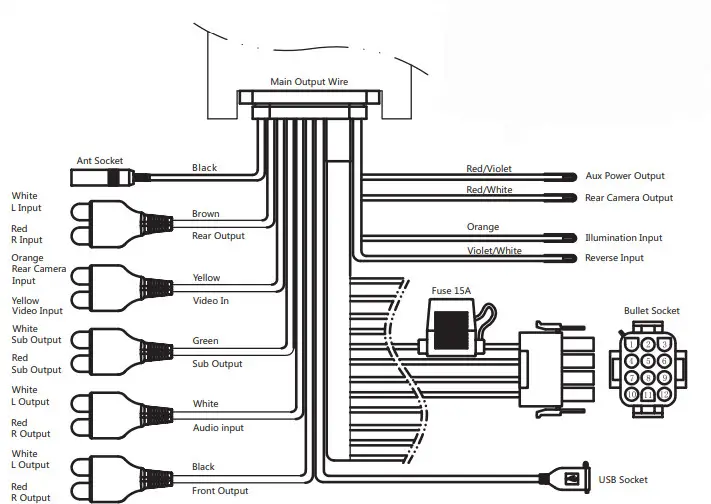

WIRE DIAGRAM

Bullet Socket Function

No	Function	Colour	No	Colour	Function
1	Red	Acc	7	Blue	Remote
2	White/B	FLFL+	8	Green/B	RLRL+
3	White	Constant	9	Green	Gnd
4	Yellow	FRFR+	10	Black	RRRR+
5	Grey/B	Acc	11	Purple/B	Remote
6	Grey	FLFL+	12	Purple	RLRL+

GETTING STARTED

All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of BOSS AUDIO SYSTEMS Inc.

Button Control Functions

Button	working condition	operation	MGV550B functional description
ROTARY KNOB	Power OFF	short press	no function
	Power ON	long press	POWER OFF
	Power ON	short press	EQ
	Idle Mode	turn right	Volume increase
	Idle Mode	turn left	Volume decrease
MODE	Power ON	short press	Switch function:RADIO-USB-BT-AUX/AV
MODE	Power ON	long press	no function
	RADIO	short press	Back to main menu
	USB	short press	Back to main menu
	RADIO	short press	Video-Input for rearview Camera
	USB	short press	Video-Input for rearview Camera
	RADIO	short press	Lighting power supply output
	RADIO	Long press	no function
		short press	no function
	USB/BT	short press	Play/stop
		short press	Automatic up Search Radio
	RADIO	Long press	1. Long press and then long press to enter “AUTO” and MANUAL” search station switching mode, short press when “AUTO” is displayed, enter an automatic downward search for radio stations; when “MANUAL”is displayed, short press again, and manually downward Search stations
	RADIO	Long press	2. After entering “AUTO” and “MANUAL” mode for about 5 seconds, there is no operation to search for radio stations, it will automatically exit and display the current frequency information.
	BT	short press	Choose the next song
	BT	Long press	No function
	USB	short press	Choose the next song
	USB	Long press	Fast froward selections
	RADIO	short press	Automatic up Search Radio
		Long press	1. Long press and then long press to enter “AUTO” and “MANUAL” search station switching mode, short press when “AUTO” is displayed, enter an automatic downward search for radio stations; when “MANUAL” is displayed, short press again, and manually downward Search stations
		Long press	2. After entering “AUTO” and “MANUAL” mode for about 5 seconds, there is no operation to search for radio stations, it will automatically exit and display the current frequency information.
	BT	short press	Choose the next song
	BT	Long press	No function
	USB	short press	Choose the next song
	USB	Long press	Fast froward selections
APS		Short press	Automatically scan for radio stations
APS		Long press	Automatically scan and search for the radio station and store it, then play and browse the stored radio stations
RPT	Power ON	Short press	REPEAT ON/OFF
	Power ON	Long press	No function
	Power ON	Short press	MUTE
	Power ON	Long press	POWER OFF
	Power ON	Short press	POWER ON
	Power ON	Long press	No function
EQ	Power ON	Short press	EQ:OFF-EQ1-EQ2-EQ3-EQ4-EQ5-EQ6
EQ	Power ON	Long press	No function
BAND	RADIO	Short press	Band Switch FM1-FM2-FM3- AM1-AM2
	USB	Short press	Multimedia playback format conversion: music-video- picture
	BT	Short press	Disconnect Bluetooth

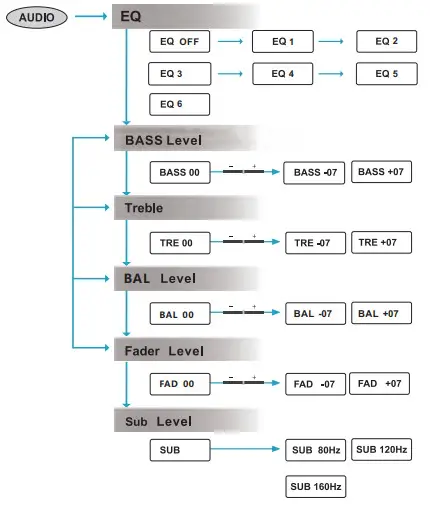

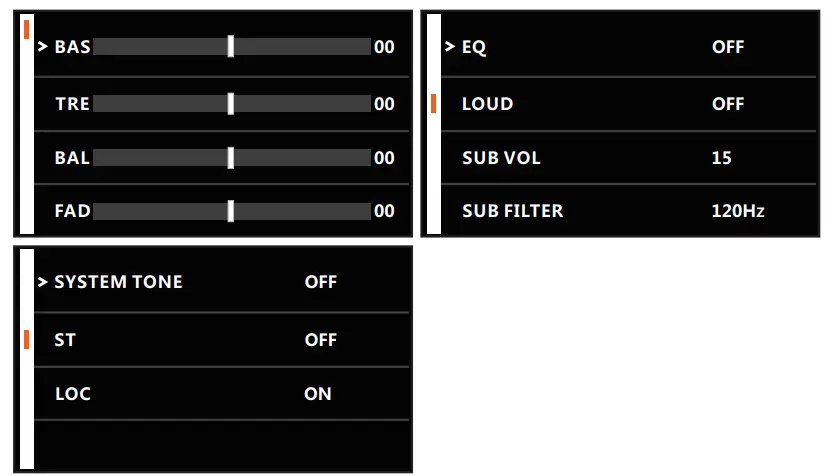

AUDIO and SYSTEM SETUP

RADIO OPERATION

Press the MODE button to select RADIO
To advance stations press
To skip previous stations press
PRESET buttons to recall PRESETS 1 – 6
Press and hold the desired PRESET to save the station

USB OPERATION

Press the MODE button to select USB
Preess to start PLAY, press again to PAUSE
To skip songs or advance tracks press
To select previous track press

AUX -INPUT

Press the MODE button to select AUX IN
Accessory

Accessory

The start button can serve two purposes, one press will turn on the aux power. Press again and It will turn off the aux power.
The other function If the user decides to turn on favorite from the camera menu. press and hold to power on the camera. Press and hold again to turn off the camera.

Camera

There are two cameras in the setting, when this button is pressed, it will display the rear camera image until it Is pressed again. You can see the condition in the rear when you back a carry ATV, UTV, golf cart.
Enable is to allow camera 1 or 2 to be the default, when disabled, the unit can not allow camera 2 to be the default.

BLUETOOTH OPERATION

PAIRING & DISCOVERING A NEW BLUETOOTH CONNECTION
Note: The mobile device must be within 33ft (10m) of the MGV520B for Bluetooth to function properly. 1)

Press the MODE button to access Bluetooth Streaming.
ANDROID users: a. Go Into the Settings Menu of your ANDROID device
b. Enter the Bluetooth Menu and press SCAN
c. “Boss Audio MGV520B” will now be displayed under AVAILABLE DEVICES
d. If prompted, enter passcode: “0000”
IOS users:
a. Go into the Settings Menu of your IOS device
b. Enter the Bluetooth Menu
c. “Boss Audio MGV52013” will now be displayed
d. If prompted, enter passcode: “0000”
If the MGV520B is not seen, repeat the above steps to refresh the “Device List”
When the ST connection is successful you will see the BT logo light upon the MGV520B display, you are now ready to stream music from your devices favorite media player to the MGV520B

RECONNECTION

Power on the MGV520B and your last paired device Bluetooth
The unit will now automatically be reconnected
If your device was previously paired with the MGV520B, but it wasn’t the last paired device: a. Ensure no other devices are currently paired
If the device Is out of range from the MGV520B, It will disconnect automatically

TROUBLESHOOTING GUIDE

TROUBLE	CAUSE	SOLUTION
Unit will not turn on	The fuse is blown	Check/replace the fuse
Unit will not turn on	Ignition not engaged	Turn ignition to on position
No sound is heard	Blown speaker	Replace faulty speaker
	Volume is low / muted	Press the volume level up
	Device is paused or muted	Check your devices playing / volume status
Cannot pair Bluetooth	The Bluetooth function of the device is not enabled	Refer to the user manual of the device for how to enable the Bluetooth function
Cannot pair Bluetooth	The MGV520B BT memory is full	Follow how to reconnect a device in section
The audio quality is poor after connection with a Bluetooth enabled device	The Bluetooth reception is poor	Move the device closer to the audio system or remove any obstacle between the device and the system’s antenna
Unit has become unresponsive	Power glitch or interference	Disconnect power for 10 seconds to reset
	Low battery power	Charge battery, run the engine to recharge the battery
	Reset the main system	Follow steps in section B
