TPA3116 2.1 Bluetooth 2.1 50W x 2 + 100W
Amp Board with FM AUX-In and USB Media
Player IR Remote
Quick Reference Guide
TPA3116 2.1 Bluetooth 2.1 50W x 2 + 100W Amp Board

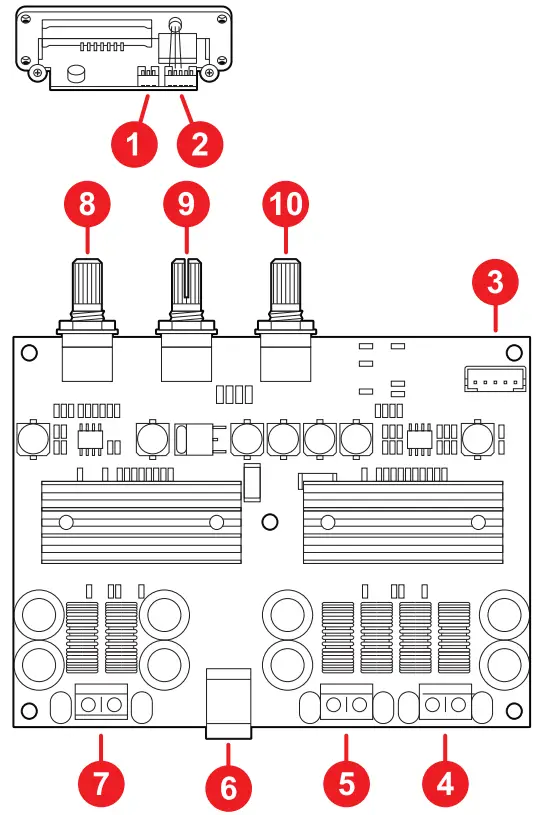

| 1. Aux-in 3-Pin Socket 2. 6-Pin Socket to Amplifier Board 3. 6-Pin Socket from Digital Display Board 4. Right Speaker Output 5. Left Speaker Output | 6. 24 VDC Input 2.1 x 5.5mm tip + Socket 7. Subwoofer Speaker Output 8. Low Pass Frequency Adjustment 9. Bass Volume 10. Master Volume |
