Beok Bot-313w Series Boiler Thermostat User Guide

BEOK BOT-313W Series Boiler Thermostat
User Guide

I. Product Summary:

BOT-313W series boiler thermostats have LCD digital display screen, and it is developed according to market’s requirements. This series thermostats are easy to operate, and with complete functions. It can be used to control boilers, motorized ball valves, motorized valves, electric valves, solenoid valves, etc.

II. Technical Parameter:

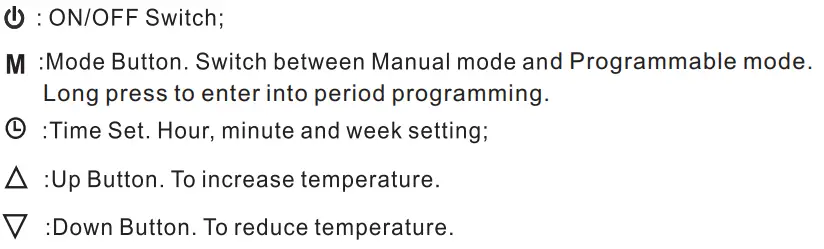

Ill. Main Button Instruction

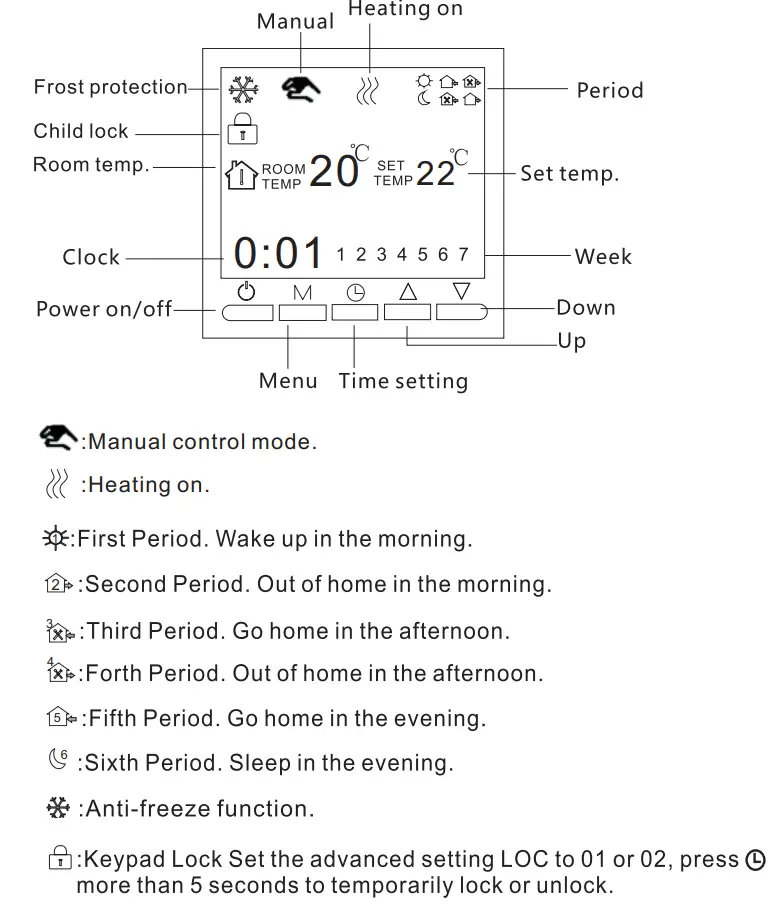

IV. User Interface Explanation

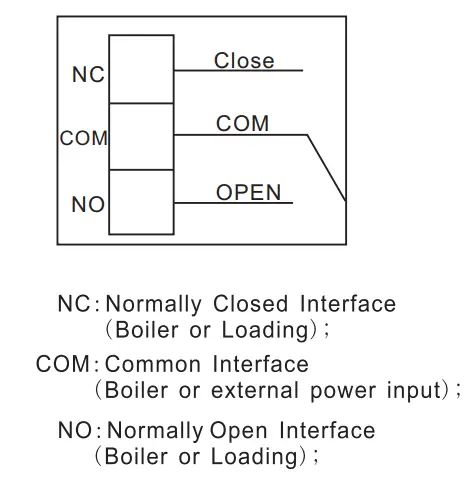

V. Wiring Diagram

All: Installation wires should be changed to be 1. 5-2. 5mm2 hard line. Please rightly connect the wires strictly according to the connect diagram. Don’t make water, mud and other debris into the thermostat, otherwise it will damage the thermostat.

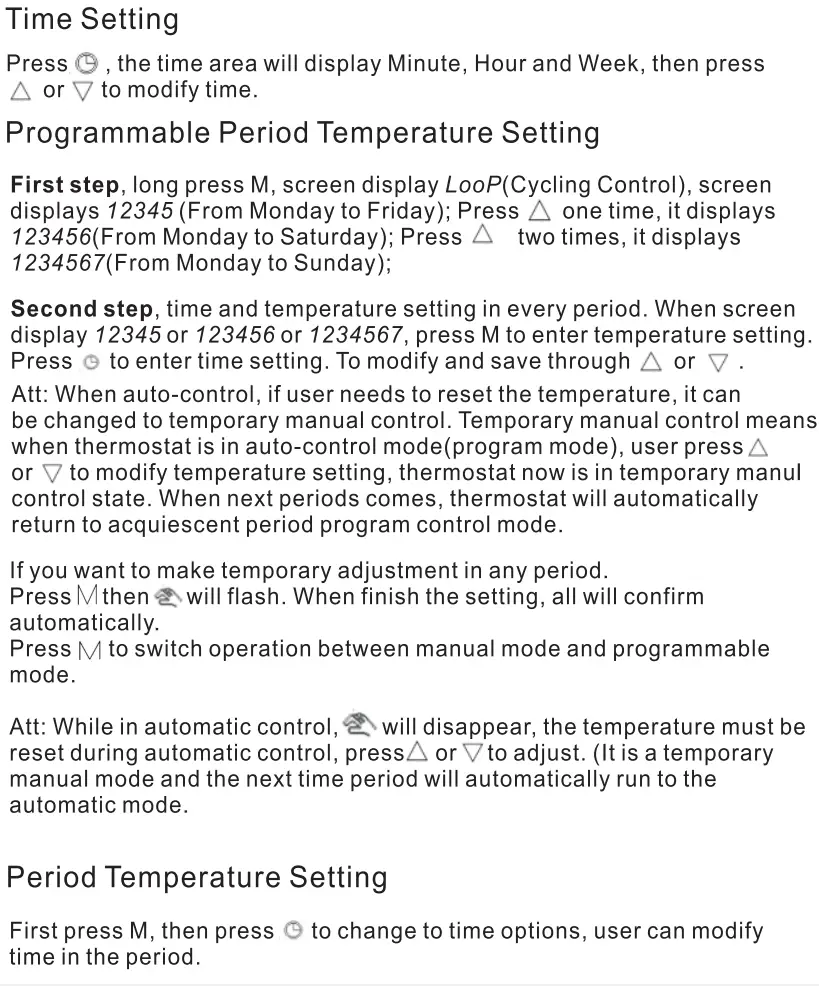

VI. Operation Instruction

Att:

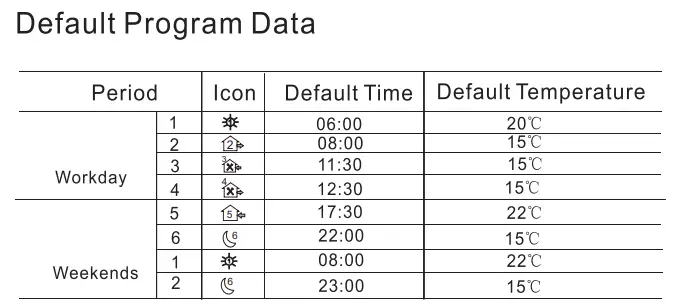

1. The default temperature values of 3 and 4 period in workday is same with 2 period. If user need, please change this default temperature.
2. Setting temperature is 00, it means this period is power off.

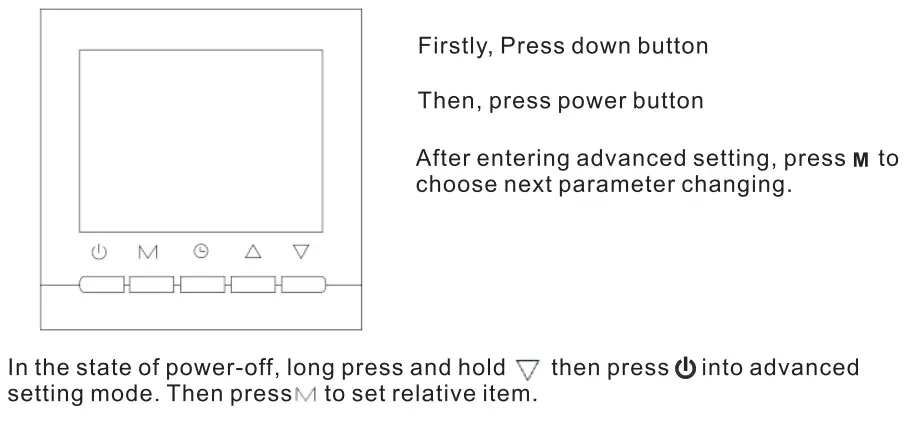

VII. Advanced Setting

VIII. Installation

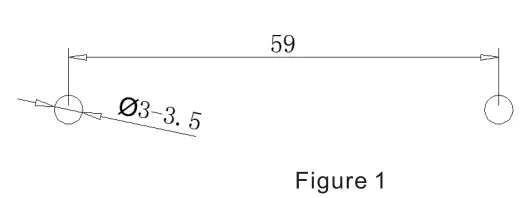

1. See figure 1, mounted on the wall with a pitch of 86mm screw expansion sleeve.

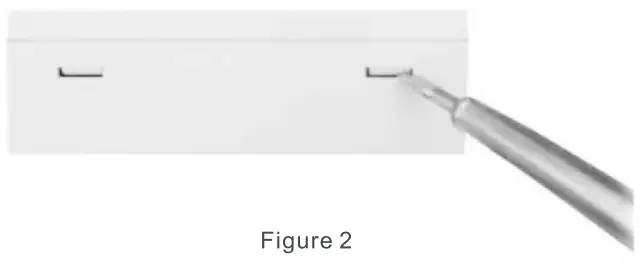

2. See figure 2, open the surface shell and the bottom shell, according to the alignment direction, route the desired wire through the back of the case to the wire slot, and according to the actual situation to set aside about 20CM length.

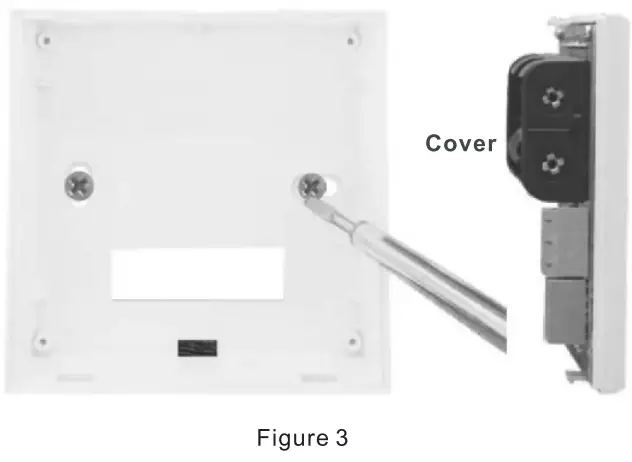

3. See figure 3, fix the bottom shell on the wall, terminal fixed wire, cover the bottom shell with the surface shell.

IX. ATT:

Thank you for buying this product!

Please read this manual for complete instructions on installing and operating your thermostat. If you require further assistance, please feel free to contact us.

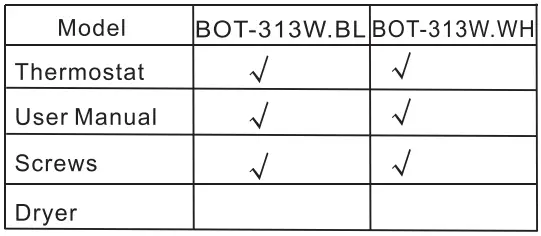

In the box you will find:

Our Service:
We offer the warranty of 24 months from the sales day.
During the warranty, if it is belong to the quality issue, we will fix or replace them for you by free after test them.
If it is not quality problem or beyond the warranty time, we will charge for the after-sales service.

Warning:
The symbol means the unit is being installed, it may cause electrical shock hazard during maintaining, so please make sure it is operated by the professional technical worker.
