Beca Bac-8000 Thermostat Intelligent User Manual

Beca BAC-8000 Thermostat Intelligent

Welcome
Thank you for your purchase.
Your new thermostat will provide uniform and comfortable temperature control throughout every room in your property.
We bring together technology, craftsmanship and the highest quality materials to provide you with a safe, reliable product combined with sleek, contemporary design.
Please read this installation/ programming manual for comprehensive instructions on installing and operating your thermostat. Please also ensure a suitably qualified person installs your thermostat and complies with all local regulations.

In the box you will find

• Thermostat                          1pc
• User Guide                          1pc
• QC Passed                          1pc
• Screws                                 2pc
• Floor Sensor (2.5m)            1pc
• (Floor Sensor is Optional)

ABOUT YOUR THERMOSTATS

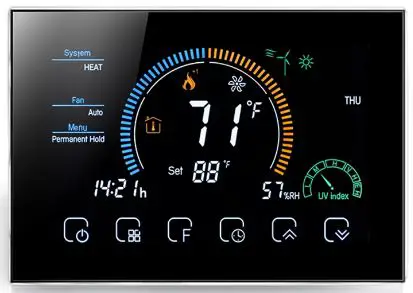

BAC- 8000 series Modern square Touch Screen Room
Thermostats.are designed to on/ off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temp. As reaching the aim of comfort and saving energy.

MODEL DEFINITION

• A: Two pipe; Control Fan Coil Unit and Two Wired Motorized Valve
• M: Two pipe; Control Fan Coil Unit and 0-10V Motorized Valve
• E: Four pipe; Control Fan Coil Unit and Two Wired Heat Valve and Two Wired Cool Valve.
• N: Modbus RTU communication
• W: Wifi connection
• K: Keycard
• T: Clock
• ZB: Zigbee
• P: Programmabe
• E: External Sensor
• For example: BAC-8000 ALWV

FEATURES

On Appearance

1. Negative black sceen will bring you to a secret world.
2. 4.8 inch Large colorful screen display area, creates your colorful life.
3. Touch buttons to make simple operation.
4. Amazing Silver Frame opens your modern life.
5. The visiable thickenss above the wall is only 15mm.
6. The snap connection allows you to easily instal.
7. 86mm hidden box and European 60mm round box is suitable.
8. White, black or brushed stainless steel for your selection.
9. Wrap-around cooling holes help heat to escape quickly and avoid affecting temperature detection.

On Functionality

1. Powerful functions are available such as Zigbee etC.
2. 1 acuracy keeps temperature within the level you set.
3. C’or F can be customized.
4. Data memory when power is off.
5. 5+1+1 six periods programmable maximize comfort and economy.
6. Temporary programmable.
7. All setting languages sunchronize your time zone, address and language.
8. No limit to add thermostats in App and support Smart Scene.
9. Creat thermostat group to Centralized control.
10. Integrated with Amazon Echo, Google Home, Tmall Genie.
11. Support device sharing.
12. Weather, UV index, humidity display help you decide what te wear t9day,

TECHNICAL DATA

• Power Supply: 95~ 240 VAC, 50 60HZ
• Fan Relay Amps Resistance: 5A; Inductive: 3A
• Valve Relay Amps Resistance: 3A; Inductive: 1A
• Sensor: NTC3950, 10K
• Set Temp. Range: 5 -35
• Accuracy: t1
• Dispaly Temp. Range: 5 ~ 99
• Ambient Temp.:0 45
• Ambient Humidity: 5~95% RH (Non-Condensing)
• Storage Temp.:-5 45 CTiming Error: < 1%
• Power Consumption: <1.5W
• Shell Material: PC +ABS ( Fireproof)
• Installation Box: 86* 86mm Square or European 6Omm Round
• BoxWire Terminals: Wire 2 X 1.5 mm2 or 1 x2.5 mm2
• Protection Class: IP20
• Buttons: Capactive Touch Buttons

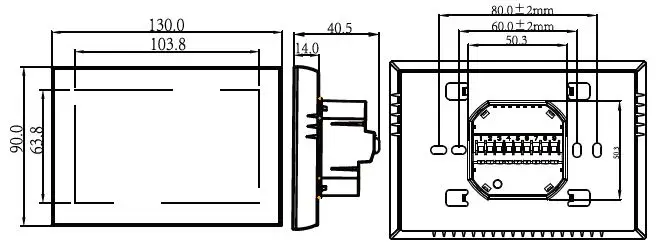

Dimension

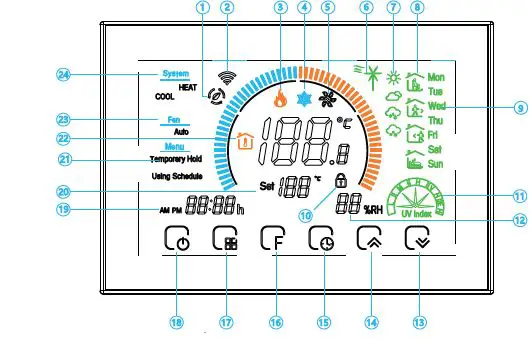

HOME SCREEN QUICK REFERENCE

1. WiFi (AP mode)
2. Wifi (EZ mode)
3. Heating on
4. Cooling on
5. Ventilation
6. Fan speed
7. Weather
8. Periods
9. Monday to Sundayy
10. Lock
11. Ultraviolet intensity
12. The humidity outdoor
13. Down Button
14. Up Button
15. Clock
16. Fan
17. Mode
18. Power
19. Time
20. Set temp.
21. Menu
22. Room Temp.
23. Fan auto
24. System model

BEFORE WIRING AND INSTALLING

1. Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition.
2. Check the rathings given in the instructions and on the product to make sure the product is suitable for your application.
3. Installer must be a trained, experienced service technician.
4. After installation is complete, check out product operation as provided in these instructions.

CAUTION
Electrical Shock or Equipment Damage Hazard. Can shock individuals orshort equipment circuitry.
Disconnect power supply before installation.

WIRING

INSTALLATION

Your thermostat is suitable for installation within a standard 86mm
pattress box or European 60mm pattress box.

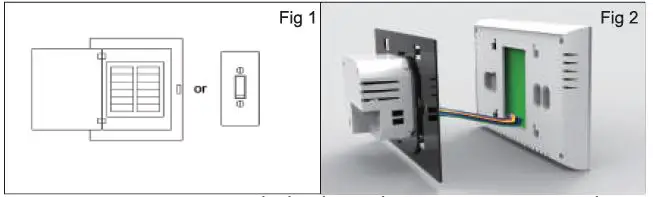

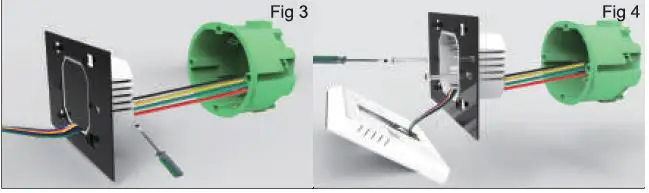

Step 1. Keep power off. See Fig 1.
Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.

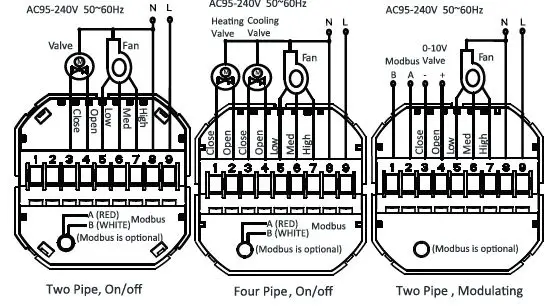

Step 3. Connect power supply, load into the appropriate terminals.
(see “Wiring your thermostat” for details and Fig 3).
Step 4. Fix the mounting plate into the wall with screws in

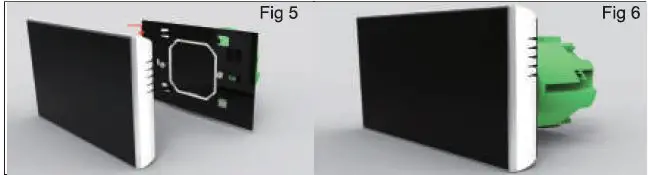

Step 5. Fasten body of thermostat and the mounting plate through rotating. See Fig 5.
Step 6. Installation complete. See Fig 6.

OPERATION

1. Power On/off: Press “” to turn the thermostat on/off.
2. Function & Programmable
3. Press “” once, you will see Permanent Hold flashing, press “” to switch to Using Schedule. Press “ “again and press “” to switch to Permanent Hold.
   Permanent Hold-Manual. In this mode, Press “/R” to set temperature.
   Using Schedule. 7 days a week, four periods programmable daily.
4. Adjusting/Setting the Clock
   Press “” once, you will see Permanent Hold flashing, press ” again, you will see the minutes of time flashing.
   Press the ” (/ ” to set your minutes.
   Then press ” “, you will see the hour of the time flashing, press “/” to set your hour.
   Then press ““, you will see the week of the time flashing (on the right side of the screen), press the “/ ” to set your week.
5. Locking your Thermostat
   Press and hold the” and “for 5 seconds to lock/unlock your thermostat In item 3 of high senior options, you can select full lock or half lock.
6. Adjusting/Setting the Programmable Schedules
   Press “ “five times in a row. You can see”MON~FRI “and” , the minutes of the time are flashing, press the ” /” to set th minutes;

Then press ““, the hour of the time is flashing, press “/  ” to set the hour;
Then press “ “, the setting temperature is flashing, press “ / ” to set the temperature;
In this way, you have completed the setting of the 1st time period.
Repeat the above steps to complete the 2-6th time period from Monday to Friday.
Press “” again to enter Saturday plan setting (SAT will be displayed on the right side of the screen).
Repeat the above process to set the period and temperature.
And Sunday timetable.
Press “” again to confirm and exit.

Default settings for program scheddule

In the mode of programmable, set temp., time and timing on/off couldnot be adjusted.
A separate schedule may be set for weekdays (Mon-Fri) and for weekends (Sat or Sun).

About Zigbee

ZigBee CONNECTION

Step 1 Downlosd your APP (Fig 1-1)
Search for “Smartlife” in Apple Store or Google Play or use a browser to scan the QR code above (Figure 1-2), and complete account registration and installation according to the guidance of the APP

Step 2. The second step is to confirm that you have Connected to the Tuya zigbee wired or wireless gateway.
For the gateway connection process, please refer to the manual of the gateway you purchased; the following process is based on the
“wireless smart zigbee gateway”.

Step 3. Connect the thermostat
Check the tutorial below to complete the connection and setup.

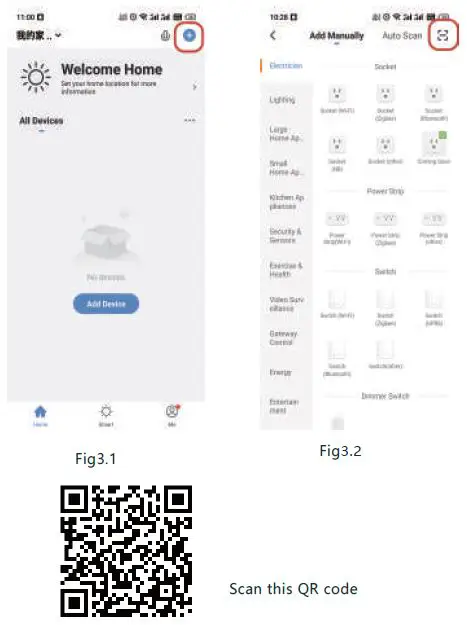

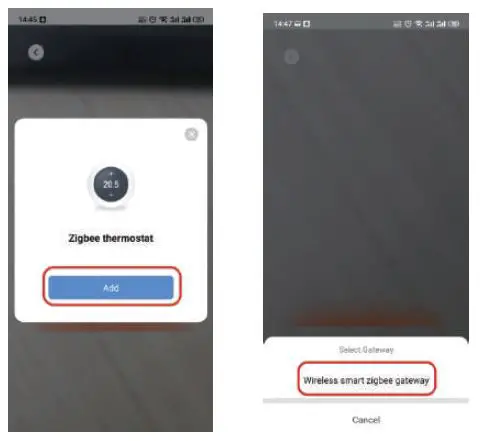

Method 1:Scan the QR code to configure the network guide Fig 3.1-Fig 3.4)

Method 2: Ordinary distribution network guidance (Fig. 3. 5 & Fig. 3.6)

Network distribution mode

1. Zigbee quick connect

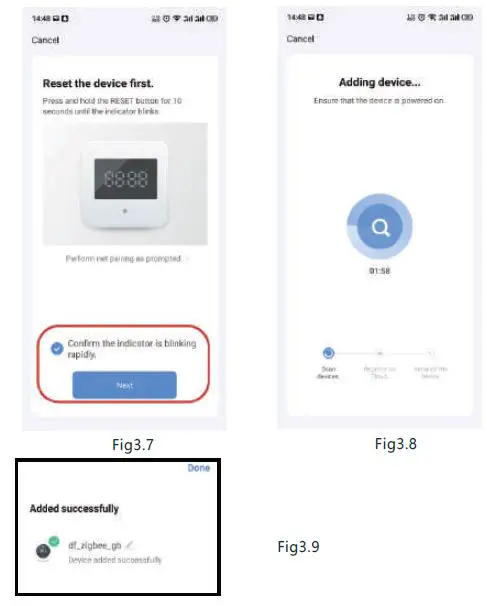

   When the thermostat is off, press and hold the “down button” until the thermostat screen flashes quickly and displays the “zigbee” icon, and then operate according to the following figure (Fig3.7-Fig3.8).

2. Zigbee gateway connection

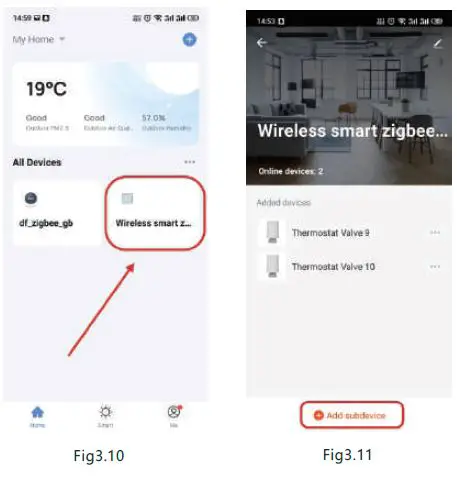

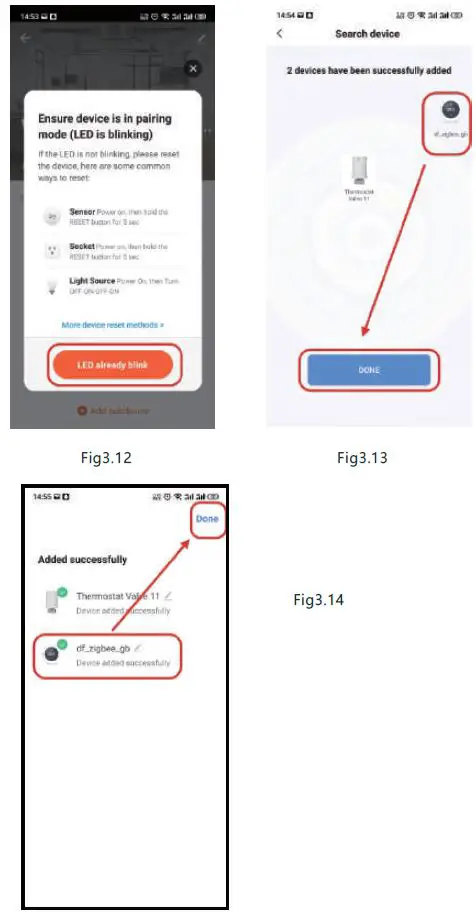

   With the thermostat turned off, press and hold the “down button” until the thermostat screen flashes quickly and displays the “zigbee” icon, and then operate according to the following figure (Fig3.10-Fig3.13).

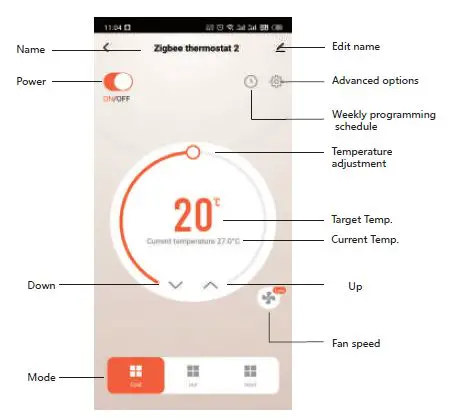

APP operation interface description (heating thermostat)

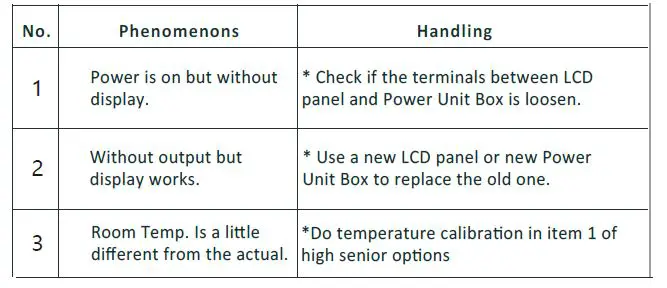

Simplement Exception Handling

Service
24-months warranty since date of purchase
Service beyond the warranty period may need charge.
More details, please contact us.
