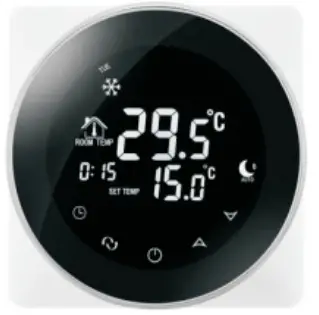

BEOK TGR87 Round Touch Screen Thermostat User Guide
Product Summary
TGR87 series Heating Thermostat is touch screen thermostat with Round shape
It is applied to temperature control of industrial, commercial and domestic
room, and start of control heating appliances, especially floor heating systems. It can be controlled by phone.
Technical Parameter
| Power Supply | 200 ~ 240V 50 ~60Hz |
| Current Load | ≤3A（water heating) ≤16A(electric heating) |
| Power Consumption | <0.3W |
| External Material | PC+ABS (flame retardant） |
| Sensing Element | NTC |
| Set Temp. Range | 5-60℃ |
| Floor Set Temp. Range | 5-99℃ |
| Accuracy | ±1℃ |
| Dimension | 86x86x13.3mm |
| Ambient Temp. | 0-45℃,5-95％RH(Non-condensing） |
| Storage Temp. | -5~55℃ |
| Timing Error | <1% |
Main Functions and Characteristics
- Round curved screen
- WIFI for Andriod & Apple iOS.
- Large screen display and touch button.
- Power-off memory function.
- Real-time data save function.
- 5+2 or 6+1 or 7 days six periods program schedule.
- Anti-freezing function.
- 3 sensor modes can be setting.
- With child lock function.
- Selectable 80mmx80mm European hidden box.

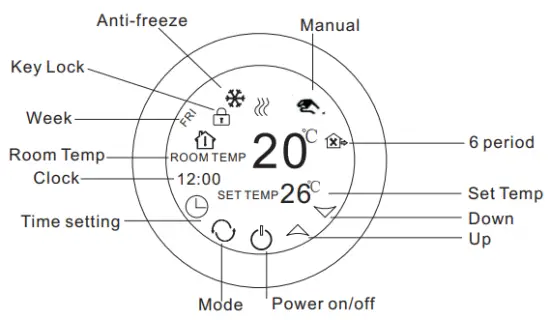

User Interface Explanation(Thermostat Port)

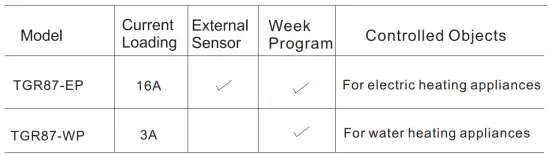

Model Spec

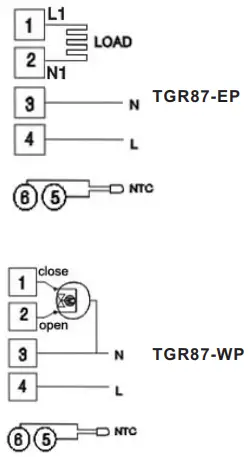

Wiring Digram
Thermostat Operation Instruction
- Setting Power on/off
Press
to turn on/off the power. - Setting Temperature
Press
to set the temperature. - Setting the Clock
Press
to set minute, hour and week. Press for adjusting. - Setting the Manual Mode.
Manual mode means non-programmable mode.
Press
then
will display in the screen, it is in manual mode.
Press to set the temperature.
Press to set minute, hour and week. - Setting the Child Lock
Long press to enter into child lock mode
, will display.
Long press again, the child lock will be disappeared. - Setting the Programmable Mode.
Press and hold into programmable mode. LOOP and 12345 will display.
Press to select the control way: 5+2 or 6+1 or 7 days programmable.
12345 display in the position of week means 5+2;
123456 display in the position of week means 6+1;
1234567 display in the position of week means 7 days programmable.
Press to select the periods.
Press to change the temperature;
Press to do time adjustment.
Press to change the time;
Press again to select the weekend’s temp.
If you want to make temporary adjustment in any period, press then will flash. When finish the setting, all will confirm automatically.
Press to switch operation between manual mode and programmable mode.
Remark:
(1) The defaulted temperature of period3 and period4 is the same as
period2. Please change it according to the request.
(2) When setting temperature is 00, this period is power off.
(3) How to check floor temp?
During power on, press and hold then press the button of power to check floor temp.. OUT TEMP will display.
Press again to display room temp.. - Advanced Setting

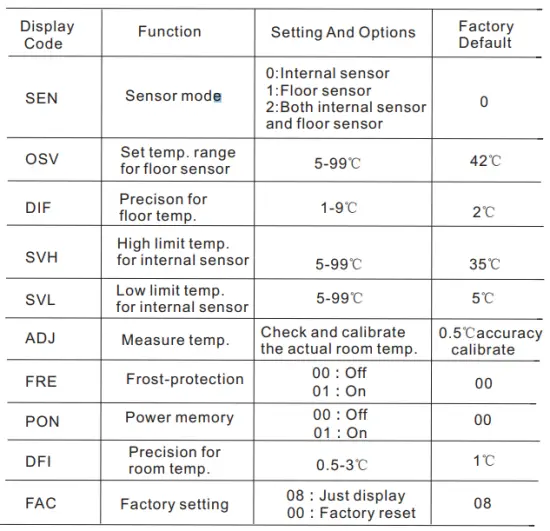

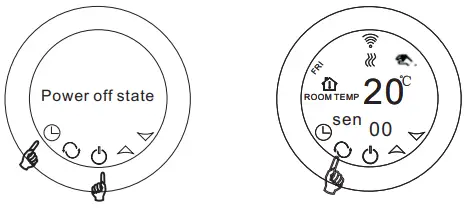

In the state of power-off, long press and hold then press into advanced setting mode. Then press to set relative item.
to turn on/off the power.
to set the temperature.
to set minute, hour and week. Press
then
will display in the screen, it is in manual mode.
, will display.
Remark:
DIF: Precison for floor temp.
i.e. the setting deadzone for floor sensor is 2,
OSV is 42℃, when actual temp. reach 44℃, the relay will stop working;
when actual temp. is back to 40℃, the relay starts working again. It works
when room temp. is lower than set temp.
DFI: Precison for room temp.
The factory default is 1℃,if you think 1℃ is too big, you could change to 0.5℃
Sensor error:
Please select the right sensor mode.
If Err display on the screen, change SEN=00, Or connect the floor sensor.

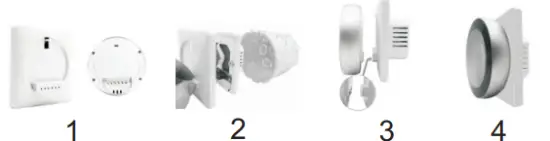

Installation Instruction
This thermostat is suitable for standard 80*80mm wall box Or 60*60 mm Europe standard round box.
- Turn off the main power. Take away the front display screen part, then use screwdriver to open the installation panel.
- Refer the wiring diagram(VII) to connect the lines with terminals. Fix the installation panel with installation box with screws, and insert into wall
- Insert the display screen part into the installation panel.
- Installation finished.
NOTICE: The installation wire should be 1.5-2.5 mm2.
ATT
Thank you for buying this product!
Please read this manual for complete instructions on installing and operating your thermostat. If you require further assistance, please feel free to contact us.

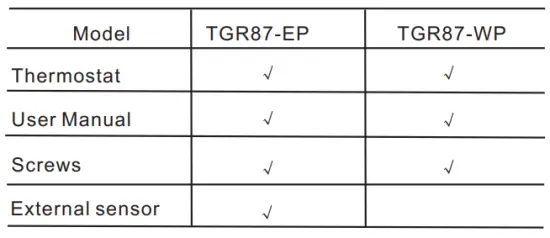

In the box you will find:
Our Service:
We offer the warranty of 24 months from the sales day.
During the warranty, if it is belong to the quality issue, we will fix or replace them for you by free after test them.
If it is not quality problem or beyond the warranty time, we will charge for the after-sales service.
Warning:
The symbol means the unit is begin installed, it may cause electrical shock hazard during maintaining, so please make sure it is operated by the professional technical worker.
