Instruction Bulletin
GEX56602 — 05/2022

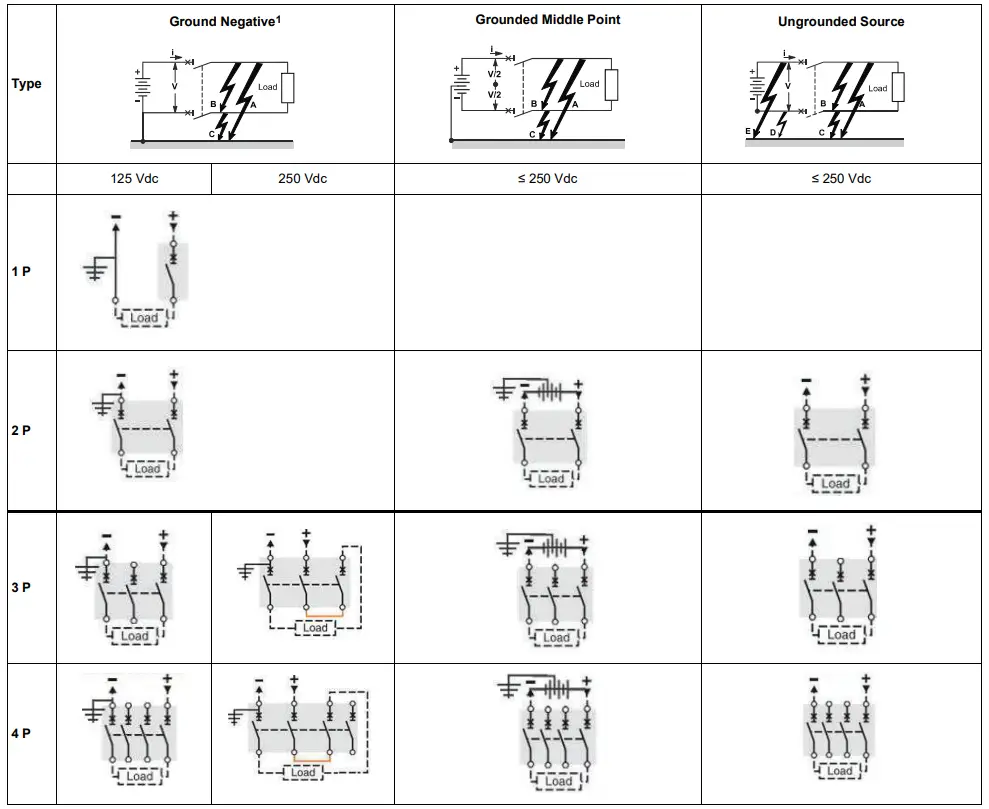

DC Wiring Diagram, PowerPacT™ B
Retain for future use.
1 It is acceptable to ground the positive leg.
| Circuit Breaker Specifications (UL® I CSA® I NOM®) | ||||||||
| Circuit Breaker Type | BD | BG | BJ | BK | ||||
| Number of poles | 1 | 2-4 | 1 | 2-4 | 1 | 2-4 | 1 | 2 |
| Amperage range (A) | 15-125 | 15-125 | 15-125 | 15-125 | 15-125 | 15-125 | 15-30 | 15-30 |
| 125 Vdc | 10 | 20 | 50 | |||||
| 250 Vdc | 10 | 20 | 50 | |||||
Electrical equipment must be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.
