Wiring Harness for PowerPacT™ H-, J-, and L-Frame Circuit Breakers with Electrical Accessories
Retain for future use.

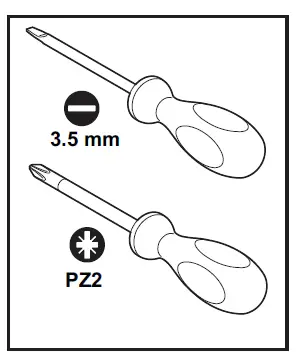

Required for Installation

Precautions

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

• Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E, CSA Z462, or NOM-029-STPS.
• This equipment must be installed and serviced only by qualified electrical personnel.
• Turn off all power supplying this equipment before working on or inside equipment.
• Always use a properly rated voltage sensing device to confirm power is off.
• Replace all devices, doors, and covers before turning on power to this equipment.

Failure to follow these instructions will result in death or serious injury.

WARNING: This product can expose you to chemicals including DINP, which is known to the State of California to cause cancer, and DIDP which is known to the State of California to cause birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov.

Wiring Harness for PowerPacT™ H-, J-, and L-Frame Circuit Breakers with Electrical Accessories

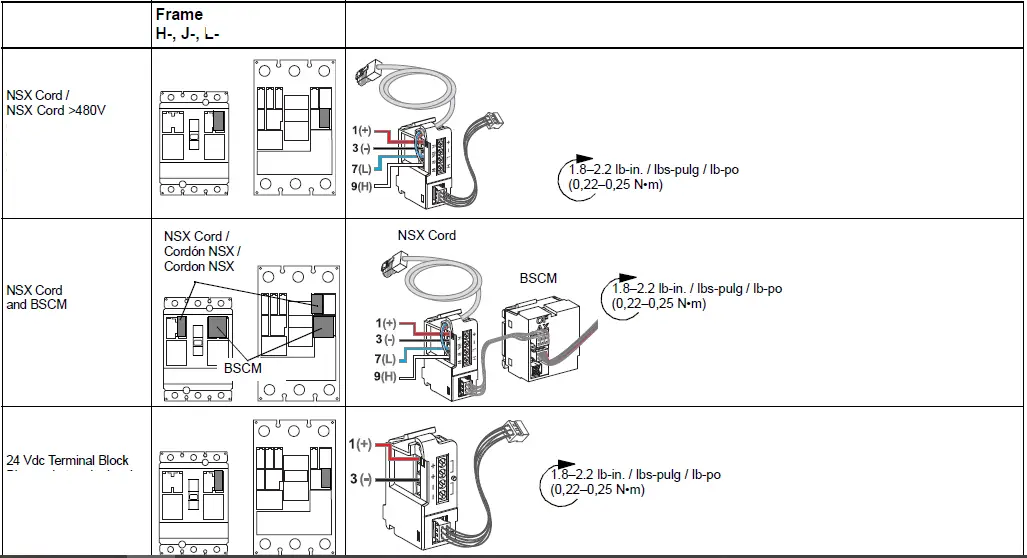

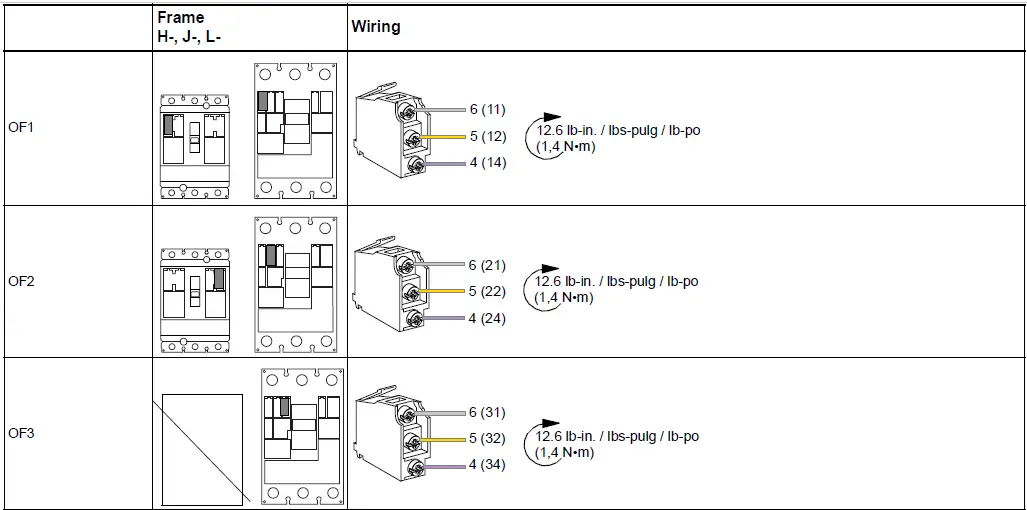

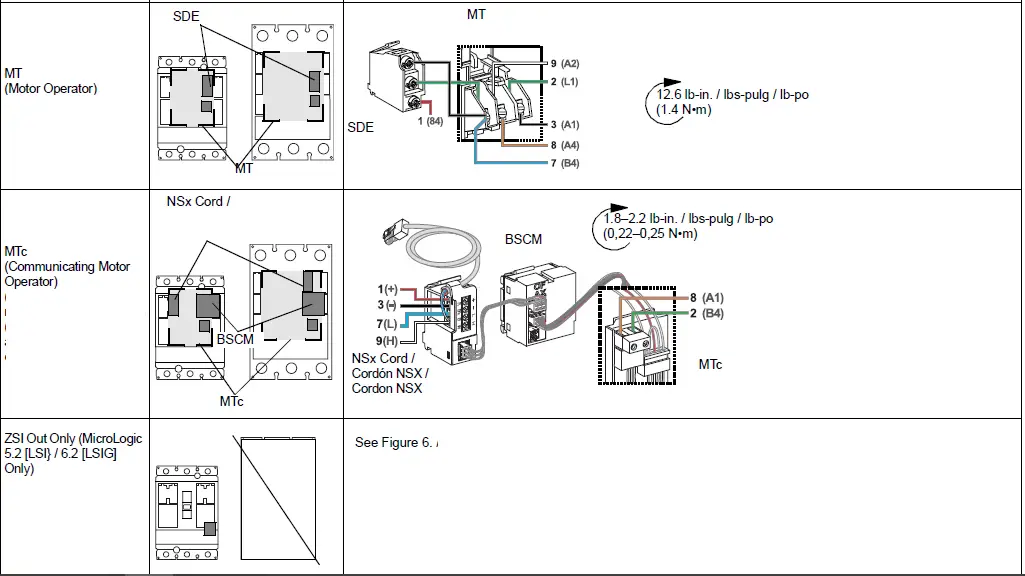

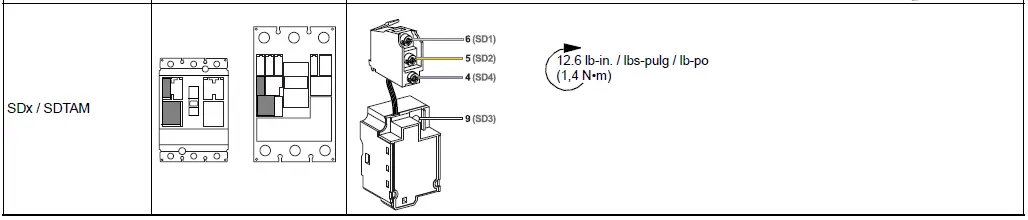

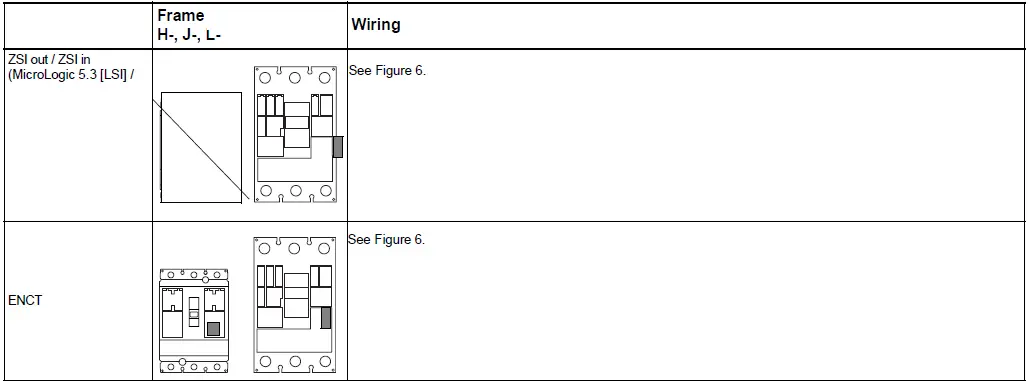

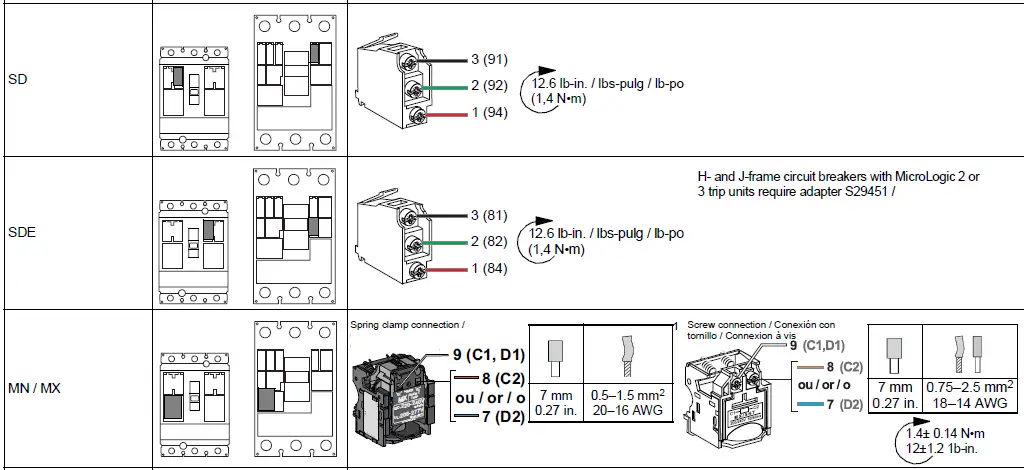

TABL. 1 : Device Location and Wiring

Installation

Circuit Breaker Preparation

1. Turn off all power supplying this equipment before working on or inside equipment.
2.  Trip the circuit breaker (Figure 1, a–c).

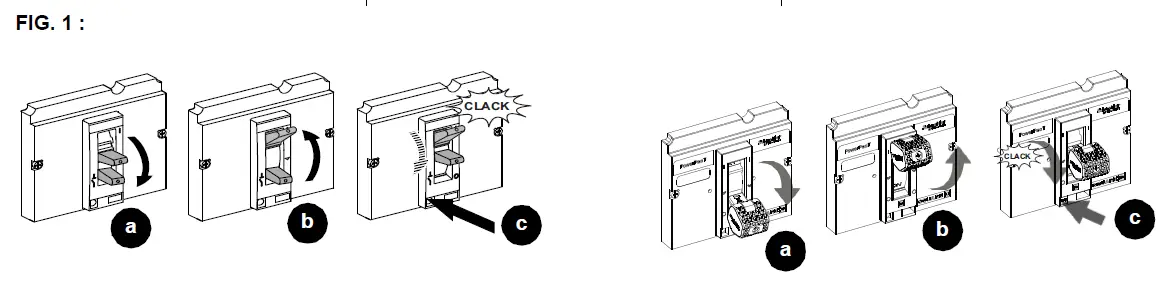

   FIG. 1 :

3.  If circuit breaker is installed in an I- Line™ panel, remove the circuit breaker from the I-Line bus, see the instruction bulletin shipped with the circuit breaker.
4. Remove any installed handle extension (a) if it will interfere with the enclosure door closing.

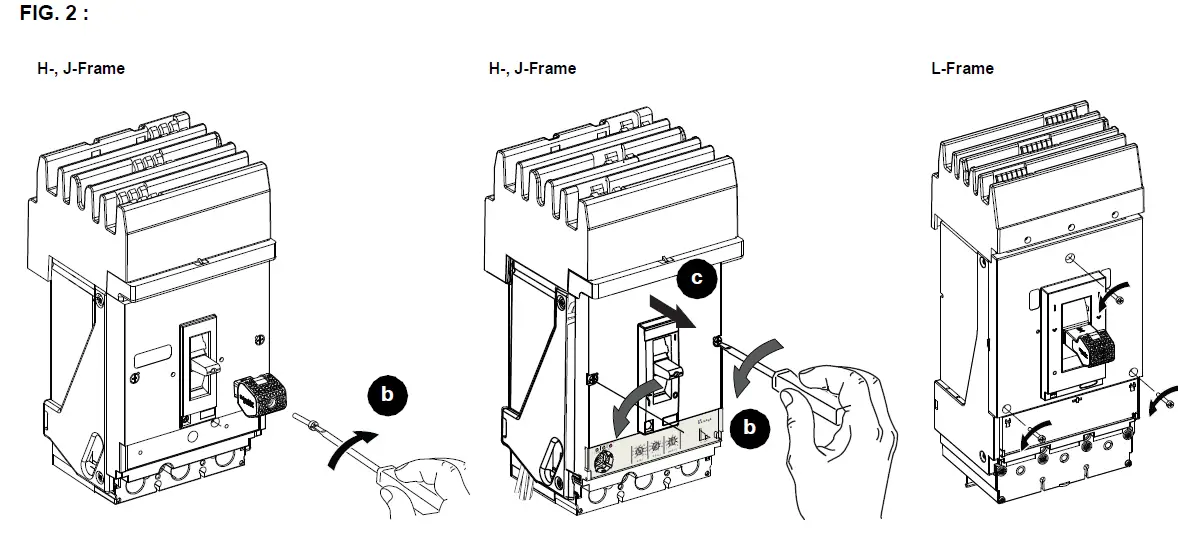

5. Remove accessory cover Figure 2, b–c).
   FIG. 2 :


Wiring Harness Installation

I-Line Circuit Breakers
Note: Wiring channel is determined by accessory location in circuit breaker. See Table 1.

1. Determine correct channel in side pack wiring for wiring (Figure 5, a).

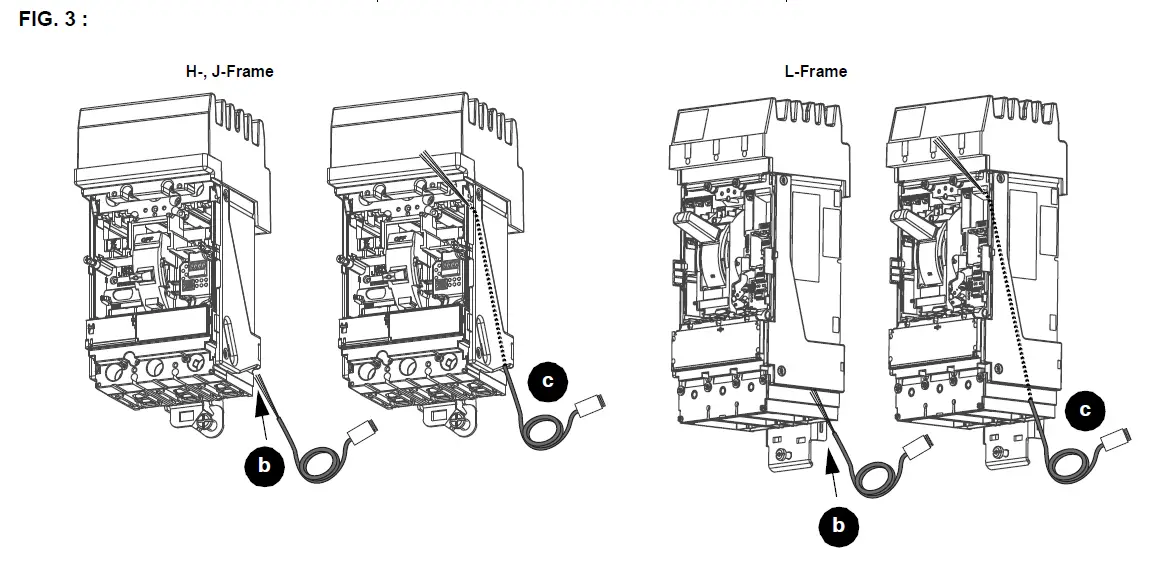

   FIG. 3 :

2. Route wiring through side plates (Figure 5, b–c).

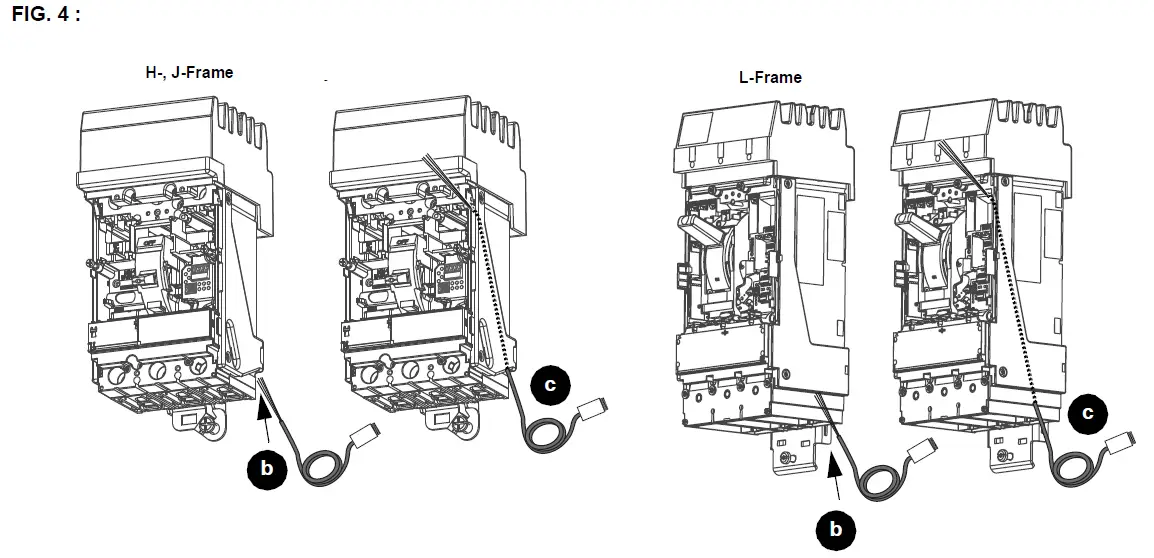

   FIG. 4 :


Circuit Breakers Other Than I-Line

Route wiring through top of accessory cover (Figure 5).

FIG. 5 :

NOTICE
HAZARD OF EQUIPMENT DAMAGE
Bare wires must not touch after installation.
Failure to follow these instructions will result in equipment damage

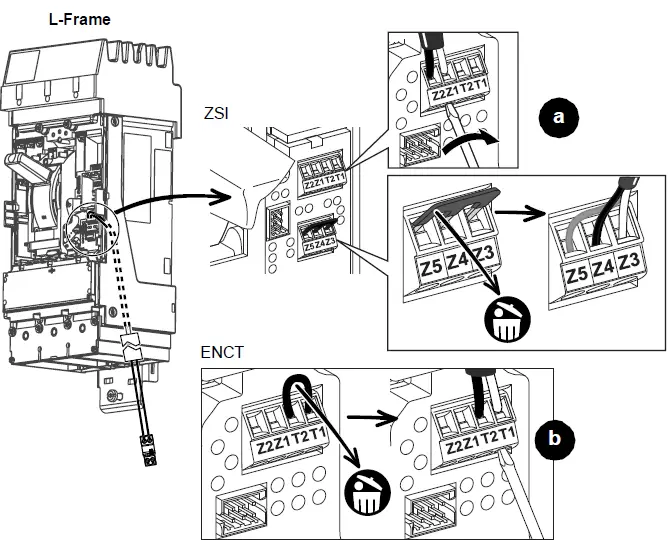

• Install wire into accessory terminals.

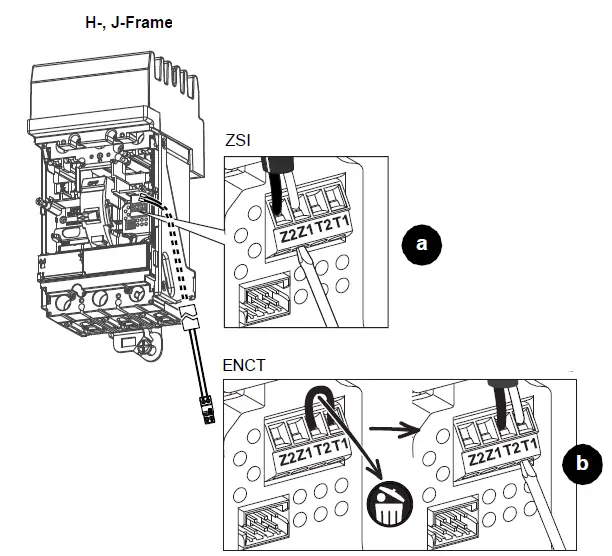

  • For ZSI applications, see Figure 6, a.
  • For ENCT applications, see Figure 6, b.
  • For other accessories, see Table 1.

Note: Leave T1/T2 jumper in place if there is no neutral CT

FIG. 6 :

NOTICE
HAZARD OF EQUIPMENT DAMAGE

• Tighten all accessory cover screws to stated torque.
• Do not overtorque screws.
• Do not use power equipment to torque screws.
  Failure to follow these instructions can result in equipment damage.

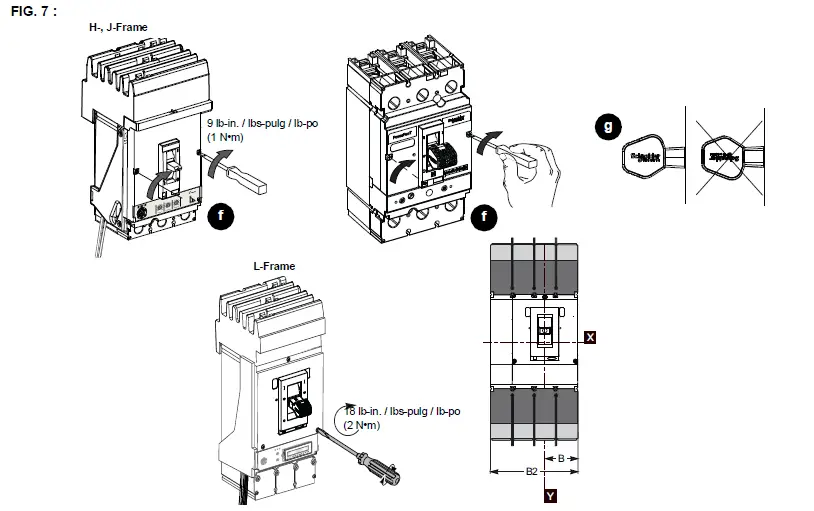

• Replace accessory cover (Figure 7), being careful not to pinch wires when installing cover.
  Note: Confirm catalog number on side accessory label and on accessory cover match.
• Replace Visi-TripTM handle (f), note proper orientation (g).
  FIG. 7 :

Electrical equipment must be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.
