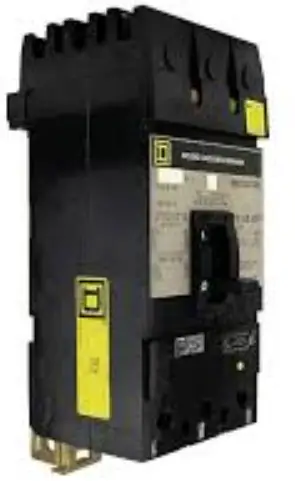

Schneider Electric GEX56604 Circuit Breaker
Instruction Bulletin

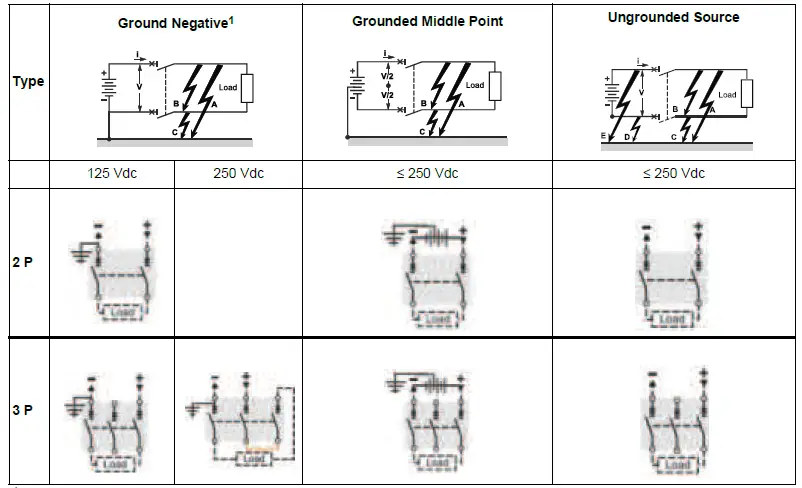

DC Wiring Diagram, MCCB LA-LH
Retain for future use.
1 It is acceptable to ground the positive leg.
| Circuit Breaker Specifications (UL® / CSA® / NOM®) | ||
| Circuit Breaker Type | LA | LH |
| Number Poles | 2,3 | 2,3 |
| Amperage Range | 125-400 | 125-400 |
| 125 Vdc | 10 | 50 |
| 250 Vdc | 10 | 50 |
