Compact NSX100-250
Power Pact H-, J-Frame

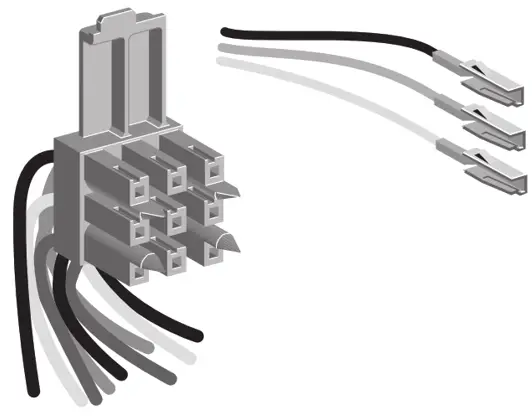

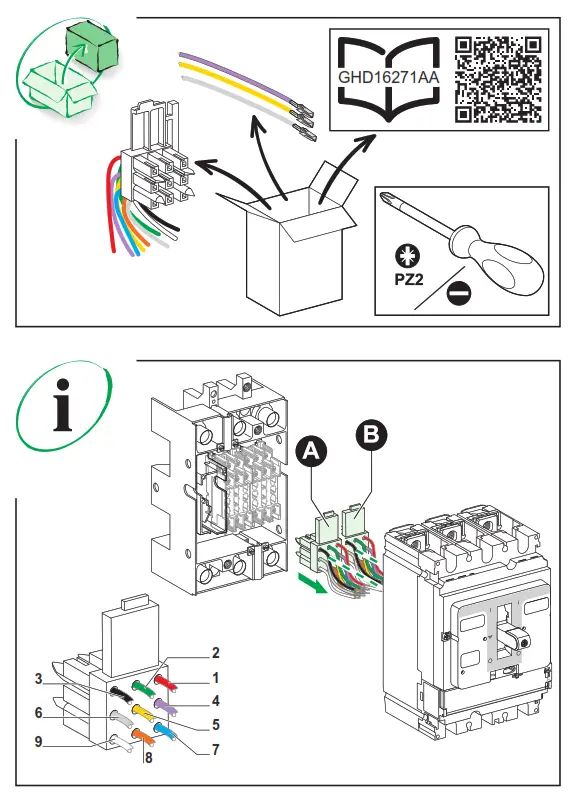

9-wire moving connector for breaker
Instruction Manual
PLEASE NOTE
- Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel.
- No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

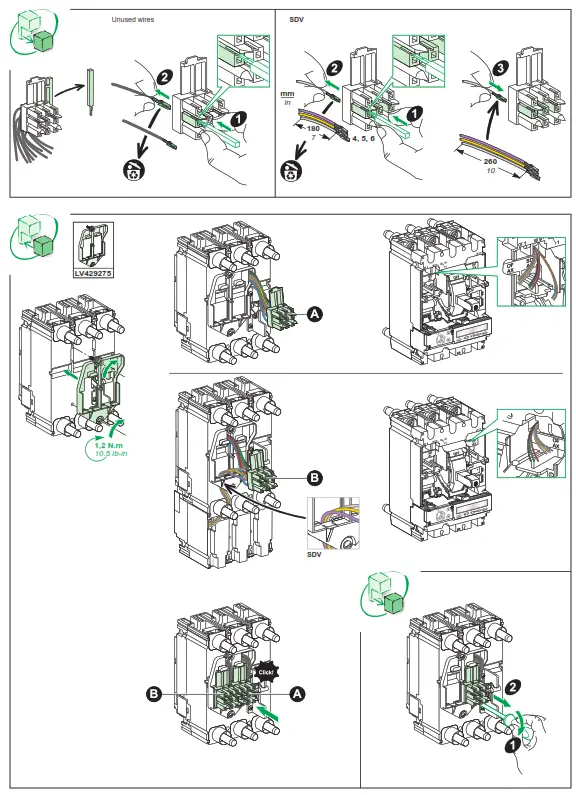

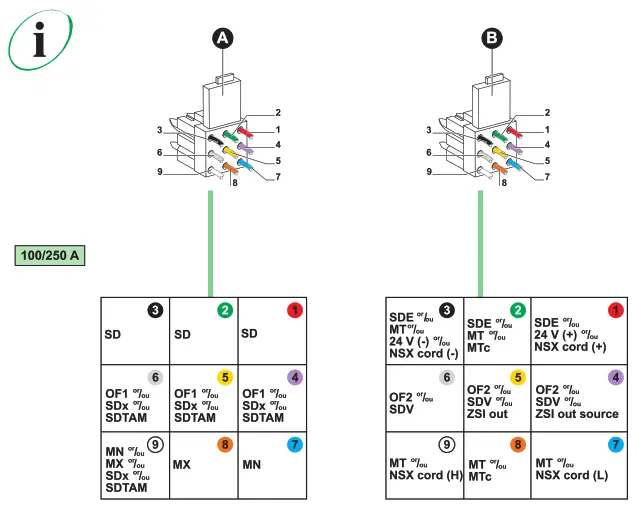

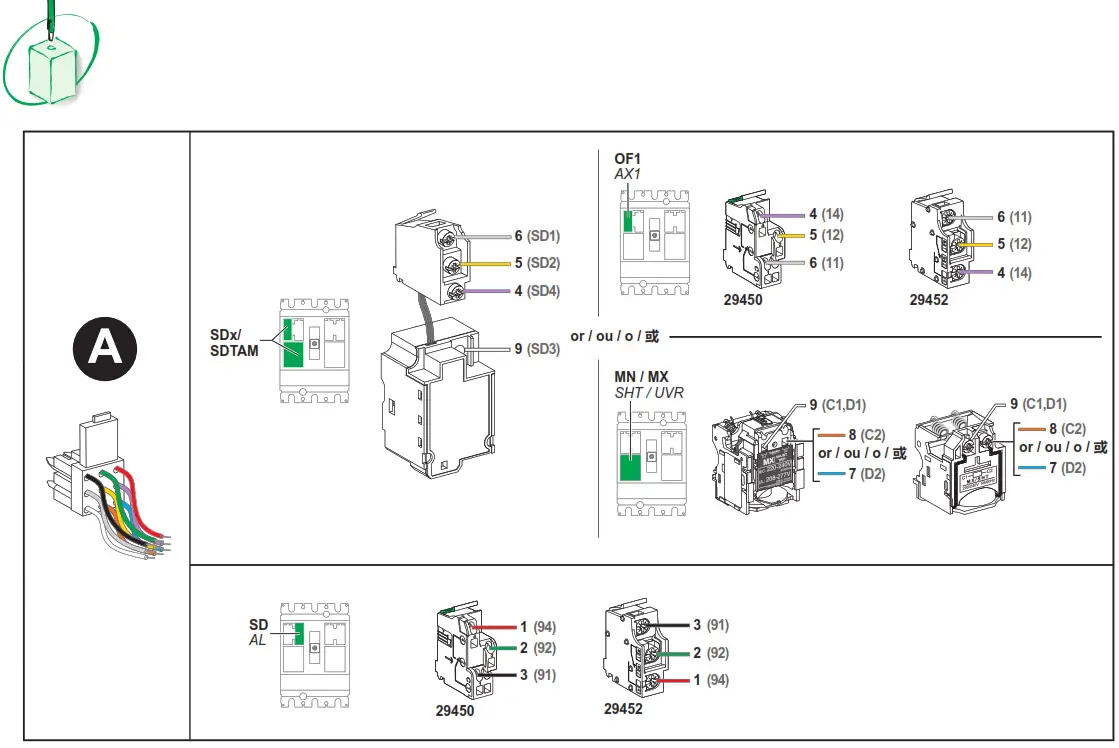

OF1 / OF2 : ON/OFF indication contact
SD : Trip indication contact

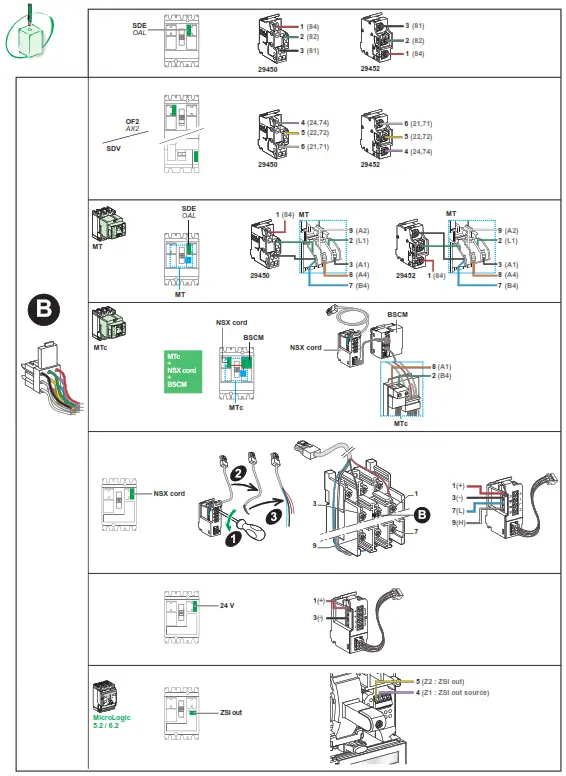

SDE : Fault trip indication contact
SDV : Earth leakage indication contact
SDTAM : Thermal fault early-break contact
SDX : Output early-break contact
MN : Under voltage release
MX : Shunt trip
24 V : Micrologic power supply
ZSI out / in : Zone Selective Interlocking
MT : remote control
MT : COM remote control
NSX cord : Communication NSX cord terminal block
