Schneider Electric Nsx630n Circuit Breakers Installation Guide

Compact NSX400-630 AC
FPower NSX
Circuit breaker/Switch-disconnector
Installation GuideGHD16243AA-10

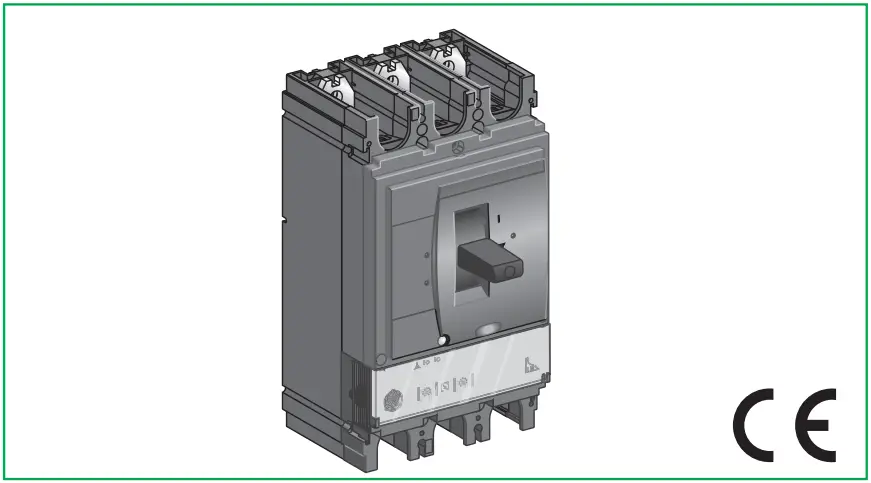

NSX630N Circuit Breakers

PLEASE NOTE

• Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel.
• No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH

• Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E, CSA Z462 or local equivalent.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Turn off all power supplying this equipment before working on or inside equipment. Lock the switch gear in the isolated position.
• Always use a properly rated voltage sensing device to confirm power is off.
• Install safety barriers and display a danger sign.
• Replace all devices, doors, and covers before turning on power to this equipment. Failure to follow these instructions will result in death or serious injury.

http://download.schneider-electric.com/files?p_Doc_Ref=GHD16243AA

NSX400-630

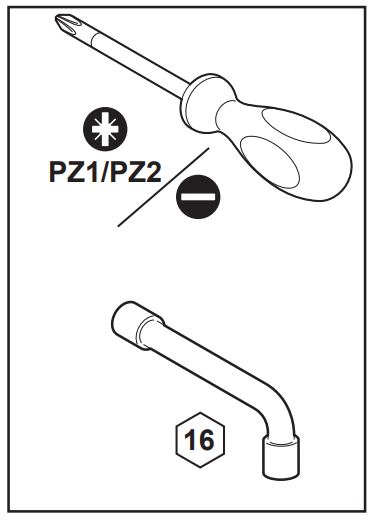

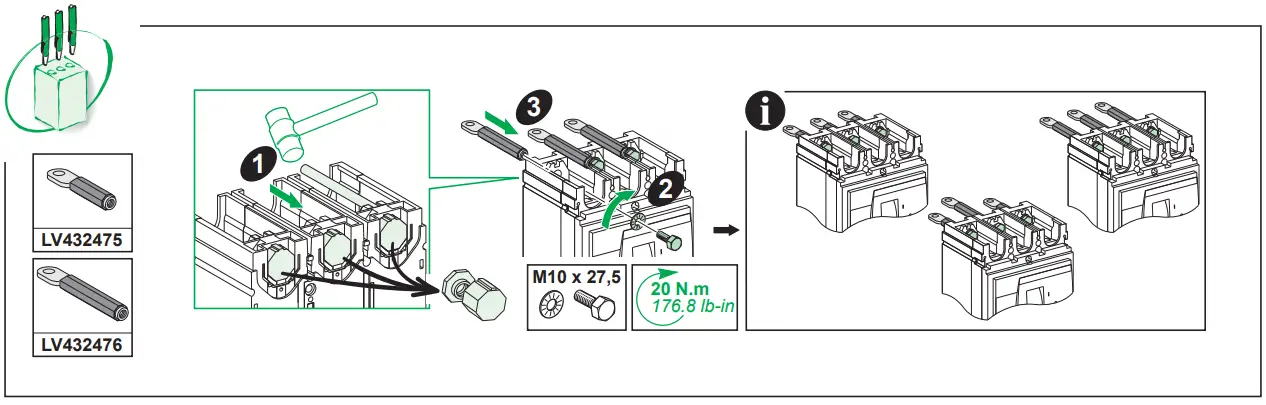

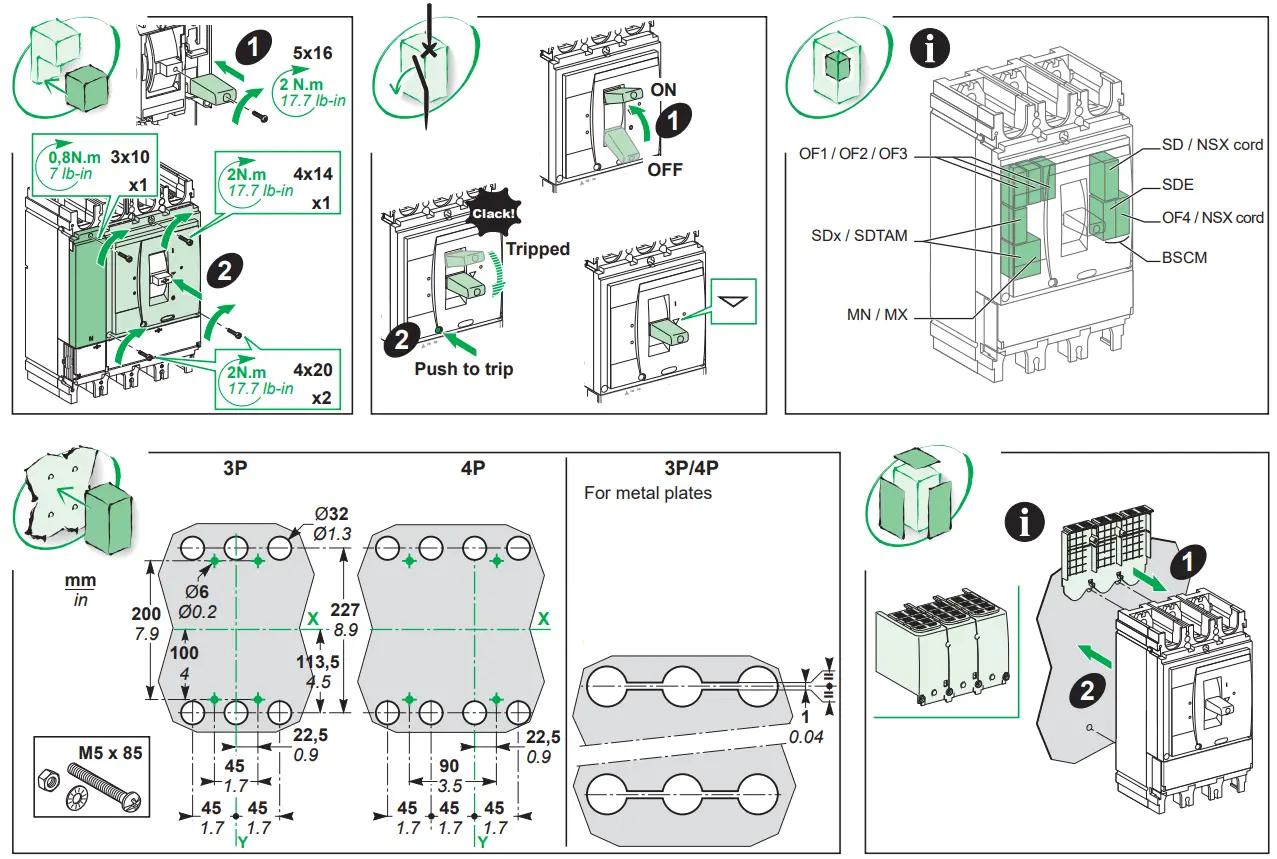

3P 6 (M10 x 27,5) 4P 8 (M10 x 27,5)
3P 4 (M5 x 85) 4P 4 (M5 x 85)
3P-4P 2 Ø4 x 20 3P-4P 1 Ø4 x 14
3P-4P 1 Ø5 x 16
4P 1 Ø3 x 10

The product’s manufacture date is coded PP-YYYY-Www-D, where:

• PP: plant code
• YYYY: year of manufacture
• Www: week of manufacture
• D: weekday of manufacture (Monday = 1)

Eg: 7Q-2014-W19-3 = product manufactured at plant 7Q on Wednesday 7 May 2014

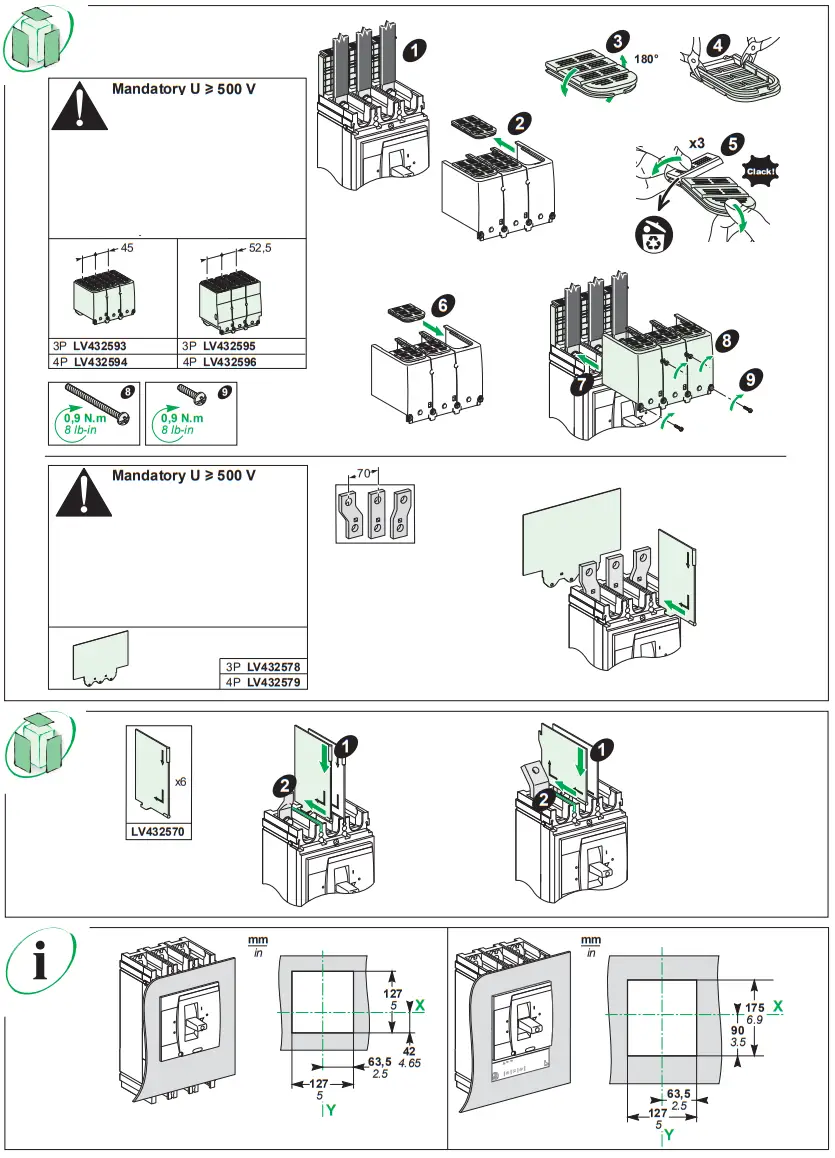

U ≥ 500 V

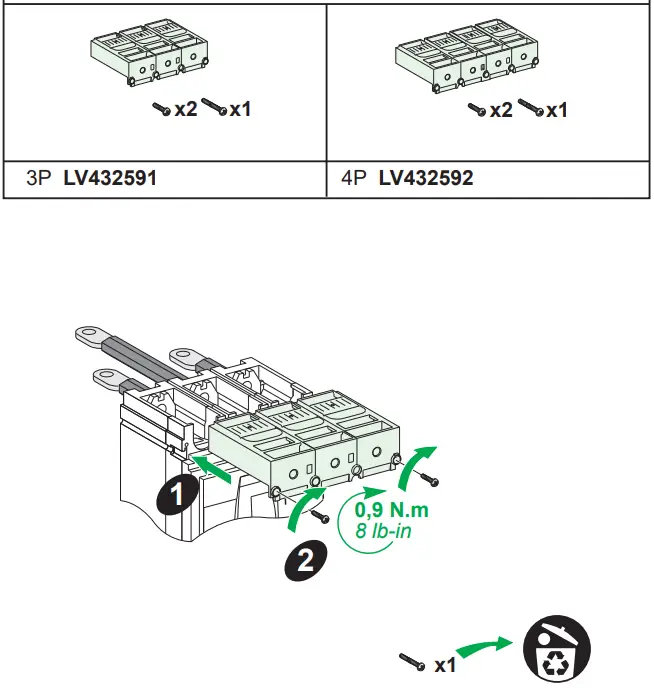

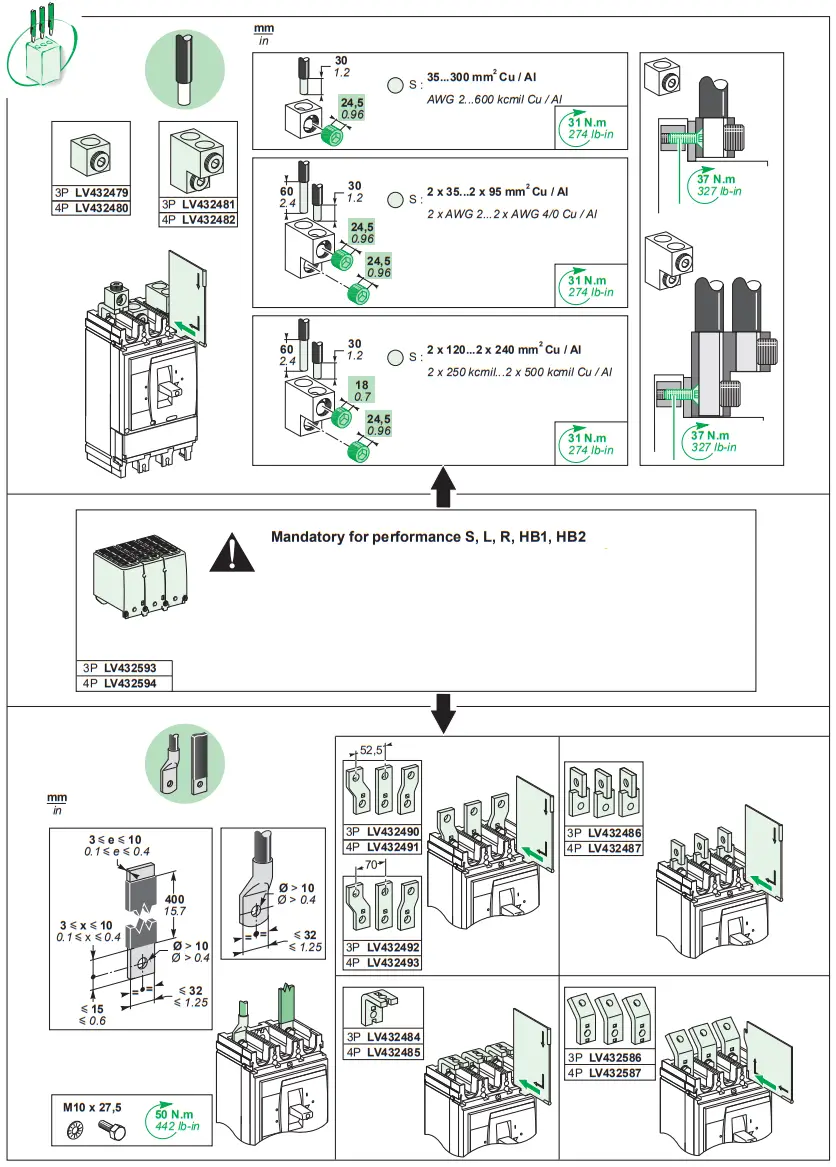

Mandatory for performance S, L

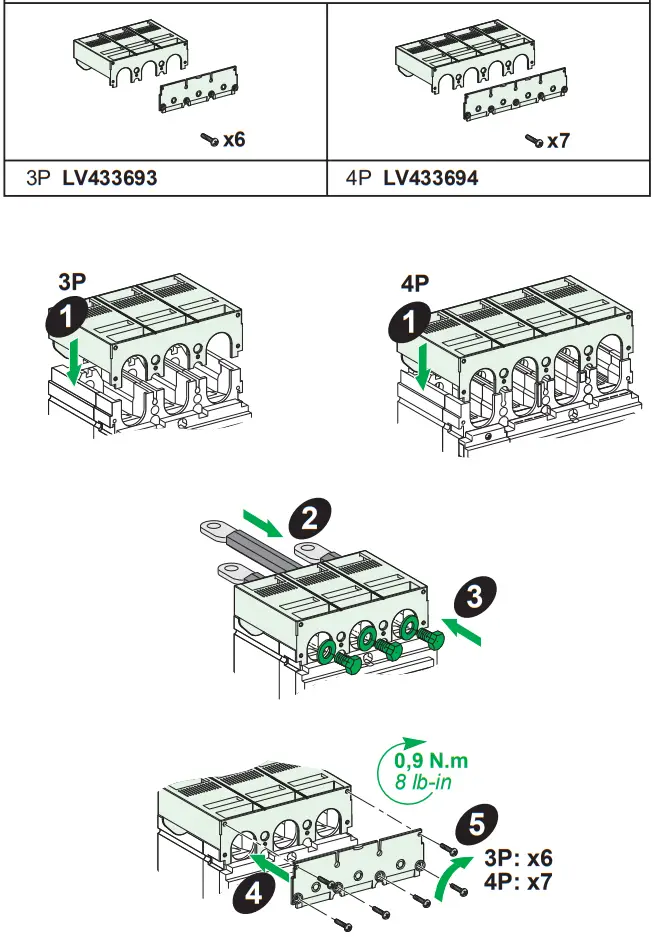

Mandatory for performance R, HB1, HB2
