4759999
Saw Horse
Translation of the original user`s manual

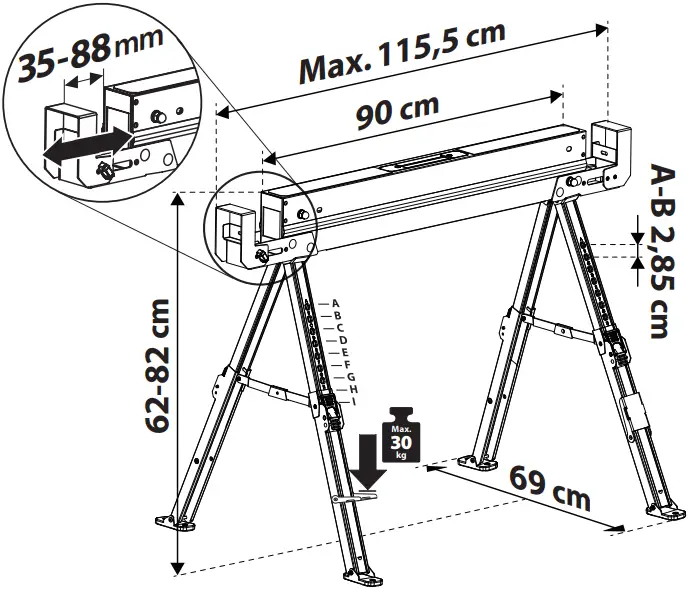

Fig. 1

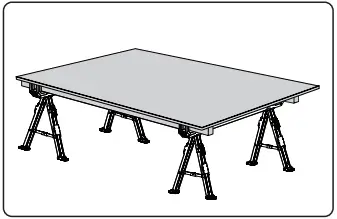

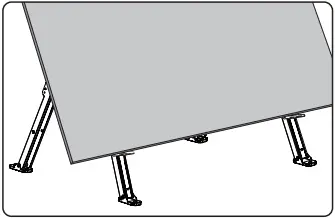

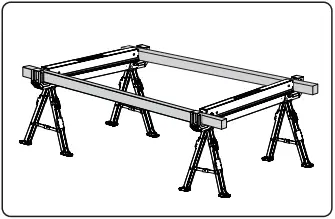

EXAMPLES OF USE
Introduction
Dear customer,
Thank you for the confidence you have shown in the Fortum® brand by purchasing this product. Contact our customer and consulting centre for any questions at:
www.fortum.cz [email protected]
Manufacturer: Madal Bal a. s.
Prmyslová zóna Píluky 244, 76001 Zlín, Czech Republic.
I. Technical specifications
| Order number/model number | 4759999 |
| Max. dimensions in folded up state H × W × D | 14.7 × 109.2 × 11.3 cm |

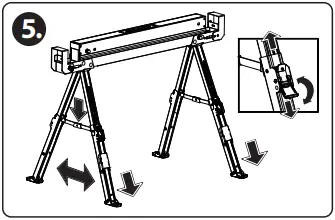

| Adjustable height | 62 – 82 cm in 9 increments |
| Adjustment of sides in the range (see fig.1) | 35 – 88 mm |
| Working width (see fig.1) | 90/115.5 cm |
| Weight of the sawhorse | 9.8 kg |
| Max. horizontal load | 590 kg; when using 2 sawhorses with a board: 1180 kg |
| Max. load capacity of bottom side holders (see fig.1) | 30 kg |
II. Safety Instructions
Read the user`s manual before use. Prevent this user`s manual from being damaged. Keep the user`s manual with the product so that its user may become acquainted with it at any time.
The sawhorse is not intended to be used as a ladder or for stepping up to a higher level. Do not step on the sawhorse.
Do not exceed the max. permitted load (load capacity).
- Check that all the adjustable parts are properly secured in place before use.
- Prevent the sawhorse from coming into contact with corrosive substances (acids, hydroxides, etc.).
- Keep the sawhorse out of children`s reach and protect it against children.
- When using the sawhorse, stand it on a stable rigid level surface. Ensure that all four feet are in contact with the ground and that they are set to the same height. If the sawhorse is not standing level, the ballast (item) placed on the sawhorse may fall off.
- Conversion of the sawhorse using different parts it is not permitted.
- Do not crawl underneath a sawhorse that has ballasts (items) laying on it. This could result in the ballast (item) falling off.
