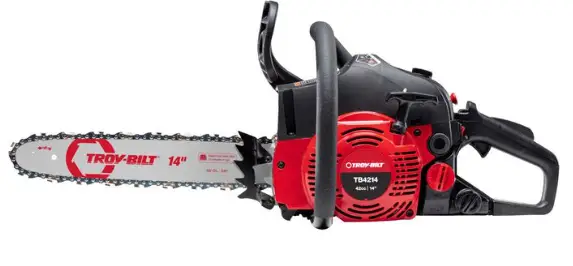

Troy Bilt 41ay4214766 2-cycle Chain Saws User Manual

TROY BILT 41AY4214766 2-Cycle Chain Saws

REPLACEMENT PARTS – MODELS TB4214, TB4216, AND TB4218
2-CYCLE CHAIN SAWS
PPNS 41AY4214766, 41AY4216766, AND 41AY4218766

Item Part No.

1. 1 753-10289
2. 753-10333
3. 794-00204
4. 753-10295
5. 753-10296
   Description
   Muffler Assembly
   42cc Short Block Assembly (includes 6) Spark Plug
   Carburetor Assembly
   Carburetor Hardware
   Item Part No.
6. 753-10297
7. 753-10300
8. 753-10301
9. 753-10291
10. 753-10293

Description

• Oil Pump Assembly
• Clutch Drum Assembly
• Clutch Assembly
• Ignition Module
• Assembly Flywheel Assembly

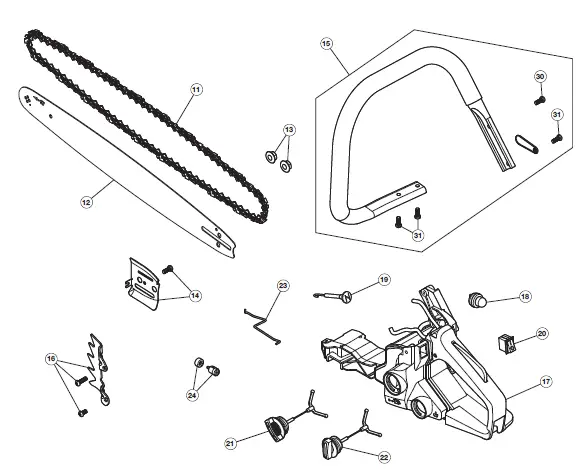

REPLACEMENT PARTS – MODELS TB4214, TB4216, AND TB4218
2-CYCLE CHAIN SAWS
PPNS 41AY4214766, 41AY4216766, AND 41AY4218766

Item Part No.

1. 713-05277
2. 713-05276
3. 713-05042
4. 795-01022A
5. 795-01023A
6. 795-01024A
7.  753-08105
8.  753-10336
9.  753-10284
   Description
   14″ Saw Chain (TB4214)
   16″ Saw Chain (TB4216)
   18″ Saw Chain (TB4218)
   14″ Guide Bar (TB4214)
   16″ Guide Bar (TB4216)
   18″ Guide Bar (TB4218)
   Guide Bar Nuts
   Bar Plate Assembly
   Chainsaw Handle Assembly (incl. 30 & 31)
   Item Part No.
10. 753-10332
11. 753-10324
12. 753-10330
13. 753-11114
14. 753-10331
15.  753-11113
16. 753-10325
17. 753-10329
18. 753-10328

Description

• Spike Plate Assembly
• Fuel Tank Assembly
• Primer Bulb
• Choke Lever Assembly S
• top Switch Assembly
• Fuel Cap Assembly
• Oil Cap Assembly
• Throttle Rod
• Fuel Filter

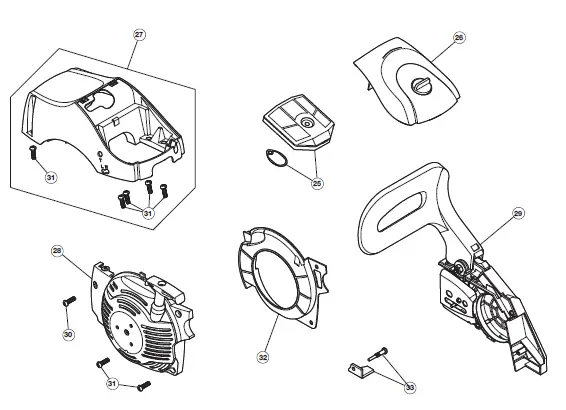

REPLACEMENT PARTS – MODELS TB4214, TB4216, AND TB4218
2-CYCLE CHAIN SAWS
PPNS 41AY4214766, 41AY4216766, AND 41AY4218766

Item Part No.

1. 753-10302
2.  753-10303
3. 753-10294
4. 753-11107
5. 753-11112
   Description
   Air Filter Assembly
   Air Filter Cover Assembly
   Cylinder Cover Assembly (includes 31) Starter Housing Assembly
   Chainsaw Brake Assembly
   Item Part No.
6. 753-10285
7. 753-10286
8. 753-10290
9. 753-10337

Description

• Screw
• Screw
• Baffle
• Chain Catcher Assembly
