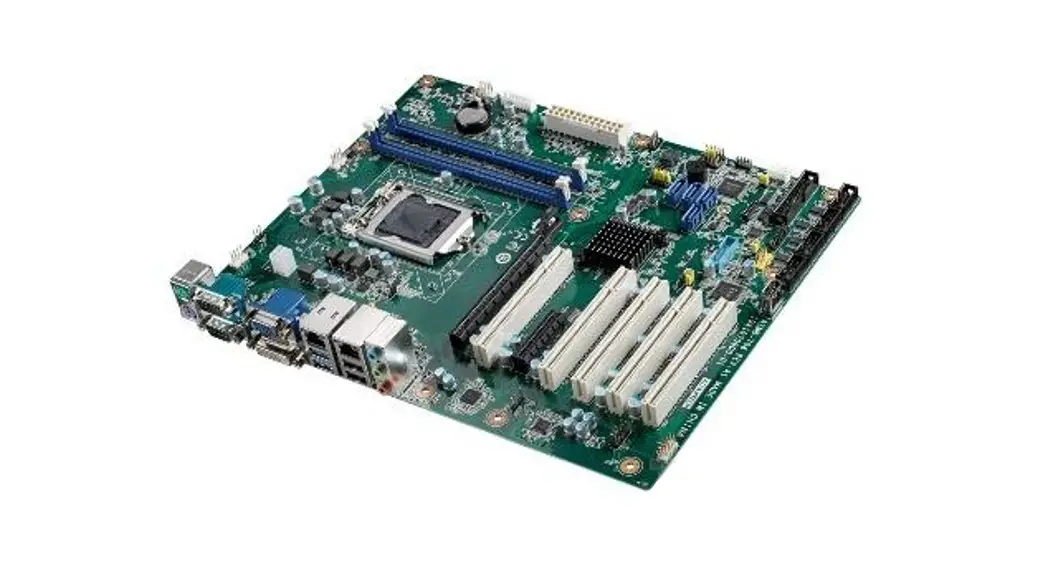

AIMB-706
LGA1151 8th/9th Generation Intel® Core™ i7/i5/i3 & Pentium®/Celeron®

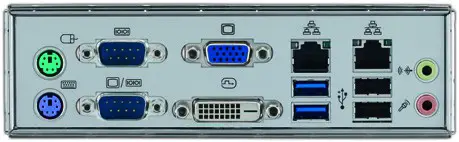

ATX with DVI/VGA, DDR4, SATA 3.0, USB 3.1 & 6 COMs

Contents hide

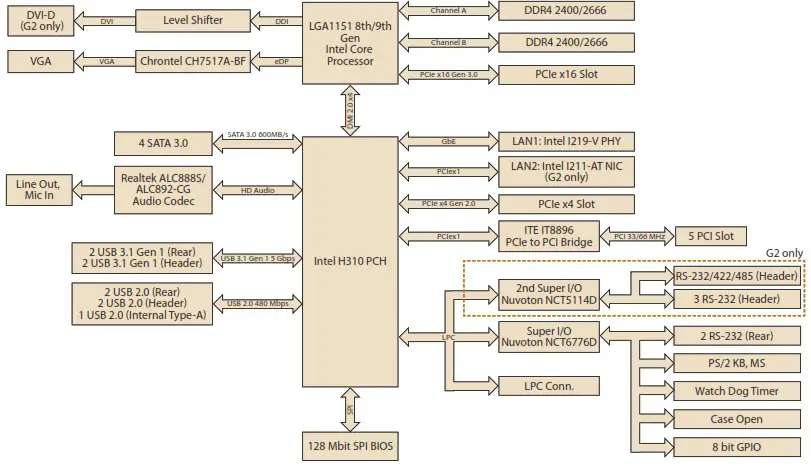

Intel® 8th/9th generation Core™ i7/i5/i3 & Pentium®/Celeron®processorwith H310 chipset
Dual-channel (Non-ECC) DDR4 2400/2666 up to 64 GB
Support VGA and DVI display
SATA 3.0, USB 3.1, dual Gbps
5 RS-232 and 1 RS-232/422/485 serial ports
1 PCIe x16 (Gen 3) and 1 PCIe x4 (Gen 2), and 5 PCI expansion slots

Note: Intel 8th/9th generation processors only support Windows 10 (64-bit).

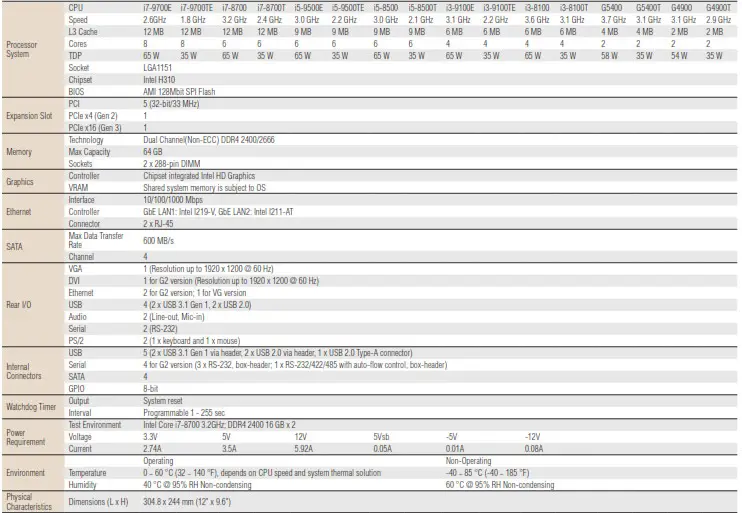

Part Number	Chipset	Memor	Display	USB 3.1 Gen 1	USB 2.0	COM	GbE	AMT	SATA	SW RAID	Intelligent System Module Support
AIMB-706G2-00A2	H310	Non-ECC	VGA + DVI	4	5	6	LAN	No	4	No	No
AIMB-706VG-00A2	H310	Non-ECC	VGA	4	5	2	2	No	4	No	No

AIMB-706VG-00A2

AIMB-706G2-00A2

Part Number	Description
1701090401	Single COM port cable(40 cm)
1701092300	Dual COM port cable(28.5 cm)
1700028292-01	2-port USB 3.0 cable w/ BKT(30 cm)
1700002204	2-port USB 2.0 cable w/ BKT(27 cm)
1960052651N021	CPU cooler for 2U, 4U, and wall mount chassis (CPU TDP ≤65W)
1960047669N001	CPU cooler for 2U/4U and wall mount chassis (CPU TDP 95W)
1960049408N001	CPU heatsink for 1U chassis
1960055954T000	IO bracket for 1U chassis
PCA-COM232-00A1E	4-port RS-232 LPC module
PCA-TPM-00B1E	TPM2.0 module

Part Number	Description
AIMB-RP10P-01A1E	1U riser card providing 1 PCI slot
AIMB-RF10F-01A1E	1U riser card providing 1 PCIe x 16 slot
AIMB-RP30P-03A1E	2U riser card providing 3 PCI slots
AIMB-RP3PF-21A1E	2U riser card providing 1 PCIe x 16 and 2 PCI slots
