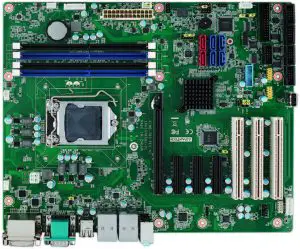

ADVANTECH AIMB-785 6th/7th Generation Intel ATX with Triple Display User Manual

Features

• ƒSupports Intel® 6th/7th generation Core™ i7/i5/i3/Pentium®/Celeron®
  processor with Q170 chipset
• Four DIMM sockets support up to 64 GB DDR4 1866/2133
• Supports triple display VGA/2 DVI-D and dual GbE LAN
• Supports SATA RAID 0, 1, 5, 10, USB 3.0
• Supports Intel vPro, AMT 11.0 & TPM technologies

Note 1: TPM module is required to enable Intel vPro and TPM technologies.
Note 2: Intel 7th generation processors only support Windows 10 (64-bit).

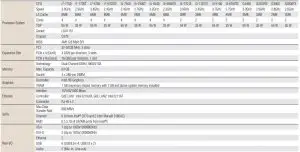

Specifications

Industrial Motherboards

All product specifications are subject to change without notice.

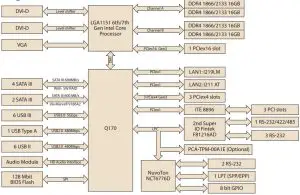

Block Diagram

Ordering Information

Packing List

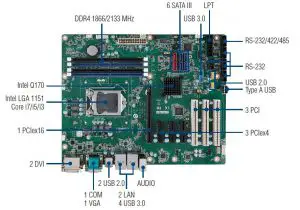

I/O View

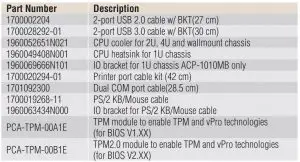

Optional Accessories

Note: Purchasing AIMB-785’s proprietary CPU cooler from Advantech is a must. Other brands’ CPU coolers are NOT compatible with AIMB-785.

Riser Card

Online Download www.advantech.com/products
