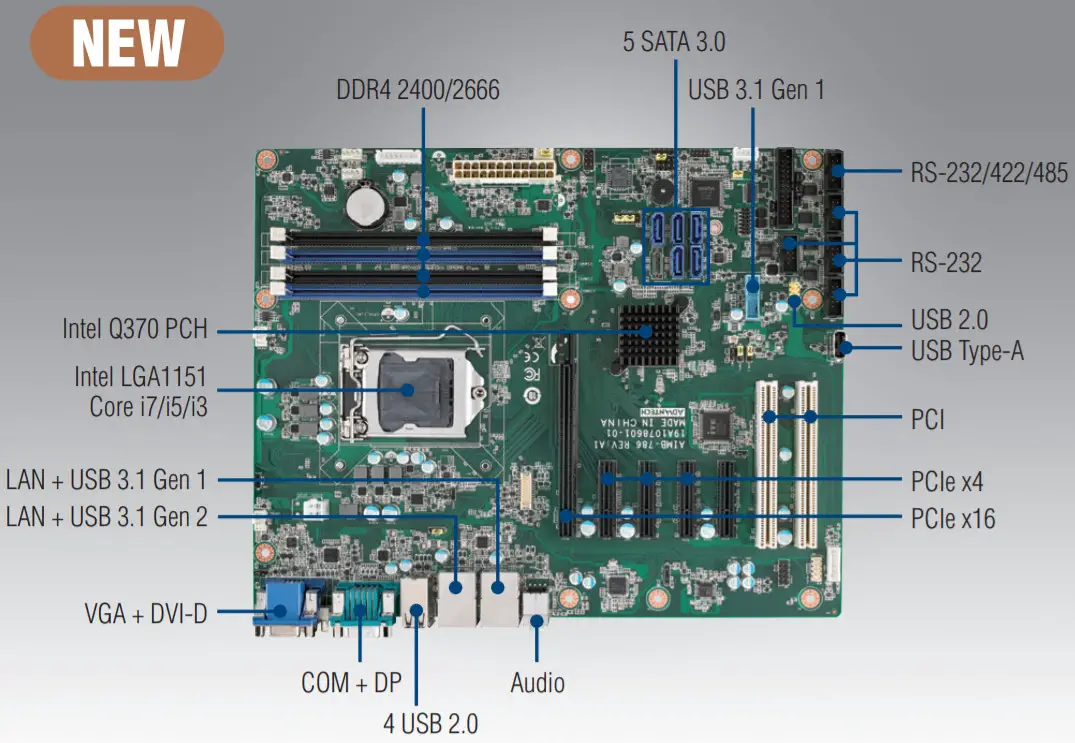

AIMB-786
LGA1151 8th/9th Generation
Intel® Core™ i7/i5/i3 & Pentium® / Celeron ®
ATX with Triple Display, DDR4,
USB 3.1, SATA 3.0
Features
- Intel® 8th/9th generation Core™ i7/i5/i3 & Pentium® /Celeron ® processor with Q370 chipset
- Four DIMM sockets up to 128 GB DDR4 2400/2666
- Triple display VGA/DVI-D/DP and dual GbE LAN
- SATA RAID 0, 1, 5, 10, USB 3.1
- Supports Intel vPro, AMT & TPM technologies
Note 1: TPM module is required to enable Intel vPro and TPM technologies.
Note 2: Intel 8th/9th generation processors only support Windows 10 (64-bit).

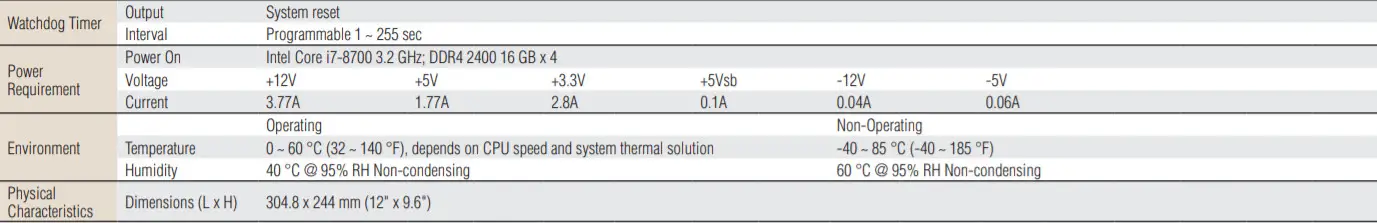

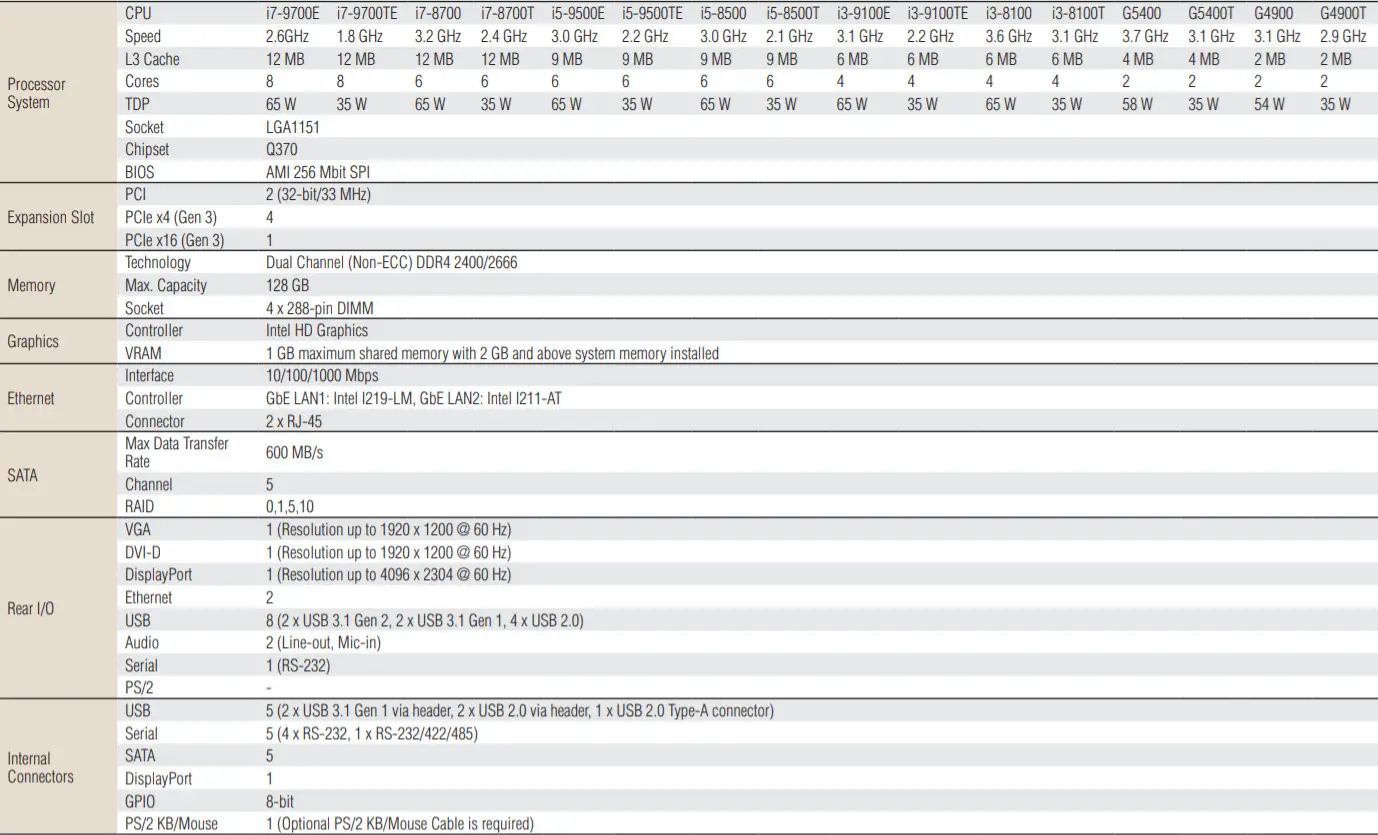

Specifications
All product specifications are subject to change without notice.

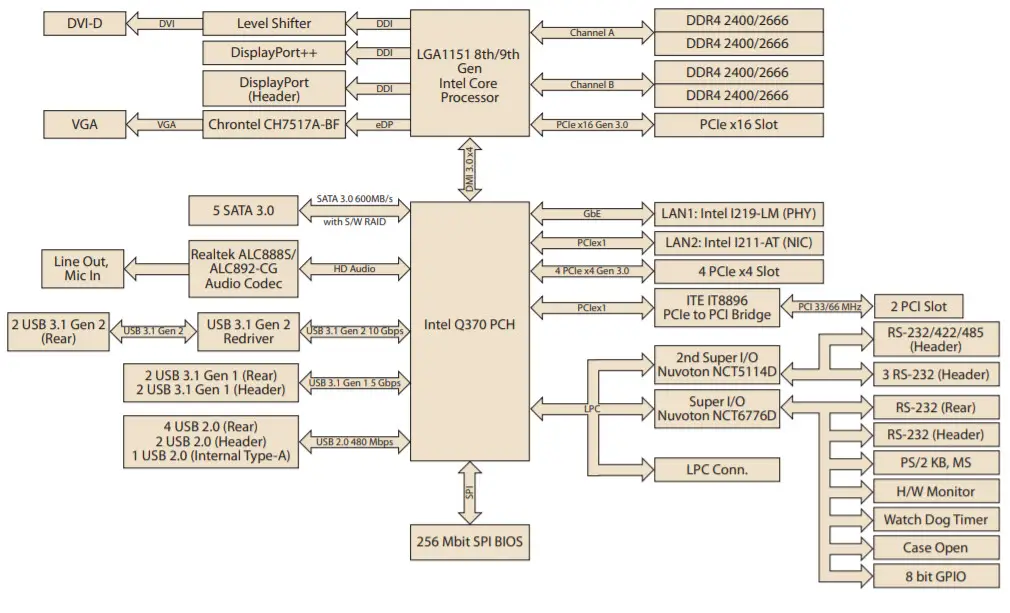

Block Diagram
Ordering Information
| Part Number | Chipset | Memory | Display | USB 3.1 Gen 2 | USB 3.1 Gen 1 | USB 2.0 | COM | GbE LAN | AMT | SATA 3.0 | SW RAID |
| AIMB-786G2-00A2 | Q370 | Non-ECC DDR4 2400/2666 up to 128 GB | VGA + DVI-D + DP | 2 | 4 | 7 | 6 | 2 | Yes | 5 | Yes |
Packing List
| Part Number | Description | Quantity |
| 1700003194 | SATA HDD cable | x 2 |
| 1700022749-11/ | SATA power cable | x 2 |
| 1700022749-12/ | ||
| 1700022749-13 | ||
| 1960086615T001 | I/O port bracket | x 1 |
| 2001078611 | Startup manual | x 1 |

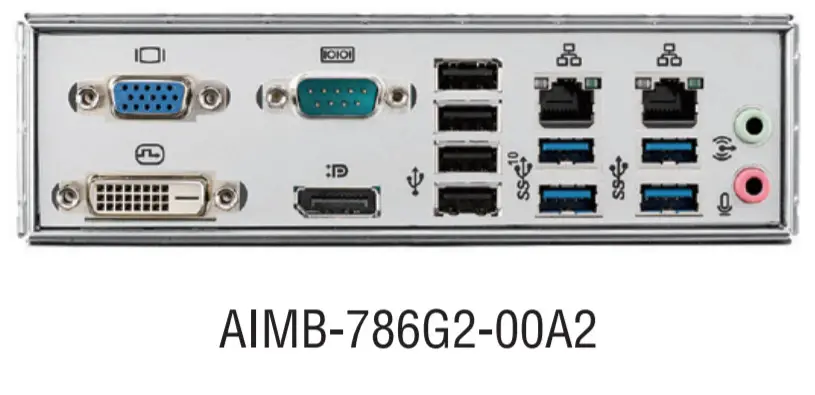

I/O View
Optional Accessories
| Part Number | Description |
| 1.7E+09 | 2-port USB 2.0 cable w/ BKT(27 cm) |
| 1700028292-01 | 2-port USB 3.0 cable w/ BKT(30 cm) |
| 1960052651N021 | CPU cooler for 2U, 4U and wallmount chassis (CPU TDP ≤65W) |
| 1960047669N001 | CPU cooler for 2U/4U and wallmount chassis (CPU TDP 95W) |
| 1.7E+09 | Dual COM port cable(28.5 cm) |
| 1700019268-11 | PS/2 KB/Mouse cable |
| 1960063434N000 | IO bracket for PS/2 KB/Mouse cable |
| PCA-TPM-00B1E | TPM2.0 module to enable TPM and vPro technologies |
Note: Purchasing AIMB-786’s proprietary CPU cooler from Advantech is a must. Other brands’ CPU coolers are NOT compatible with AIMB-786.
Riser Card
| Part Number | Description |
| AIMB-R430P-03A2E | 2U riser card with 3 PCI expansion |
| AIMB-R431F-21A1E | 2U riser card with 1 PCIex16 & 1 PCIex1 expansion |
| AIMB-R43PF-21A1E | 2U riser card with 1 PCIex16 & 2 PCI expansion |
| AIMB-R4301-03A1E | 2U riser card with 1 PCIex1 expansion |
Online Download
www.advantech.com/products
