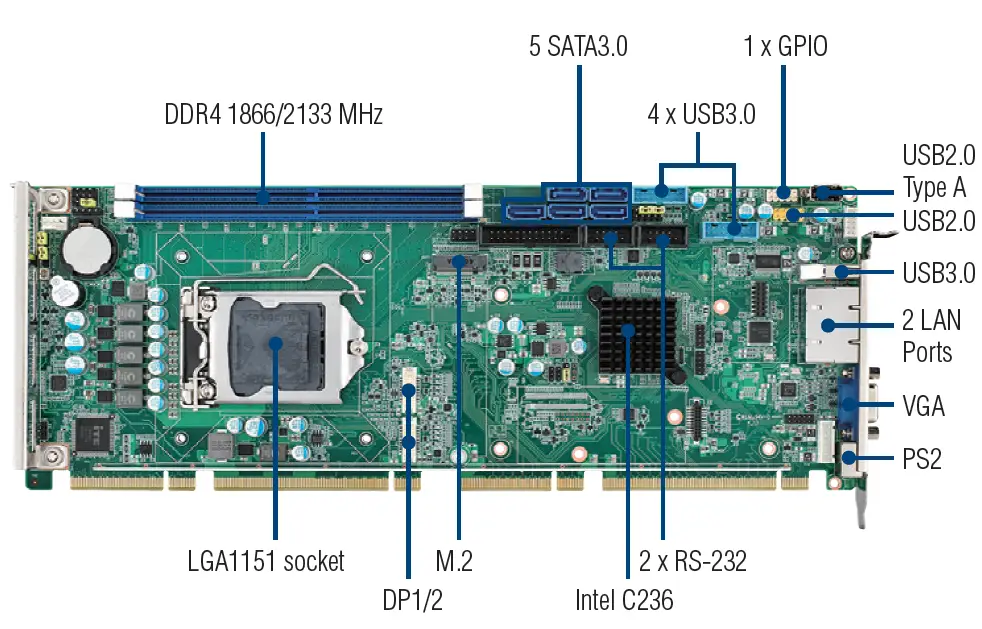

ADVANTECH LGA1151 6th and 7th Generation Intel PCE-5129

Features

Intel® Core™ i7/i5/i3 LGA1151 processor with Q170 chipset
Up to 32 GB of dual-channel (non-ECC) DDR4 1866/2133 MHz
PCIe 3.0, M.2, USB 3.0, SATA 3.0, and SW Raid 0, 1, 5, 10
Supports out-of-band remote management with AMT 11.0
Supports Advantech’s LPC modules, SUSIAccess, and embedded software APIs

Note 1: Intel 7th generation processors only support Windows 10 (64-bit).

Specifications

Processor System

CPU

i7- 7700

i7- 7700T

i7- 6700

i7- 6700TE

i5- 7500

i5- 7500T

i5- 6500

i5- 6500TE

i3- 7101E

i3- 7101TE

i3- 6100

i3- 6100TE

G4400

G4400TE

G3900

G3900TE

Speed

3.6GHz

2.9GHz

3.4GHz

2.4GHz

3.4GHz

2.7GHz

3.2GHz

2.3GHz

3.9GHz

3.4GHz

3.7GHz

2.7GHz

3.3GHz

2.9GHz

2.8GHz

2.6GHz

L3 Cache

8MB

6MB

3MB

4MB

3MB

2MB

Socket

LGA1151

Chipset

Q170

BIOS

AMI 128 Mbit SPI

Bus

PCI-Express

1 x PCIe x16 and 1 x PCIe x4 to backplane

PCI

4 x PCI master to backplane, 32-bit, 33 MHz

Memory

Technology

Dual-channel (non-ECC) U-DIMM DDR4 1866/2133 MHz (supports x8 DDR4 1024 M)

Max. Capacity

32 GB (16 GB per DIMM)

Socket

2 x DDR4 288-pin DIMM

Graphics

Controller

Chipset integrated with Intel® HD Graphics

VRAM

Shared system memory is subject to OS

CRT

Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz

DVI-D

Supports resolutions of up to 1920 x 1200 pixel @ 60 MHz

Display Port

Supports resolutions of up to 1920 x 1080 pixel @ 60 Hz

Triple Display

CRT+DP/DVI-D+DP/DVI-D

Ethernet

Interface

10/100/1000 Mbps

Controller

LAN 1: Intel® I219-LM

LAN 2: Intel® I211

Connector with LED

2 x RJ45

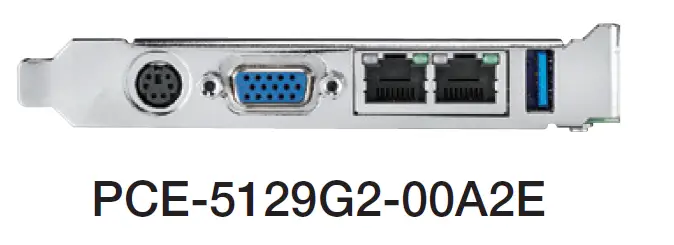

Rear I/O

USB 3.0

Ethernet

VGA

PS/2

1 (PS/2 Y cable supports 1 x keyboard and 1 x mouse)

Internal Connector

USB

7 x USB 2.0 (pin header*2 + USB Type A*1 + 4 on backplane) 4 x USB 3.0 (pin header)

SATA (SW Raid 0,1,5,10)

M.2 (2280 Type M)

1 (supports SATA 3.0 or PCIe x4)

DP/DVI-D

2 (Pin header)

COM

IrDA

GPIO

8bit

Watchdog Timer

Output

System reset

Interval

Programmable 1-255 sec

Miscellaneous

Audio

Intel® High Definition audio interface (requires audio extension module PCA-AUDIO-HDB1E)

Power Requirement

Test Environment

i7-6700, 3.4 GHz, 65 W, with 2 x 8-GB DDR4 2133

Voltage

+12V

+5V

+3.3V

+5Vsb

Current

2.64A

1.23A

0.19A

0.09A

Environment

Operating

Non-Operating

Temperature

0 ~ 60 °C (dependent on CPU and cooler solution)

-40 ~ 85 °C

Humidity

40 °C @ 85% relative humidity (non-condensing)

60 °C @ 95% relative humidity (non-condensing)

Physical

Dimensions (L x H)

338 x 122 mm (13.3″ x 4.8″)

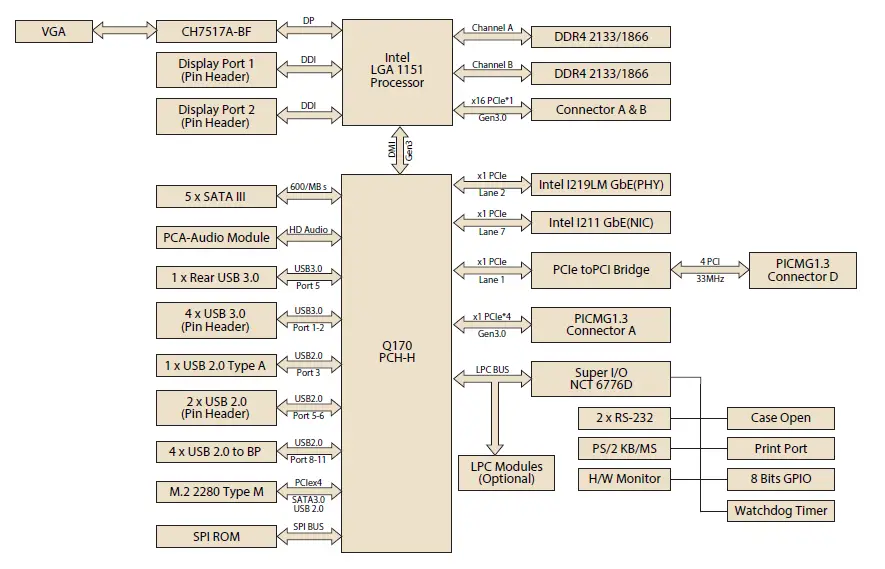

Block Diagram

Ordering Information

Part Number

PCH

Memory

Backplane

LAN

VGA

DP/DVI-D

COM

SATA III

M.2

USB 2.0

USB 3.0

S/W Raid

AMT

PCE-5129G2-00A2E

Q170

Non-ECC

PCE-5BXX

Yes

Packing List

Part Number	Description	Quantity
1700003194	Serial ATA HDD data cable	x2
1701260305	COM + printer ports cable kit	x1
1700060202	Keyboard and mouse Y-cable	x1
1700002204	2-port USB cable kit	x1
2190000902	Warranty card	x1
2001512910	Startup manual	x1
2061512900	Utility CD	x1

Optional Accessories

Part Number	Description
1960049408N001	CPU cooler for 1U Chassis and 84W TDP
1960077101N001	CPU cooler for 2U Chassis and 95W TDP
1960050255N001	CPU cooler for 2U Chassis and 95W TDP
1960052651N021	CPU cooler for 2U/4U Chassis and 80W TDP
PCA-AUDIO-HDB1E	Audio module
PCA-COM232-00A1E	4-port RS-232 LPC module
PCA-COM485-00A1E	4-port RS-422/485 LPC module
1700031719-01	4-port USB 3.0 cable w/BRK (30cm)
1700020277-01	2-port USB 3.0 cable w/ BKT (30 cm)
1700021831-01	DP to DVI-D cable w/ BKT
PCE-DP10-00A1E	DP to DP cable w/ BKT
PCA-TPM-00B1E	TPM 2.0 Module
