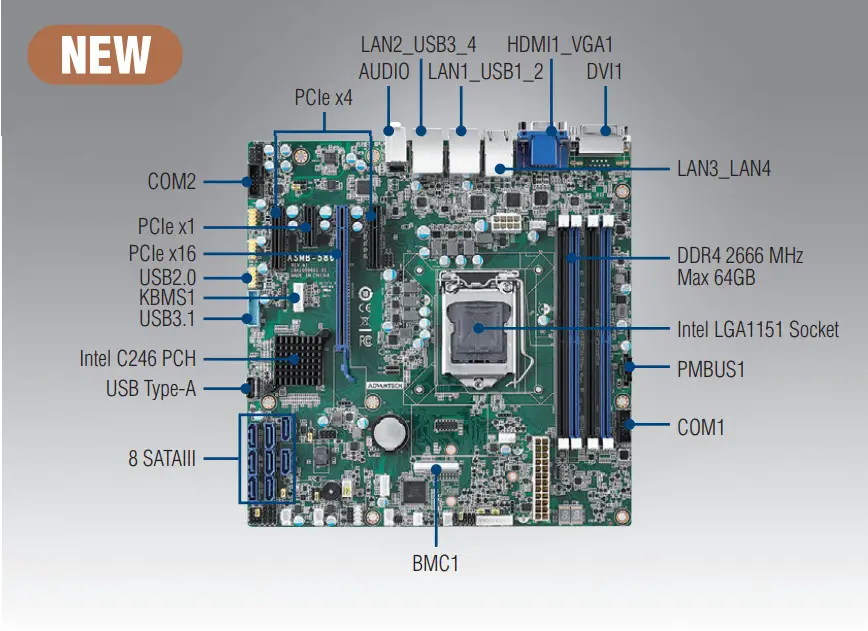

ASMB-586
LGA 1151 Intel ® Xeon ® E & 8th/9th
Generation Core™ MicroATX Server
Board with 4 DDR4, 4 PCIe, 6 USB 3.1,
8 SATA3, Quad/Dual LANs, IPMI
Features
- LGA 1151 Intel ® Xeon ® E and 8th/9th generation Core™ i7/i5/i3 processors with C246 chipset
- DDR4 ECC/Non-ECC 2666/2400/2133 MHz UDIMM up to 128GB
- One PCIe x16, two PCIe x4 and one PCIe x1 slots
- Triple displays – DVI-D, VGA and HDMI 2.0 ports
- Eight SATA3 ports and six USB 3.1 ports
- 0 ~ 60° C ambient operating temperature range
Note: Supported OS including Windows 10 (64-bit) and Server 2016 (64-bit) have been validated.
| Form Factor | Micro ATX form factor | ||||||
| Processor System | Socket CPU type | Intel LGA 1151 Intel ® Xeon ® E-21xx/E-22xx and 8th/9th Gen Core™ i3/i5/i7 series processors (TDP up to 95W) | |||||
| Core Logic | Chipset | Intel C246 chipset | |||||
| Memory | Total slots Capacity Memory type Memory size | 4 (Dual Channel) Maximum 128 GB DDR4 ECC/Non-ECC 2666/2400/2133 MHz UDIMM (288-pin)* 4 GB, 8 GB, 16 GB, 32GB | |||||
| Expansion Slots | Total PCIe slots Slot location 1 Slot location 2 Slot location 3 Slot location 4 Slot location 5 Slot location 6 Slot location 7 | 4 – – – PCIe x4 slot (Gen3 x4 link) PCIe x1 slot (Gen3 x1 link) PCIe x16 slot (Gen3 x16 link) PCIe x4 slot (Gen3 x4 link) | |||||
| Graphics | Controller VRAM | Intel HD Graphics** 1 GB maximum shared memory with 2 GB and above system memory installed | |||||
| Storage | SATA controller SAS controller | Intel C246: 8 SATA3 6Gb/s Intel Rapid Storage Technology Enterprise (for Windows only) (Supports software RAID 0, 1, 10 & 5) – | |||||
| Networking | GbE LAN | 1 x Intel I219LM + 3 x Intel I210AT | |||||
| Onboard I/O Connector | LPT connector PSU connector USB connector Fan header SMBus Chassis intruder Front LAN LED Serial port header Audio Header PS/2 KB/Mouse | – 24-pin SSI power connector + 8-pin SSI 12 V power connector 1 USB 3.1 Gen 1 (2 ports), 3 USB 2.0 (6 ports), 1 USB Type-A 5 (4-pin) 1 1 2 2 (RS-232) 1 (ALC 892) 1 (Optional PS/2 KB/Mouse cable and bracket required) | |||||
| Rear I/O Connector | External serial port External USB port VGA port DVI port HDMI RJ-45 PS/2 KB/mouse Audio | – (via COM cable in the package) 4 (USB 3.1 Gen 2) 1 (Resolution up to 1920 x 1200 @ 60 Hz) 1 (Resolution up to 1920 x 1200 @ 60 Hz) 1 (Resolution up to 4096 x 2160 @ 60 Hz) 4 -2 (Mic-in, Line-out) | |||||
| Watchdog Timer | Output Interval | System reset Programmable 1 ~ 255 sec/min | |||||
| Power Requirement | Power On (Xeon E-2176G 3.7GHz DDR4 2400 4G*4) | 3.3 V 3.87A | 5 V 4.11A | 12 V 0.63A | 12V_8P 6.28A | 5 Vsb 0.09A | -12 V 0.238A |
| Environment | Temperature Humidity | Operating 0 ~ 60° C, depends on CPU speed and cooler solution 0% ~ 95% | Non-operating -40 ~ 85° C 5% ~ 95% (Non condensing) | ||||
| Physical Characteristics | Dimensions | 244 x 244 mm (9.6″ x 9.6″) | |||||
* ECC will not be supported when paired with Core i5/i7 processors.
** Some Xeon processors have no graphic support. Please check Intel specification for processor graphics availability.

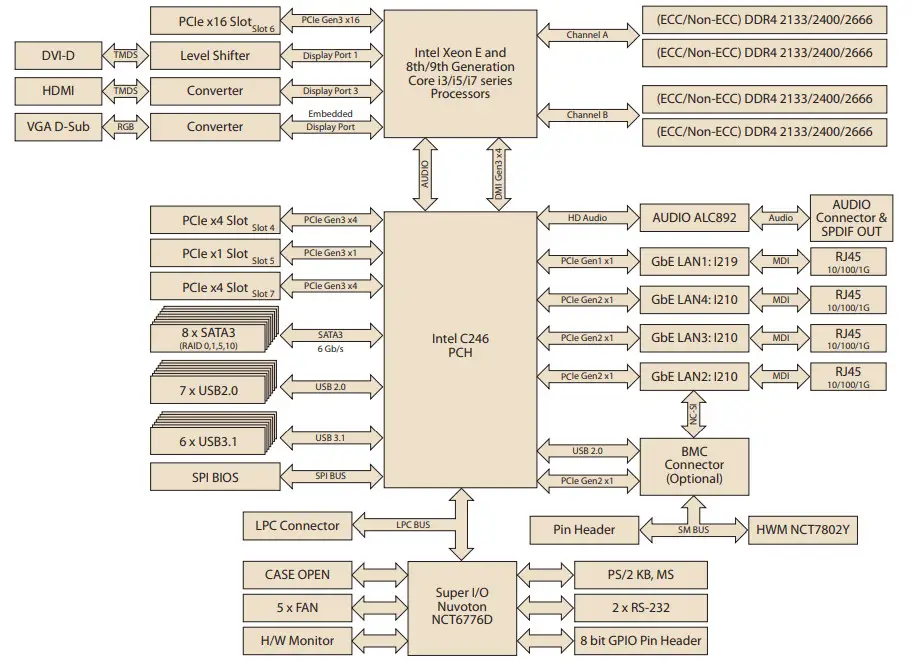

Block Diagram
Ordering Information
Ordering Information| Part Number | Chipset | Memory | Display | LAN | SATAIII | IPMI |
| ASMB-586G2-00A1 | C246 | DDR4 ECC/Non-ECC | VGA + DVI-D + HDMI | 2 | 8 | Optional |
| ASMB-586G4-00A1 | C246 | DDR4 ECC/Non-ECC | VGA + DVI-D + HDMI | 4 | 8 | Optional |
Packing List
| Part Number | Description | Quantity |
| 2001058610 | Startup manual | x 1 |
| 1700003194 | SATA data cables | x 2 |
| 1700022749-11 | SATA power cables | x 2 |
| 1700001788 | COM1 cable | x 1 |
| 1960088021T001 | I/O shield | x 1 |

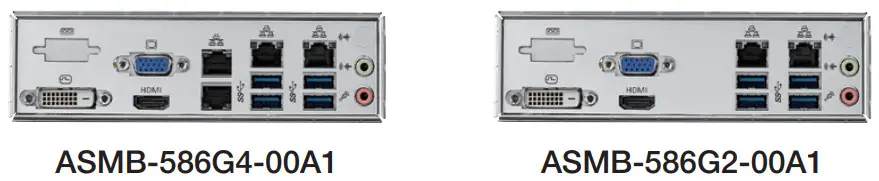

I/O View
Optional Accessories
| Part Number | Description |
| 1960049408N001 | LGA 1151 CPU heatsink for 1U chassis |
| 1960052651N021 | LGA 1151 CPU cooler for 2U/4U chassis |
| 1960088060T001 | 1U IO bracket for ASMB-586 |
| 1700002204 | Dual-port USB2.0 cable (27 cm) with bracket |
| 1700008461 | Four-port USB2.0 cable (30.5 cm) with bracket |
| 1700020277-01 | Dual-port USB3.0 cable (30 cm) with bracket |
| 1701090401 | Single port RS-232 cable (40cm) for COM2 connector |
| 1700019268-11 | Cable for onboard KBMS1 connector (35cm) |
| 1960063434N000 | Cable bracket for 1700019268-11 |
| IPMI-1000-00A2E | IPMI 2.0 Module |
| PCA-COM232-00A1E | 4 ports RS-232 module connect to LPC connector |
| PCA-COM485-00A1E | 4 ports RS-422/485 module connect to LPC connector |
| PCA-TPM-00B1E | TPM 2.0 Module by LPC |
Note: Purchasing ASMB-586’s proprietary CPU cooler from Advantech is a must. Other brands’ CPU coolers may NOT compatible with ASMB-586.
Online Download www.advantech.com/products
