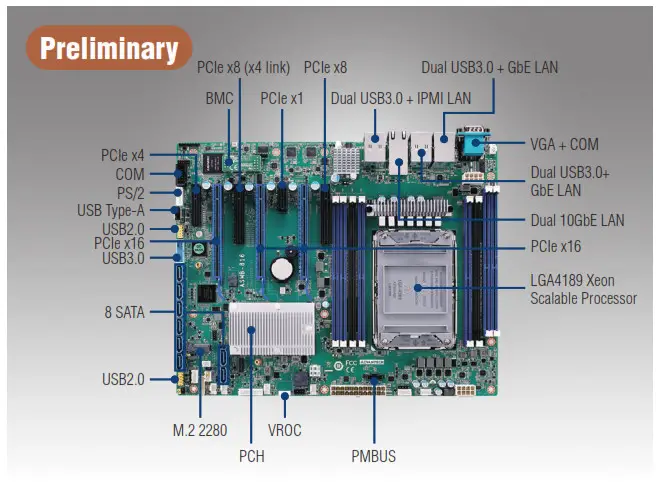

ASMB-816
LGA 4189 Intel ® 3rd Gen Xeon ® Scalable
ATX Server Board with 8x DDR4, 3x PCIe
x16, 8x SATA 3, 6x USB 3.0, Dual 10GbE,and IPMI
Features
- LGA4189 ATX server board with 3rd Gen. Xeon ® Scalable processor
- DDR4 3200 MHz RDIMM up to 512 GB (8 DIMMs) supports Intel® Optane™ Persistent Memory
- Features 3x PCIe x16, 1x PCIe x8, 2x PCIe x4, and 1x PCIe x1
- Intel ® X550 dual 10GbE ports
- Eight SATA 3 and one M.2 connectors (SATA/PCIe compatible)
- 0 ~ 60 °C/ 32 ~ 140 °F ambient operating temperature range
Specifications
| Form Factor | ATX form factor | ||||||
| Processor System | Socket CPU type | Intel LGA4189 (Socket P+) Intel 3 rd Generation Xeon Scalable processors (CPU cooler should be purchased separately*) | |||||
| Core Logic | Chipset | Intel C621A chipset | |||||
| Memory | Total slots Capacity Memory type Memory size | 8x (1 DIMM per channel) Maximum 512GB ECC RDIMM DDR4 ECC-REG 2666/2933/3200 MHz RDIMM/LRDIMM, supports Intel ® Optane™ Persistent Memory 8 GB, 16 GB, 32 GB, 64 GB, 128 GB (LRDIMM) | |||||
| Expansion Slots | Total PCI/PCI-X/PCIe slots Slot location 1 Slot location 2 Slot location 3 Slot location 4 Slot location 5 Slot location 6 Slot location 7 | 7 PCIe x4 slot (x4 link), signal from PCH PCIe x16 slot (x16 link), signal from CPU PCIe x8 slot (x4 link), signal from CPU PCIe x16 slot (x16 link), signal from CPU PCIe x1 slot (x1 link), signal from PCH PCIe x16 slot (x16 link), signal from CPU PCIe x8 slot (x8 link), signal from CPU | |||||
| Graphics | VGA | Aspeed AST 2500/2510 | |||||
| Storage | SATA controller SAS controller | Intel ® C621A: 8 x SATA 3 (600 MB/s) support software RAID 0,1,5,10 – | |||||
| Networking | GbE/10GbE LAN | 2 x Intel ® I210AT / Intel ® X550-AT2 (dual 10GbE ports) | |||||
| Onboard I/O Connector | PSU connector USB connector Fan header M.2 SMBus Chassis intruder Front LAN LED Audio Header PS/2 KB/Mouse Serial port header | 24-pin SSI power connector + 2 x 8-pin SSI 12 V power connector + 4-pin SSI 12 V power connector4 x USB 2.0 ports (two onboard headers) + 2 x USB 3.0 ports (one onboard header) + 1 x Type-A USB 2.0 port 6 x 4-pin (5 for system + 1 for CPU) 1 x M.2 2280/22110 B+M key (SATA and PCIe) 1 1 1 1 1 1 | |||||
| Rear I/O Connector | External serial port External USB port VGA port RJ-45 PS/2 KB/mouse | 1 4x (USB 3.0) + 2x USB (2.0) 1 5x (1 port dedicated for IPMI function) – | |||||
| Management Solution | Software Out of band remote management | – Yes | |||||
| Monitoring | CPU temperature System Monitoring | Yes Yes | |||||
| Watchdog Timer | Output Interval | System reset Programmable 1 ~ 255 sec/min | |||||
| Power Requirement | Power On (220W [email protected] DDR4 2400 8G*8) | 3.3V 13.9754 | 5V 4.565 | 12V 9.40565 | 5Vsb 0.22408 | -12V 0.08241 | 12V_8P 25.14 |
| Environment | Temperature Humidity | Operating 0 ~ 60 °C/32 ~ 140 °F, depends on CPU speed and cooling solution | Non-operating -40 ~ 85 °C/-40 ~ 185 °F 10% ~ 95% (Non condensing) | ||||
| Physical Characteristics | Dimension (L x H) | 304 x 244 mm (12 x 9.6 in) | |||||

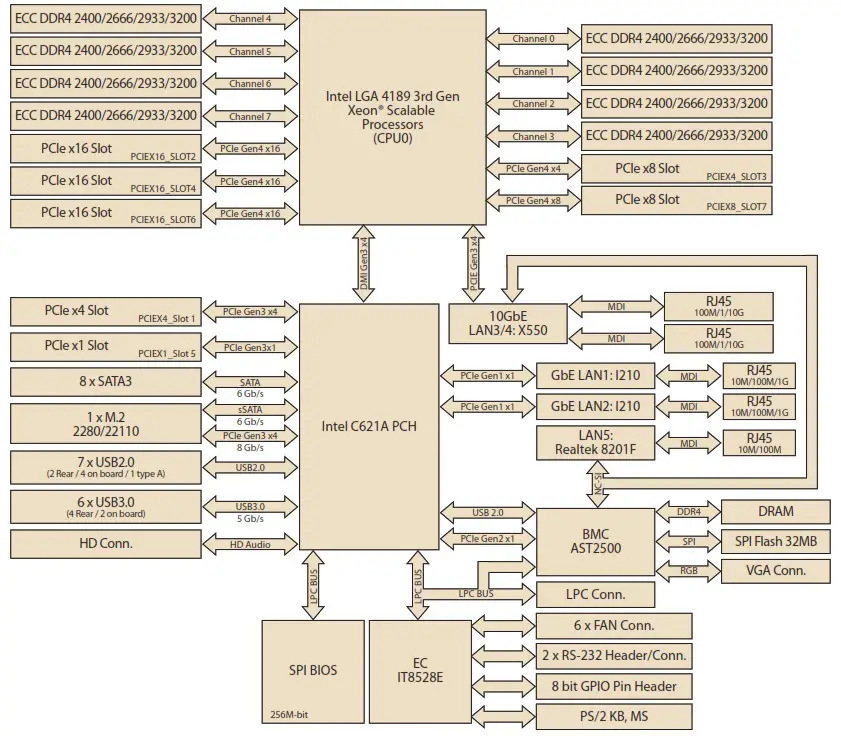

Block Diagram
Ordering Information
| Part Number | Chipset | Memory | GbE/10GbE LAN | IPMI | Graphics |
| ASMB-816T2-00A1 | C621A | DDR4 RDIMM | 2-Feb | Yes | AST 2500 |
| ASMB-816I-00A1 | C621A | DDR4 RDIMM | 2/- | Yes | AST 2500 |
| ASMB-816-00A1 | C621A | DDR4 RDIMM | 2/- | – | AST2510 |
Packing List
| Part Number | Description | Quantity |
| 2.04E+09 | Startup manual | x 1 |
| 1.7E+09 | SATA data cables | x 2 |
| 1700022749-11 | SATA power cables | x 2 |
| 1.7E+09 | CPU power cable | x 2 |
| 1.93E+09 | Screw for M.2 device | x 1 |
| 1960076488T000 | I/O shield | x 1 |
| 1651003167-01 | LGA4189 CPU carrier | x 1 |
| 1700031926-11 | Front panel convert cable | x 1 |
Optional Accessories
| Part Number | Description |
| PCA-AUDIO-HDB1E | HD Audio-card |
| PCA-TPM-00B1E | TPM 2.0 Module by LPC |
| 1970004597T000 | LGA-4189 narrow CPU cooler for 2U/4U chassis (205W) |
| 1.7E+09 | Dual port USB cable (27 cm/10.6 in) with bracket |
| 1.7E+09 | Four port USB cable (30.5 cm/12 in) with bracket |
| 1700020277-01 | Dual port USB 3.0 cable (30 cm/11.8 in) with bracket |
| 1.7E+09 | COM port cable (40 cm/15.7 in) with bracket |
| 1700019268-11 | PS/2 port cable (35 cm/13.77 in) |
| 1960063434N000 | Cable bracket for 1700019268-11 |
| 1960082347T000 | For 1U chassis I/O shield |

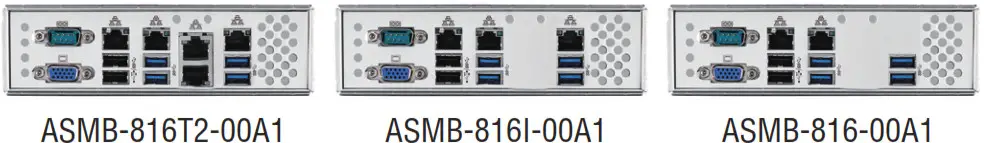

I/O View
Online Download www.advantech.com/products
