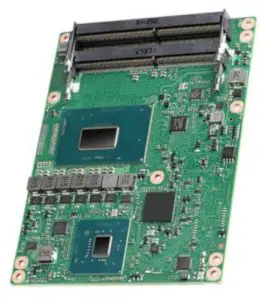

7th Gen Intel SOM-5898 User Guide

Contents hide

1 Features

2 Specifications

3 Block Diagram

4 Ordering Information

5 Development Board

6 Packing List

7 Optional Accessories

8 Embedded OS

9 Documents / Resources

9.1 References

10 Related Posts

Features

7th Gen Intel Xeon® /Core™ Quad/Dual Cores + PCH QM175/CM238
Dual channel DDR4 2400, Max 32GB (ECC optional)
Support Three independent symmetrical displays (up to 4K)
Flexible I/O support: Gen3 PEG and PCIe, USB3.0 and SATA3
Supports iManager, WISE-PaaS/RMM and Embedded Software APIs

Software APIs:

Watchdog
I2C
SMBus
H/W Monitor
GPIO
Brightness

Utilities:

BIOS Flash
Monitoring
Embedded security ID

Specifications

Compliance	Form- Factor	COM Express Basic Module
	Pin-out Type	COM Express R2.1 Type 6 pin out
Processor System	CPU	i7-7820EQ	i5-7440EQ	i5-7442EQ	i3-7100E	i3-7102E	E3-1505MV6	E3-1505LV6	E3-1501MV6	E3-1501LV6
	Base Frequency	3.0 GHz	2.9 GHz	2.1 GHz	2.9 GHz	2.9 GHz	3.0 GHz	2.2 GHz	2.9 GHz	2.1 GHz
	Max Single Core Turbo Frequency	3.7 GHz	3.6 GHz	2.9 GHz	–	–	4.0 GHz	4.0 GHz	3.6 GHz	3.6 GHz
	Cores	4	4	4	2	2	4	4	4	4
	Cache	8 MB	6 MB	6 MB	3 MB	3 MB	8 MB	8 MB	6 MB	6 MB
	CPU TDP	45W	45W	25W	35W	25W	45W	25W	45W	25W
	BIOS	AMI UEFI 128Mbit
Memory	Technology	DDR4 up to 2400MHz
	ECC Support	ECC is supported with specific SKU
	Max. Capacity	Up to 32GB
	Socket	Dual Channel 260P SO-DIMM (1 DIMM per Channel)
Graphics	Controller	Intel Gen 9 low power graphics
	Base/Turbo Freq.	350MHz/1GHz
	Graphics Memory	Intel DMVT5.0, share memory up to 1024MB
	3D/HW Acceleration	HW Codec: H.265/HEVC 8bit/10bit encode/decode ; VP8 8bit encode/decode, VP9 10bit decode ; MPEG2 ; JPEG ; VC1/WMV9. Direct3D 2015/11.2/11.1/10/9 ; OpenGL5.0 ; OpenCL 2.0/1.2/1.0
Display	VGA	1 port up to 1920 x 1200 @ 60 Hz
	LCD	LVDS Dual Channel 18/24-bit, up to 1920 x 1200 @ 60Hz
	DDI	2 Port configurable to HDMI1.4/DVI/Displayport1.2 HDMI up to 4096 x 2160@30/24Hz, DVI up to 1920 x 1200@60Hz, DP up to 4096 x 2304 @ 60Hz
	Multiple Display	Dual display, Triple display with each display combinations
Expansion	PCI Express x16 (Gen3)	1 PCIe x16 configurable to 1 x16, 2 x8, 1 x8 + 2 x4
	PCI Express x1 (Gen3)	8 PCIe x1, configurable to x4 or x2
	Audio Interface	Intel HD Audio Interface
	LPC	Yes
Serial Bus	SMBus	Yes
	I2C Bus	Yes
Ethernet	Controller	Intel I219
	Speed	10/100/1000 Mbps
I/O	SATA (Gen 3)	4 Ports (6Gbps)
	USB3.0	4 Ports (5Gbps)
	USB2.0	8 Ports (480Mbps)
	SPI Bus	Yes
	GPIO	8-bit
	Watchdog	65536 level, 0~65535 sec
	COM Port	2 Ports (2-wire)
	Express Card	2 Ports
	TPM	TPM2.0 (Infineon SLB9665)
	Smart Fan	2 Ports: 1 port on module (Notice: the input voltage of fan is aligned to Vin); 1 port on carrier board
Power	Type	ATX: Vin, VSB; AT: Vin
	Supply Voltage	Vin: 8.5V ~ 20V; VSB: 4.75V ~ 5.25 V, RTC Battery: 2.0V ~ 3.3V
	Power Consumption	Max 12V @ 48.1W, i7-7820EQ Idle 12V @ 6.77W, i7-7820EQ *Only for reference and will depends on custom software loading, detail refer to user manual
	Operating temperature	Standard: 0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85 °C (-40 ~ 185 °F)
	Storage Temperature	-40 ~ 85 °C (-40 ~ 185 °F)
	Humidity	Operating: 40 °C @ 95% relative humidity, non-condensing Storage: 60 °C @ 95%relative humidity, non-condensing
	Vibration Resistance	3.5 Grms
Mechanical	Dimensions	125 mm x 95 mm (4.92″ x 3.74″)

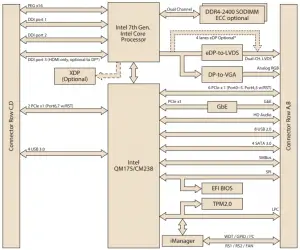

Block Diagram

*Display Configuration Table

Default	DDI1 (DP++)	DDI2 (DP++)	DDI3 (HDMI only)	LVDS	VGA
Optional	DDI1 (DP++)	DDI2 (DP++)	DDI3 (DP++)	eDP (4 lanes)

Ordering Information

Part No.	CPU	Freq.	Cores	CPU TDP	PCH	DDR4 Memory	Thermal Solution	Operating Temperature
SOM-5898C7-H0A1	i7-7820EQ	3.0	4	45W	QM175	non-ECC	Active	0 ~ 60 °C
SOM-5898C5-U9A1	i5-7440EQ	2.9	4	45W	QM175	non-ECC	Active	0 ~ 60 °C
SOM-5898C5-U1A1	i5-7442EQ	2.1	4	25W	QM175	non-ECC	Active	0 ~ 60 °C
SOM-5898C3-U9A1	i3-7100E	2.9	2	35W	QM175	non-ECC	Active	0 ~ 60 °C
SOM-5898C3-U1A1	i3-7102E	2.1	2	25W	QM175	non-ECC	Active	0 ~ 60 °C
SOM-5898E4M-H0A1	E3-1505MV6	3.0	4	45W	CM238	ECC/ non-ECC	Active	0 ~ 60 °C
SOM-5898E4L-U2A1	E3-1505LV6	2.2	4	25W	CM238	ECC/ non-ECC	Active	0 ~ 60 °C
SOM-5898E4M-U9A1	E3-1501MV6	2.9	4	45W	CM238	ECC/ non-ECC	Active	0 ~ 60 °C
SOM-5898E4L-U1A1	E3-1501LV6	2.1	4	25W	CM238	ECC/ non-ECC	Active	0 ~ 60 °C
SOM-5898C7X-H0A1	i7-7820EQ	3.0	4	45W	QM175	non-ECC	Active	-40 ~ 85 °C
SOM-5898C5X-U9A1	i5-7440EQ	2.9	4	45W	QM175	non-ECC	Active	-40 ~ 85 °C
SOM-5898C5X-U1A1	i5-7442EQ	2.1	4	25W	QM175	non-ECC	Active	-40 ~ 85 °C
SOM-5898C3X-U9A1	i3-7100E	2.9	2	35W	QM175	non-ECC	Active	-40 ~ 85 °C
SOM-5898C3X-U1A1	i3-7102E	2.1	2	25W	QM175	non-ECC	Active	-40 ~ 85 °C
SOM-5898E4MX-H0A1	E3-1505MV6	3.0	4	45W	CM238	ECC/ non-ECC	Active	-40 ~ 85 °C
SOM-5898E4LX-U2A1	E3-1505LV6	2.2	4	25W	CM238	ECC/ non-ECC	Active	-40 ~ 85 °C

Any other SKU or combination is project based support. Please contact sales for details.

Development Board

Part No.	Description
SOM-DB5800-00A2E	COMe Devel. Board Type6 pint-out Rev. A2

Packing List

Part No.	Description	Quantity
–	SOM-5898 CPU module	1
1960081253T001	Heat spreader	1

Optional Accessories

Part No.	Description
1960048820N001	Semi-Cooler 125 x 95 x 33 mm with 12V FAN
1960094209T001	QFCS 125 x 95 x 26.29 mm

Embedded OS

OS	Part No.	Description
Win10 (HL)	2070015300	Img Win10 IoT Ent_LTSB 64 bit (Xeon & Core i7)
Win10 (VL)	2070015301	Img Win10 IoT Ent_LTSB 64 bit (Core i5 & i3)
