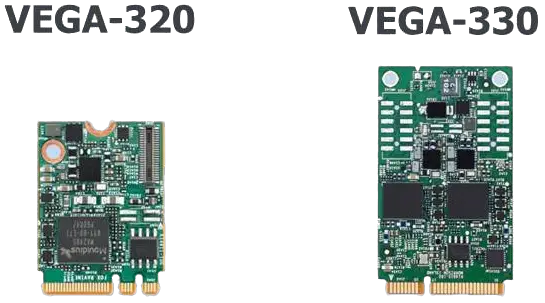

ADVANTECH VEGA-320/330 Intel Movidius Myriad X Edge AI
Features
- Intel® Movidius™ Myriad™ X VPU onboard
- Ultra compact, Low power consumption
- Hardware acceleration for common deep neural networks
- Scalable for multiple video streams edge inference
- 10 times the performance compared to the previous generation
- Intel® OpenVINO™ toolkit fully supported
Specification
VEGA-320-01A1 | VEGA-330-01A1 | VEGA-330-02A1 | |
SoC | One Myriad X MA2485 | One Myriad X MA2485 | Two Myriad X MA2485 |
Form Factor | M.2 2230 (Key A+E) | Full size Mini PCIe | |
Dimensions | 22mm x 30mm x 3.63 mm | 30mm x 50.95mm x 4.86 mm | |
Signal Interface | PCIe Gen2 x1, USB 2.0 | ||
Operating Temp. | -20 ~ 60 °C, with 0.7m/s air flow* | -20 ~ 60 °C, with 0.7m/s air flow* | -20 ~ 55 °C, with 0.7m/s air flow* |
Power Consumption | 3.8W | 7.6W | |
Cooling | Passive Cooling | ||
OS Support | Windows 10 Enterprise 64bit | ||
OpenVINO | OpenVINO R2 2019 or latest | ||
Framework Support | TensorFlow, Caffe | ||
*Note: According to operating temperature tests performed with AIR-101 thermal solution.
Dimensions (Unit: mm)

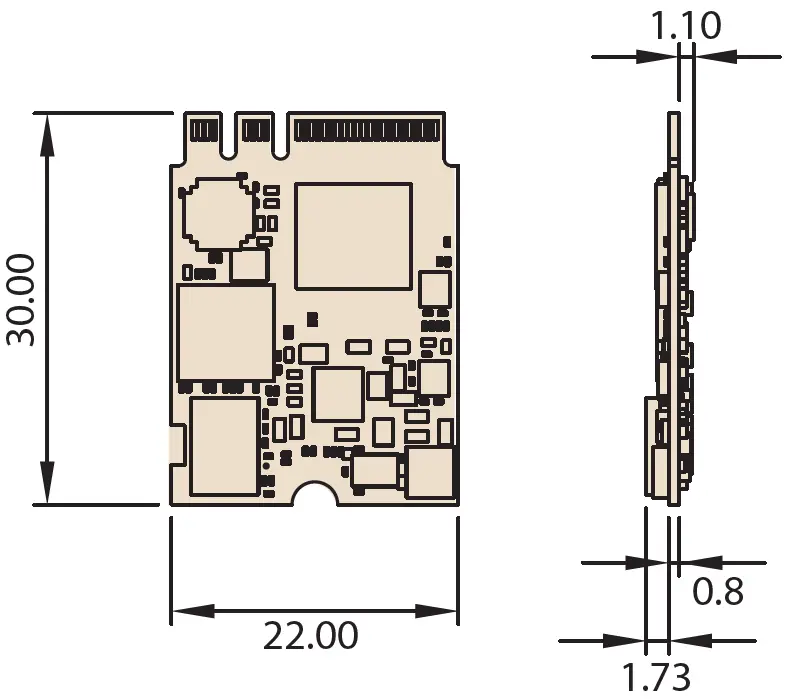

- VEGA-320

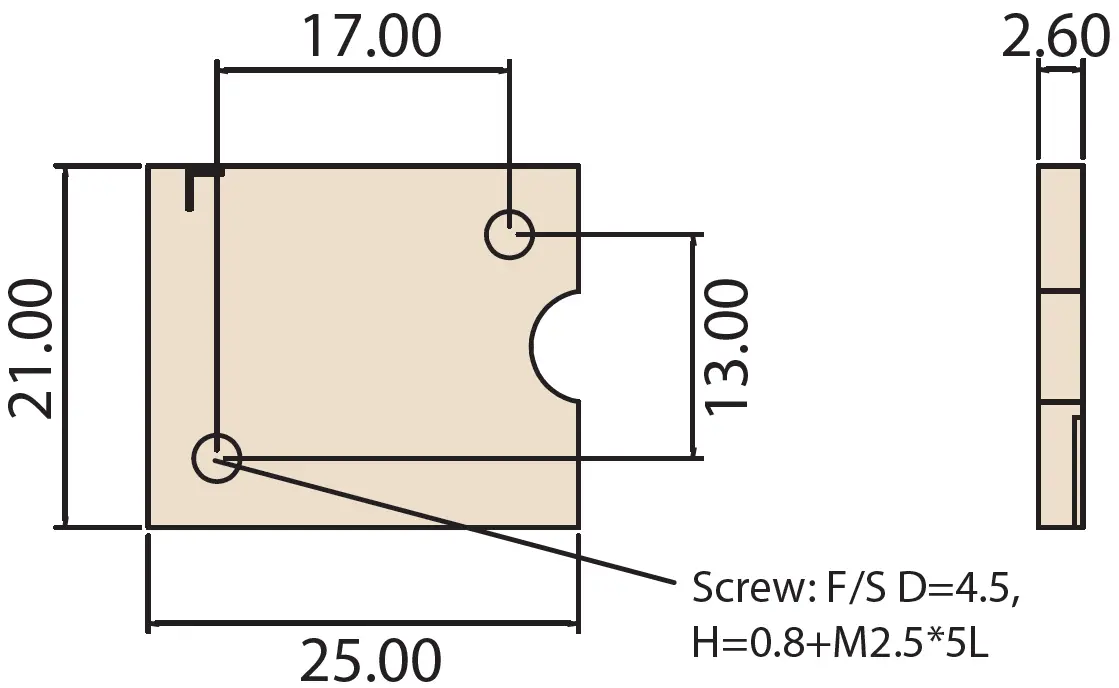

- VEGA-320 Heat Spreader

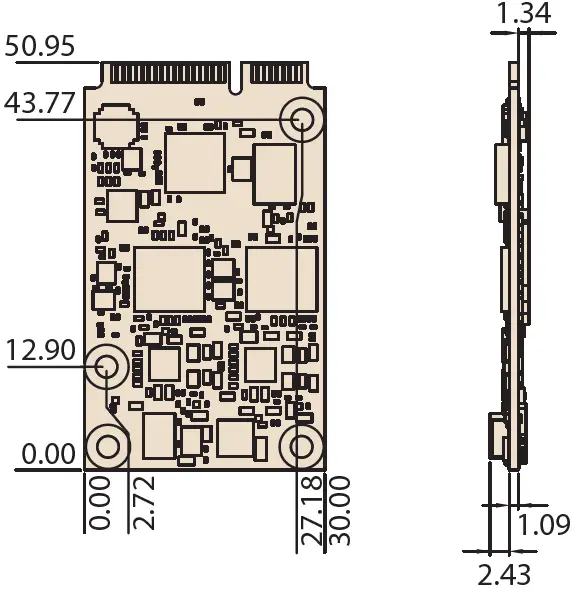

- VEGA-330

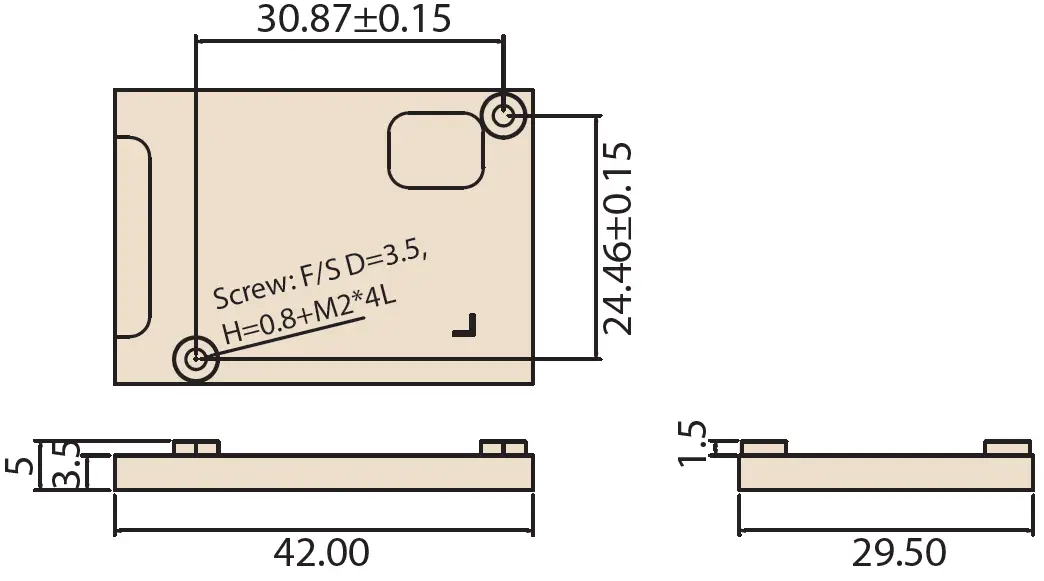

- VEGA-330 Heat Spreader
Edge AI Suite Built-in
OpenVINOTM Toolkit
- Model Optimizer
- Inference Engine
- Support TensorFlow, Caffe, mxnet, ONNX
Deployment Wizard
- AI Model Launcher
- Deployment Reference
- CPU/VPU Monitoring
Pre-Trained Models
- Facial Detection
- Pedestrian Tracking
- Human Pose Estimation
3rd Party AI SDK
- Vehicle Detection
- License Plate Recognition
- Optical Inspection

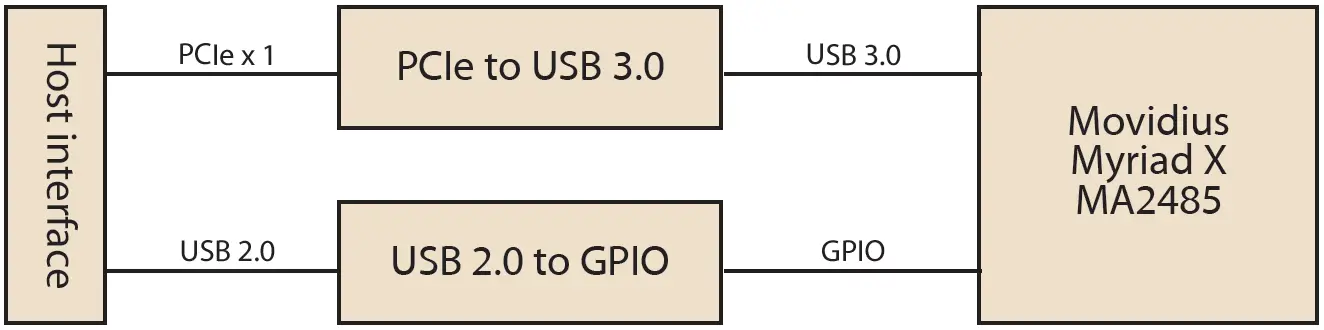

Block Diagram
Ordering Information
Part Number | Description |
VEGA-320-01A1 | M.2 2230 Edge AI acceleration module with One Intel Myriad X |
VEGA-330-01A1 | Full size miniPCIe Edge AI acceleration module with One Intel Myriad X |
VEGA-330-02A1 | Full size miniPCIe Edge AI acceleration module with Two Intel Myriad X |
Optional Items
Part Number | Description |
AMK-A0029 | VEGA-320 heat spreader |

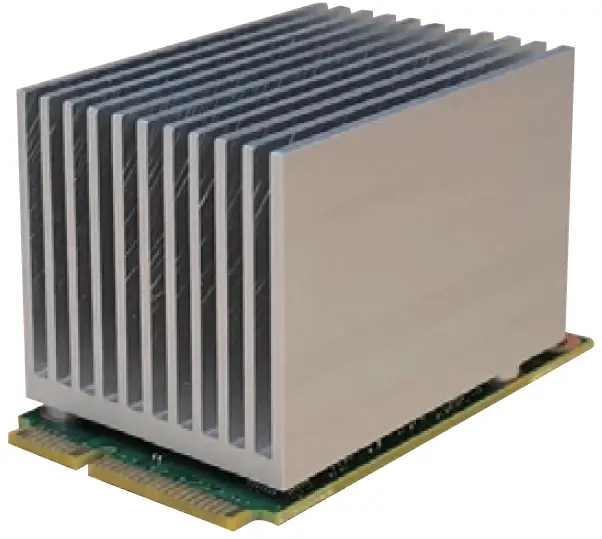

AMK-A0030 | VEGA-330 heat spreader |
Packing List
Part Number | Description |
VEGA-320-01A1 |
|
VEGA-330-01A1 |
|
