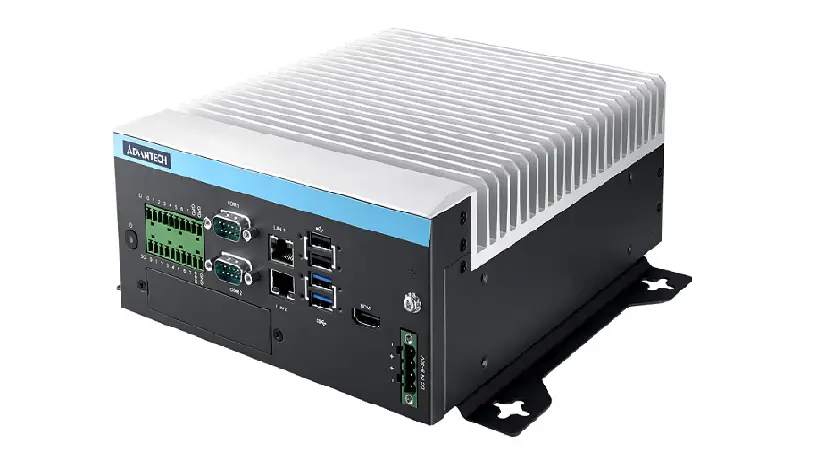

ADVANTECH MIC-75G30 Dual GPU Expansion Module for Video AI Edge Computing with MIC-7
Features
- Offering powerful GPU solution with dual NVIDIA 250W, 2.75-slot width/331mm length GPU cards for new AI application
- Triple 24VDC power inputs, provide independent power for GPU cards and MIC-7 system
- Intelligent power status indicating LED for system and GPU card independently
- Ruggedized design to sustain dual GPU cards with 1 Grms Op. vibration validation
- Dual front accessible storage bay for easy swap
- Support up to 40C operating temperature
- IP30 rating with fan filter, suitable for outdoor or industrial environment
- Compact size design.
Introduction
MIC-75G30 supports up to dual NVIDIA high performance 250W fan-based cards. Robust power design ensures MIC-7 systems and GPU card’s reliability under high power
consumption application. Suitable for Video AI Edge computing, 3D image processing and vision application.
Specification
| Expansion slot | Slot 1: Blank Slot 2: PCIe x16 (signal PCIe x8) for GPU card Slot 3: Blank Slot 4: PCIe x16 (signal PCIe x8) for GPU card Slot 5: PCIe x4 |
| SATA Connector | 1 x SATA Signal, 1 x SATA Power |
| Storage | 2 x 2.5″ swappable HDD/SSD storage bay |
|
Power | Input: Triple 24 VDC (one on MIC-7000 system, two on MIC-75G30 for dual 250W GPU cards) |
| Power consumption: Typical: 755W (Tested with dual 250W GPU card with MIC-770Q, 65W CPU and 4-port PoE cards) | |
| Power solution supports up to maximum 1,200W (Tested with dual 250W GPU card’s peak power consumption) | |
| 4 x 6-pin Conn. for GPU card (12VDC, 17A for each Conn.) | |
| 1 x 4-pin Conn. for add-on card (12VDC, 5A) | |
| GPU Card Dimension | Thickness: 62.96 mm (3-slot), Length: 331 mm Support up to triple-fan GPU cards |
| LED | Indicator LED for power status |
| Enviroment | Operating Temp.: 0~40 °C (35W CPU w/ industrial SSD), with 0.7m/sec air flow) |
| Vibration: With SSD: 1 Grms @ 5~500 Hz, randon, 1 hr/axis | |
| Shock: With SSD: 10G, IEC-68-2-27, half-sine wave, 11 ms duration | |
| Mechanical | MIC-75G30 N.W. 5 kg; G.W.: 7 kg |
| Dimension (W x H x D): 280 x 192 x 384 mm | |
| Fan | 1x 12025 cooling fan embedded (2200 RPM, 82 CFM, Max. 36.5 dB) |

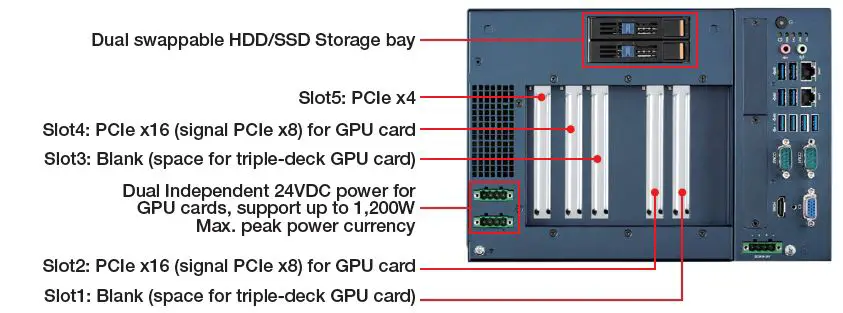

Front View

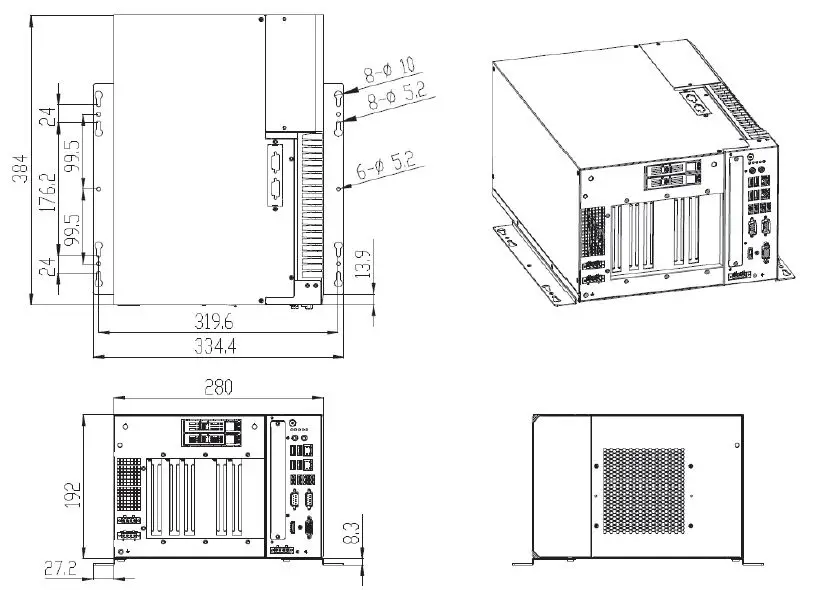

Mounting Type and Dimensions
Example: MIC-770 + MIC-75G30
W x H x D: 280 x 192 x 384 mm mm
Note: By using MIC-7500 and MIC-7900, width will be decreased by 4mm.

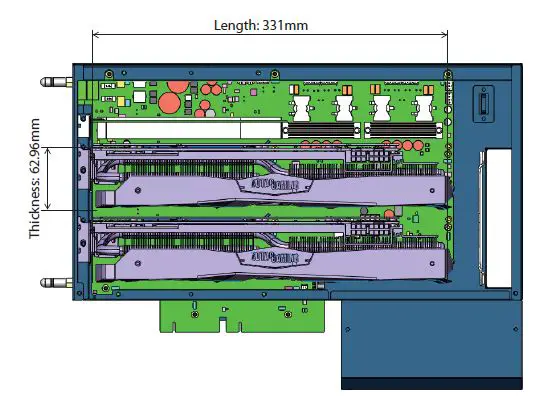

GPU Card Dimension Guide
Ordering Information
| Part Number | Description |
| MIC-75G30-00A1 | Dual GPU expansion i-Module with 2x PCIe x16 slots (signal PCIe x8), 1x PCIe x4, dual 2.5″ swappable storage bay |
Packing List
| Part Number | Description | Quantity |
| 1652003234 | 4-pin phoenix connector | 2 |
| 1700017838 | SATA cable (30cm) | 1 |
| 1700020978-01 | SATA cable (40cm) | 1 |
| 1700024985-01 | HDD BP power cable | 1 |
| 1700023022-01 | GPU power cable (6 to 6/8 Pin) | 4 |
| 1960094390N000 | GPU bracket | 2 |
| 1930005673-11 | Screw for GPU bracket | 10 |
| 1990000505T000 | Shock proof rubber | 5 |
| 1960005359T003 | Mounting bracket (L) | 1 |
| 1960094392N001 | Mounting bracket (R) | 1 |
| 1930007259-01 | Screw for mounting bracket | 6 |
| 20415G3000 | MIC-75G30 Start-up manual | 1 |
Optional Accessories
| Part Number | Description |
| XMIC-HRPG-1000-24* | 100-240V, 1008W, 24V PSU |
| 1700031413-01 | PSU DC-DC power cable, 1M |
| 1700029720-01 | PSU power cord (USA), AC Conn., 3-pin, 10A, 125V, UL/CSA, 1.83M |
| 1700030520-01 | PSU power cord (CN), AC Conn., 3-pin, 10A, 250V, CCC, 1.5M |
| 1700031408-01 | M cable conn 3P/G-TEM*3 80CM (EU) |
| 1700022074-11 | 4-pin 12VDC power cable (40cm, for PoE card) |

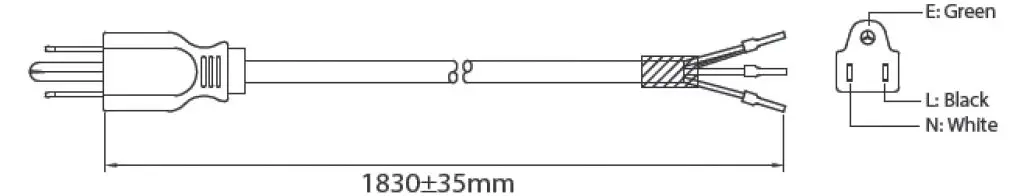

Power Supply Cabling Guide

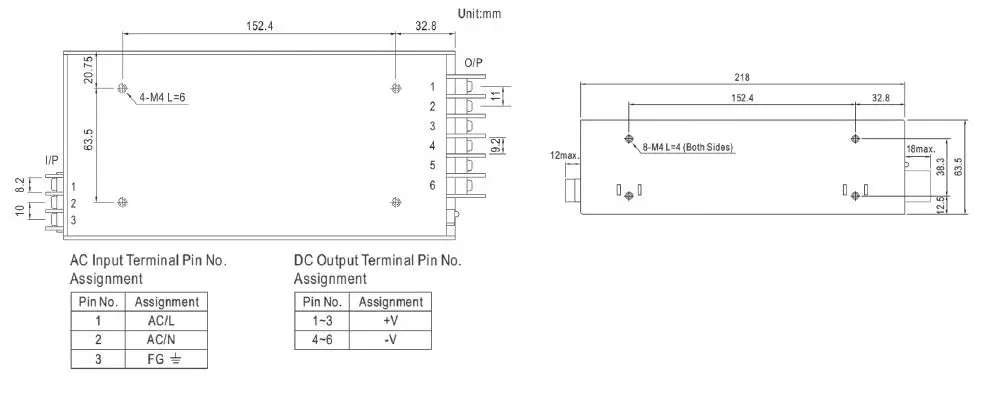

PSU pin-out and dimension (unit: mm)
PSU power Card & Pin definition (connect from Ac to Dc)
Advantech Co-Creating the Future of the IoT World
