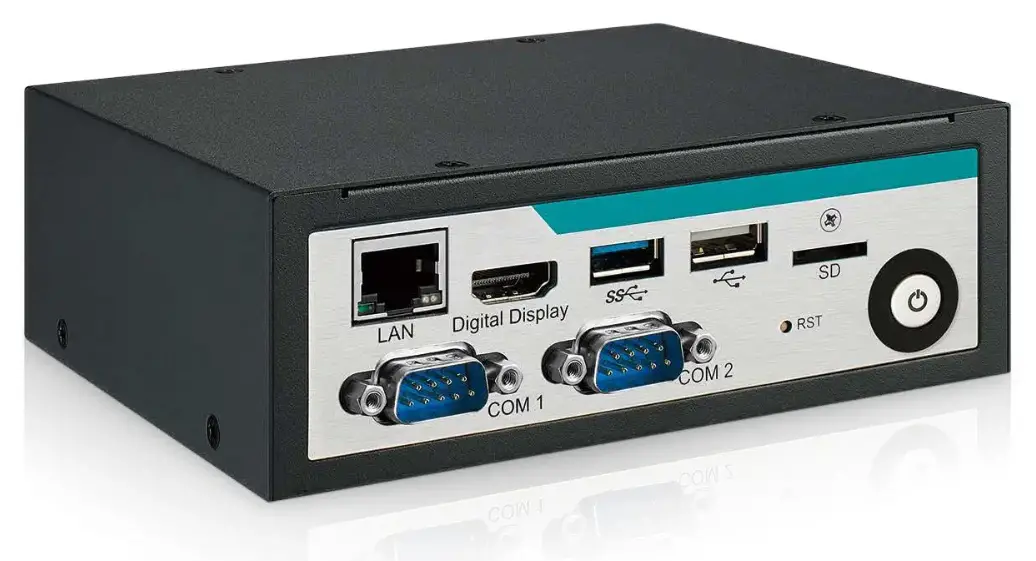

Vecow EIC-1000 Arm Based Rockchip Edge Computing System
Instructions
- Rockchip Dual Cortex-A72, Quad Cortex-A53 Processor
- 2GB DDR3 SDRAM, 32GB eMMC, 1 External Micro SD Socket
- Pre-installed with Debian 9.0 or Android 7.1
- 1 Digital Display, up to 4K resolution
- 1 GigE LAN, 1 USB 3.1, 1 USB 2.0
- 2 COM RS-232/422/485, Audio Mic-in and Line-out
- 1 Half-size Mini PCIe for WiFi/Bluetooth
- DC 9V to 55V wide range power input
- Fanless, 0°C to 70°C Operating Temperature
Specifications
| CPU | Rockchip RK3399 Arm Dual-core Cortex-A72 @2.0GHz + Quad-core Cortex-A53 @1.8GHz |
| Memory | 1 DDR3L 1066MHz SDRAM, 2GB |
| OS | – Android 7.1 – Linux Debian 9.0 |
I/O Interface
| USB | – 1 USB 3.1 Type A – 1 USB 2.0 Type A |
| Serial | 2 COM RS-232/422/485 |
| Button | – 1 Power Button – 1 Reset Button |
| Antenna | 2 Antenna for WiFi/Bluetooth |
Expansion
| Mini PCIe | 1 Half-size Mini PCIe Socket for PCIe Card |
Graphics
| Interface | 1 Digital Display, up to 4Kx2K @60fps |
| Graphics Processor | ARM Mali-T860MP4, AFBC supported |
| Video Encode | H.264/MVC/VP8 encoders by 1080p @30fps |
| Video Decode | – H.264/H.265, 10bit, up to 4Kx2K @60fps – VP9, 8bit, up to 4Kx2K @60fps – MPEG-4/MPEG-2/VP8 up to 1080p @60fps |
Storage
| eMMC | 1 eMMC, 32GB |
| SD | 1 Micro SD (External) |
Audio
| Audio Codec | Realtek ALC5640 low power stereo codec |
| Audio Interface | 1 Mic-in, 1 Line-out |
Ethernet
| LAN | 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector |
Power
| Power Input | DC 9V to 55V |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
Mechanical
| Dimensions | 136.0mm x 110.0mm x 46.8mm (5.35″ x 4.33″ x 1.84″) |
| Weight | 0.4kg (0.9 lb) |
| Mounting | – Wallmount by mounting bracket – DIN Rail Mount (Optional) |
Environment
| Operating Temp. | 0°C to 70°C (32°F to 158°F) |
| Storage Temp. | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @70°C |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-64 |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
Order Information
| Model Name | OS | Platform | GigE LAN | USB 3.1 | USB 2.0 | Serial | Mini PCIe |
| EIC-1000-DB | Debian 9.0 | Rockchip | 1 | 1 | 1 | 2 | 1 |
| EIC-1000-AD | Android 7.1 |
Accessories
| PWA-60WP3-WT | 60W, 24V, 90V AC to 264V AC Power Adapter with 3-pin 3.5mm Terminal Block, Wide Temperature -30°C to +70°C |
| PWA-60WP3-WT-12V | 60W, 12V, 90V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C |
| DIN-RAIL | DIN Rail Kit |
| WiFi & Bluetooth | WiFi & Bluetooth Module with Antenna |

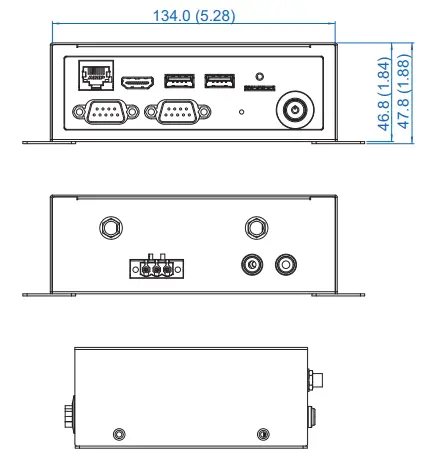

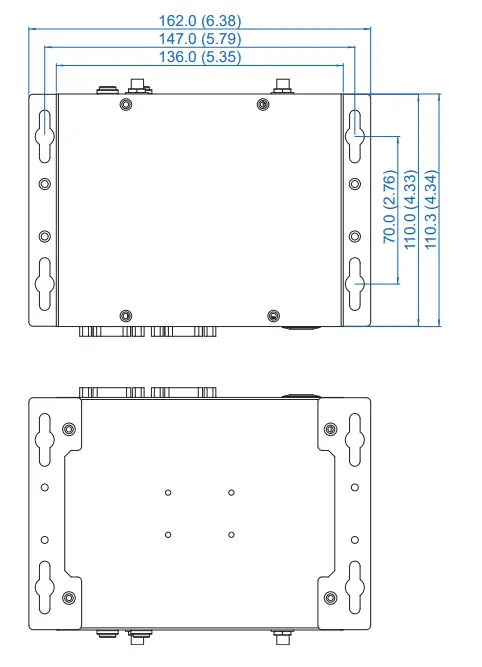

Dimensions & Drawing
Unit : mm (inch)
