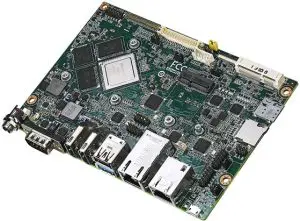

ADVANTECH RSB-4710 Rockchip ARM Cortex User Guide
Introduction
RSB-4710 is a RISC 3.5″ single board computer (SBC) powered by a high-performance Rockchip RK3399 ARM dual Cortex-A72 and quad Cortex-A53 high performance processor which supports 4K display from HDMI. It offers both multiple display as dual HDMI/LVDS/eDP and multiple IO as dual GbE/6 x serials/6 x USB/5 x GPIO. RSB-4710 also features Mini-PCIe, M.2, and SIM card slots for integrating Wi-Fi, Bluetooth, and 3G/4G modules. It is an ideal solution for Kiosk, POS, and Vending machine application.
Features
- Rockchip RK3399 ARM Dual Cortex-A72 and Quad Cortex-A53 1.8 GHz
- Onboard 2GB LPDDR4 memory and 16GB eMMC
- Dual HDMI(4K 60fps + 1080P), 1 x eDP, 1 x dual channel LVDS, 1 x MIPI CSI
- Supports 4K H.264/H.265 video decoder
- 6 x serial, 1 x USB3.0, 4 x USB2.0 ,1 x USB OTG, 2 x GbE, 1 x SPI, 1 x I2C, 5 x GPIOs
- M.2 for WIFI/BT support, mini-PCIe for 3G/4G support
- Supports Debian9/10 and Android7.1/10.0
Specifications
| Form Factor | 3.5″ SBC | |
| Processor | CPU | Rockchip RK3399 ARM dual Cortex-A72 and quad Cortex-A53 1.8 GHz |
| Memory | Technology | LPDDR4 1333MHz |
| Capacity | On-board LPDDR4 2GB | |
| Flash | 16GB of eMMC NAND Flash for OS and Advantech’s boot loader | |
|
Graphics | LVDS | 1 x 18/24-bit LVDS with 1920 x 1200 for dual channels at 60Hz |
| HDMI | 2 | |
| eDP | 1, max 2.7Gbps | |
| Graphics Engine | OpenGL ES 1.1/2.0/3.1, OpenCL 1.1, DirectX 11 | |
| H/W Video Codec |
| |
| Ethernet | Chipset | RTL8211FSI |
| Speed | 2 x 10/100/1000 Mbps | |
| WatchDog Timer | Yes | |
| I/O | SATA | – |
| SATA Power | – | |
| USB | 1 x USB OTG, 1 x USB3.0 & 1 x USB2.0 by TypeA, 3 x USB2.0 by pinheaders | |
| Audio | 1 x Line out, 1 x Mic-in, 1 x line in, 1 x Speaker out via a pin header | |
| SPDIF | – | |
| SDIO | – | |
| Serial Port |
| |
| SPI | 1, can be config to GPIO by SW | |
| CAN | – | |
| GPIO | 5 x GPIO via pin header (3.3V TTL level) | |
| I2C | 1, can be config to GPIO by SW | |
| System Bus | – | |
| Touch | – | |
| MIPI CSI | 1 | |
| Button | 1 x reset button, 1 x power button via a pin header | |
| Expansion | Mini PCIe | 1 x Mini PCIe slot, w/USB |
SD Socket | 1 x Micro SD slot | |
| SIM Slot | 1 x SIM slot | |
| M.2 Socket | 1 x M.2 2230 Key E slot, w/SIDO*UART*PCIe*USB | |
| Power | Power Supply Voltage | 12 V |
| Power Type | DC-in | |
| Power Consumption | Boost 15W@12V | |
| Environment | Operating Temperature | 0 ~ 60 °C/-20 ~ 85 °C |
| Operating Humidity | 5 ~ 95% relative humidity, non-condensing | |
| Mechanical | Dimensions (W x D) | 146 x 102 mm |
| Operation System | Supports Debian9/10 and Android7.1/10.0 | |
| Certifications | CE/FCC Class B | |

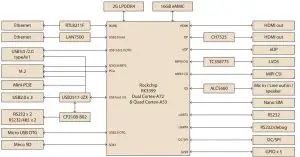

Block Diagram
Ordering Information
Part Number | CPU | Memory | Flash | HDMI | eDP | LVDS | LAN | Serial Port | SATA | USB | System Bus | SD | CAN Bus | Operating Temperature |
RSB-4710CO-XNA1E | Rockchip RK3399 | 2GB | 16GB | 2 | 1 | 1 | 2 | 6 | – | 6 | – | 1 | – | 0 ~ 60 °C |
| RSB-4710WO-XNA1E | Rockchip RK3399K | 2GB | 16GB | 2 | 1 | 1 | 2 | 6 | – | 6 | – | 1 | – | -20 ~ 85 °C |
RSB-4710CO-XLA1E | Rockchip RK3399 | 2GB | 16GB | 1 | 1 | – | 1 | 2 | – | 6 | – | 1 | – | 0 ~ 60 °C |
| RSB-4710WO-XLA1E | Rockchip RK3399K | 2GB | 16GB | 1 | 1 | – | 1 | 2 | – | 6 | – | 1 | – | 20 ~ 85 °C |
Packing List
Part Number | Description |
RSB-4710 | RSB-4710 3.5” SBC with heatsink (PN 1970004538T011) |
Optional Accessories
Part Number | Description |
| 96PSA-A36W12R1-3 | ADP A/D 100-240V 36W 12V C6 DC PLUG 90° |
| 1702002605 | Power Cord 3P EU 10A 250V 183cm |
| 1702031801 | Power Cord 3P UK 10A 250V 183cm |
| 1702002600 | Power Cord UL 3P 10A 125V 183cm |
| 1700000237 | Power Cord 3P PSE 183cm |
| 1700009652 | Power Cord CCC 3P 10A 250V 187cm |
| 1700021565-01 | Debug cable |
| 1750007965-01 | Antenna Cable R/P SMA (M) to MHF4, 300mm |
| 1750008671-01 | Dipole Ant.SMA/M-R 2.4/5G 2.5/4dBi BLK 109mm |
| EWM-W188M201E | WiFi 802.11ac/abgn 2T2R and BT4.2 |
| EWM-C117FL06E* | LTE 4G,3G WCDMA/DC-HSPA+, 2G module, MPCI-L280H |
| 968AD00479* | 4G module LTE Cat 4 for China |
| 1750006264 | Antenna cable SMA(F)/MHF 15cm |
| 1750008303-01 | Antenna AN0727-64SP6BSM |
| SQF-MSDM1-8G-21C | SQF MICRO SD C10 MLC 8G (-25 ~ 85 °C) |
| IDK-1107WR-40WVA1E | 7″ LED PANEL 400N with 4WR touch, 800×480(G) |
| IDK-1121WR-30FHA1E | 21.5″,1920×1080,300nit,Part No. 97.21G01.001-S03 |
| XUTC-B156XTN07.1 | AUO 15.6″, 1366 x 768, 220nits, for UTC project |
| 1700031071-01 | LVDS cable for IDK-1107WR |
| 1700031103-01 | DP cable for XUTC-B156XTN |
| 1700031060-01 | M cable D-SUB 9P(M)*2/2*6P, RS232/485×2 |
| 1700028482-01 | F CABLE 2*6P, RS232 X2 |
| 1700031092-01 | A cable 1*10P-1.0/D-SUB 9P(F), GPIO |
| 1700031093-01 | A cable 2*5P-2.0/JACK*2, line out & Mic |
| 1700002172 | A Cable 2*5P-2.0/USB-A 4P(F)*2, USBx2 |

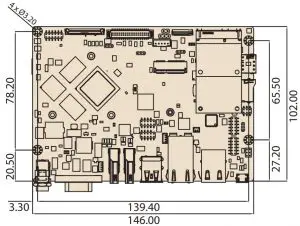

Dimensions
Unit: mm
External I/O
Online Download www.advantech.com/products
