Advantech Aimb-787 User Manual

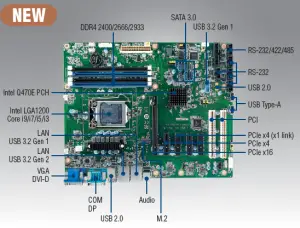

advantech AIMB-787 User Manual

Features

•  Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with Q470E chipset
• Four DIMM sockets up to 128 GB DDR4 2933
• Triple display DP/DVI-D/VGA and dual GbE LAN
• M.2, SATA RAID 0, 1, 5, 10, USB 3.2
• Supports Intel vPro, AMT & TPM technologies

Note 1: TPM module is required to enable Intel vPro and TPM technologies.
Note 2: Legacy platform is not supported.

Specifications

Processor System
Expansion Slot	PCI PCIe x4 (Gen 3) PCIe x16 (Gen 3)	2 (32-bit/33 MHz) 4 (3 x link x4, 1 x link x1) 1
Memory	Technology Max. Capacity Socket	Dual Channel (Non-ECC) DDR4 2400/2666/2933 128 GB 4 x 288-pin DIMM
Graphics	Controller VRAM	Intel HD Graphics 1 GB maximum shared memory with 2 GB and above system memory       installed
Ethernet	Interface Controller Connector	10/100/1000 Mbps GbE LAN1: Intel I219-LM, GbE LAN2: Intel I210-AT 2 x RJ-45
SATA	Max Data Transfer Rate Channel RAID	600 MB/s 4 0,1,5,10
Rear I/O	VGA DVI-D DisplayPort Ethernet USB Audio Serial	1 (Resolution up to 1920 x 1200 @ 60 Hz) 1 (Resolution up to 1920 x 1200 @ 60 Hz) 1 (Resolution up to 4096 x 2304 @ 60 Hz) 2 8 (2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0) 2 (Line-out, Mic-in) 1 (RS-232)
Internal Connectors	USB Serial SATA M.2 Parallel GPIO PS/2 KB/Mouse	6 (2 x USB 3.2 Gen 1 via header, 2 x USB 2.0 via header, 2 x USB 2.0        Type-A connector) 5 (4 x RS-232, 1 x RS-232/422/485) 4 1 (PCIe x4 M-key 2280 type) 1 8-bit 1 (Optional PS/2 KB/Mouse Cable is required)
Watchdog Timer	Output Interval	System reset Programmable 1 ~ 255 sec
Power Requirement	Power On Voltage Current	Intel Core i5-10500E; DDR4 32 GB x 4 +12V                          +5V       +3.3V      +5Vsb         -12V 7.58A                          1.92A      0.87A      0.14A            0.08A
Environment	Temperature Humidity	Operating                                              Non-Operating 0 ~ 60 °C (32 ~ 140 °F), depends on CPU speed and system thermal         solution                                                  -40 ~ 85 °C (-40 ~ 185 °F) 40 °C @ 95% RH Non-condensing        60 °C @ 95% RH Non-                condensing
Physical Characteristics	Dimensions (L x H)	304.8 x 244 mm (12″ x 9.6″)

Note: A 8-pin 12V CPU power plug connected to MB’s CPU 12V connector is required to support i9-10900K CPU.

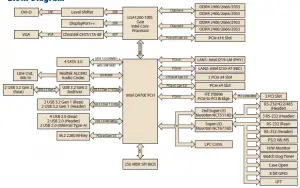

Block Diagram

Ordering Information

Packing List

Note: Driver CD is not provided. Please visit Advantech support website for driver download.

Optional Accessories

Note 1: Purchasing AIMB-787’s proprietary CPU cooler from Advantech is a must. Other brands’ CPU
coolers are NOT compatible with AIMB-787.
Note 2: 1960067860N001 cooler for 95~125W CPU is tested with ACP-4000/IPC-610H chassis.

Riser Card

Note: AIMB-787 is not compatible with 1U chassis.

Packing List

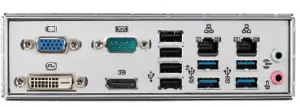

I/O View

AIMB-787G2-00A1
