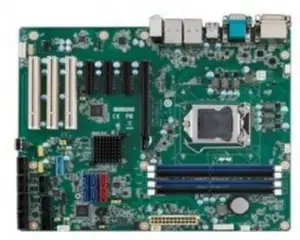

Quiet AIMB-785 LGA1151 Intel System User Guide
Features
- Supports Intel® 6th/7th generation Core™ i7/i5/i3/Pentium®/Celeron® processor with Q170 chipset
- Four DIMM sockets support up to 64 GB DDR4 1866/2133
- Supports triple display VGA/2 DVI-D and dual GbE LAN
- Supports SATA RAID 0, 1, 5, 10, USB 3.0
- Supports Intel vPro, AMT 11.0 & TPM technologies
Note 1: TPM module is required to enable Intel vPro and TPM technologies.
Note 2: Intel 7th generation processors only support Windows 10 (64-bit).
Specifications
|
Processor System | CPU | i7-7700 | i7-7700T | i7-6700 | i7-6700TE | i5-7500 | i5-7500T | i5-6500 | i5-6500TE | i3-7101E | i3-7101TE | i3-6100 | i3-6100TE | G4400 | G4400TE | G3900 | G3900TE |
| Speed | 3.6GHz | 2.9GHz | 3.4GHz | 2.4GHz | 3.4GHz | 2.7GHz | 3.2GHz | 2.3GHz | 3.9GHz | 3.4GHz | 3.7GHz | 2.7GHz | 3.3GHz | 2.9GHz | 2.8GHz | 2.6GHz | |
| L3 Cache | 8MB | 8MB | 8MB | 8MB | 6MB | 6MB | 6MB | 6MB | 3MB | 3MB | 4MB | 4MB | 3MB | 3MB | 2MB | 2MB | |
| Cores | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| TDP | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | 54 W | 35 W | 65 W | 35 W | 65 W | 35 W | 65 W | 35 W | |
| Socket | LGA1151 | ||||||||||||||||
| Chipset | Q170 | ||||||||||||||||
| BIOS | AMI 128 Mbit SPI | ||||||||||||||||
| Expansion Slot | PCI | 32-bit/33 MHz, 3 slots | |||||||||||||||
| PCIe x 4 (Gen3) | 4 GB/s per direction, 3 slots | ||||||||||||||||
| PCIe x16 (Gen3) | 16 GB/s per direction, 1 slot | ||||||||||||||||
| Memory | Technology | Dual Channel DDR4 1866/2133 | |||||||||||||||
| Max. Capacity | 64 GB | ||||||||||||||||
| Socket | 4 x 288-pin DIMM | ||||||||||||||||
| Graphics | Controller | Intel HD Graphics | |||||||||||||||
| VRAM | 1 GB maximum shared memory with 2 GB and above system memory installed | ||||||||||||||||
| Ethernet | Interface | 10/100/1000 Mbps | |||||||||||||||
| Controller | GbE LAN1: Intel I219LM, GbE LAN2: Intel I211AT | ||||||||||||||||
| Connector | RJ-45 x 2 | ||||||||||||||||
| SATA | Max Data Transfer Rate | 600 MB/s | |||||||||||||||
| Channel | 6 (4 from Intel® Q170 and 2 from Marvell 9186A2) | ||||||||||||||||
| RAID | 0,1,5,10 (4 SATAIII ports from Intel®) | ||||||||||||||||
|
Rear I/O | VGA | 1 (Up to 1920×1200@60Hz) | |||||||||||||||
| DVI-D | 2 (Up to 1920×1200@60Hz) | ||||||||||||||||
| Ethernet | 2 | ||||||||||||||||
| USB | 6 (USB3.0 x 4, USB2.0 x 2) | ||||||||||||||||
| Audio | 2 (Mic-in, Line-out) | ||||||||||||||||
| Serial | 1 (RS-232) | ||||||||||||||||
| PS/2 | – | ||||||||||||||||
|
Internal Connectors | USB | 7 (USB 3.0 with wafer box x 2, USB 2.0 with wafer box x 4, USB 2.0 with type A connector x 1) | |||||||||||||||
| Serial | 5 (4 x RS-232, 1 x RS-232/422/485) | ||||||||||||||||
| SATA | 6 | ||||||||||||||||
| Display Port | – | ||||||||||||||||
| IrDA | – | ||||||||||||||||
| GPIO | 8-bit | ||||||||||||||||
| PS/2 KB/Mouse | 1 (Optional PS/2 KB/Mouse Cable is required) | ||||||||||||||||
| Watchdog Timer | Output | System reset | |||||||||||||||
| Interval | Programmable 1 ~ 255 sec | ||||||||||||||||
| Power Requirement | Power On | Intel Core i7-6700 3.4GHz; DDR4 2133 8GB x 4 | |||||||||||||||
| Voltage | +12V | +5V | +3.3V | +5Vsb | -12V | -5V | |||||||||||
| Current | 6.78A | 1.38A | 1.35A | 0.12A | 0.05A | 0.05A | |||||||||||
| Environment | Operating | Non-Operating | |||||||||||||||
| Temperature | 0 ~ 60 °C (32 ~ 140 °F), depends on CPU speed and system thermal solution | -40 ~ 85 °C (-40 ~ 185 °F) | |||||||||||||||
| Physical Characteristics | Dimensions (L x H) | 304.8 x 244 mm (12″ x 9.6″) | |||||||||||||||

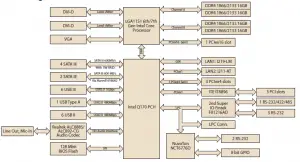

Block Diagram
Ordering Information
| Part Number | Chipset | Memory | Display | USB 3.0 | USB 2.0 | COM | GbE LAN | AMT | SATA III | SW RAID |
| AIMB-785G2-00A2 | Q170 | Non-ECC DDR4 1866/2133 up to 64GB | VGA + dual DVI | 6 | 7 | 6 | 2 | Yes | 6 | Yes |
| AIMB-785G2-00A2U (Made in Taiwan) | Q170 | Non-ECC DDR4 1866/2133 up to 64GB | VGA + dual DVI | 6 | 7 | 6 | 2 | Yes | 6 | Yes |
Packing List
| Part Number | Description | Quantity |
| 1700003194 | SATA HDD cable | x 2 |
| 1700022749-11/ 1700022749-12/ 1700022749-13/ | SATA power cable | x 2 |
| 19Z0000884T000 | I/O port bracket | x 1 |
| 2006078511 | Startup manual | x 1 |
| 2066078502 | Driver CD | x 1 |
Optional Accessories
| Part Number | Description |
| 1700002204 | 2-port USB 2.0 cable w/ BKT(27 cm) |
| 1700028292-01 | 2-port USB 3.0 cable w/ BKT(30 cm) |
| 1960052651N021 | CPU cooler for 2U, 4U and wallmount chassis |
| 1960049408N001 | CPU heatsink for 1U chassis |
| 1960069666N101 | IO bracket for 1U chassis ACP-1010MB only |
| 1701092300 | Dual COM port cable(28.5 cm) |
| 1700019268-11 1960063434N000 | PS/2 KB/Mouse cable IO bracket for PS/2 KB/Mouse cable |
| PCA-TPM-00A1E | TPM module to enable TPM and vPro technologies (for BIOS V1.XX) |
| PCA-TPM-00B1E | TPM2.0 module to enable TPM and vPro technologies (for BIOS V2.XX) |
Note: Purchasing AIMB-785’s proprietary CPU cooler from Advantech is a must. Other brands’ CPU coolers are NOT compatible with AIMB-785.

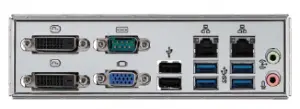

I/O View
Riser Card
| Part Number | Description |
| AIMB-RF10F-01A1E | 1U riser card with 1 PCIex16 expansion |
| AIMB-R4104-01A1E | 1U riser card with 1 PCIex4 expansion |
| AIMB-R430P-03A2E | 2U riser card with 3 PCI expansion |
| AIMB-R431F-21A1E | 2U riser card with 1 PCIex16 & 1 PCIex1 expansion |
| AIMB-R43PF-21A1E | 2U riser card with 1 PCIex16 & 2 PCI expansion |
| AIMB-R4301-03A2E | 2U riser card with 1 PCIex1 expansion |
