SHOWVEN-logoSHOWVEN Circle Flamer X-F1800 Flamer FX Machine

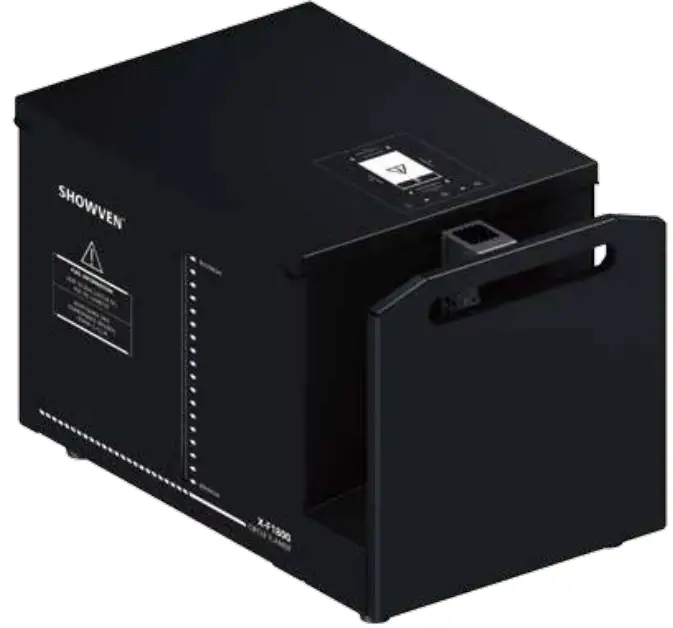

SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-productWARNING

  • Unauthorized repairs are prohibited, it may cause a serious incident.
  • Make sure the power supply is consistent with the rated voltage of the equipment, and the socket must be well-grounded. Unplug and turn off the machine when not used.
  • Before connecting the power cable, the communication DMX cable should well connected and ensure the command keep at firing OFF status. And safety lock stays at test mode.
  • The device can only be placed horizontally. Safety distances are marked on the device (at least 15m in all projection directions, at least 5m to the other sides of the device).
  • After turning on the device, no person allows staying in the danger area. Ensure all persons that are part of the show be informed about the safety distance, risks and functions of the device.
  • Always have a CO2 fire extinguisher and an extinguishing blanket in case of need.
  • If there be any doubt as to the safe operation of the device in any circumstances, the device should be taken out of service immediately. Be sure the device is in good operating condition before use. If fail to fire correctly, immediately shut it down and check it accordingly.
  • Be sure to use high-quality flame fluid, otherwise, it is easily lead to failure or danger. Be careful when refill the flame fluid tank. Please keep flame fluid away from heat source, sparks, fire or another possibility of ignition. Do not smoke!
  • The operator responsible for the control of Circle Flamer must always have a clear view of the device so that he/she can stop the show immediately when there is danger. The main AC power switch should be near the operator. So that operator can turn off the power of all devices in case of abnormal.
  • The device shall not be altered and applied to another use purpose.
  • Notes for use of Battery power supply: CIRCLE FLAMER X-F1800 with stable internal circuit design, please support X-F1800 with battery voltage higher than 12V. The driving speed of the motor won’t change because of the decrease of the battery power supply. Battery options: 12V lead-acid battery (above 30AH, with more than 24h standby). For Lithium battery, please use a battery with an output above 30A. Socket type: NEUTRIK-NL4FX, 4 pin sound couples (1+ connect 12V anode, 1- connect 12V cathode). Connecting power cables should above 14AWG.

Foreword

Thanks for choosing SHOWVEN CIRCLE FLAMER X-F1800. Please read the following manual carefully and completely before operating this product. Operating according to instructions is very important for safety, and can elongate the service life of the machine.
Strictly follow the instruction in the manual when operating Circle flamer X-F1800. If you have any doubts, please contact SHOWVEN technologies Co., Ltd by [email protected].
We assume the person who use or come in contact with the device is familiar with how the device should be handled. This includes proper use, maintenance and repair of the machine as defined in this user manual.

Disclaimers

SHOWVEN technologies Co., Ltd excludes liability for unsafe situations, accidents, and damages resulting from:

  1.  Ignoring warnings or regulations as shown on circle flamer or this manual.
  2. Use for other applications or circumstances other than those indicated herein.
  3. Changes to the circle flamer, including use of non-original spare parts.
  4. Removed safety cover without authorization from SHOWVEN.
  5. Use this machine by unqualified or untrained personnel.
  6. Improper use of machine.

Functional Characteristics

  • Compact pumping system ensure compact size of machine.
  • Double electromagnetic valves design for additional safety.
  • Tilt protection, the tilt sensor will be activated when machine slant Over 45° .
  • Unique safety lock design, device can’t firing when locked, avoid spurious triggering.
  • Intelligent control system: pressure monitoring, safety warning, no fuel alarming, system failure warning etc..
  • High performance nozzle, reliable and durable.
  • High-accuracy swiveling head driving and controlling system, allows for fast and precise flame bursts.
  • Strengthened and rustproof metal panel, water-proof design.
  • Neutrik PowerCON TRUE1 and DMX socket.
  • Standard battery connector configuration, support 12V battery power supply.
  • Fitted with fireworks igniter signal port, can be triggered by fireworks igniter.
  • Flame effects up to 8-10m (no wind), with 210° (±105°) swiveling angles.
  • as much as 70 preset flame sequences are available. It is easier and stable to running the CIRCLE FLAMER when controlled by SHOWVEN original host controller ZK6200/6300.

Technical Specifications

  • MODEL;Circle Flamer X-F1800
  • Dimension;590 x 360 x 370mm
  • Input;AC100-240V,50-60Hz
  • Work power;380W
  • Interface;Double DMX Interface9V-60V Fireworks igniter signal port
  • Control; Standard DMX
  • Effect Maximum Height;8-10m (no wind)
  • Effect Angles;210° (±105°)
  • Fuel;ISOPROPANOL, ISOPAR G,H,L,M, BIOETHANOL 10L
  • Fuel Bottle Capacity Weight (no fuel);30Kg
  • Fuel Consumption Rate;60ml/s

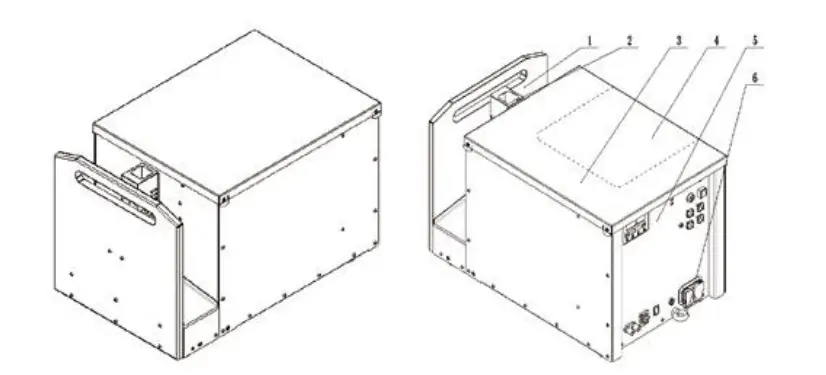

Structure of Circle FlamerSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-1

  1. Handle
  2. Firing Nozzle
  3. Top Panel
  4. Fuel Bottle Area
  5. Control Panel
  6. Safety Loop

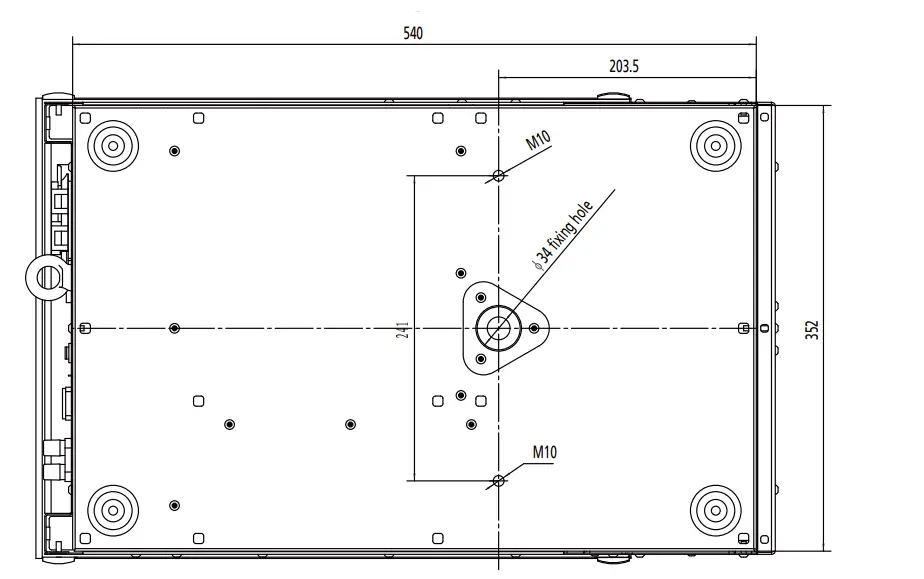

Connection dimension diagram of bottom bracket of the flameSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-2

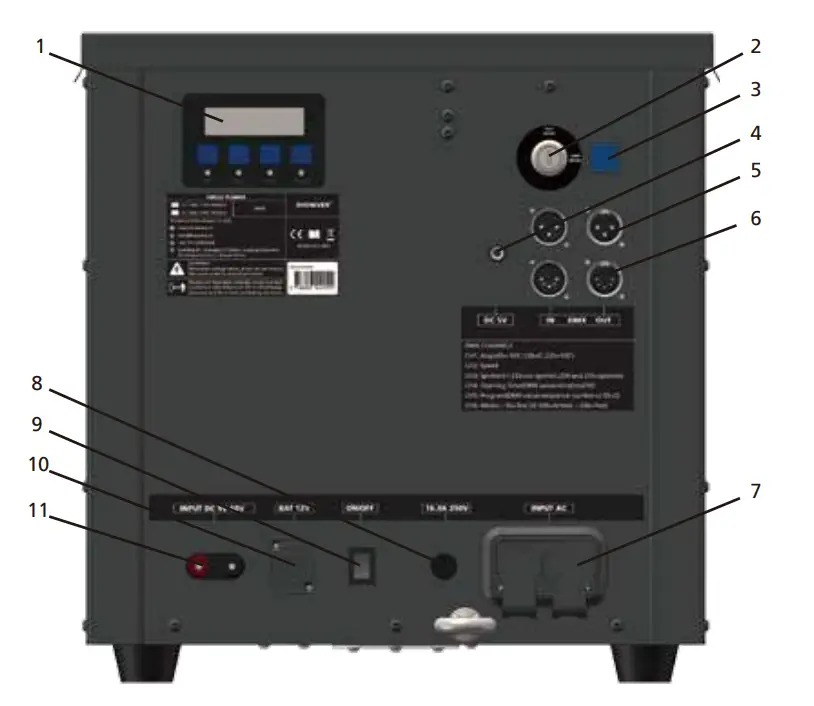

Overview of Control Panel

  1. LCD screen operate panel
  2. Safety Lock
  3. Indicator Light
  4. DC 5V output
  5. 3-pin DMX socket
  6. 5-pin DMX socket
  7. 110V/220V Power socket
  8. Fuse
  9. ON/OFF switch
  10. 12V Battery socket
  11. DC 9V-60V fireworks igniter signal port

SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-3

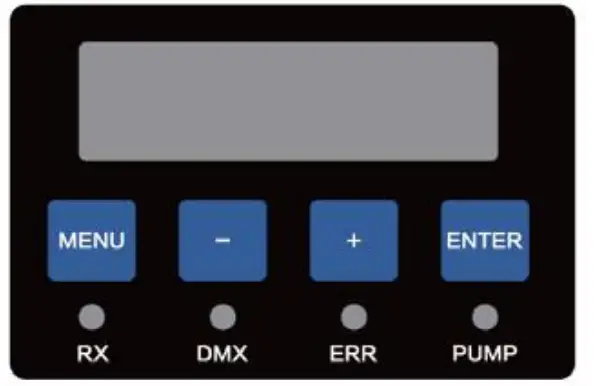

Operation PanelSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-4

  1. LED Display Area
    RX: Radio receiving (reserved);
    1. DMX: DMX signal. Flash means DMX signal available, otherwise no DMX signal; ERR: Light on when there is an error;
    2. PUMP: Light on when pump is running.
  2. Button Funtions:
    MENU: Switch interface to setup parameter;
    1. +: Parameter Up;
    2. -: Parameter Down;
      ENTER: Confirm and save parameters (screen will flash when parameters saved); Note: screen display will switch to main interface if don’t press button for a long time.

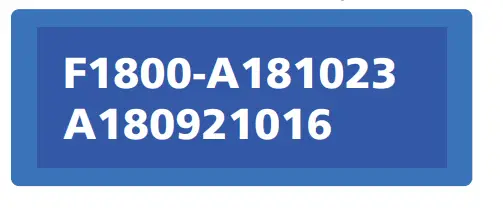

  3. Welcome Interface
    1. First Line: Product model and software version number;
    2. Second Line: Equipment factory number.SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-5
  4. Main Interface
    1. First Line: DMX address;
    2. Second Line: Pressure100 (e.g. 100=10bar); V: 13.6 means internal voltage is 13.6V.SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-6

Alert Message

Alert MessageExplanation
E0 System LockSafety lock located at TEST MODE.
E1 Pressure ErrPressuriser for about 13s, pressure value failed to reach 100%, system will report E1.

Possible fault: No fuel, pump failure, pipeline problem etc.

E2 P Relief ErrPipeline can’t release pressure leads to pressure relief error.

Possible fault: pressure release valve failure, pipeline problem or control systemproblem etc.

E3 Motor ErrPossible fault: swiveling nozzle stuck, motor failure etc.


E4 Ext Ignition

When Ext Ignite is ON, device will pressuriser automatically when switch safety lock to USER MODE; decompression when switch to TEST MODE. 9V-60V fireworks ignitor signal will trigger related firing sequences.
E5 Voltage ErrBattery voltage>15V or <10V for continuous 5s, machine stops running.

Possible fault: the battery is low.

E6 Tip Errif the machine slant over 45° , it stops running,system will report E6.
E7 Factory ModeDMX signal blocked in factory mode.

Interface setup

Press “MENU” to switch through setup menu.

MenuRangeExplanation
Set DMX Address1~512DMX address setup


Angle Limit

MAXI. ANGLE : NO.1 – NO.15

Restrict nozzle rotate angles:Set by “+” and “-” , and confirm by “ENTER”

MINI. ANGLE : NO.1 – NO.15

Advanced Interface

Press “MENU” 3s enter advanced interface, press “MENU” to switch interface, press “MENU” 3s can back to main interface.

ItemsContentsDescription








Drive Test

OFF / Motor/ Pump / Igniter / Relief Valve / Jet Valve
1. MotorSwiveling and stop at target angle.
2. PumpPump running 1s, if pressure reached the

target value, the pump will not running.

3. IgniterIgnite 1s
4. Relief ValveRelease pressure 1s


5. Jet Valve

Safety lock located at user mode, release pressure for 5s, open jet valve and close to check the working status of jet valve.
Ext IgniteON / OFFTrigger through 5-60V fireworks ignitor

signal

Set Ext Sequence1~70Preset sequence triggered by fireworks

ignitor

LanguageChinese / EnglishLanguage switch


Mode Select



Factory Mode / Normal Mode



Factory mode is for test in factory only

Tip SettingON / OFFTurn ON/OFF tip over function
Reset ParameterYES / NOReset default parameter settings

Operation Instructions

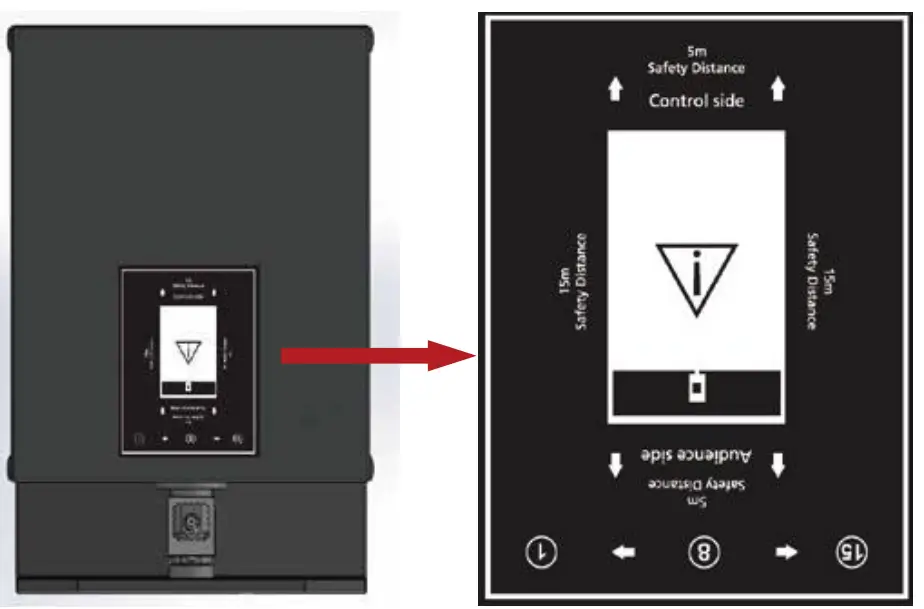

Direction explanation
Please read the safety distance print on the top panel of CIRCLE FLAMER carefully.SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-7

  1. 1 to 15 is the firing angle of circle flamer, Far Right is position 15, Middle is position 8, Far Left is position 1.
  2. Audience side and control side are indicated in above picture.
  3. Safety distances for CIRCLE FLAMER are indicated in above picture. At least 15m in all projection directions, at least 5m to the other sides of the device.

Note: in order to indicate correct direction, please place the top panel correctly.

Quick Operation Sheet

Immediately upon receiving the machine, carefully unpack the carton, check the machine received in good condition. Ensure safety operation of machine, please do following below operation procedures when operate CIRCLE FLAMER.

OperationSchematic diagram and explanationExplanation
1. InstallationThe device can only be placed horizontally, if placed on truss, please locked with extra safety ropes.
2. Locate safety lock at TEST MODESHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-8Before operate machine please locate safety lock at TEST MODE.

TEST MODE: operator can test the rotate of nozzle, but the fuel ejection function disabled, so there is no fuel eject and flames.

USER MODE: the device can generate flames normally. Please strictly follow the safety distance requirement, remove all  human,  animal or flammable objects in the danger area.

3. FuelingSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-9Please fueling with high quality fuel according  to requirement of this manual.
4. Power and DMX cable connection

SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-10



Two kind of power supply optional:

1.  110V/220V main power supply

2.  12V battery power supply

5. Switch ON the machine

SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-11



Please confirm safety lock located  at  TEST MODE before switch on the POWER ON/OFF.
6. Set DMX addressSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-12CIRCLE FLAMER occupy 6 channels.

Detail information please refer to the table of page18.

7. PressuriserSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-13Host controller: Press”pre-heat” button (light on). DMX console: switch DMX value of channel 6 to 50-200.
8. Check device status in TEST MODESHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-14Reconfirm safety lock located at TEST MODE before test. In this status, the nozzle will rotate, and igniter will activated, but there is no flame. When use DMX console to test the sequence, suggest to set CH1 at 128, so that nozzle stay at straight up position after each sequence.
9. Pressure ReliefSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-15Host controller: Press “pre-heat” key (light off). DMX console: switch DMX value of channel 6 to 0-49/201-255.
10.Switch safety lock to USER MODESHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-16Before switch to USER MODE, Please strictly follow the safety distance requirement, remove all human, animal or flammable objects in the danger area.
11. Pressuriser

SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-17

Host controller: Press”pre-heat” button (light on). DMX console: switch DMX value of channel 6 to 50-200.
12. Firing

SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-18

Set firing sequence

Host controller: Press “FIRING” key.

DMX console: switch DMX value of channel 3 to 254-255.

13. Pressure ReliefSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-19



Relief pressure when show finished or CIRCLE FLAMER not use for a long period.

Host controller: Press “pre-heat” key (light off). DMX console: switch DMX value of channel 6 to 0-49/201-255.

14. Switch safety lock to TEST MODESHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-20Guarantee safety use for next time.
15. Power offSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-21Power off CIRCLE FLAMER, tear down power cable and DMX cable, pack up the device when it is cooled down.

Firing Angles

The firing angle for CIRCLE FLAMER is ±105°, from the Audience Side view, there are altogether 15 firing angles as below. NO.8(0°)SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-22

Drive time for Effects

Time needed for the motor drive from NO.8 to relevant angle

NoAngleDrive time needed
NO.1-105°170ms
NO.2-90°150ms
NO.3-75°130ms
NO.4-60°110ms
NO.5-45°90ms
NO.6-30°70ms
NO.7-15°50ms
NO.80ms
NO.915°50ms
NO.1030°70ms
NO.1145°90ms
NO.1260°110ms
NO.1375°130ms
NO.1490°150ms
NO.15105°170ms

For example for the motor drive from 0°to 45°, it need 90ms, when operator design a show to synchronize to music, this drive time must be calculated.

Control of Circle Flamer

Circle Flamer X-F1800 has 70 preset sequences, you can use related channel and sequence No. to access certain sequence. Below, you can find sequence list and single ignitions

Single Ignition Sequence List

Sequence No.Ignition angle

Description

Nozzle MovementFiring Time (For reference)CH5 DMX

Reference Value

1-105°Single Ignition SHORT flameStatic0.19s3-5
2-90°Single Ignition SHORT flameStatic0.19s6-7
3-75°Single Ignition SHORT flameStatic0.19s8 10
4-60°Single Ignition SHORT flameStatic0.19s11-12
5-45°Single Ignition SHORT flameStatic0.19s13-15
6-30°Single Ignition SHORT flameStatic0.19s16-17
7-15°Single Ignition SHORT flameStatic0.19s18-20
8Single Ignition SHORT flameStatic0.19s21-22
915°Single Ignition SHORT flameStatic0.19s23-25
1030°Single Ignition SHORT flameStatic0.19s26-28
1145°Single Ignition SHORT flameStatic0.19s29-30
1260°Single Ignition SHORT flameStatic0.19s31-33
1375°Single Ignition SHORT flameStatic0.19s34-35
1490°Single Ignition SHORT flameStatic0.19s36-38
15105°Single Ignition SHORT flameStatic0.19s39-40
16-105°Single Ignition LONG flameStatic0.56s41-43
17-90°Single Ignition LONG flameStatic0.56s44-45
18-75°Single Ignition LONG flameStatic0.56s46-48
19-60°Single Ignition LONG flameStatic0.56s49-50
20-45°Single Ignition LONG flameStatic0.56s51-53
21-30°Single Ignition LONG flameStatic0.56s54-56
22-15°Single Ignition LONG flameStatic0.56s57-58
23Single Ignition LONG flameStatic0.56s59-61
2415°Single Ignition LONG flameStatic0.56s62-63
2530°Single Ignition LONG flameStatic0.56s64-66
2645°Single Ignition LONG flameStatic0.56s67-68
2760°Single Ignition LONG flameStatic0.56s69-71
2875°Single Ignition LONG flameStatic0.56s72-73
2990°Single Ignition LONG flameStatic0.56s74-76
30105°Single Ignition LONG flameStatic0.56s77-79


No.



Ignition angle NO.



Description

Nozzle MovementFiring Duration (For reference)CH5 DMX

Reference Value

31Step from 1-15SHORT flame Step sequenceL->R2.57s80-81
32Step from 15-1SHORT flame Step sequenceR->L2.57s82-84
33Step 5>8>11SHORT flame Step sequenceL->R1.00s85-86
34Step 11>8>5SHORT flame Step sequenceR->L1.00s87-89
35Step 6>10SHORT flame Step sequenceL->R0.9s90-91
36Step 10>6SHORT flame Step sequenceR->L0.9s92-94
37Step 4>6>8>10>12SHORT flame Step sequenceL->R1.30s95-96
38Step 12>10>8>6>4SHORT flame Step sequenceR ->L1.30s97-99
39Step 8>6>10>4>12SHORT flame Step sequenceM>L>R>L>R1.35s100-101
40Step 8>10>6>12>4SHORT flame Step sequenceM>R>L>R>L1.35s102-104
41Step from 1-15LONG flame Step sequenceL->R8.90s105-107
42Step from 15-1LONG flame Step sequenceR->L8.90s108-109
43Step 5>8>11LONG flame Step sequenceL->R2.01s110-112
44Step 11>8>5LONG flame Step sequenceR->L2.01s113-114
45Step 6>10LONG flame Step sequenceL->R1.35s115-117
46Step 10>6LONG flame Step sequenceR->L1.35s118-119
47Step 4>6>8>10>12LONG flame Step sequenceL->R3.01s120-122
48Step 12>10>8>6>4LONG flame Step sequenceR->L3.01s123-124
49Step 8>6>10>4>12LONG flame Step sequenceM>L>R>L>R2.67s125-127
50Step 8>10>6>12>4LONG flame Step sequenceM>R>L>R>L2.67s128-130

Wave Sequence List

No.Ignition angle NO.

Description

Nozzle MovementFiring Duration (For reference)CH5 DMX

Reference

Value

51Wave 5 –>11Middle wave sequenceL->R1.99s131-132
52Wave 11–>5Middle wave sequenceR->L1.99s133-135
53Big wave 1–15LONG wave sequenceL->R4.14s136-137
54Big wave 15–1LONG wave sequenceR->L4.14s138-140
55Wave 8–>1Middle wave sequenceM->L2.18s141-142
56Wave 8–>15Middle wave sequenceM->R2.18s143-145
57Wave 1–>8Middle wave sequenceL->M2.16s146-147
58Wave 15–>8Middle wave sequenceR->M2.16s148-150
59Wave 8–>11SHORT wave sequenceM->R1.12s151-152
60Wave 8–>5SHORT wave sequenceM->L1.12s153-155
61Wave 5–>8SHORT wave sequenceM->L1.24s156-158
62Wave 11>–8SHORT wave sequenceR->M1.24s159-160

Additional Sequences List



No.

Ignition angle NO.

Description

Nozzle MovementFiring Duration (For reference)CH5 DMX

Reference Value

63Step 2>14SHORT flame Step sequenceL->R0.60s161-163
64Step 14>2SHORT flame Step sequenceR->L0.60s164-165
65Step 2>14LONG flame Step sequenceL->R1.38s166-168
66Step 14>2LONG flame Step sequenceR->L1.38s169-170
67Step 8>14SHORT flame Step sequenceM->L1.85s171-173
68Step 8>2SHORT flame Step sequenceM->R1.85s174-175
69Step 8>14LONG flame Step sequenceM->L4.18s176-178
70Step 8>2LONG flame Step sequenceM->R4.18s179-181

DMX CONTROL

ChannelFunction
CH1Manual Angle setup: (0~255) angle change from -105° to 105°, (128) is straight upward (0°).
CH2Manual Speed setup: (0) Max Speed, (1~254) Speed increase, (255) Max Speed.
CH3Firing Ignition ON/OFF: (0~253) Ignition OFF, (254~255) Ignition ON..


CH4

Firing Duration setup: 0 and 255 is permanent fire (10s is limit duration time); 1~254 is 10~2540ms duration time (Manual firing duration = DMX Value * 10ms).


CH5

Program sequence setup: (0-2) no preset sequence; (3-255) preset sequence. DMX value = 2 + Sequence No.*2.55 (ROUND OFF).


CH6

Firing Pressure setup: (0~49) Pressure Relief Mode (Emergency Stop), (50~200) Pressure Armed Mode, (201~255) Pressure Relief Mode (Emergency Stop)

Channel 1 (CH1): Angle Setup

Angle No.AngleDMX value
1-105°0
2-90°18
3-75°36
4-60°54
5-45°73
6-30°91
7-15°109
8128
915°146
1030°165
1145°183
1260°201
1375°219
1490°237
15105°255

Channel Explanation

  1. The first channel controls the firing angle. It defines to which angle the nozzle of CIRCLE FLAMER move to. The angle can be chosen anywhere between -105° to +105° (DMX value 0 to 255).
  2. The DMX value for angle of 0° is 127.5 (round up 128). Use this value, following formula can be used to calculate all other angles ∠ in degree. Please always note the prefix of the angle.
    DMX value=127.5+(∠*1.2145)

Channel 2 (CH2): Speed Setup

CH2: Speed Setup
DMX value01-254255
SpeedMax SpeedIncremental of SpeedMax Speed

Channel 3 (CH3): Ignition ON/OFF

CH3: Ignition
DMX value0-253254-255
IgnitionCIRCLE FLAMER won’t igniteCIRCLE FLAMER ignites

The third channel activates the actual ignition. If the DMX value of this channel higher than 253, the CIRCLE FLAMER will ignite.

Channel 4 (CH4): Firing Duration setup

Manual Firing Duration setup
DMX value01234…………254255
Firing DurationPermanent10ms20ms30ms40ms2540msPermanent

The fourth channel is the firing duration setup.
Below formula can be used to calculate the firing duration (ms):DMX Value = t/10

Channel 5 (CH5): Program Sequence setup

The fifth Channel allows to firing a preset sequence. Three DMX values can be used for one of the programmed firing sequence from above sequence list (refer to above sequence list table).
Below formula can be used to calculate firing sequence:DMX Value = 2 + Sequence No.*2.55

Firing sequence mode/related firing channel
DMX value0~23~56~78~1011~12…………179~181
Sequence No.N/A1234 70

Channel 6 (CH6): Firing Pressure Setup

The sixth channel can set the working mode of pump.
When the safety lock located at TEST MODE, set DMX value between 50-200 to test the system. For safety, the pump will not working.
When the safety lock located at USER MODE, the pump can be activated by set DMX value between 50-200. The device can make ignitions in Pressure Armed state.

CH6:Firing Pressure Setup
DMX value0-4950-200201-255
StatePressure ReliefPressure ArmedPressure Relief

Example of DMX console control

  1. Set nozzle straight up
    (CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 0, CH4 Firing duration = 0, CH5 Program sequence = 0, CH6 Compres sion mode = 50~200)
  2. Set preset Sequence No. 31
    (CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 0, CH4 Firing duration = 0, CH5 Program sequence DMX value = 80, CH6 Compression mode = 50~200)
  3. Ignition
    ( CH1 Angle = 128,CH2 Speed = 0,CH3 Ignition = 255,CH4 Firing duration = 0,CH5 Program sequence DMX value = 80, CH6 Compression mode = 50~200)

NOTE: After firing, The DMX value of CH3 must fall below 254, before an ignition can be made again. CH1 defines the nozzle position after firing.

Example of Wave Firing by DMX console

  1. Set firing nozzle to the start point
    (CH1 Angle = 0, CH2 Speed = 255, CH3 Ignition = 0, CH6 Compression mode = 50~200)
  2. Set up firing speed
    (CH1 Angle = 0, CH2 Speed = 50, CH3 Ignition = 0, CH6 Compression mode = 50~200)
  3. Set firing end point and ignition
    (CH1 Angle = 255, CH2 Speed = 50, CH3 Ignition = 255, CH6 Compression mode = 50~200)
  4. Firing Nozzle will firing and make movement from start point to end point

NOTE: After firing, The DMX value of CH3 must fall below 254, before an ignition can be made again.

Example of firing with fixed duration by DMX console

  1. Set nozzle straight up
    (CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 0, CH4 Firing duration = 0, CH6 Compression mode = 50~200)
  2. Set firing duration 1s
    (CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 0, CH4 Firing duration = 100, CH6 Compression mode = 50~200)
  3. Firing 1s
    (CH1 Angle = 128, CH2 Speed = 0, CH3 Ignition = 255, CH4 Firing duration = 100, CH6 Compression mode = 50~200)

NOTE: After firing, The DMX value of CH3 must fall below 254, before an ignition can be made again.

Operating with SHOWVEN host controller ZK6200/ZK6300

  1. Hardware description
    1. MODELZK;6200
    2. Dimension;390×300×110mm
    3. Weight;3.5kg
    4. Input’;110-240Vac, 50/60Hz
    5. Work power;15W
    6. Work Temp.;-10℃~ 50 ℃
    7. Interface;2*CAN port 2* media port (music trigger) 2*MIDI port (music trigger) 1* DMX512 input 1*DMX512 output.
      Support Max. 200m communication cable
      3350 mAH Li-battery (5h battery life when fully charged)
  2. SHOWVEN host controller introduction
    1. Standard DMX512 signal output.
    2. Support 18units CIRCLE FLAMER (ZK6200) or 54units CIRCLE FLAMER (ZK6300) at the same time.
    3. 5 standard dynamic modes: Synchronization, Center to Ends, Ends to Center, Left to Right, Right to Left. And an user defin able Special Effect mode, support 8 files, each file support 36000 lines maximum (effects lasts for 30min).
    4. Multi trigger sources: manual, music or midi input.
    5. RDMX monitoring function: system can send back circle flamer working status info such as pressure, warming etc. and display on the screen.
    6. Emergency stop function.

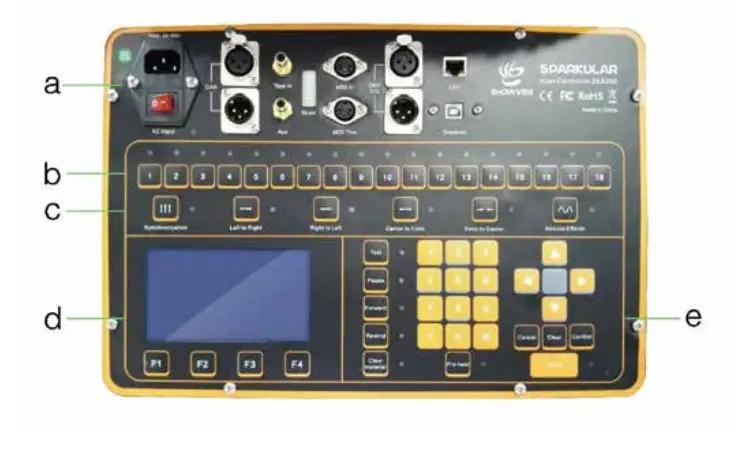

  3. Operational PanelSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-23
    1. Cable Connection Area
      1. AC Input: AC Power Input;
      2. CAN: CAN communication input/output;
      3. MIDI In: Midi time synchronous signal input;
      4. DMX 512: DMX signal input/output;
      5. LAN: network interface;
      6. USB: program download interface, SparkularEdit200 software port.

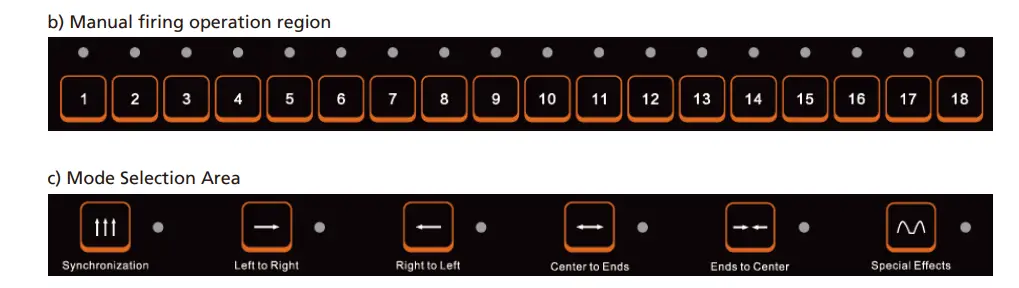

    2. Manual firing operation regionSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-24There are 5 standard dynamic mode and 1 special effects mode. Each mode support 8 files, it can be switched easily on the mode selection area.
    3. LCD display Area
      1. F1: Main menu;
      2. F2: File selection;
      3. F3: Configuration;
      4. F4: About host controller.

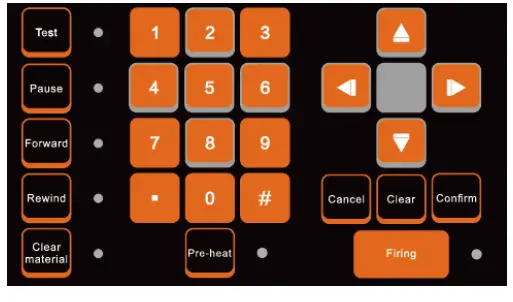

    4. Edit/Control AreaSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-25

Set circle flamer DMX address as below

CIRCLE FLAMER No.DMX Address
11
27
313
419
525
631
737
843
949
1055
1161
1267
1373
1479
1585
1691
1797
18103

Note: wrong DMX address setup may leads to circle flamer out of control.

Setup of Host controller

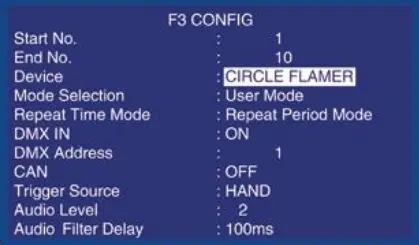

  1. Press “F3” enter host controller configuration menu, DEVICE choose “CIRCLE FLAMER” as below.
  2. Set Start No. and End No. of device.SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-26

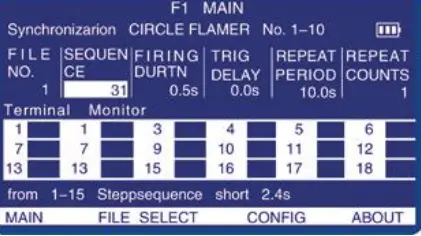

Press “F1” back to main interface. SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-27

Press “PRE-HEAT”, activate the compression of device.

  1. Manual firing: Enter SEQUENCE No.99, press 1-18 to firing each unit, CIRCLE FLAMER can only firing at vertical upward.
  2. Sequence firing: eg: firing at SEQUENCE 31, entering 31 at SEQUENCE, entering FIRING DURATION (Firing duration normally set at 0.5s, even the sequence firing duration is longer than 0.5s, the SEQUENCE will fully executed) , set the repeat counts, press “FIRING” to activate the device.

NOTE: Put safety lock at “TEST MODE” to check the signal connection and nozzle rotation status before use the device for firing. For Emergency stop, press “PRE-HEAT”, device will enter pressure relief mode, and stop emergently.

MaintenanceSHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-28SHOWVEN-Circle-Flamer-X-F1800-Flamer-FX-Machine-29

  1. To maintain the system in good performance and running status, it is recommended to running the device at least once per month.

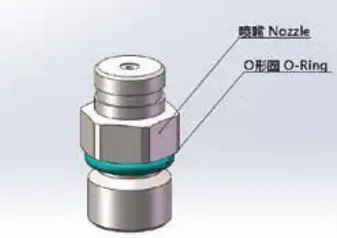

  2. Maintenance of the nozzle: Nozzle need to be cleaned up , and it is recommended that once every six months (depending on the environ ment and frequency of use). In the process of using the equipment, if the flame shape is seriously deformed or the fuel injection line is signifi cantly deformed or coarsened, the nozzle should be removed immedi ately for cleaning.
  3. Maintenance of the O-ring: If it is found that the O-ring of the nozzle is damaged or ageing when cleaning the nozzle, the O-ring should be replaced in time (material and size of O-ring: fluororubber O-ring, the outermost diameter is 14 mm, and the line diameter is 2 mm).
  4. In order to lubricate the pipeline and pump it is highly recommended to add 10-20ml castor oil per 10L canister.
  5. The software can be upgraded with a download cable from SHOWVEN.

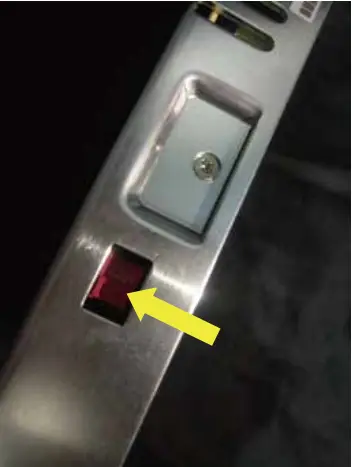

  6. Switchable power input design, switchable between 110V and 220V as shown below (voltage will show on it). The power supply is located on the side of the electric control, and you should remove the cover in order to change it.

Warranty Instructions

  • Sincere thanks for your choosing Circle Flamer X-F1800, you will receive quality service from us.
  • The product warranty period is one year. If there are any quality problems within 7 days after shipping out from our factory, we can exchange a brand new same model machine for you.
  • We will offer free of charge maintenance service for machines which with hardware malfunction (except for the instrument damage caused by human factors)in warranty period. Please don’t repair machine without factory permission.

Below are situations NOT included in warranty service

  1. Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human factors;
  2. Disassemble, modify or repair products without Showven’s permission;
  3. Damage caused by external reasons (lightning strike, power supply etc);
  4. Damage caused by improper installation or use;

For product damage not included in the warranty range, we can provide paid service.

An invoice and warranty card are necessary when applying for maintenance service from SHOWVEN.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
