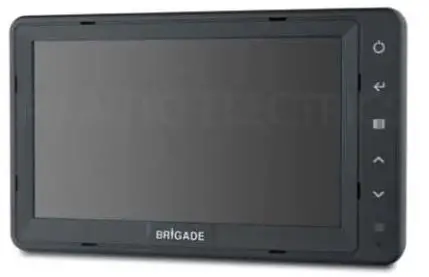

BRIGADE VBV-770HFM Vehicle CCTV Monitor
Contents

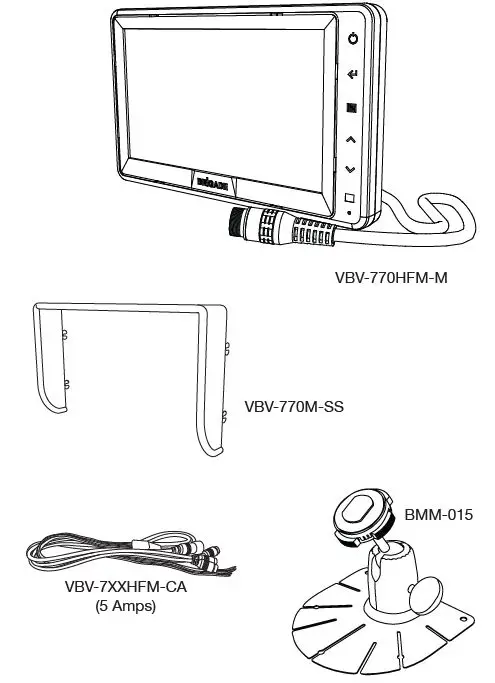

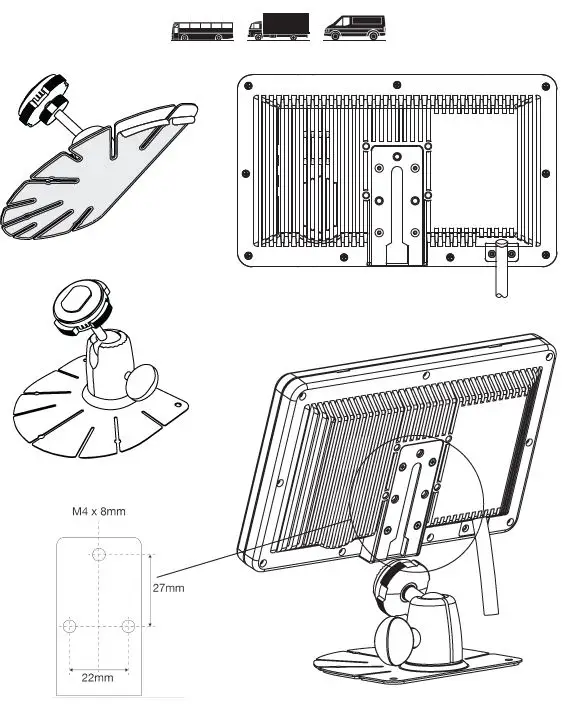

Monitor installation
Monitor installation

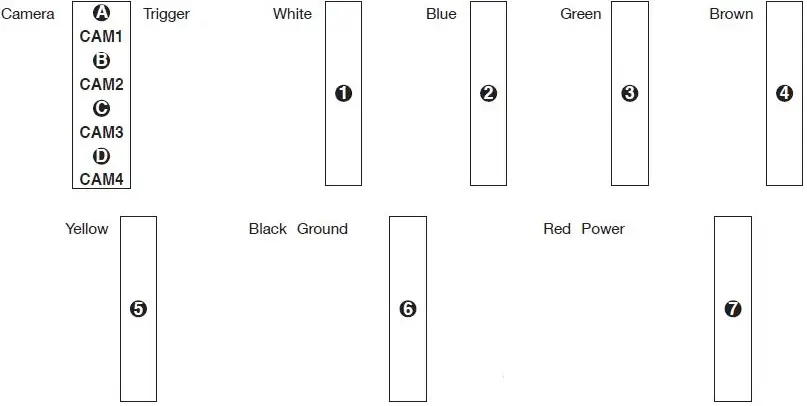

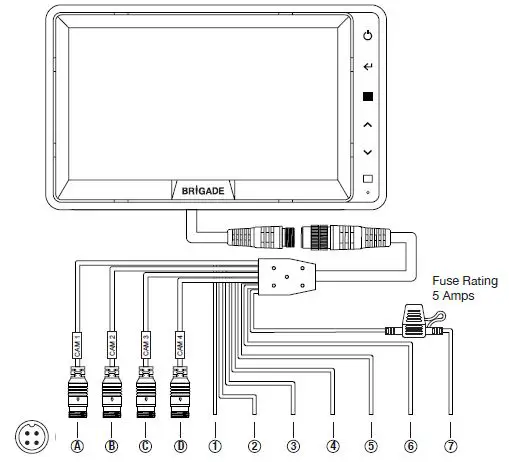

Connections

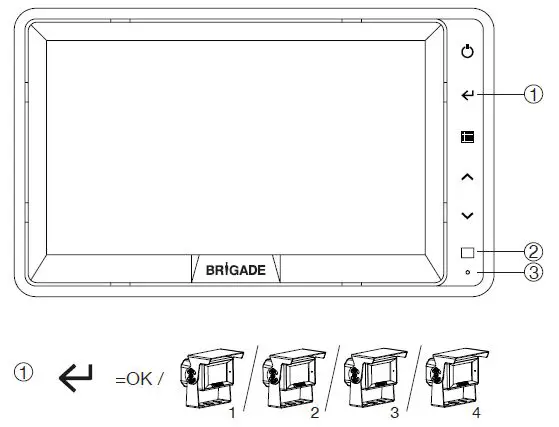

Controls
- Remote control receiver
- Automatic low light sensor
Operation
Marker setting

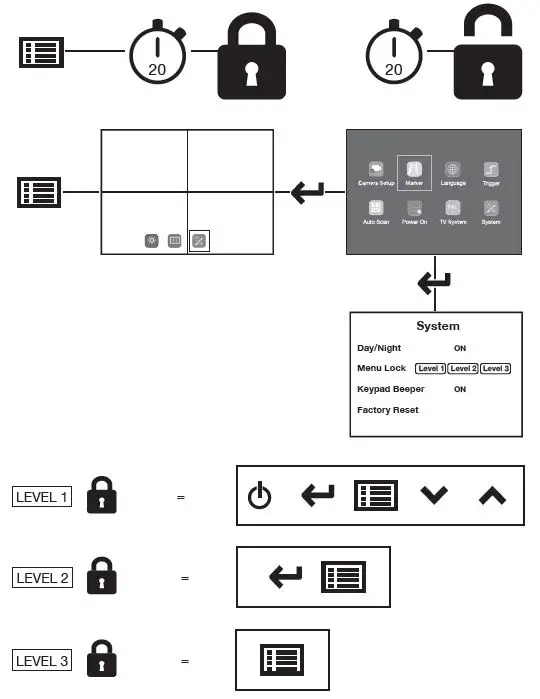

Button lock

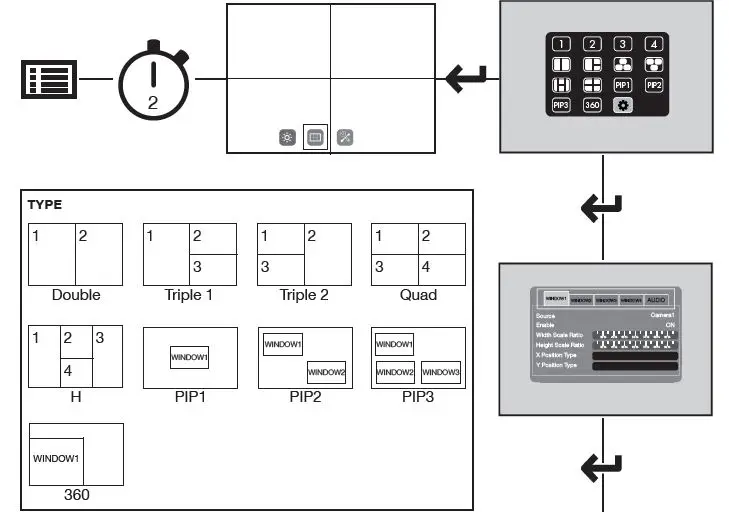

Split setting
The user can scale the PiP window to any size and position needed.
Specifications
| Monitor | VBV-770HFM |
| TV system | AHD / NTSC / PAL |
| Picture | 7.0″ Digital TFT LCD colour monitor with on-screen display function |
| Display size | 7.0″ diagonal |
| Viewing Angle | Top: 85°, Bottom: 85°, Left: 85°, Right: 85° |
| Resolution | 1024 x 600 pixel |
| Picture image | Normal – Mirrored via OSD |
| Voltage | 12/24Vdc input |
| Fuse Rating | 5 Amps |
| Inputs | 4 x Camera |
| Dimensions | 196(w) x 118(h) x 28(d)mm 7.7(w) x 4.6(h) x 1.1(d) inches |
| Operating temperature | -20°C ~ +70°C / -4°F ~ +158°F |
Disclaimer
Camera monitor systems are invaluable driver aid but do not exempt the driver from taking every normal precaution when conducting a maneuver. No liability arising out of the use or failure of the product can in any way be attached to Brigade or to the distributor.
Specifications subject to change. Sous réserve de modifications techniques. www.brigade-electronics.com.
