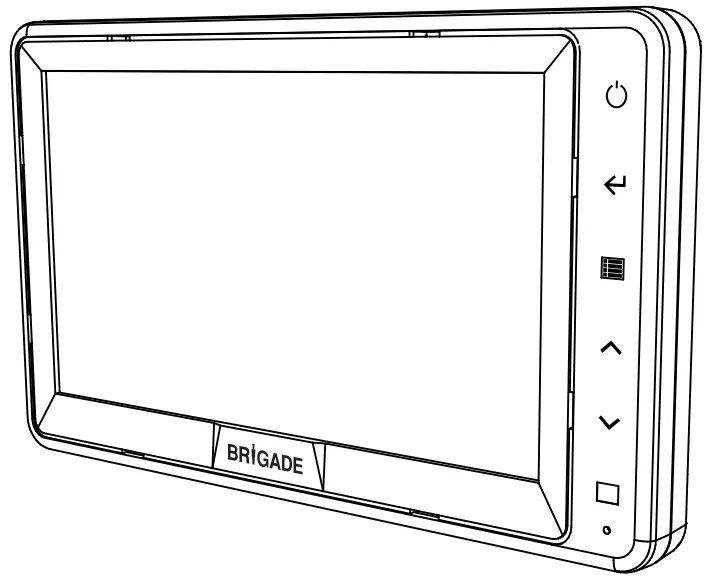

VBV-770HM vehicle CCTV monitor

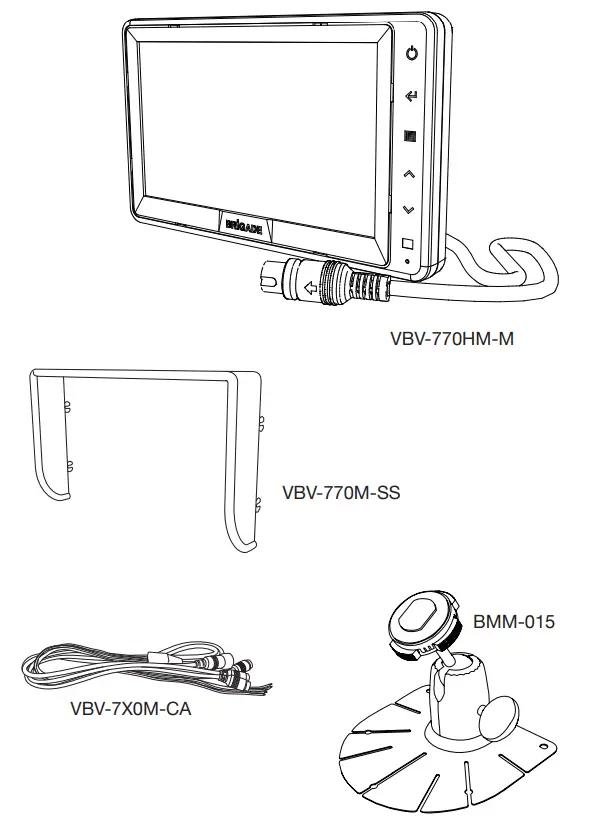

Contents

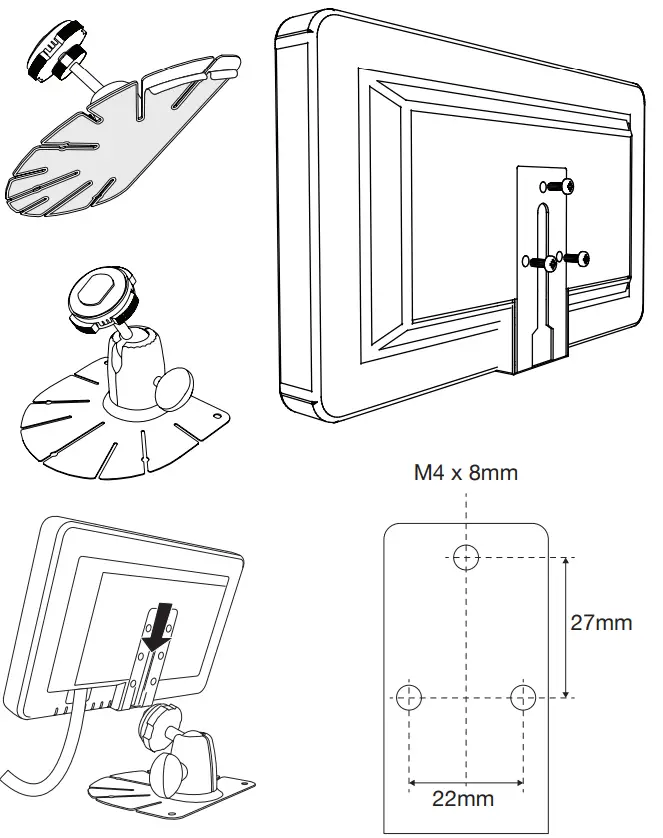

Monitor installation

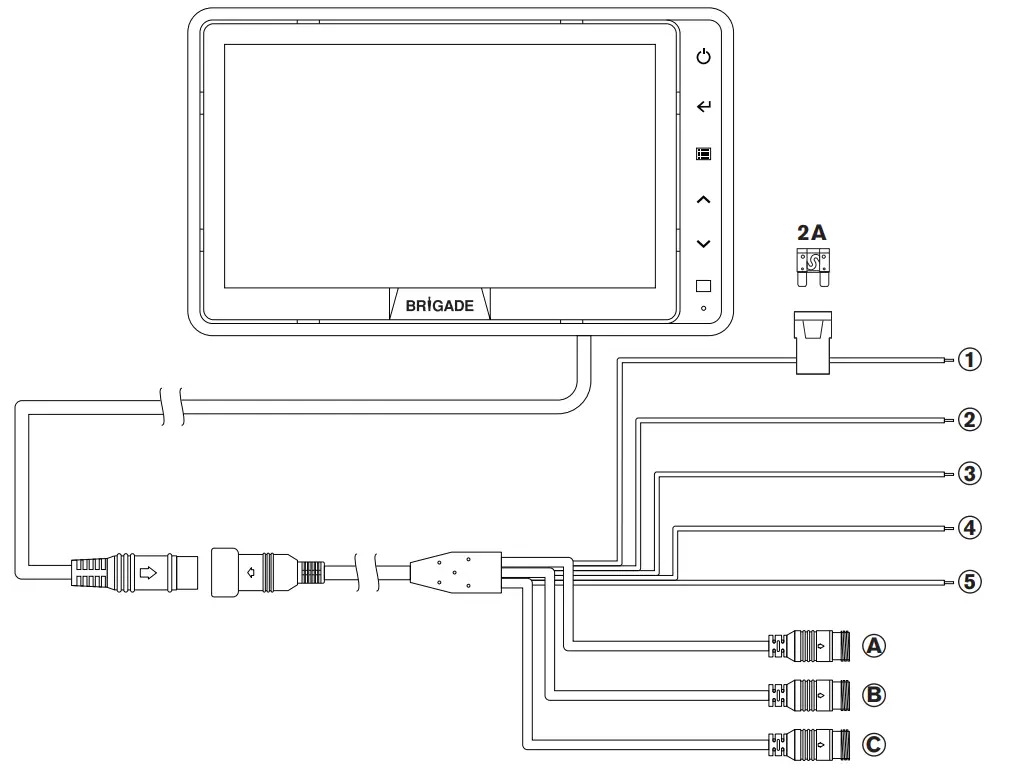

Connections
| Red …………………..Power | 1 |
| Black ……………..Ground | 2 |
| Trigger ………….White | 3 CA1 |
| Blue | 4 CA2 |
| Brown | 5 CA3 |
| Camera | A CA1 B CA2 C CA3 |

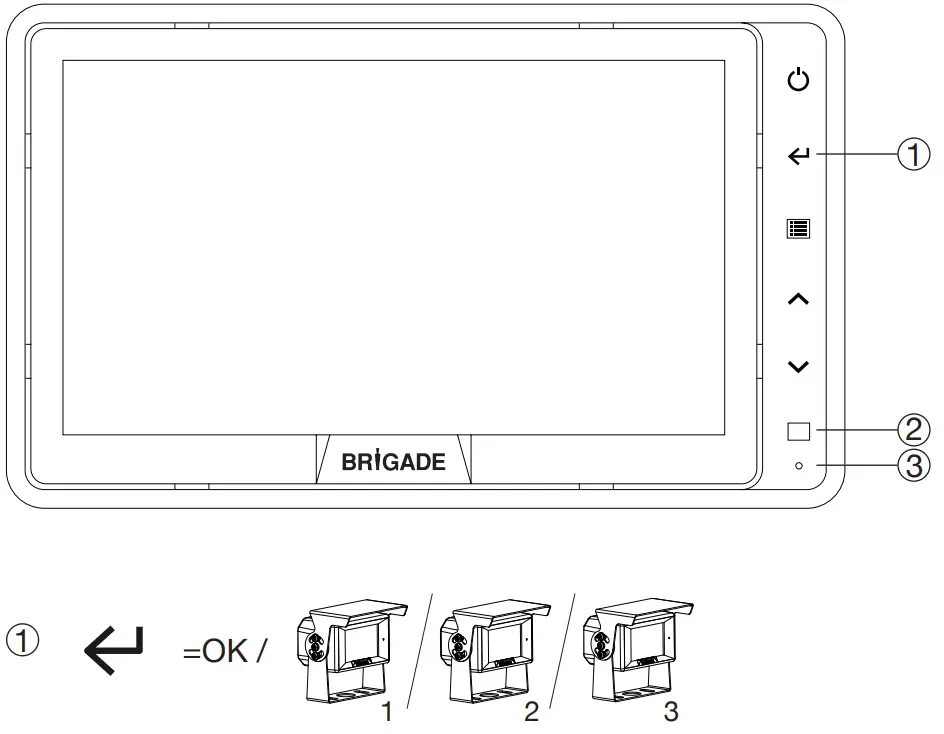

Controls
2. Remote control receiver
3 . Automatic low light sensor

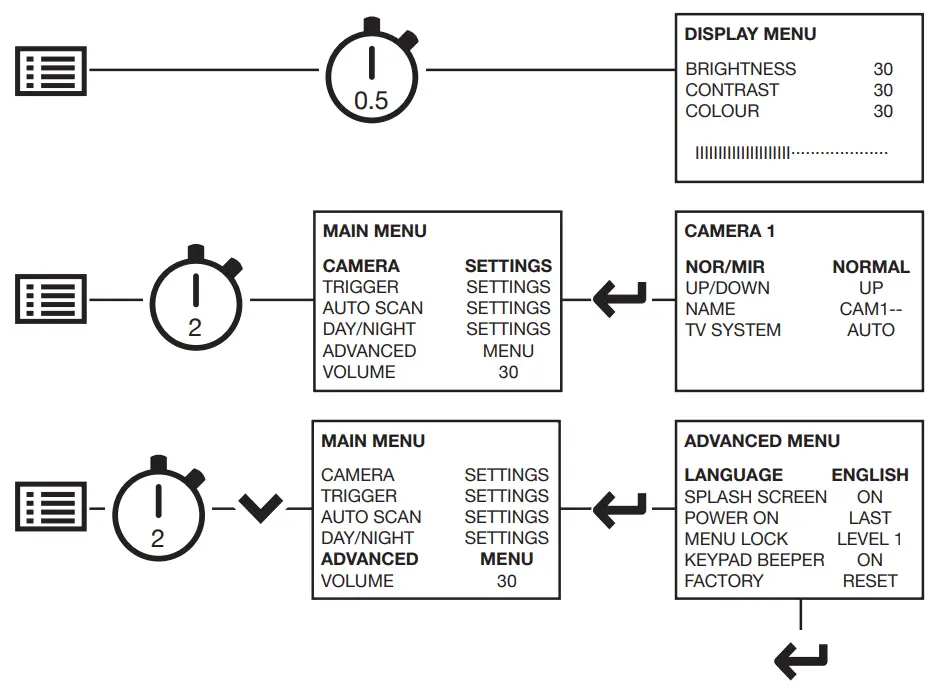

Operation

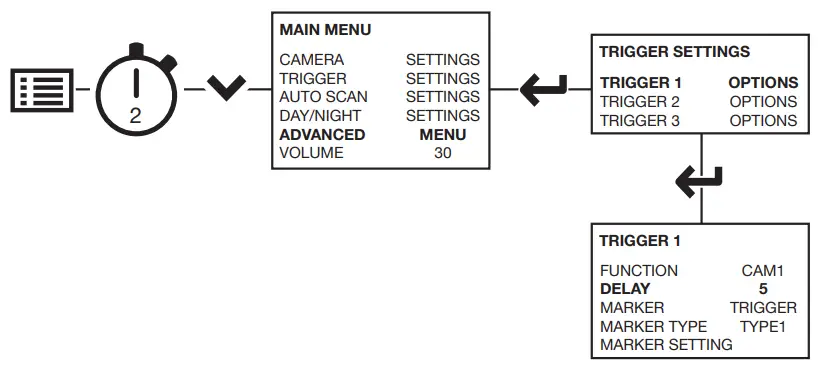

Trigger setting

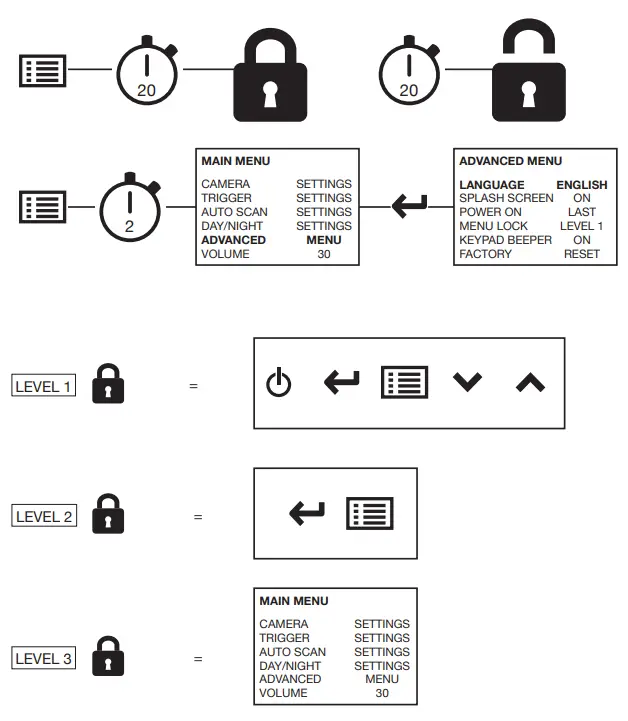

Button lock

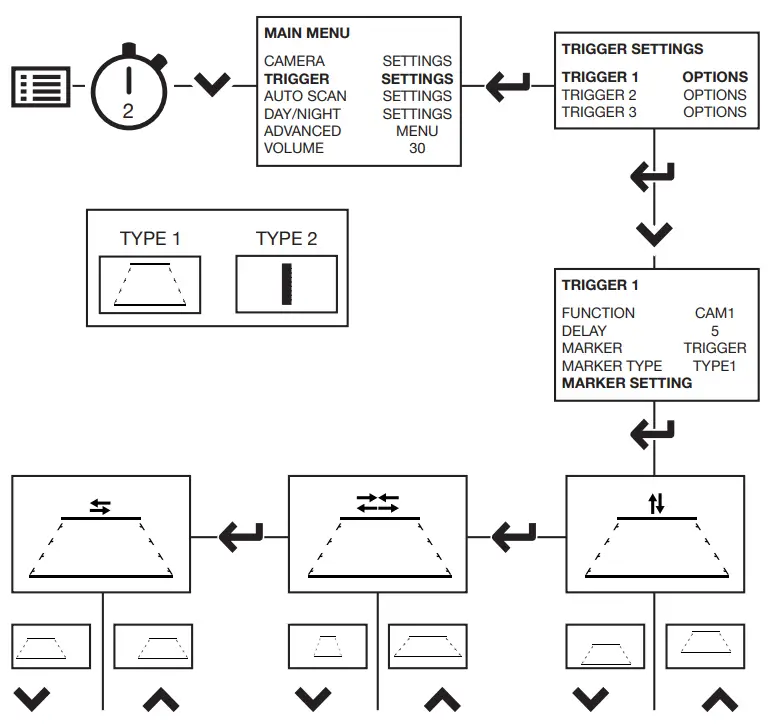

Marker setting
Specifications
| Monitor | VBV-770HM |
| TV system | CVBS-NTSC/PAL AHD 1.0-720p/AHD 2.0-1080p (auto detect) |
| Picture | 7″ TFT LCD colour monitor with on-screen display function |
| Display size | 7″ diagonal |
| Field of view | Top: 85°, Bottom: 85°, Left: 85°, Right: 85° |
| Resolution | 1024×3(RGB)x600 |
| Picture image | Normal – Mirrored via OSD |
| Power | 12/24Vdc input |
| Inputs | 3 x camera |
| Dimensions | 195.5(w) x 117.5(h) x 25.5(d)mm 7.6(w) x 4.6(h) x 1(d) inches |
| Operating temperature | -30°C ~ +70°C -22°F ~ +158°F |
Disclaimer
Camera monitor systems are an invaluable driver aid but do not exempt the driver from taking every normal precaution when conducting a manoeuvre. No liability arising out of the use or failure of the product can in any way be attached to Brigade or to the distributor.
Specifications subject to change.
Serial No:……………………….
Part No:……………
3941.VBV-770HM Manual
