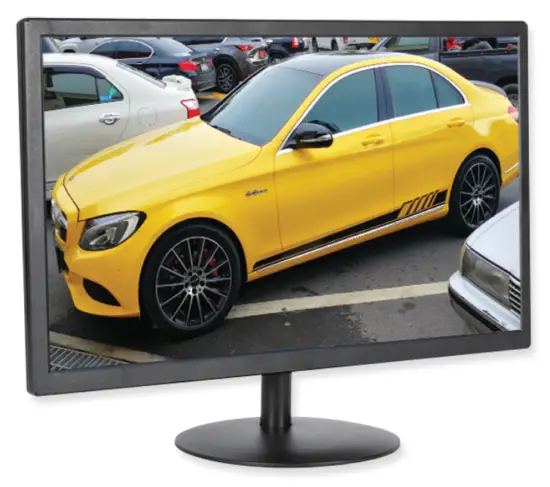

aliendvr LOGOLCD727 Quick Start Guidealiendvr LCD727 CCTV LCD Screen

4K Slimline LED CCTV Monitors

  • 4K 3840 x 2160 Resolution
  • HDMI Input
  • VGA Input
  • Composite Input
  • Audio In & Out
  • Built-in Speakers
  • VESA Mount
  • Anti-glare Display
  • 5ms Response Time
  • Attractive Design With Desk Stand

These larger LED monitors not only offer excellent wide-screen 4K viewing, perfect for displaying multiple cameras, they also have a slimline design so you can install them neatly against the wall.

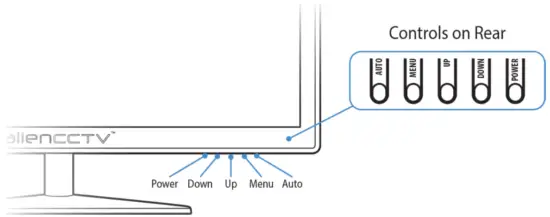

Controlsaliendvr LCD727 CCTV LCD Screen - ControlsButton Functions

GeneralMain MenuSub MenuMedia Menu
AutoDisplay source list /
Cycle through source list
Exit main menuReturn to previous
menu
Display source list / Cycle through source list
MenuDisplay main menuEnter sub menuNext menu itemDisplay main menu
UpVolume upNext sub menuIncrease parameterNext item
DownVolume downPrevious sub menuDecrease parameterPrevious item
PowerHold: Power on/off /
Single press: Select
Enter sub menuSingle press: SelectSingle press: Select /
Display playback
controls

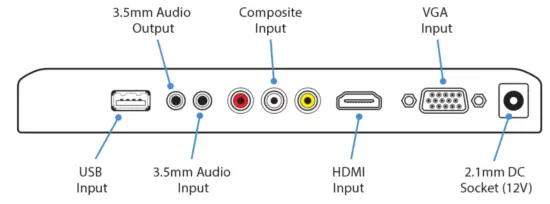

Connections

aliendvr LCD727 CCTV LCD Screen - ConnectionsSpecification

LCD727
TypeLED
Screen Size27″
Resolution4K 3840 x 2160
AudioBuilt-In
Video In ConnectionHDMI / VGA / Phono
Audio In Connection3.5mm Audio Jack
Audio Out Connection3.5mm Audio Jack
USB Inputsx1
Set-UpOn-Screen Menu
Case ConstructionFireproof Plastic
Case ColourBlack
Brightness300nit
Contrast Ratio1200:01:00
Colour Ratio16.7m
SurfaceAnti-Glare
Response Time5ms
VESA Mount100 x 100
Weight3.8kg
Input Voltage12V DC
PSUSupplied
Dimensions(H) 382 x (W) 642 x (D) 50mm (Exc. Base)

02/02/2022
alienDVR.com
