SystemQ LCD719-724 1080p LCD Monitor

SystemQ-LCD719-724-p-LCD-Monitor

1080p LCD Monitor Range Specifically Designed for CCTV

  • 1920 x 1080 Resolution
  • HDMI Input
  • VGA Input
  • Composite Input
  • Audio In & Out
  • Built-in Speakers
  • VESA Mount
  • Anti-glare Display
  • 5ms Response Time
  • Attractive Design With Desk Stand

A best selling range thanks to their attractive design and low cost. HD ready, they are the professional choice for any CCTV systems where extended operator viewing is required.

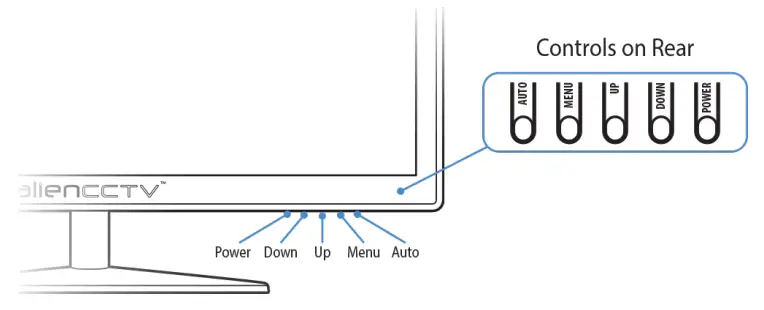

ControlsSystemQ-LCD719-724-p-LCD-Monitor-1

Button Functions

 GeneralMain MenuSub MenuMedia Menu


Auto

Display source list / Cycle through source list

Enter sub menu



Next menu item

Display source list / Cycle through source list
MenuDisplay main menuExit main menuReturn to previous menuDisplay main menu
UpVolume upNext sub menuIncrease parameterNext item
DownVolume downPrevious sub menuDecrease parameterPrevious item


Power

Hold: Power on/off / Single press: Select

N/A



Single press: Select

Single press: Select / Display playback controls

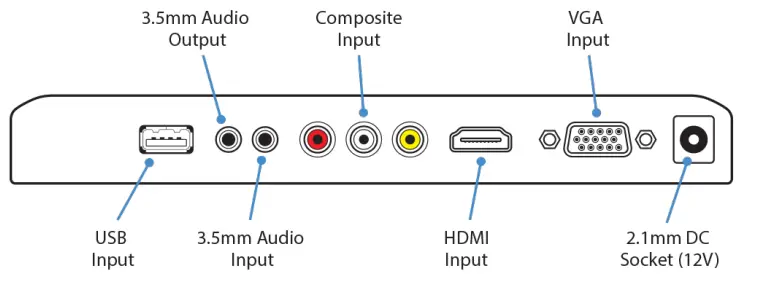

ConnectionsSystemQ-LCD719-724-p-LCD-Monitor-2

Specification

 LCD719LCD720LCD722LCD724
TypeLEDLEDLEDLED
Screen Size19″20″22″24″
Resolution1920 x 10801920 x 10801920 x 10801920 x 1080
AudioBuilt-InBuilt-InBuilt-InBuilt-In
Video In ConnectionHDMI / VGA / PhonoHDMI / VGA / PhonoHDMI / VGA / PhonoHDMI / VGA / Phono
Audio In Connection3.5mm Audio Jack3.5mm Audio Jack3.5mm Audio Jack3.5mm Audio Jack
Audio Out Connection3.5mm Audio Jack3.5mm Audio Jack3.5mm Audio Jack3.5mm Audio Jack
USB Inputsx1x1x1x1
Set-UpOn-Screen MenuOn-Screen MenuOn-Screen MenuOn-Screen Menu
Case ConstructionFireproof PlasticFireproof PlasticFireproof PlasticFireproof Plastic
Case ColourBlackBlackBlackBlack
Brightness300nit300nit250 cdm/2300nit
Contrast Ratio3000:13000:11000:11000:1
Colour Ratio16.7m16.7m16.7m16.7m
SurfaceAnti-GlareAnti-GlareAnti-GlareAnti-Glare
Response Time5ms5ms5ms5ms
VESA Mount75 x 7575 x 75100 x 100100 x 100
Weight2.5kg2.5kg2.4kg3.2kg
Input Voltage12V DC12V DC12V DC12V DC
PSUSuppliedSuppliedSuppliedSupplied
Dimensions(H) 291 x (W) 438 x

(D) 46mm (Exc. Base)

(H) 285 x (W) 472 x

(D) 47mm (Exc. Base)

(H) 332 x (W) 503 x

(D) 46mm (Exc. Base)

(H) 335 x (W) 557 x

(D) 49mm (Exc. Base)
