ZIP SEE015 CCTV Camera
Full Instruction Manual
www.systemq.com/PDF/manual/xSEE010.pdf

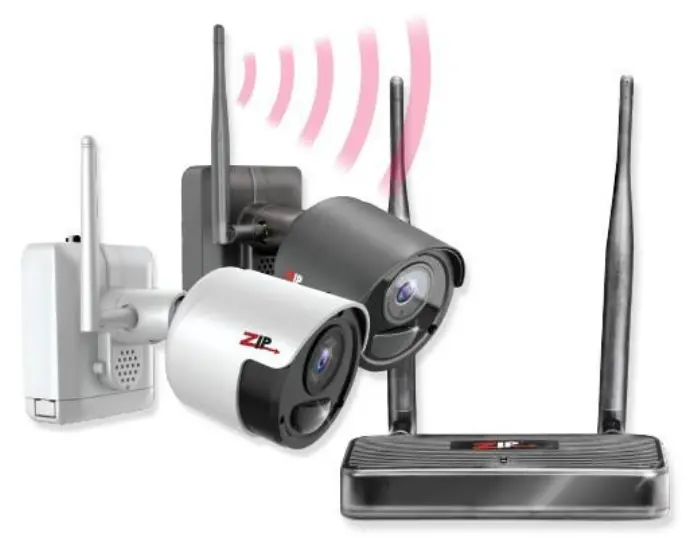

ABOUT PRODUCT

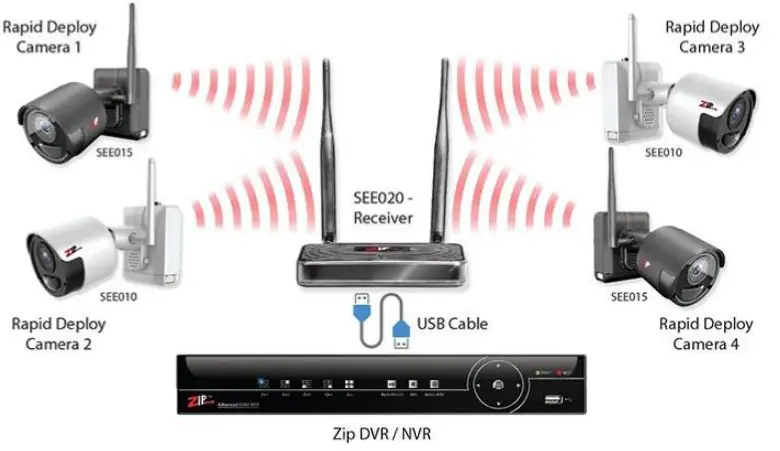

- The Rapid Deploy CCTV system is a fast and easy solution to provide CCTV protection. It consists of a 4Ch wireless receiver that plugs into a Zip NVR or DVR via its rear USB port.
- Once the wireless receiver is plugged into the Zip NVR or DVR, it can see and record the wireless Rapid Deploy CCTV cameras.
- Rapid Deploy is currently compatible with the ZIP Lite, ZIP Supa & ZIP Xtra DVR ranges (2 cameras only on a 4ch DVR) as well as 4, 8, 16, 32ch Zip NVRs. (Note it is not compatible with the ZIP SUPA-S range of recorders). Older Zip DVR/NVR models (up to 2019) may require a firmware upgrade.
HOW IT WORKS
- When the PIR is acti vated then the camera is activated and transmits data to the receiver.
- At night time the light sensor is used to determine if the Infra-Red LEDs are also activated when the camera is activated by the PIR.
- Two-way talk back can also be used when the camera is activated, using the Microphone on the front of the camera and the Built-in speakeer.
Powering & Charging the Batteries

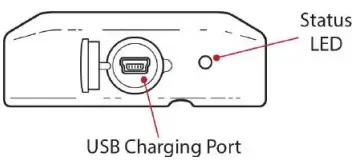

- Status LED:
- Red Charging
- Green Charged (and plugged in)
- No Light = Not Charging
- A Micro (B) USB Charger and lead is requred tor the charging and powering of the Rapid Deploy Batteries, these are not supplied.
SEE030 Solar Panel
- The Rapid Deploy solar panel with USB can be used to power and charge the batteries.
- Mount the bracket (instead of the standard mounting plate. And slot the camera onto the plate.

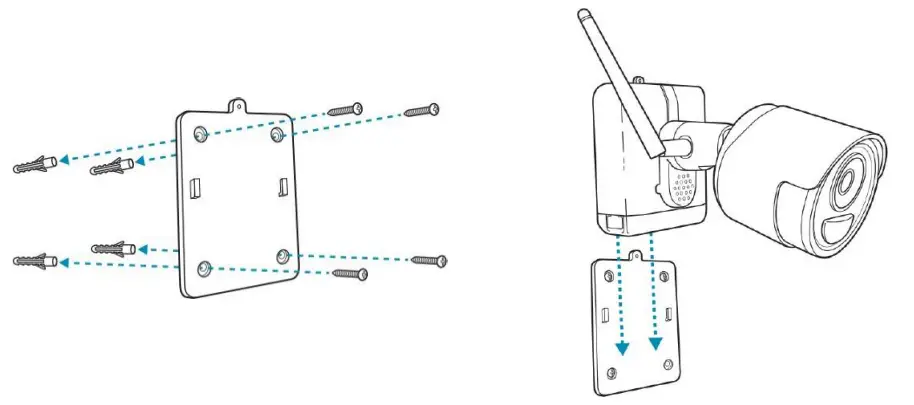

Mounting
- Fix the mounting plate to the mounting surface using the screws and plugs
- Slot the camera onto the mounting plate from above.
NVR Pre-Setup
For PoE ZIP NVRs, the IP channel config needs altering first.
- Go to the menu, Video > IP Channels
- Video > IP Channels
- Switch Mode> Set to Manual Mode
- Then proceed with Channel Setup
Channel Setup
Setup the channels for USB Wireless.
- Go to the menu, Video> Channel Config
- In the DVR channel list> Select USB Wireless
- Select Apply
- The DVR will require a reboot once applied, click OK
Pairing Overview
The cameras will need pairing, this can only be done in the menu on the recorder.
- Go to the menu, Video > USB Wireless
- Click Pair to start the pairing mode with the receiver
- Select the Pair button on the rear of the camera
- Pairing successful! Displays once complete
- Select Switch to ON
- Click Apply
SPECIFICATION
| SEE010 | SEE015 | SEE020 | |
| Lens Type | 2.8mm Fixed Lens | 2.8mm Fixed Lens | |
| Viewing Angle | 120 Degrees | 120 Degrees | |
| Resolution | HD 1080P / 2MP | HD 1080P / 2MP | Up to 2MP |
| WiFi Range | 200m Max | 200m Max | 200m Max |
| Audio | 2-Way Built-in | 2-Way Built-in | Supported |
| Audio Input | Built-in Microphone | Built-in Microphone | Wireless from Camera |
| Audio Output | Built-in Speaker | Built-in Speaker | Via USB |
| PIR | Built-in 10m Range | Built-in 10m Range | |
| InfraRed LEDs | 6 | 6 | |
| IR Range | 8m | 8m | |
| Min. Illumination | 0 Lux with LEDs on | 0 Lux with LEDs on | |
| Noise Reduction | 3D | 3D | |
| White Balance | Auto | Auto | |
| Power Source | Battery Pack – 8700mAh (Supplied) | Battery Pack – 8700mAh (Supplied) | Powered from DVR/NVR |
| Input Voltage | DC 4.2V +-10% | DC 4.2V +-10% | |
| Current Consumption | 420mA (Activate) / 400mA (Sleep) | 420mA (Activate) / 400mA (Sleep) | |
| Power Connection | Micro USB (B) | Micro USB (B) | USB |
| Finish | White | Black | Black |
| Build | Plastic | Metal | Plastic |
| Operating Temperature | From -20 to 55 deg C | From -20 to 55 deg C | |
| Use | IP66 For External Use | IP66 For External Use | Internal Use Only |
| Bracket | Supplied | Supplied | Wall-Mount Fixings Supplied |
| Dimensions | (H) 136 x (W) 73 x (D) 89mm | (H) 136 x (W) 73 x (D) 89mm | (H) 25 x (W) 140 x (D) 60mm |
| SEE030 | |
| Solar Cell | Monocrystalline Silicon |
| Solar Conversion Rate | 20% |
| Maximum Power | 2.5W |
| Voltage | 5.25V |
| Current | 535mA |
| Operating Temperature | –30 C 70 C |
| Dimensions | 179mm (H) x 125mm (W) x 10mm (D) – without bracket |
| Weight | 447g |
| Build | Plastic (black) |
| Power Interface | MIcro USB |
| Cable Length | 360mm |
| IP Rating | IP66 |
| Bracket | Supplied – 360 Adjustable wall mount |
All specifications are approximate. System Q Ltd reservesthe right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in the se instructions, or the performance or non-performance of the equipment refered to.
