IKEA VALBILDAD Induction Hob

WHAT IN BOX

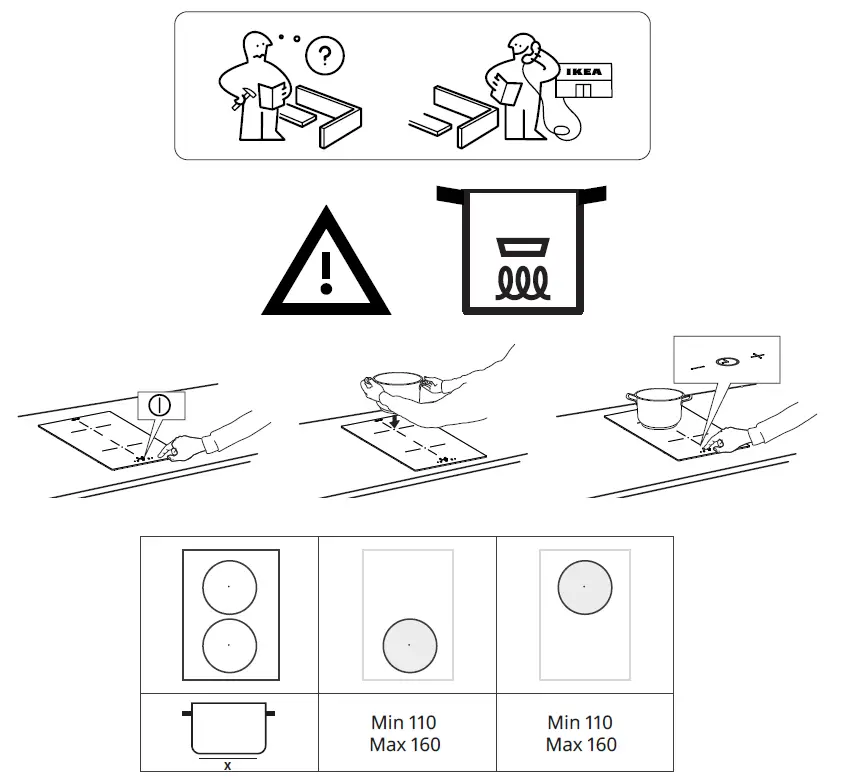

Caution

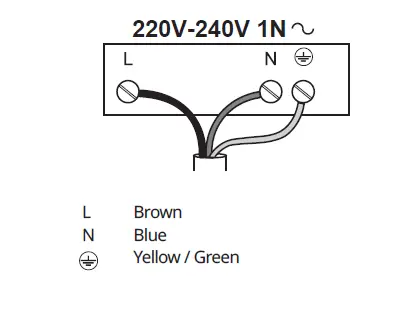

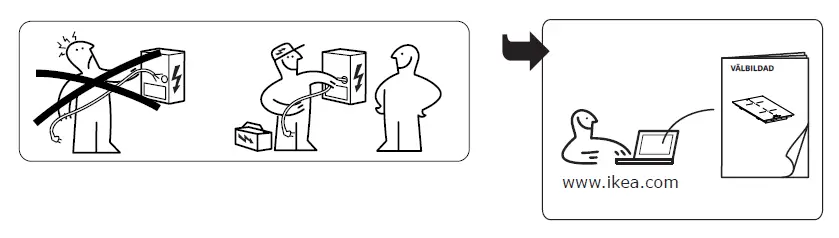

Connection

Installation

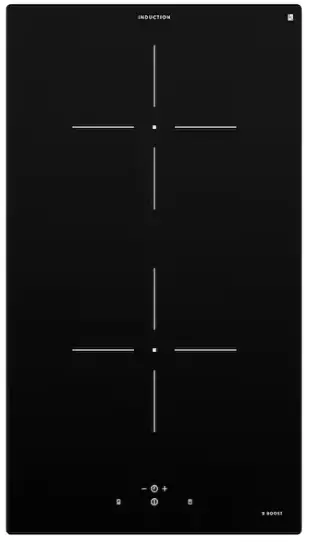

Product description

1. Single cooking area (160 mm) 1400W, with Booster 2100W.
2. Single cooking area (160 mm) 1400W, with Booster 2100W.
3. Control panel

Pot detection

Each of the cooking areas is equipped with a system to detect the presence of a pan. The pan presence detection system recognises pans with a magnetisable base suitable for use with induction hobs. If the pan is removed during operation, or if an unsuitable pan is used, the display shows the symbol .

Residual heat indicator

The residual heat indicator is a safety feature, indicating that the surface of the cooking area is still at a temperature of 50° C or above, which may cause burns if touched by a naked hand. The digit for the corresponding cooking area displays H

Control panel

1. On/Off
2. Power level in icator
3. Button to select coo ng area
4. Power level / Timer control
5. Cooking time indicator

Functions

Boost function

The Boost function can be used to provide extra power in a cooking area for 5 minutes. This function is useful to boil up large amounts of water.

Activation:

• The Boost function can be used to provide extra power in a cooking area for 5 minutes. This function is useful to boil up large amounts of water.
• Activation:
  • Select one of the cooking areas.
  • Press “+ ” until reaching level ” 9″.
  • Press again to set the Boost Function.
  • The corresponding digit will display P.
    The Boost function is programmed to last for 5 minutes.
• Deactivation:
  • Select one of the cooking areas with the Boost Function active.
• Press ” -“.
  • It will also deactivate automatically after 5 minutes.

Child lock

• This function prevents an accidental operation of the appliance. Confirmation is given when the digit displaysL . If an area is still hot, then H and L will alternate.
• Activation:
• Turn the hob on, make sure that none of the cooking areas are active.
  • Press and “” together and release.
  • Press ““again.
  • The cooking area digits display L
• Temporary deactivation:
  • Press button and button “- ” together and release.
  • The function is deactivated while the hob is on. If it is turned off and then on again, the function will still be active.
• Permanent deactivation:
  • Turn the hob on, make sure that none of the cooking areas are active.
  • Press and “-” together and release.
• Press “” again.
  • The function is deactivated. If the hob is turned off and then on again, it is no longer displayed L

Timer (generic)

The timer is a countdown that can be set to run for from 1 to 99 minutes. At the end of the set time a buzzer will sound, which can be silenced by pressing any of the buttons. The cooking areas operate independently while the timer is working.

• Activation:
• With the hob on, make sure that none of the cooking areas are active.
  • Press button “+” and button “-“together.
  • The timer digit shows “0 0”.
  • Set the time using “+ ” and” -“.
  • Do not touch anything else for 10 seconds and the timer will start to count down. When the value is ” 0 0 ” pressing”- ” sets it to 30 minutes. Repeat these operations to modify a value that has already been programmed.
• Deactivation:
  • With the hob on, make sure that none of the cooking areas are active.
  • Press”+ ” and ” – ” together.
  • Set “00” using ” + ” and “-“
  • Do not touch anything for 10 seconds.

Cooking area timer

This timer is a countdown to turn off a specific cooking area, and can be set to run for from 1 to 99 minutes. During this time the cooking area will work normally. The cooking areas are independent and can therefore be programmed individually. At the end of the set time a buzzer will sound, which can be silenced by pressing any of the buttons.

• Activation:
  • With the hob on, a pan in position, and the cooking area operating:
  • Select the cooking area required and set the power desidered.
• Press “+” and “-” together.
  • The timer digit shows “0 0″a dot indicator, next to the corresponding cooking area, starts blinking.
  • Set the time using “+ ” and”-“.
  • Do not touch anything else for 10 seconds and the timer will start to Count down.
  • When the value is ” 0″ pressing”- ” sets it to 30 minutes. Repeat these operations to modify a value that has already been programmed.
  • The timer can be set for both cooking areas. The timer will show the shortest countdown of the two.
• Deactivation:
• With the hob on, a pan in position and the cooking area operating:
• Select the cooking area required.
  • Press “+ ” and ” – ” together.
  • Set “0 0” using “+” and “-“.
  • Do not touch anything for 10 seconds.

Technical data

Energy efficiency of Hob

To download the full version visit www.ikea.com
