Qtx 151.554uk Stereo Twin Par Bar User Manual

Item ref: 151.554UK
User Manual

Stereo Twin PAR Bar

LED PAR Bars with Foot Control

Please read through this manual thoroughly before use, any damage caused by misuse of the product will not be covered by the warranty.

Please do not open the cover, contains high voltage. This product is not serviceable or repairable by the end-user. Please refer to qualified personnel for service and repair.

Safety Instructions

• Please keep this manual for future reference.
• Always make sure that you are connecting to the proper voltage, and that the line the voltage you are connecting to is not higher than that stated on the bottom of the fixture.
• This product is intended for indoor use only. It must be connected to an earthed mains outlet.
• To prevent the risk of fire or shock, do not expose fixtures to rain or moisture. Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20cm from adjacent surfaces. Be sure that no ventilation slots are obstructed.
• Always disconnect from the power source before servicing or replacing the fuse and be sure to replace it with the same fuse size and type.
• The maximum ambient temperature is 40°C. Do not operate the fixture at higher temperatures.
• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.

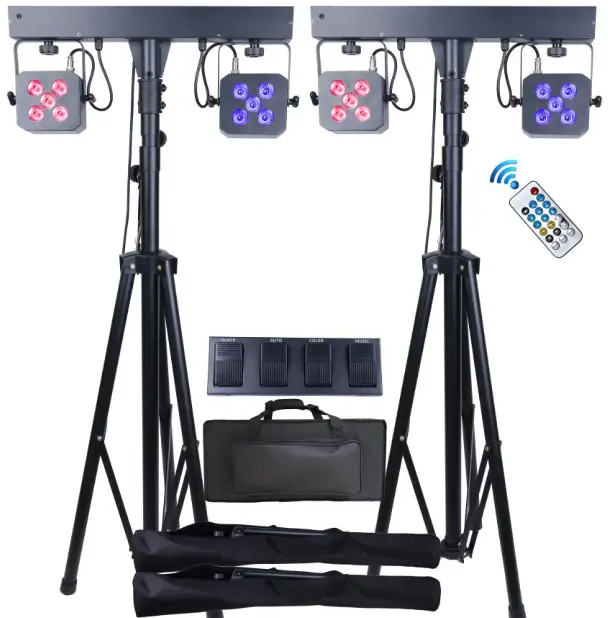

Contents in the box

• PAR Bar x2
• Tripod stand x2
• Foot Controller
• Remote control
• Carry Case for Par Bar and Foot control
• Carry case for tripod x2
• Instruction Manual
• Power cable x2
• 10M DMX cable
• Hanging Bracket and Screw Set x4

Features

• Twin PAR Bar lighting set with 2x2x5pcs 10W Quad LEDs
• High output with 3255Lux at 2M when full-on with one separate head
• Saturated wash effect without multicolored shadows
• Foot controller with 10M cable and IR remote control
• Separate light head control with various built-in color macros
• Easy setup and tear-down with tripod stand and carrying bags

Specification

• Dimension

• Weight

Setup/Installation

This lightweight, versatile PAR bar system is perfect for mobile DJs and performers who need their lighting to be quick to set up and easily transportable. 4 PAR Cans are each loaded with 5 LEDs in red, green, blue, and white for super smooth color blending.

1. Remove stands from the carrier and open the tripod legs onto the floor, making sure it is on a stable footing.
2. Remove the PAR bars from the main carrier and attach them to the tripod stand.
3. Tighten the screw to secure the PAR bar.
4. Connect the power cables on both units.
5. Setting the PAR BARs to Master and Slave (see PAR Bar mode settings.)
6. Connect the multi-core lead to the foot controller and the Master unit.
7. Connect the XLR cable (3 Pins) to the DMX OUT socket on the Master unit and the DMX IN socket on the Slave unit.
8. Adjust the height of the extension pole, insert the safety pin and tighten the locking screw.

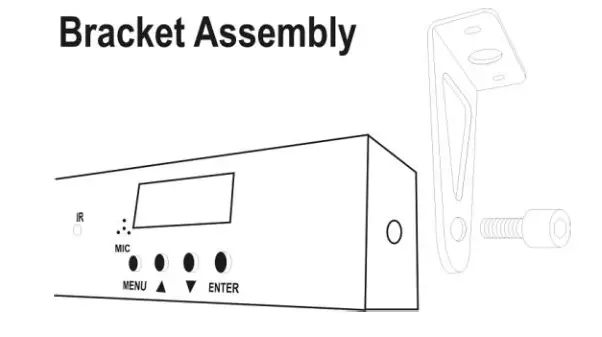

9. Hanging Brackets are included for permanent fitting on trusses (Truss attachments are not included) or screw to the ceilings. Attach the bracket with a screw onto the ends of the PAR bar as shown: –

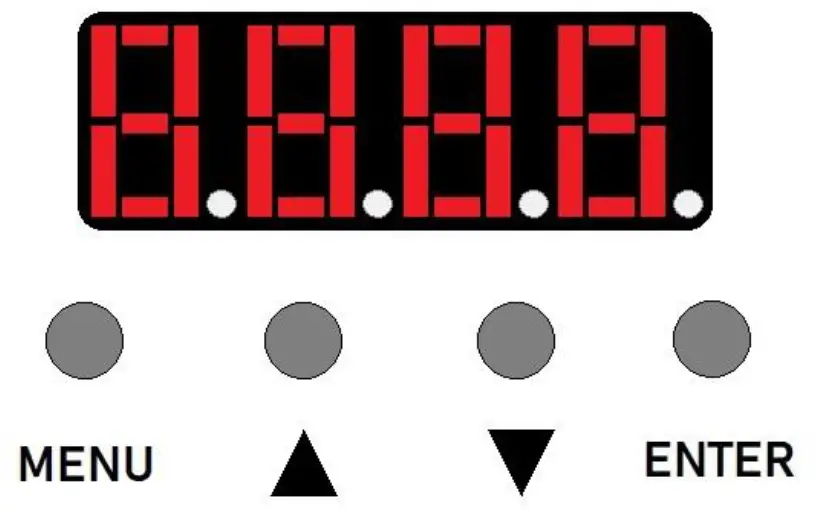

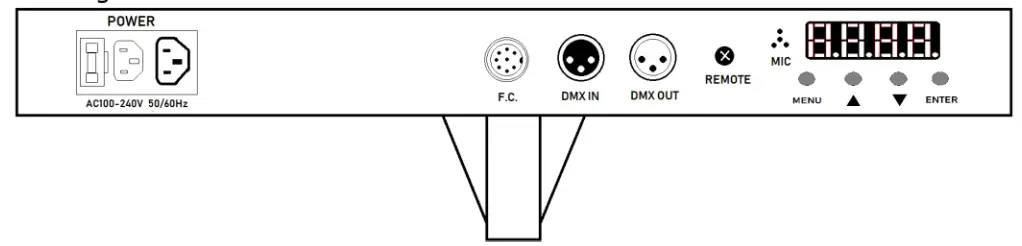

PAR Bar Mode Setting

When using the unit for the first time or resetting to default, it is recommended a factory default reset is performed.

Factory Default Setting: –

1. Press the MENU button once, the display will show.
2. Press the UP button once, the display will show.
3. Press the Enter button once, the display will show. This means that you have set the unit to the Default setting, the unit now is in Slave mode.

Function Menu Table

Below is a table showing the options and settings available for the PAR Bar, Press the MENU button once and you can scroll the function list in the order as shown. Press the Enter button once to access the range setting, then pressing the Up/Down buttons allow you to adjust the setting, press enter to select or Menu to exit.

Function	Display	Range	Feature
Address		A001-A512	DMX512 addressing
Channel		06ch 09ch 10ch 13ch	6 DMX Channels 9 DMX Channels 10 DMX Channels 13 DMX Channels
Show Mode		Sh01-sh04	Modes 1-4
Slave/Master		SL 1 MAst	Slave Mode Master Mode
Non DMX		auto soun Blac hold	Auto Sound Black Out Hold

Speed		SP01-SP99	Speed Adjust
Sensitivity		S001-S099	Sound Sensitivity
Mirroring		On/Off	Mirroring Mode
Display		On/Off	Display Reverse
Time		001H	Shows Working Time
Version		V1.1	Shows Software Version
Factory Default		A001	Enter Factory Default Setting

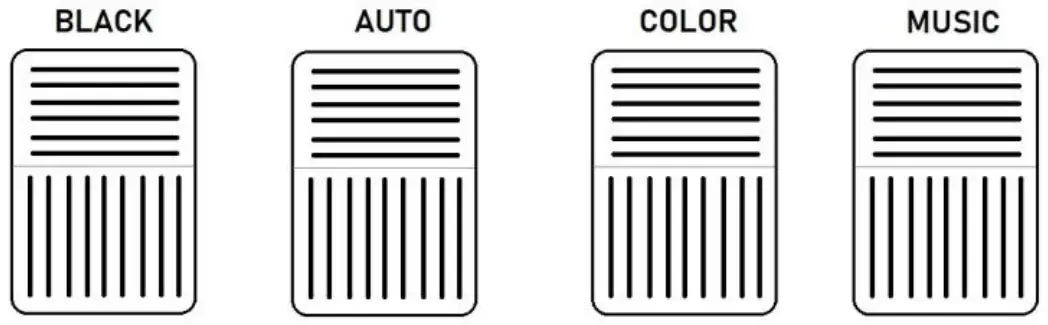

Foot Controller

To use the Foot Controller, it must be connected to the PAR Bar set as the Master and switch on the power at the back of the Foot Controller. When a DMX controller is connected to the PAR Bar it overrides the foot controller.

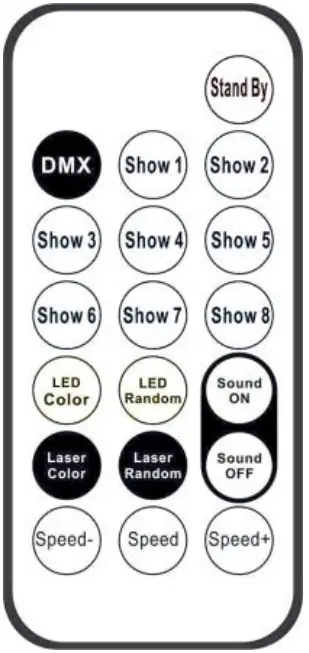

Remote Control

DMX Connection and Control

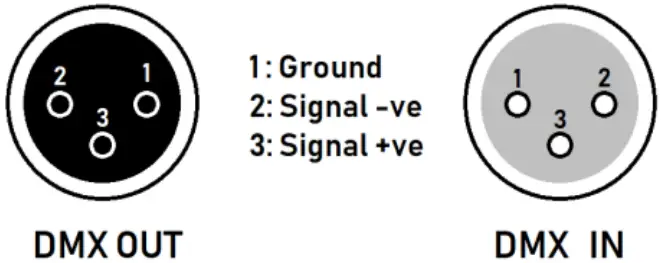

The PAR Bar can be connected as a daisy chain by using standard XLR cables. The units are labeled with DMX IN and DMX OUT –

Connect the DMX controller output to the DMX IN on the first unit. Then connect the first unit’s DMX OUT to DMX IN on the next unit, and so on if there are more units.  A DMX starting address must be assigned to each fixture; allowing the DMX controller to control each fixture individually. This fixture has 13 channels so the first unit should be assigned with an address of 001, the next unit should be 014 (13+1), and the next one at 027 (2×13+1), etc. All fixtures can be set to the same address, this way all connected fixtures will be acting in unison. Please refer to the DMX tables for the function and features.

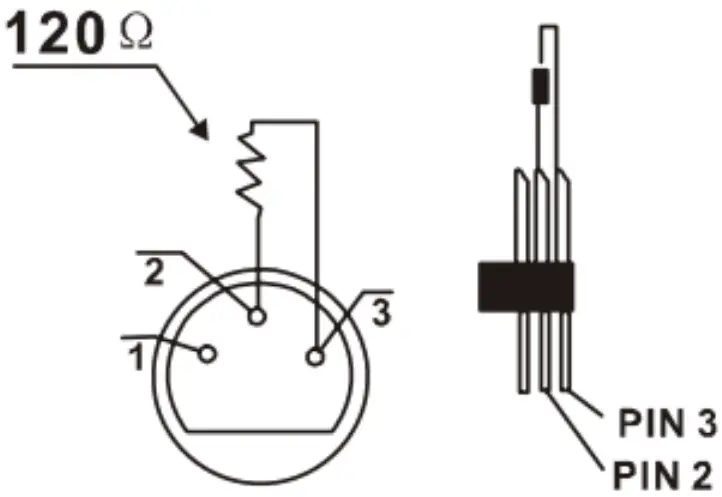

DMX Terminator

If there are many lines or lights, it is recommended to use a DMX terminator to prevent DMX signal corruption, the DMX terminator is a simple XLR plug with a 120 Ω  resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the last fixture in the chain.

DMX Control Table 6CH Mode

9CH Mode

10CH Mode

13CH Mode

This product is classed as Electrical or Electronic equipment and should not be disposed of with other
household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
