Instruction of RF5011
| A Phoenix Mecano Company | Issue Department: Bedding Division | Date: 1 2017-8-15 | |
| System Instruction | Author: | ||
| Instruction of RF5011 | Edition: | I 1.1 | |
| Page | 2 of 4 | ||

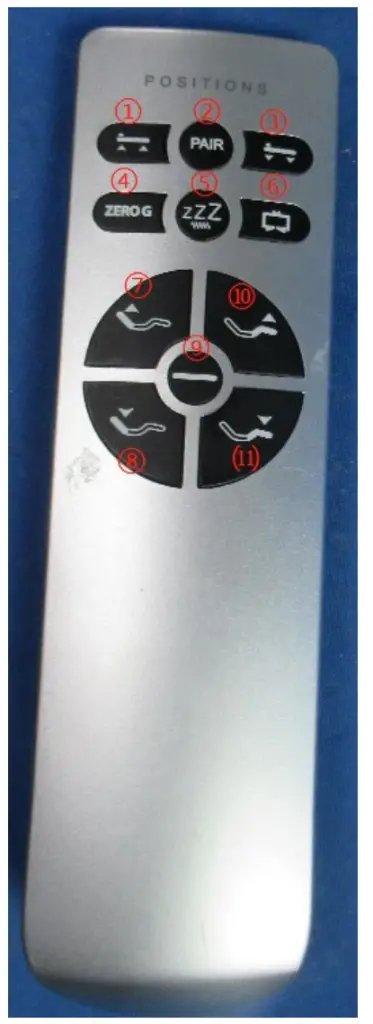

Figure 1 button of remote
1 Item
1.1 Stop snoring button ⑤
Click the Stop snoring button, the head actuator moves to the Stop snoring position, stop when clicking any button during the movement.
1.2 Head up ⑦
Press and hold the HEAD-UP button of the remote, the head actuator moves out, stop when released；
1.3 Head down ⑧
Press and hold the HEAD DOWN button of the remote, head actuator moves in, stop when released ；
1.4 Foot up ⑩
Press and hold FOOT UP button of remote, foot actuator moves out, stop when released;
1.5 foot down ⑾
Press and hold FOOT DOWN button of remote, foot actuator moves in, stop when released: When moving to a flat position, lumbar actuator and tilt actuator move first after 500ms, head and foot actuators start moving;
1.6 Flat ⑨
Click F L AT button, the bed goes flat, stop when clicking any button during the process of going flat ；
| A Phoenix Mecano Company | Issue Department: Bedding Division | Date: 1 2017-8-15 | |
| System Instruction | Author: | ||
| Instruction of RF5011 | Edition: | I 1.1 | |
| Page | 3 of 4 | ||
1.7 Memory location ④ ⑥
Click memory location to set the bed to the set location.
1.8 Pair ②
Click Pair for one second to pair the remote and bed.
1.9 Massage head ①
Click MASSAGE HEAD button, head massage motor switches massage intensity, massage intensity switches among 0-1-2-3 ；
1.10 Massage foot ③
Click MASSAGE foot button, head massage motor switches massage intensity, massage intensity switches among 0-1-2-3 ；
FCC Warning：
Please take attention that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
ISED RSS Warning:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
