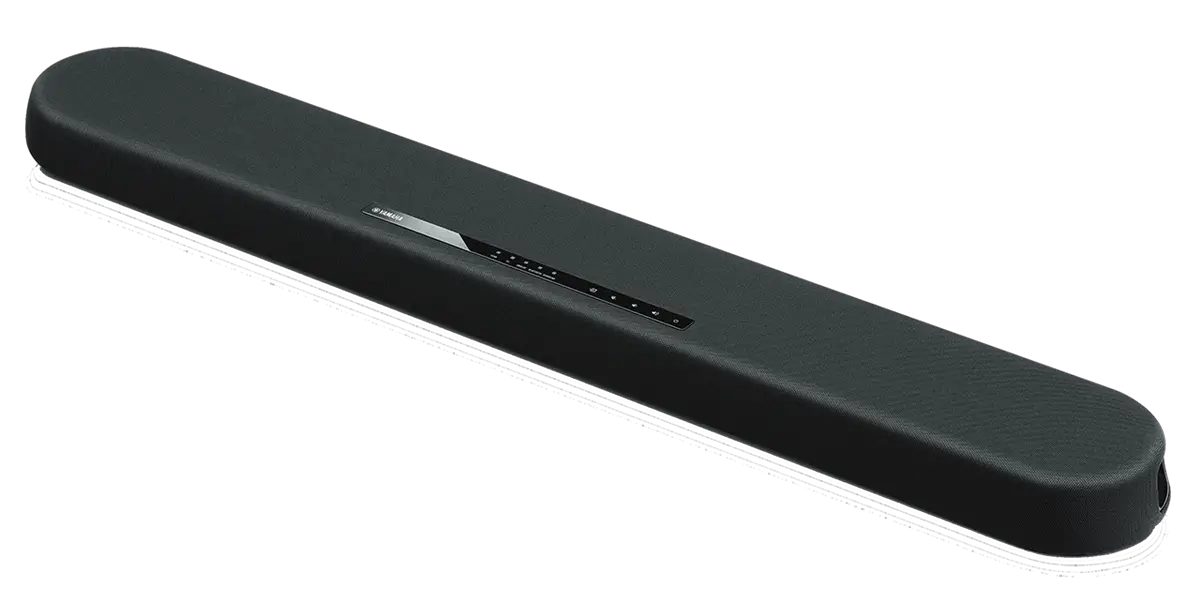

YAMAHA Enterprise Sound Bar

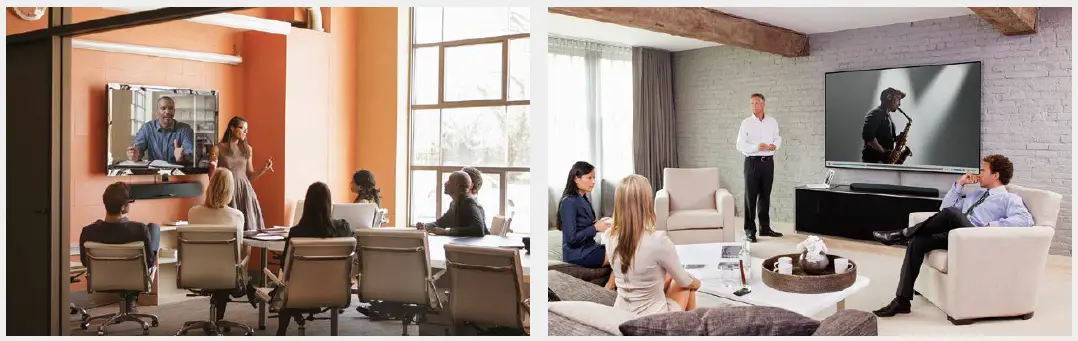

Main Use Cases
Remote conference
Speaker output enhances remote conferences in small to medium sized spaces.
Play and share content
Share content in a wide range of enterprise environments – lobby areas, reception or conference rooms.
Key Features
- Immersive feeling with clear, dynamic, full-range speaker output
- Conference mode’ preset optimized for conversation
- Integrates easily with any monitor, mobile or PC device
- Latest connectivity options, including HDMI®, Bluetooth, optical and analog audio
- Compact and elegant design
- Two built-in subwoofers and bass-reflex port
- Two dome tweeters and two woofers
- Can be wall-mounted, via its built-in keyholes, or placed on a cabinet or shelf
- Built-in gyroscope to optimize sound automatically whether positioned vertically or flat
Technical Specifications
| General | Drivers | 2-1/8″ cone woofer x 2, 3″ built-in subwoofer x 2, 1″ dome tweeter x 2 |
| Output Power | 120 W total power: 30 W x 2 + 60 W built-in subwoofer | |
| Power Supply | [U.S.A. and Canada models] AC 120 V, 60 Hz [Europe model] AC 110 to 240 V, 50/60 Hz [U.K. model] AC 230 V, 50 Hz | |
| Power Consumption | 27 W | |
| Standby Power Consumption | [U.S.A. and Canada models] 0.3 W (HDMI CEC standby off), 1.2 W (HDMI CEC standby on) [U.K. and Europe models] 0.4 W (HDMI CEC standby off), 1.2 W (HDMI CEC standby on) | |
| Dimensions (W x H x D) | Installing the unit in front of a TV, etc.: 890 x 53 x 131 mm (35″ x 2-1/8″ x 5-1/8″) Mounting the unit on a wall, with spacers: 890 x 131 x 62 mm (35″ x 5-1/8″ x 2-1/2″) | |
| Weight | 3.2 kg (7.1 lbs) | |
| Operating Environment | Temperature: 5 to 40ºC (41 to 104°F) Humidity: 30 to 90% (no condensation) | |
| Storage Environment | Temperature: -20 to +60ºC (-4 to 140°F) Humidity: 30 to 90% (no condensation) | |
| Accessories | The unit, Remote Control, Power cord, Optical digital audio cable, Mounting template, Spacers (*2/sheet), Owner’s Manual | |
| Others | Mode change: Conference mode, Hotel mode | |
| Decoder | Supported Audio Signal | PCM (up to 5.1ch) Dolby Digital (up to 5.1ch) DTS Digital Surround (up to 5.1ch) |
| Interface | Input Jacks | HDMI 1 (HDMI IN), Digital (Optical) 1 (TV), Analog (3.5 mm stereo mini) 1 (ANALOG) |
| Output Jacks | HDMI 1 (HDMI OUT (ARC)), Analog (RCA/monaural) 1 (SUBWOOFER OUT) | |
| Other Jacks | USB 1 (UPDATE, Mode change ONLY) | |
|
Bluetooth | Version: 5.0 Supported profiles: A2DP Supported codecs: SBC, MPEG-4 AAC Class: Bluetooth Class2 Range (line-of-sight): Approx. 10 m (33 ft) Supported content protection method: SCMS-T [U.K. and Europe models] Radio frequency (operational frequency): 2,402 to 2,480 MHz Maximum output power (EIRP): 20 dBm (100 mW) | |
| Compliance | Radio Interference Standard | FCC Class B |
| Safety | CB (IEC62368-1, EN62368-1, IEC60065, EN60065), UL (UL62368-1), DEMKO (EN62368-1), CE (EN62368-1) | |
| EMC | FCC (Part 15 Subpart B (SDoc)), ICES-003, CE (EN61000-3-2, EN61000-3-3, EN55035, EN55032) | |
| Radio | FCC (Part 15 Subpart C), RSS-247, CE (EN300328, EN62479, EN301489-1, EN301489-17) | |
| Environment | RoHS compliant | |
| Warranty | 2 years | |
