Product Description: Scroll Saw
Model Number: SS9503-00
Body Number: F950006001
Version: A
Issue Date: 2022/07/05

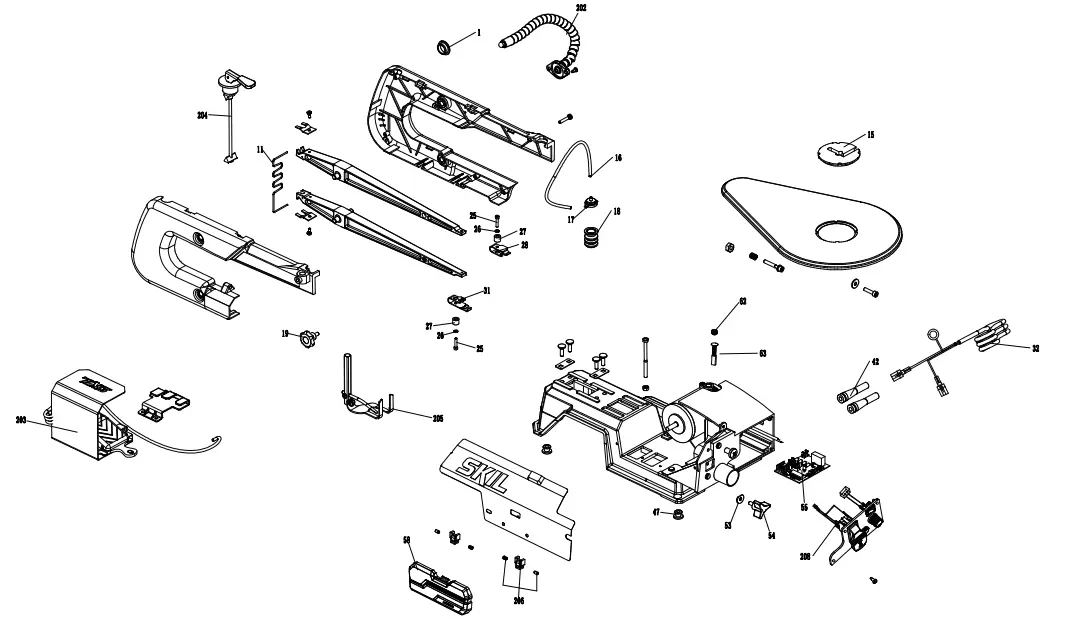

SS9503-00 Scroll Saw
| No. | Product Model# | Part Number | Description | Qty |
| 1 | SS9503-00 | 3134040001 | Oil seal cover | 4 |
| 11 | SS9503-00 | 3667836001 | Extension spring | 1 |
| 15 | SS9503-00 | 3134045001 | Workbench cover | 1 |
| 16 | SS9503-00 | 3134032001 | Tube | 1 |
| 17 | 559503-00 | 3134039001 | Bellow cover | 1 |
| 18 | 559503-00 | 3134046001 | Bellow | 1 |
| 19 | SS9503-00 | 3134038001 | Compression lever locking handle | 1 |
| 25 | SS9503-00 | 5610994001 | Hex socket screw-M4x20 | 2 |
| 26 | SS9503-00 | 5650993001 | Outer lock washer-4 | 4 |
| 27 | SS9503-00 | 3134034001 | Support pad cover (nylon) | 2 |
| 28 | SS9503-00 | 3708784001 | Blade upper bracket | 1 |
| 31 | SS9503-00 | 3708783001 | Saw blade bracket positioning plate assembly | 1 |
| 32 | SS9503-00 | 4810416001 | US plug power cord | 1 |
| 42 | SS9503-00 | 3134047001 | Power cord sheath | 2 |
| 47 | SS9503-00 | 3134033001 | Foot | 3 |
| 53 | SS9503-00 | 3134020001 | PVC washer | 1 |
| 54 | SS9503-00 | 3403440001 | Table locking handle | 1 |
| 55 | SS9503-00 | 4892673001 | Circuit board | 1 |
| 58 | SS9503-00 | 3134044001 | Tool box | 1 |
| 62 | SS9503-00 | 3134125001 | Carbon Brush Cap | 1 |
| 63 | SS9503-00 | 4960469001 | Carbon Brush | 1 |
| 202 | SS9503-00 | 4980032001 | Universal diode lamp assembly | 1 |
| 203 | SS9503-00 | 2829282001 | Foot switch protection kit | 1 |
| 204 | SS9503-00 | 2829280001 | Saw blade tightening assembly | 1 |
| 205 | SS9503-00 | 2829277001 | Foot assembly bracket | 1 |
| 206 | SS9503-00 | 2829278001 | Saw blade holder assy | 1 |
| 208 | SS9503-00 | 4870957001 | Switch panel assembly | 1 |
