Molift Mover 180
Quick guide (EN)

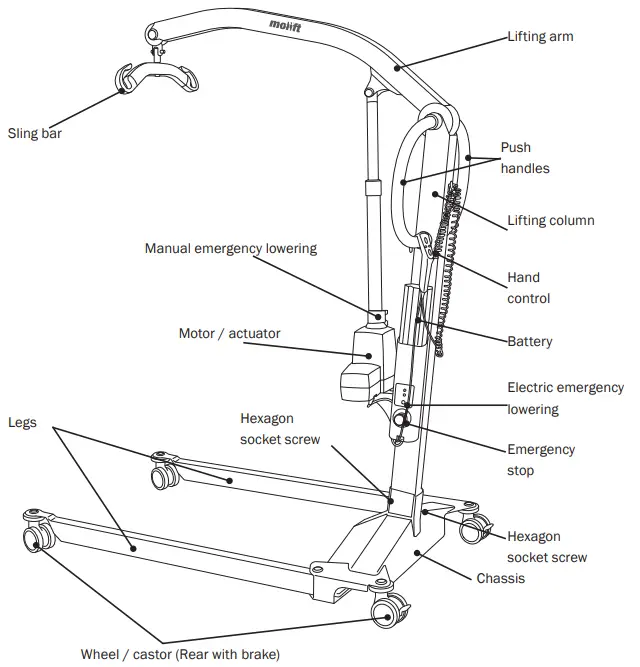

Mover 180 4-Point Spreader Bar
QG08101 Rev B 2022.10.17
Service Indicator | Mode |
| No light | Power saving (Stand by) |
| Green | Ready for use |
| Yellow | Order service |
| Red | Perform service |
| Red + sound | Perform service immediately |
Battery indicator | Mode |
| Light | Low battery |
| No light | Charged battery |
Important
Read user manual before use! This Quick guide does not replace user manual. It is important to fully understand the content of the user manual before attempting to use the equipment. Go to www.etac.com for latest version of the user manual.
Never exceed the Safe Working Load (SWL) of 180 kg (397 lbs).
If maximum load (SWL) differs between hoist and body support unit, then the lowest maximum load shall always be used. Molift hoists shall only be used to lift persons. Never use the hoist to lift or move objects of any kind.

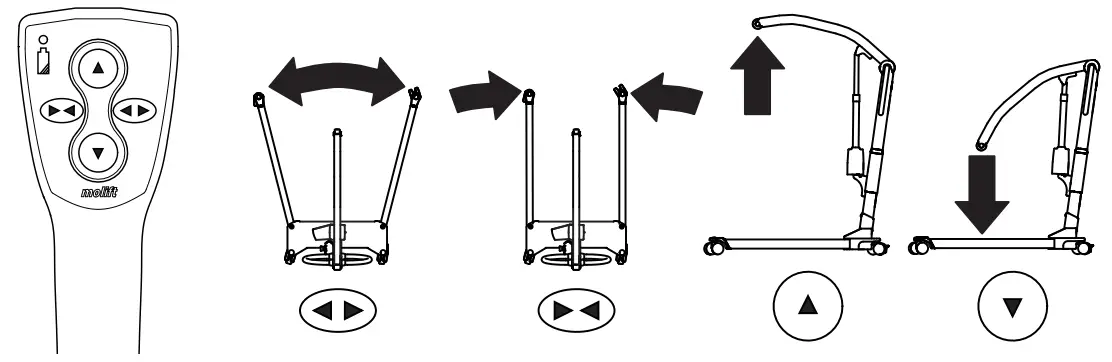

Handcontrol and opreation

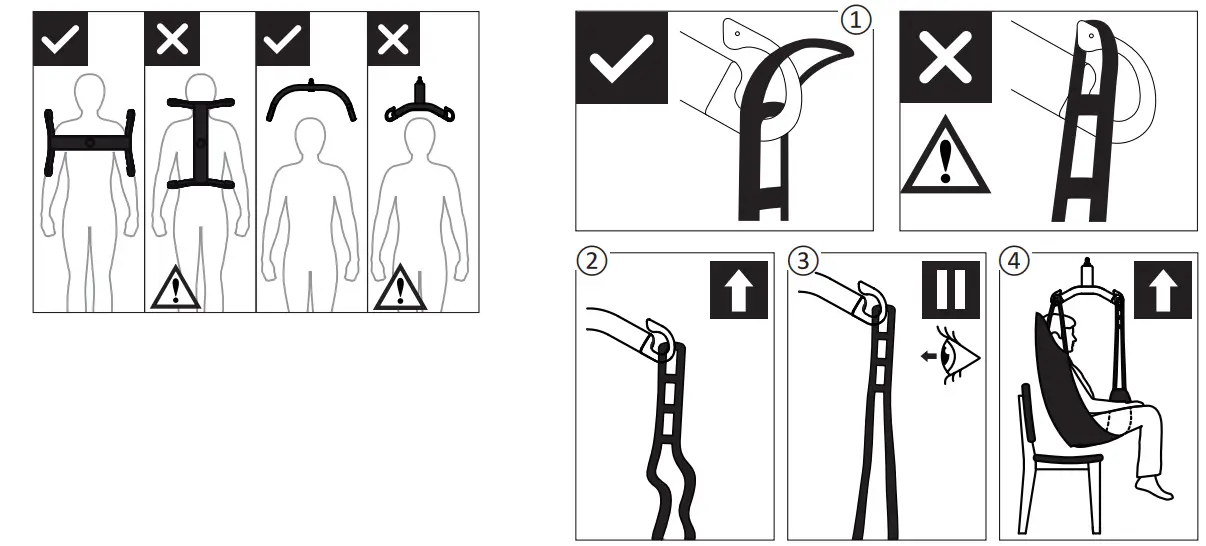

Sling bar placement and sling attachment
Never lift the user higher than necessary to carry out a lift. Remember that wheels on a mobile hoist must NOT be locked. The hoist shall not be used to lift or move users on sloping surfaces.

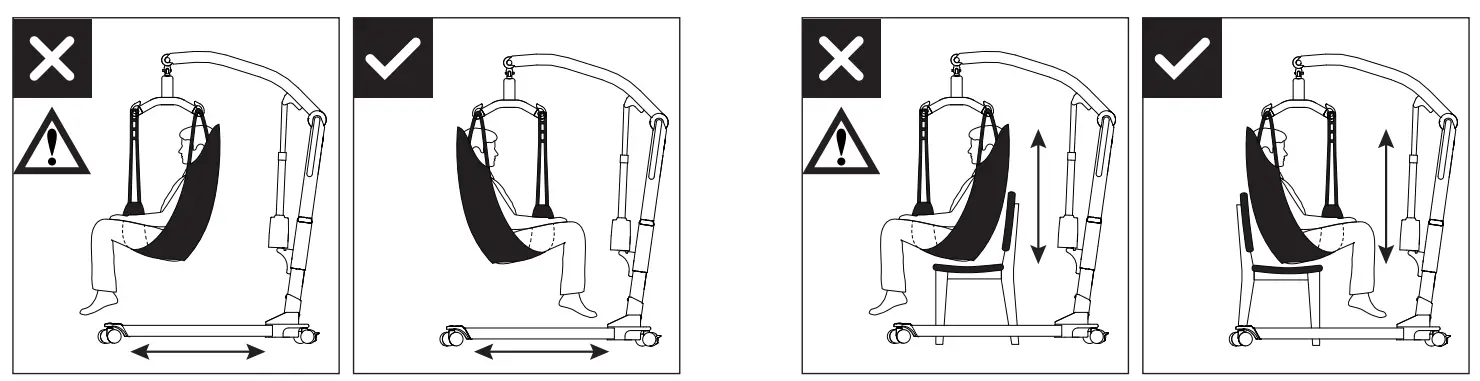

User positions for transfer and lowering
Do not push or pull the user, lifting arm or actuator.
This may cause stability problems and hoist may tip over.
Never leave a user unattended in a lifting situation.
Etac A/S Parallelvej 3
DK-8751 Gedved
www.etac.com
Molift Mover 180, Quick guide | QG08101 Rev. B | www.etac.com
