GIANT Contact SLR Trail Integrated Handlebar
INTRODUCTION
Intended for mountain bikes with an integrated cockpit, a steerer diameter of 1 1/8″ and external cable routing.

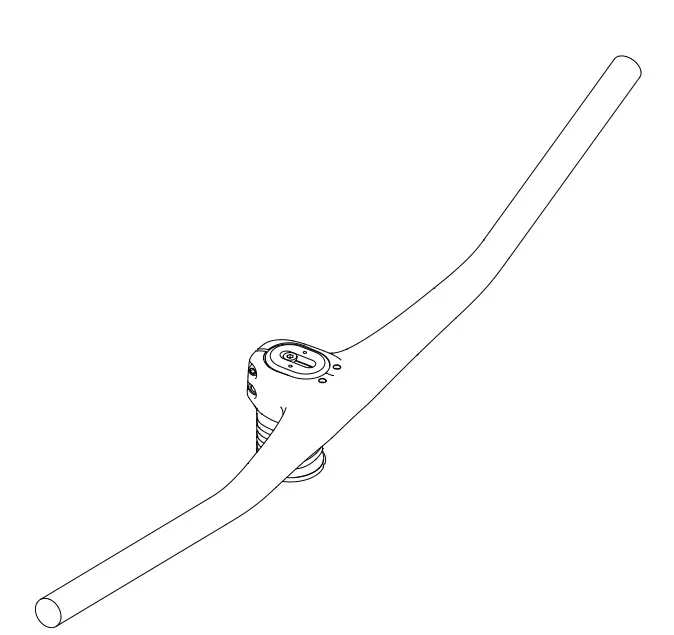

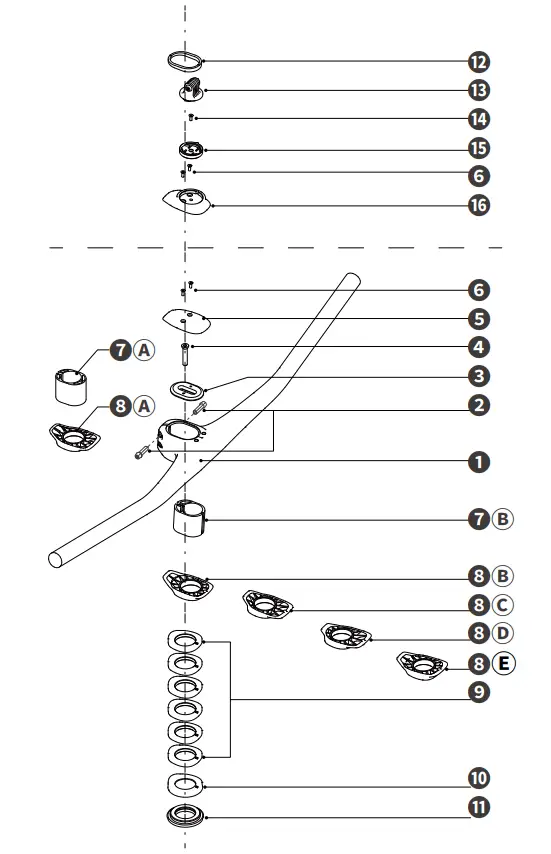

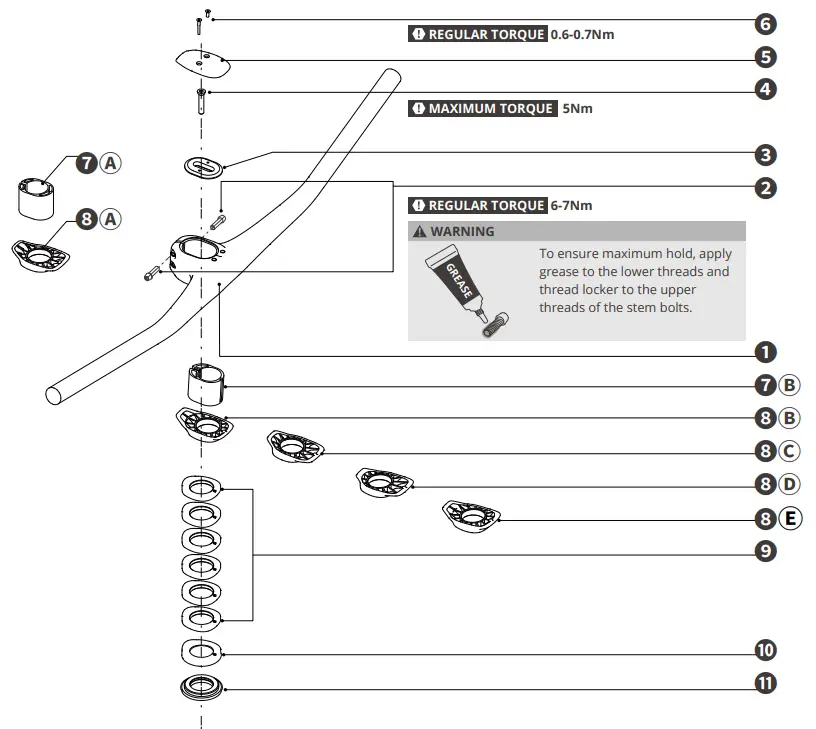

| INDEX | PARTS | SPEC | QTY |
| 1 | Handle bar | 1 | |
| 2 | Ti stem bolt | M6x20mm | 2 |
| 3 | Top cap | 1 | |
| 4 | Bolt | M6x32mm | 1 |
| 5 | Top cover | 1 | |
| 6 | Bolt | M3x8mm | 2 |
| 7A | One piece sleeve | 45mm/0° | 1 |
| 7B | Two pieces sleeve | 40mm & 50mm/±3° | 1 |
| 8A | Angle spacer | 45mm/0° | 1 |
| 8B | Angle spacer | 40mm/-3° | 1 |
| 8C | Angle spacer | 50mm/-3° | 1 |
| 8D | Angle spacer | 50mm/+3° | 1 |
| 8E | Angle spacer | 40mm/+3° | 1 |
| 9 | Mid spacer | 6 | |
| 10 | Con spacer | 1 | |
| 11 | Dust wiper | 1 | |
| 12 | Height adjust spacer | 40mm& 50mm/±3° | 1 |
| 13 | Camera mount | 1 | |
| 14 | Bolt | M3x8mm | 1 |
| 15 | GPS mount | 1 | |
| 16 | Top cover for GPS mount | 1 |
INSTALLATION
For full installation and safety instructions please use the QR codes below:
VIDEO TUTORIALS:
https://myagi-2.wistia.com/medias/1tkqskn1gj
WEB PAGE:
https://www.giant-bicycles.com/global/showcase/contact-slr-trail-integrated-bar

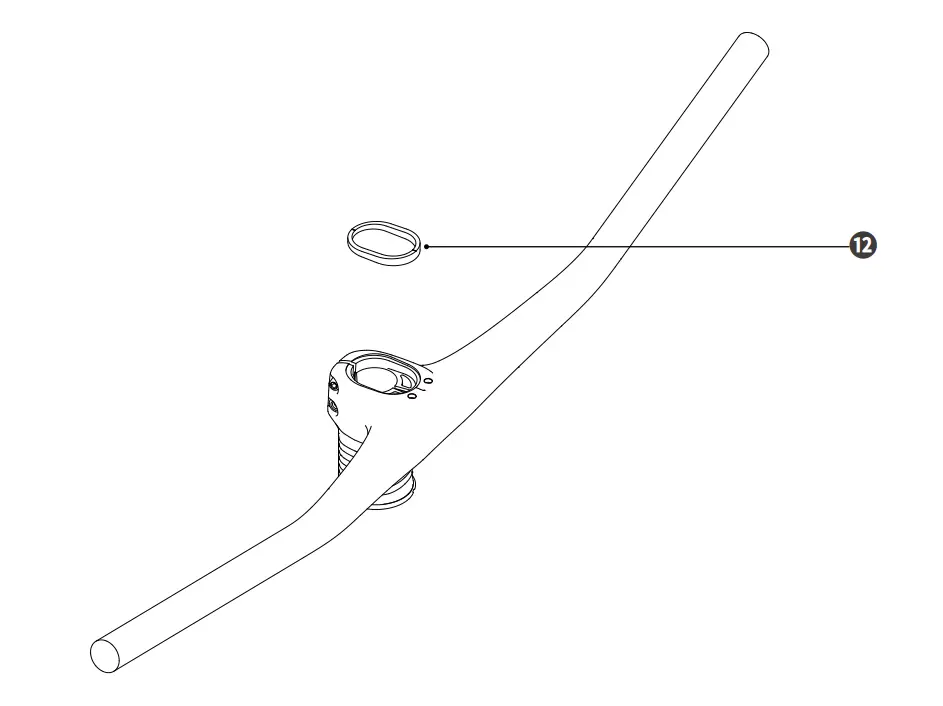

SPACER FOR MEASURING BEFORE CUTTING THE STEERER TUBE (40MM/50MM ±3° EXCLUSIVE)

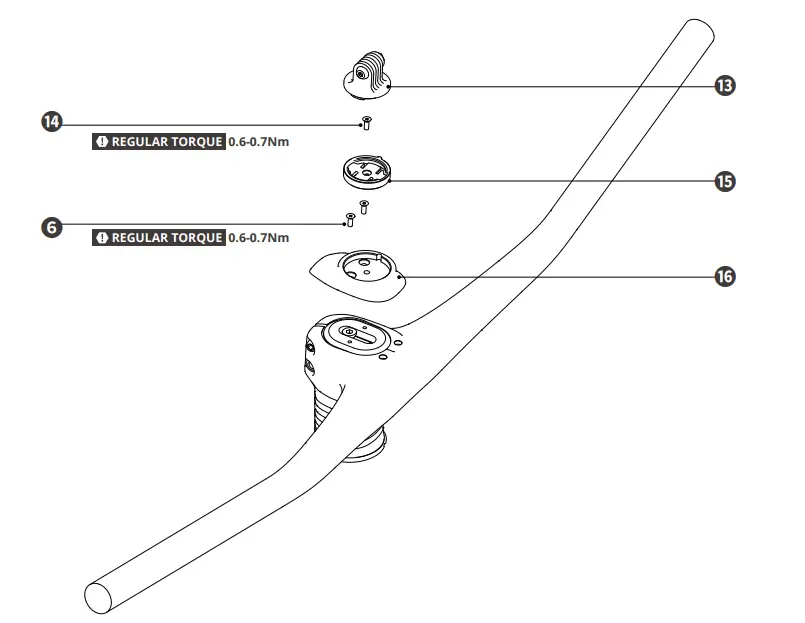

GPS MOUNT INSTALLATION
