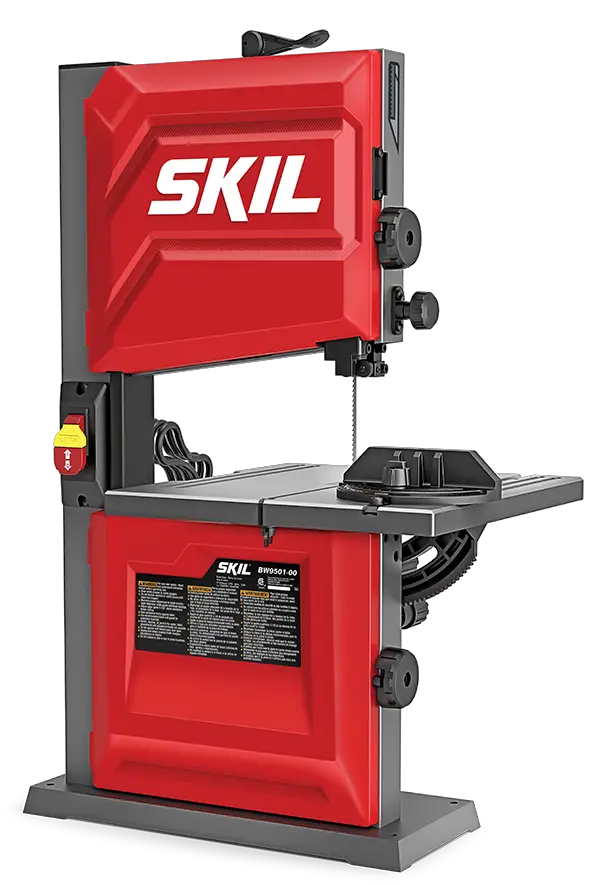

SKIL BW9501-00 Band Saw
SPECIFICATION
- Product Description: Band Saw
- Model Number: BW9501-00
- Body Number: F950005001
- Version: A
- Issue Date: 2022/11/28

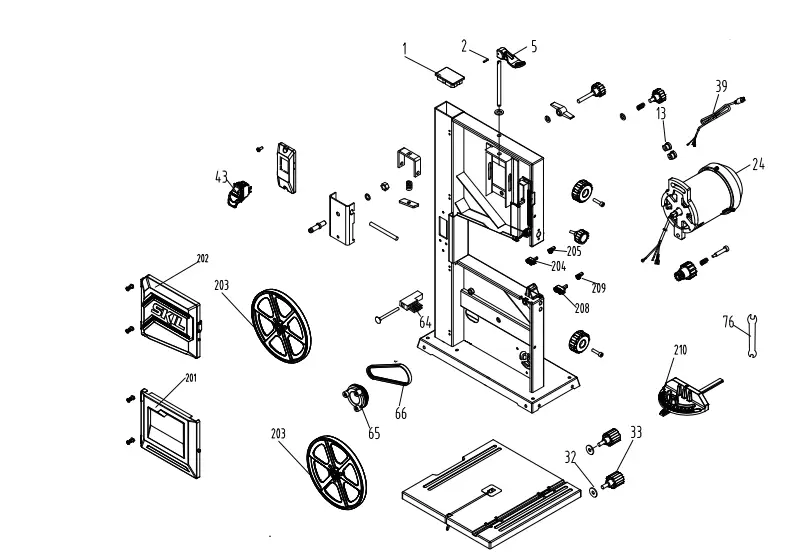

PARTS
| No. | Product Model# | Part Number | Description | Qty |
| 1 | BW9501-00 | 3134012001 | Plug | 1 |
| 2 | BW9501-00 | 5670691001 | Elastic Cylindrical Pin | 1 |
| 5 | BW9501-00 | 3134011001 | Quickly Tighten Handle | 1 |
| 13 | BW9501-00 | 3134021001 | 6p4 Line Card | 2 |
| 24 | BW9501-00 | 2710172001 | Motor | 1 |
| 32 | BW9501-00 | 5650978001 | Big Flat Washer | 2 |
| 33 | BW9501-00 | 3134052001 | Table Locking Handle | 2 |
| 39 | BW9501-00 | 4810407001 | Power Cord | 1 |
| 43 | BW9501-00 | 4870955001 | Switch | 1 |
| 64 | BW9501-00 | 3800219001 | Brush Assy | 1 |
| 65 | BW9501-00 | 3570368001 | Driven Pulley | 1 |
| 66 | BW9501-00 | 3800216001 | V Belt | 1 |
| 76 | BW9501-00 | 5680354001 | Fork Wrench | 1 |
| 201 | BW9501-00 | 2829256001 | Lower Door Assy | 1 |
| 202 | BW9501-00 | 2829261001 | Upper Door Assy | 1 |
| 203 | BW9501-00 | 3570363001 | Pulley Assy | 2 |
| 204 | BW9501-00 | 2829260001 | Upper Conductor Assy | 1 |
| 205 | BW9501-00 | 2829259001 | Upper Support Bearing Assy | 1 |
| 208 | BW9501-00 | 2829257001 | Lower Conductor Assy | 1 |
| 209 | BW9501-00 | 2829288001 | Lower Support Bearing Assy | 1 |
| 210 | BW9501-00 | 2829287001 | Miter Gauge Assy | 1 |
