mucheln 52mm and 63mm Rosette Roller Mortise

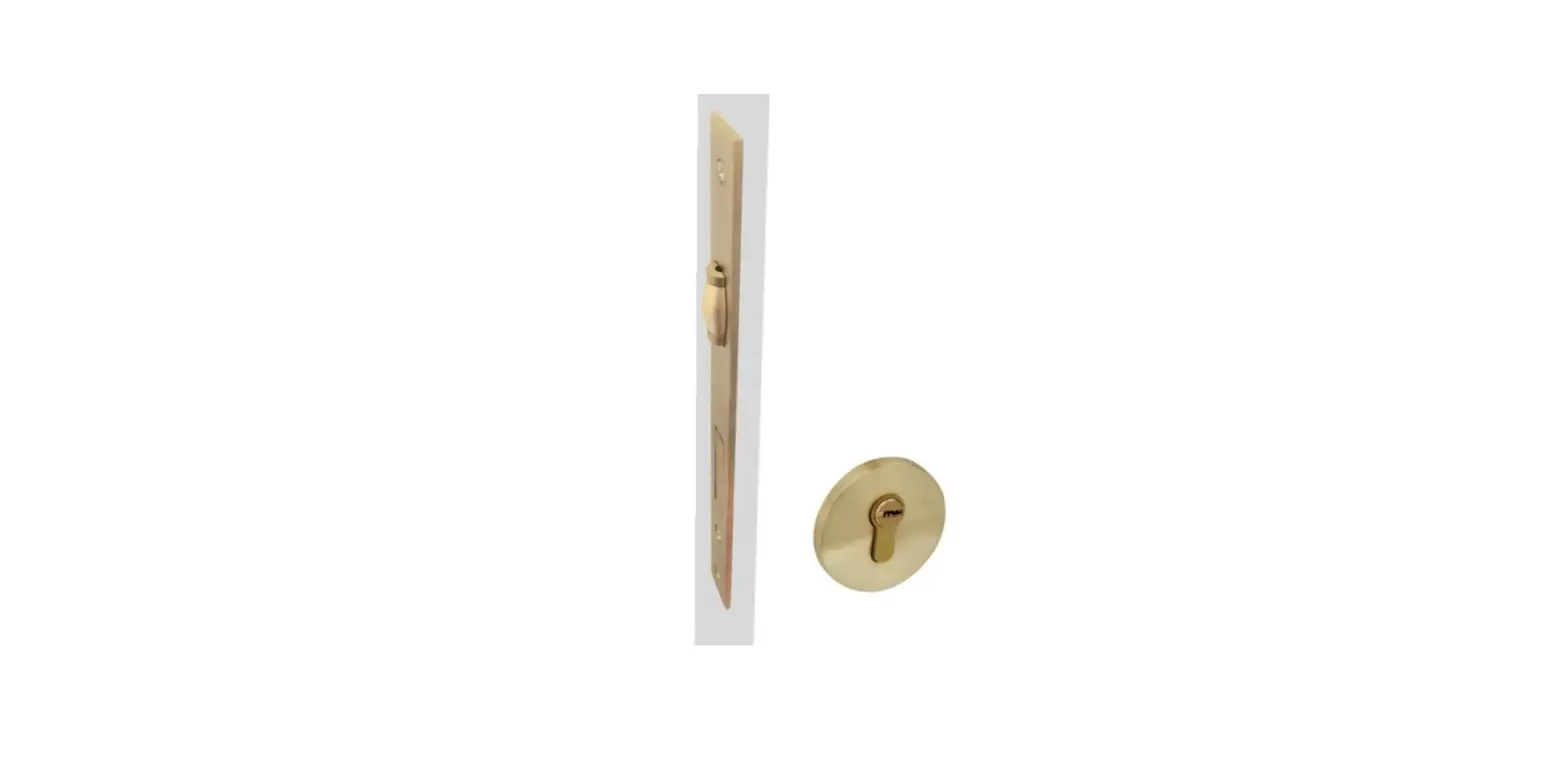

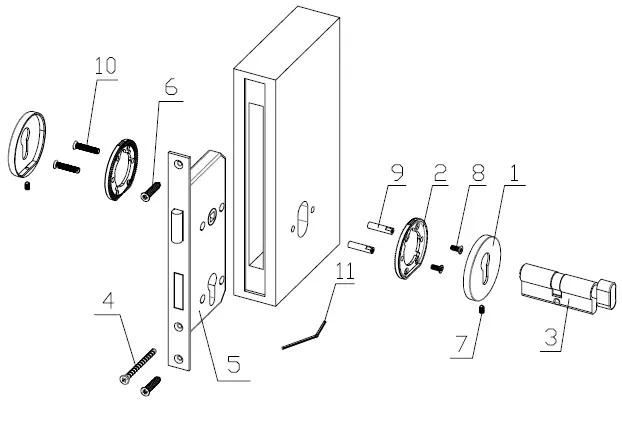

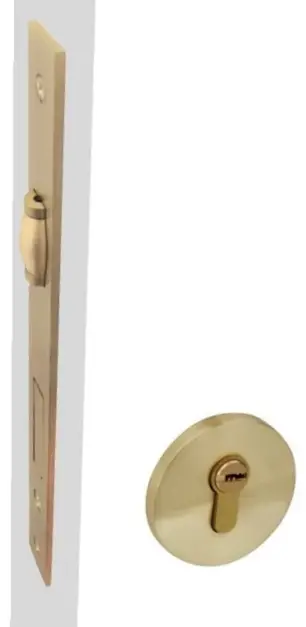

Structure Diagram
Accessories List
| No. | Name | Specification/mm | Qty(pcs) | Accessories |
| Escutcheon | 2 | |||
| 2 | Spring Mechanism | 2 | ||
| 3 | Cylinder | European Standard | ||
| 4 | Cylinder Screws | |||
| 5 | Mortise | |||
| 6 | Screws | 2 | ||
| 7 | Allen Screws | M4x6 | 2 |
Screw Packages |
| 8 | Connecting Screws | M4x1O | 2 | |
| 9 | Studs | 0 6xM4x35 | 2 | |
| 10 | Connecting Screws | M4x28 | 2 | |
| 11 | Allen Wrench | 02 | ||
| door thickness: 35 – 45mm | ||||
Installation

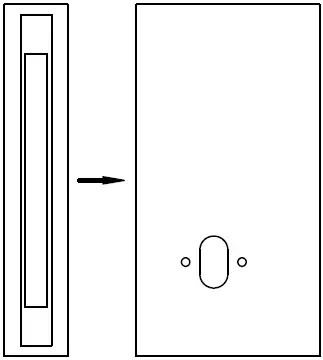

- Follow the Installation Specification and drill the hole for the rosette and escutcheon.

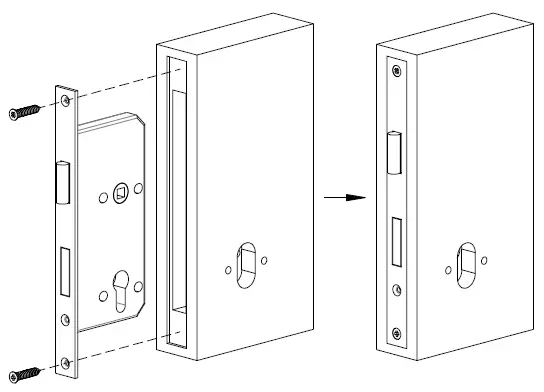

- lnstall the mortise with the wood screws.

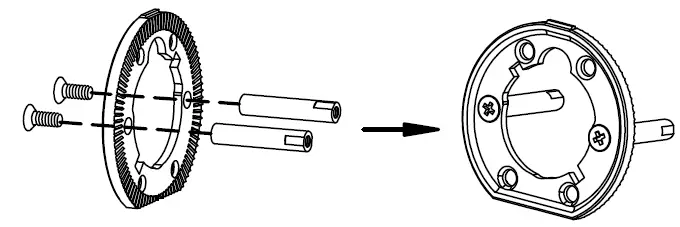

- lnstall M4*10 connecting screws and cp6xM4x35 studs through the inner rose.

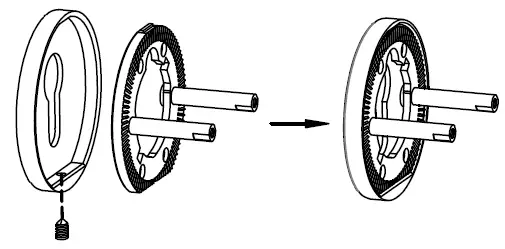

- Connect the inner rose with the escutcheon, and use the cp2 Allen Wrench to fasten the M4*6 Allen screws.

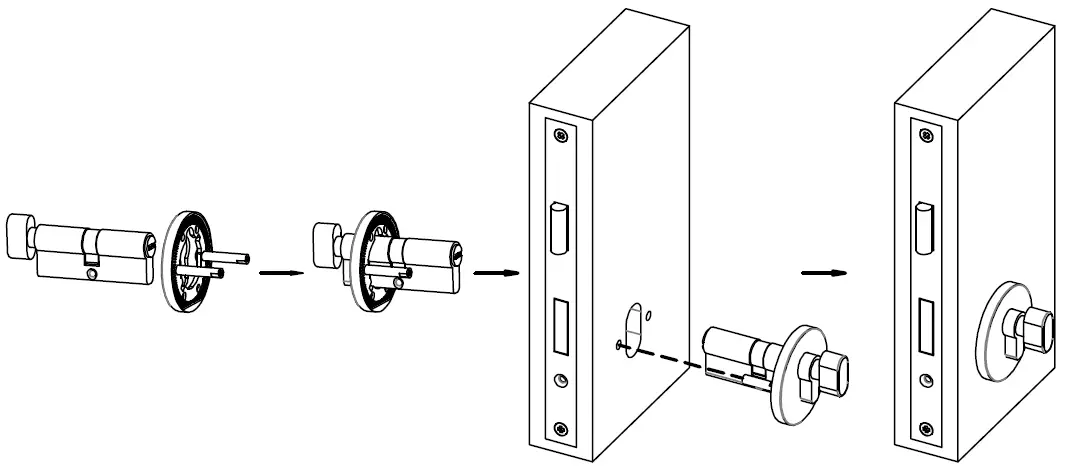

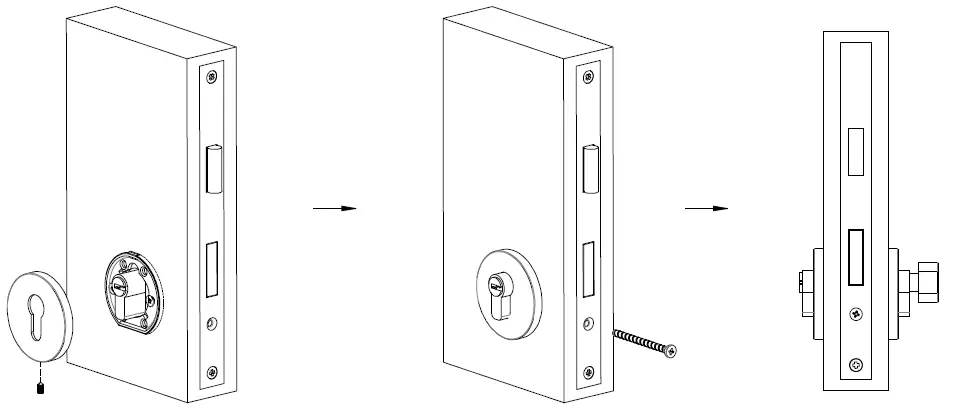

- insert the escutcheon through the cylinder, then insert the cylinder into the mortise.

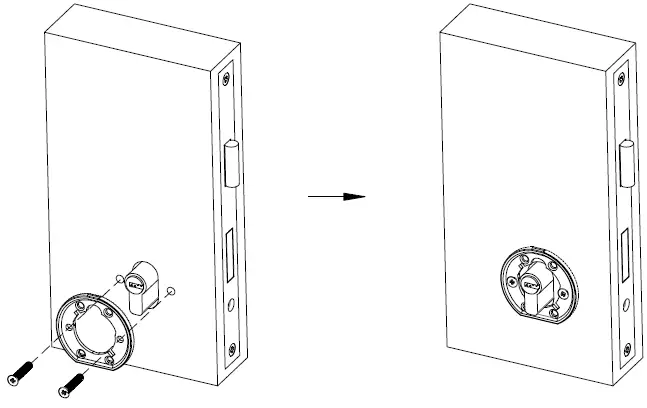

- On one side, install the inner rose, adjust the position and stabilize with the M4x28 connecting screws.
- Attach the escutcheon to the inner rose, use the cp2 Allen Wrench to fasten the M4x6 Allen screws, then install the cylinder screws.
- Place the striker plate on the door jamp ensuring it is correctly located relative to the mortise. Mark this position, then chisel and drill out the striker cutout.
