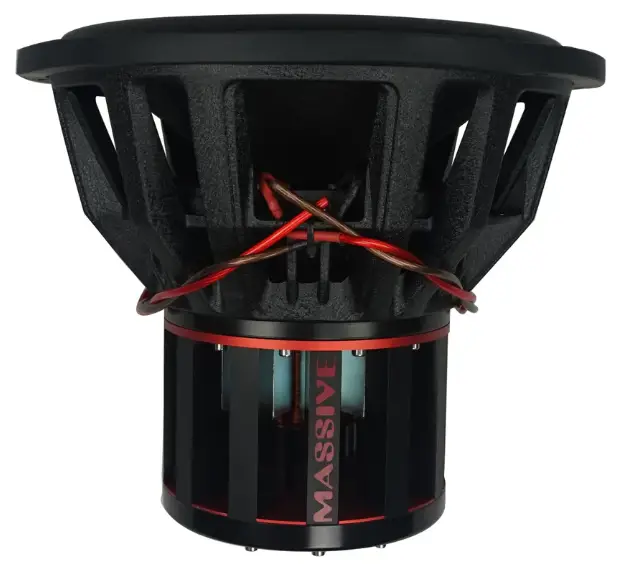

MASSIVE AUDIO BOA151 15 Inch Subwoofer 6,000 Watts RMS Dual 1 Ohm Mega Subwoofer

SPECIFICATIONS

	BOA 121	BOA 151	BOA 181	BOA 121N	BOA 151N
Mounting Depth(A)	10″	11.26″	12.56″	10.75″	11.93″
Mounting Diameter(B)	12.48″	16.22″	18.45″	12.52″	16.26″
Mounting cut Diameter(C)	11.02″	14.06″	16.79″	11.1″	14.17″
Net Weight(lb)	77.2	81.6	93	50.7	55.1
Displacment(ft3)	0.232	0.424	0.31	0.253	0.457

	BOA 121		BOA 151		BOA 181		BOA 121N		BOA 151N
SEALED	Small	Large	Small	Large	Small	Large	Small	Large	Small	Large
Volume(cub.ft)	2.77	3.48	4.8	6.12	5.41	7.09	2.74	3.44	4.6	6.02
Intermal Dimensions(in.)
(width×Height×Depth)	17×16.6×17	18.1×17×19.5	20.4×20×20.4	21.5×20.8×23.6	25.6×21.6×17.7	29.5×21.6×19.7	17×16.6×16.7	18.1×17×18.8	20.4×20×19.5	21.5×20.8×22.8
F3 Hz	41	40	33	32	106.6	107.2	42	41	41	40
Qtc	0.707	0.707	0.707	0.707	0.202	0.194	0.707	0.707	0.707	0.707

PORTED	Small	Large	Small	Large	Small	Large	Small	Large	Small	Large
Volume(cub.ft)	2.96	3.81	5.08	6.44	7.05	9.25	2.85	3.76	4.88	5.84
Internal Volume(W×H×D)	18.1×16.6×17	18.9×17.4×20	21.1×20.4×20.4	21.9×21.1×24	27.6×23.6×19.7	30.7×23.6×22.8	18.1×16.6×16.718	.9×17.4×19.5	21.1×20.4×19.7	21.9×21.1×23.5
Fb Hz	35	30	30	27	17.28	15.64	36	31	35	29
Cabin Gain dB/Hz
Port round(D×L)	4.72×9.98	4.72×14.64	4.72×8.75	3.6×6.7	3.94×12.28	3.94×11.14	4.72×9.98	4.72×13.64	4.72×8.95	3.6×7
Port Area sq.in.	17.52	17.52	17.52	17.52	12.19	12.19	17.52	17.52	17.52	17.52

Dual Sub Box Ported	Small	Large	Small	Large	Small	Large	Small	Large	Small	Large
Volume(cub.ft)	5.41	6.82	9.41	11.9	15.81	20.8	5.39	6.72	9.35	11.57
Internal Volume(W×H×D)	33.1×16.6×17	33.9×17.4×20	39.1×20.4×20.4	39.9×21.5×24	47.2×23.6×25.6	57.1×23.6×27.6	33.1×16.6×16.7	33.9×17.4×19.5	39.1×20.4×19.7	39.9×21.5×23.5
Port (1)Sq.area.in.	17.52	17.52	17.52	17.52	12.19	12.19	17.52	17.52	17.52	17.52
Port Length	11.25	8.31	8.18	9.66	10.94	10.00	10.25	7.33	7.19	8.96
Fb Hz	35	30	30	25	16.62	14.93	41	35	38	33

The port may have to be placed along the back wall facing the side. Place a brace between the subs about 4 inches wide on the inside. Make sure that the end of the port “inside the box” is at least the same distance away from the back wall as the port diameter. lf port is 4″ round 4.5″ from wall

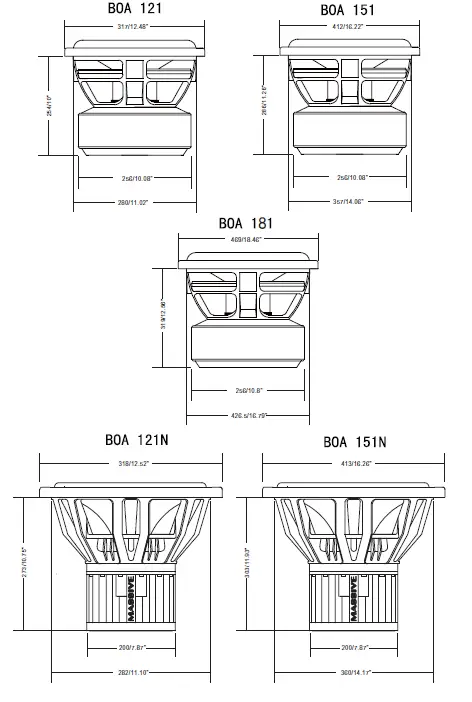

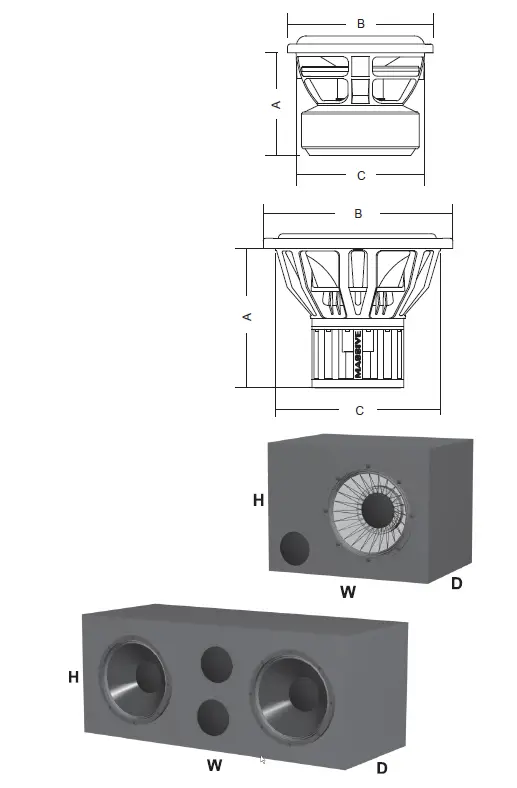

DIMENSIONS

Attention:

Box sizes account for driver and port displacement
For higher SPL shortning the port length 3 in. will rise frequency +/- 5 Hz
Box specifications are internal. for external dimensions add the width of the box material to these dimensions.
A square port (slot) is prefered in high power applications for less vent noise.
Port area = width x height
For dual speaker, double the volume and the number of ports but keep the same length.
if possible use a divided box.
If a commom chamber box is to be used, internal bracing is highly recommended
Please contact Massive Audio for custom applications.

General Features

Heavy Duty, Rugged Industrial Textured Cast Aluminum Basket.
A 12 Lens Grade 52 Neodymium Open Motor Design(BOA121N,BOA151N)
High Energy Triple Stack Strontium Magnet Structure. (BOA121,BOA151)
3” Dual Impedance Black Anodized Voice Coil Former With Flat Windling Wires(BOA121N,BOA151N)
4” Dual Impedance Black Anodized Voice Coil Former With Kevlar Spunlace (BOA121,BOA151)
Kevlar Fiber Reinforced Non-Pressed Paper Cone with Industrial Textured Finish.
Red Stitched Edge to the Cone for Added Strength.
Over Sized Mirror Image 6 Layers Poly/Nomex Spiders
Black Anodized One Piece Pole-Plate for Added Motor Force.
Heavy Duty Direct Input Wires Connection to Voice Coils.
Reinforced Fiberglass Woven Dustcap for High Power Applications.
Custom Tooled Rubber Gasket and Magnet Boot. (BOA121,BOA151)

Specifications

CONFIGURATION		BOA 121			BOA151			BOA181			BOA 121N			BOA 151N
Voice Coil		Dual 1 ohm			Dual 1 ohm			Dual 1 ohm			Dual 1 ohm			Dual 1 ohm
FS	Hz	39			34			30			56			42
Qms		7.08			6.69			8.471			2.2			2.1
Vas	liters	11.8			35.5			89.54			17			25
Cms	um/N	40.7			43.8			49.4			22.7			25.8
Mms	g	401.2			473.9			570			35.1			529
[email protected]/1m	dB	88			90			99			90			92
Watts RMS	W	6000			6000			6000			6000			6000
Peak Power	W	12000			12000			12000			12000			12000
Xmax	mm	25			25			25			13			13
Magnet Weight	oz	475			475			475			108			108
Xmech	mm	62.5			62.5			37.5			46.5			46.5
Dia	mm	244			315			379.3			260			325
Sd	sq.m	0.045			0.075			0.113			0.054			0.075
Vd	liters	2.48			6.78			2.825			2.48			6.78
ELECTRICAL		indlvidual	Parallel	Series	indlvidual	Parallel	Series	indlvidual	Parallel	Series	indlvidual	Parallel	Series	indlvidual	Parallel	Series
Qes		1.06	0.62	0.61	1.23	0.64	0.67	0.39	0.18	0.215	0.398	0.19	0.202	0.39	0.195	0.228
Re	ohms	0.9	0.5	1.9	1	0.5	2	1	0.5	2	0.9	0.5	1.9	1	0.5	2
Le	mH	0.57	0.58	0.59	0.57	0.58	0.6	0.57	0.58	0.6	0.39	0.39	1.88	0.403	0.409	1.988
BL	Tm	9.2	8.9	17.6	9.2	9.4	17.5	16.6	17.29	31.59	17	18	33	19.12	18.63	34.81
Pe	Watts	3000	6000	6000	3000	6000	6000	3000	6000	6000	3000	6000	6000	3000	6000	6000
ELECTROMECANICA
Qts		0.92	0.57	0.56	1.04	0.59	0.62	0.373	0.176	0.21	0.338	0.172	0.204	0.33	0.176	0.21
no	%	0.07	0.11	0.11	0.12	0.21	0.22	0.598	1.279	1.082	0.41	0.845	0.464	0.49	1.012	0.836
1-W-SPL	dB	87	88.5	88.7	88	89	89.5	89.91	93.28	92.49	88	88.7	89	89	92.6	92
2.8V SPL	dB	88	88.8	88.9	88.5	89.6	90	98.95	105.3	98.51	89.8	89.6	89.8	90	93	92.7
